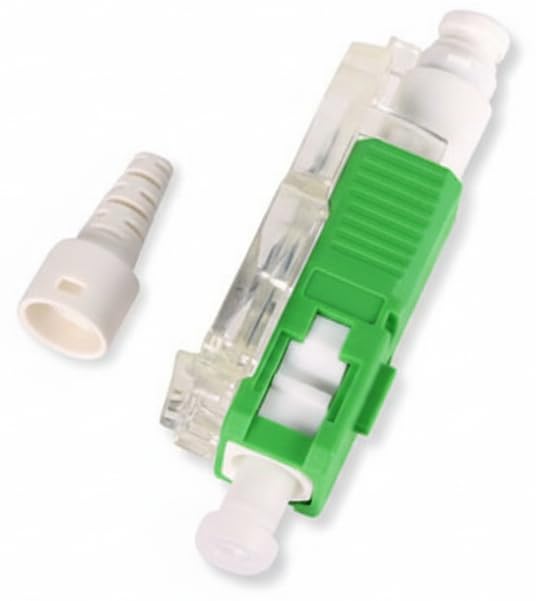

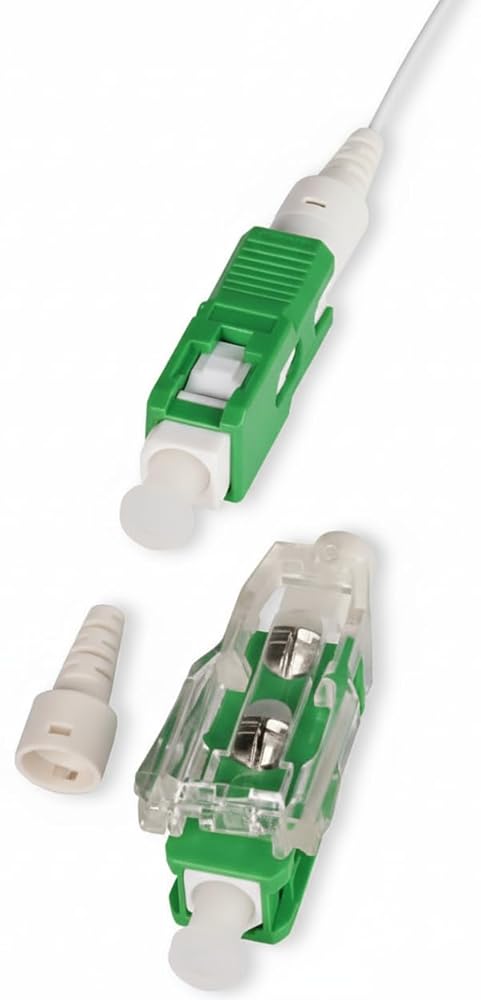

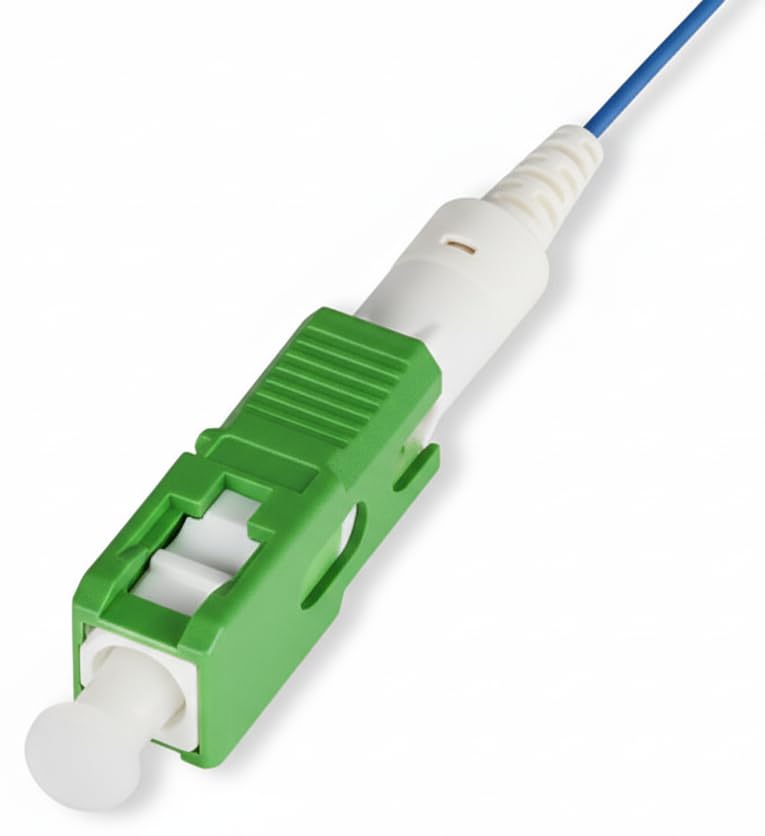

The OCC Xpress Ultra RFC-SCAPC is a professional-grade, pre-polished SC/Angled fiber optic connector engineered for fast and easy field installation. Whether you are working on FTTH deployments, emergency repairs, or enterprise network builds, this connector eliminates the need for epoxy and polishing, significantly reducing installation time and tool requirements.
This single-unit pack comes in a convenient polybag with a hang hole, making it easy to store in a technician's kit or display in a retail environment. The reusable termination feature provides peace of mind, allowing installers to re-terminate the fiber if the initial connection isn't optimal.
Key Features:Fast Field Termination—No Epoxy, No Polishing
High-Performance Mechanical Splice
Versatile Fiber Support (250/900µm)
Reusable termination capability, allowing for adjustments during installation to ensure perfect performance
RoHS compliant, UL94-V0 flammability rated, and TIA/EIA 568-C.3 compliant

Specifications:Connector Type: SC/Angled(Green)
Fiber Type: Singlemode (SM)
Termination: Pre-polished Mechanical Splice
Fiber Compatibility: 250µm Bare Fiber & 900µm Tight Buffer
Optical Performance: 0.3dB Typical Insertion Loss / -55dB Typical Return Loss
Ferrule Material: Zirconia Ceramic
Operating Temperature: -40°C to +75°C (-40°F to +167°F)
Standards Compliance: RoHS, UL94-V0, TIA/EIA 568-C.3
Package Contents: (1) OCC Xpress Ultra SC/APC Connector, (1) 900 Micrometer Boot, (1) Set of Installation Instructions
UPC: 769555060531
Packaging: Polybag with Hang Hole
Unit Dimensions: 1.94 x 0.35 x 0.32 Inches
Unit Weight: 0.01 Pounds
Package Dimensions: 7.17 x 3.98 x 0.39 Inches
