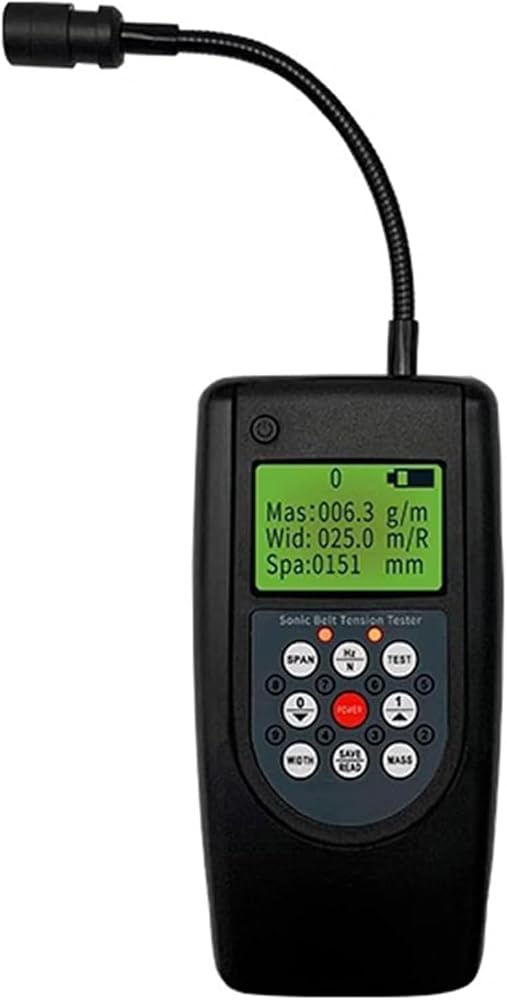

Belt Tension Meter, Acoustic Tensionmeter with LCD Backlit Display and Adjustable Probe, Frequency Range 10Hz-680Hz for Multi-Ribbed V Belts

SAR 2,323
– 1 +

Special Features

  • Belt Tension Meter: This device allows for accurate measurement and adjustment of belt tension in motors and various machinery, featuring the option to display results in two different units for versatility.

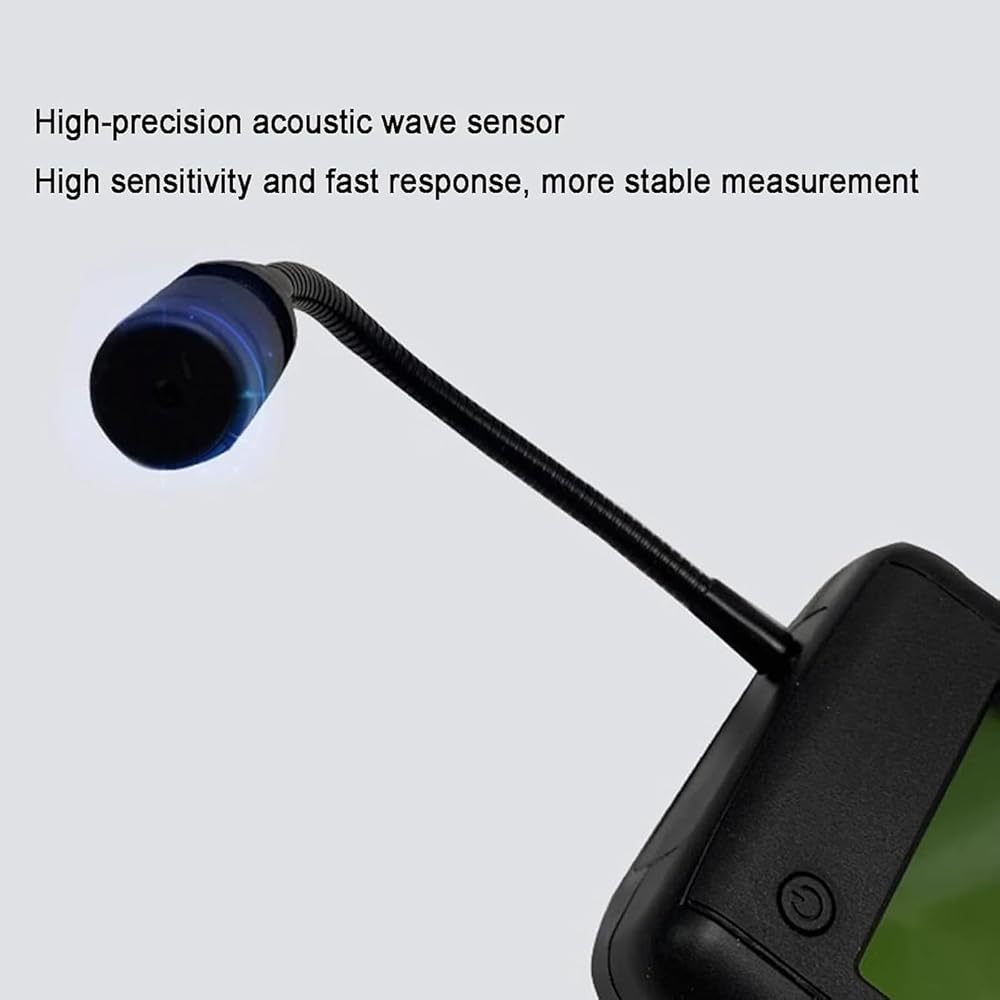

  • Precision Measuring Head: Equipped with a high-precision acoustic wave sensor, this meter offers exceptional sensitivity and quick response times for stable and accurate measurements.

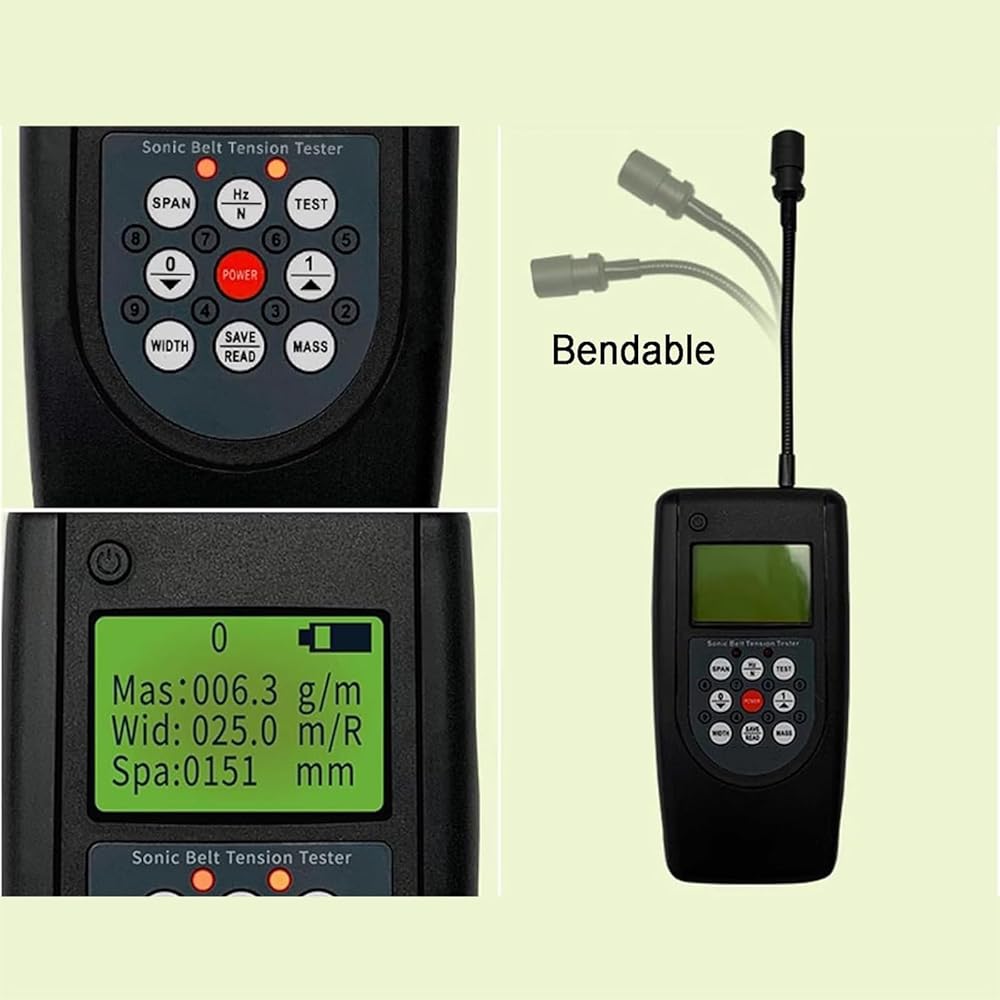

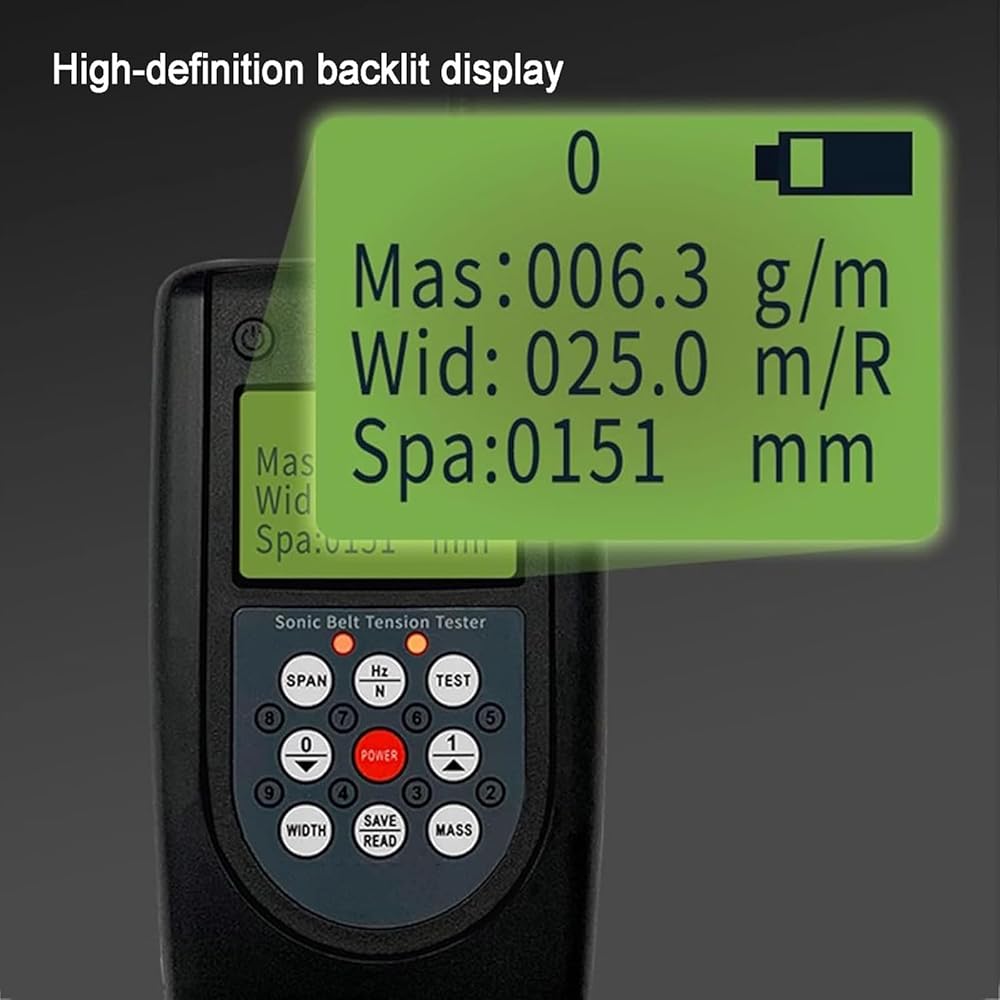

  • Real-Time LCD Screen: The LCD screen displays belt tension measurements in real time during adjustments, complemented by indicator lights and sound alerts to inform whether the tension is within the preset limits.

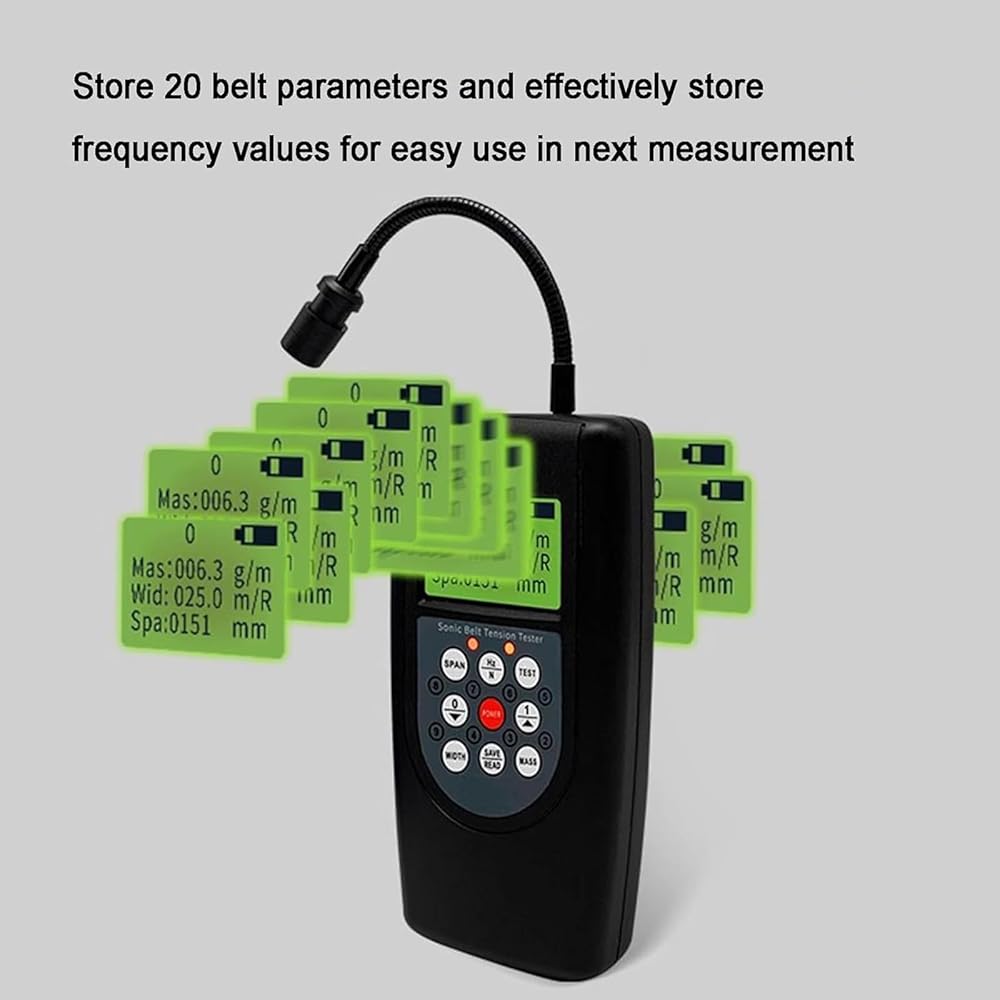

  • Data Storage Capability: The instrument automatically saves the upper and lower tension limits, measurement units, and calibration results, storing up to 20 parameters. Data remains intact even when the device is powered off.
  • Versatile Application: Primarily designed for measuring tension in automotive belts, this meter can also be used to detect and adjust the tension of cords, strings, nets, and other wide materials.

Description

This Belt Tension Meter is designed to accurately measure and adjust the tension of timing and auxiliary belts in motor vehicles and various machines. It features a range of specifications to ensure precise measurements and reliable performance.

Specifications:
- Material: Shell made of durable Plastic (ABS)
- Measurement Range: 10-680Hz
- Maximum Free Section Belt Length: 999.9 mm
- Maximum Belt Width: 999.9 mm/R
- Maximum Belt Mass: 999.9 g/m
- Accuracy: 1Hz for frequencies under 100HZ and 1% for frequencies over 100HZ
- Digital Sampling Error: Less than 1%
- Display Error: 1Hz
- Total Error: Less than 5%
- Operating Temperature Range: +10° to +50° C
- Transportation Temperature Range: -5° to +70° C
- Display Type: LCD
- Measurement Units: Hz/N
- Power Supply: 4X1.5V AAA batteries (not included)
- Instrument Dimensions: 140x72x34mm

Product Includes:
- 1 Belt Tension Meter
