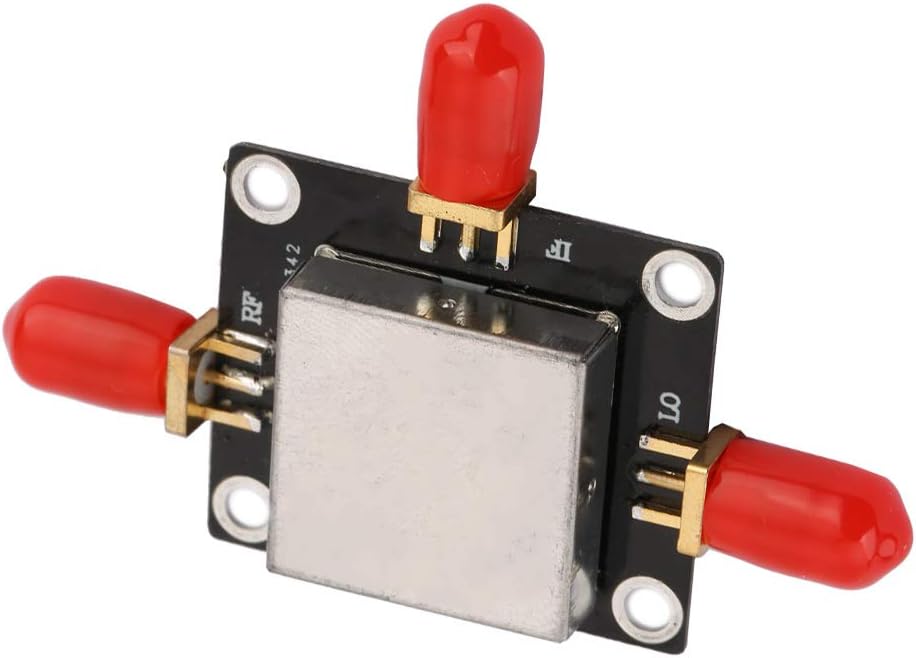

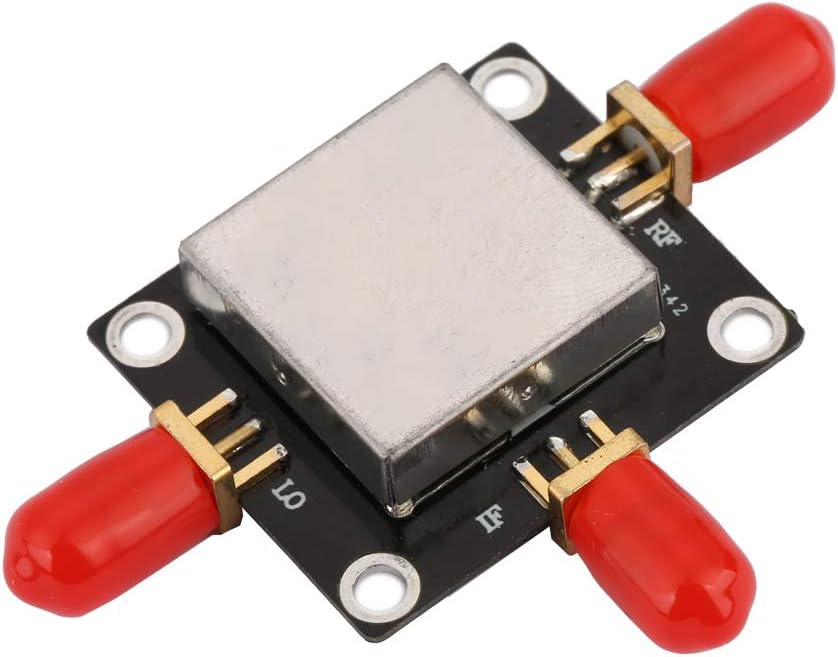

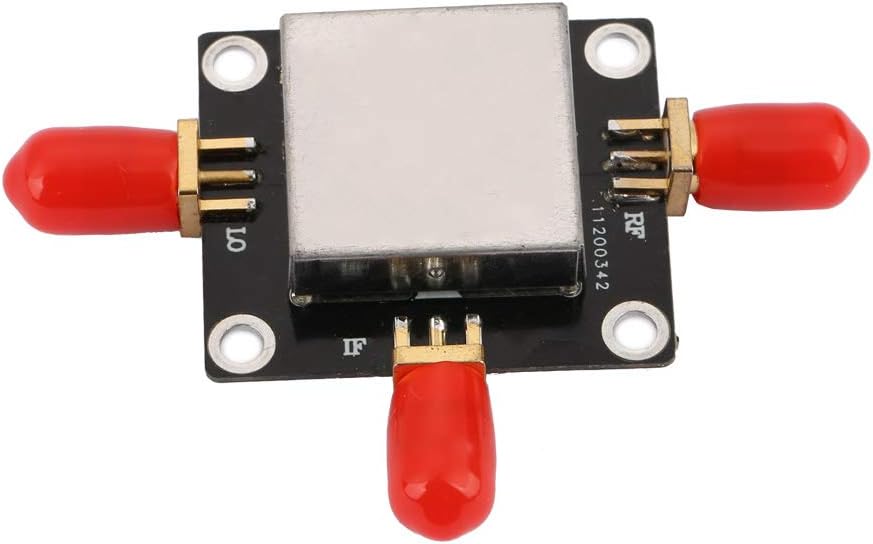

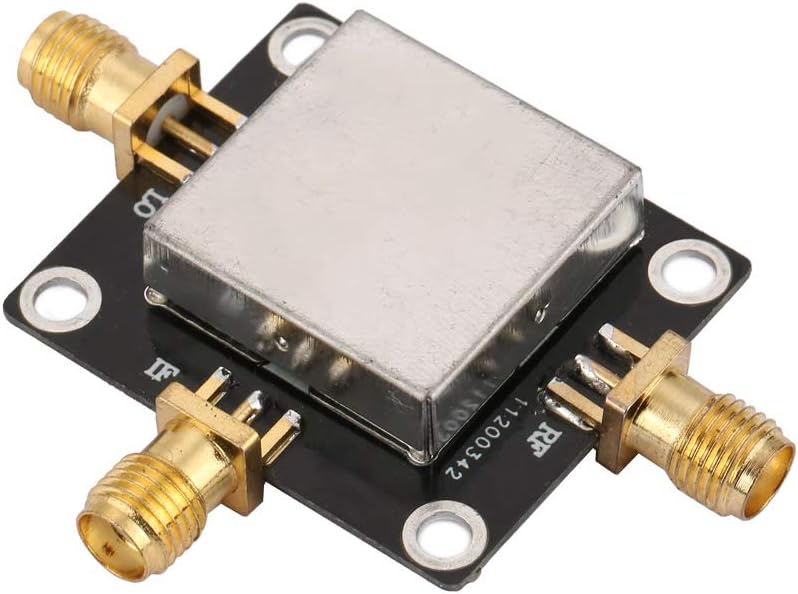

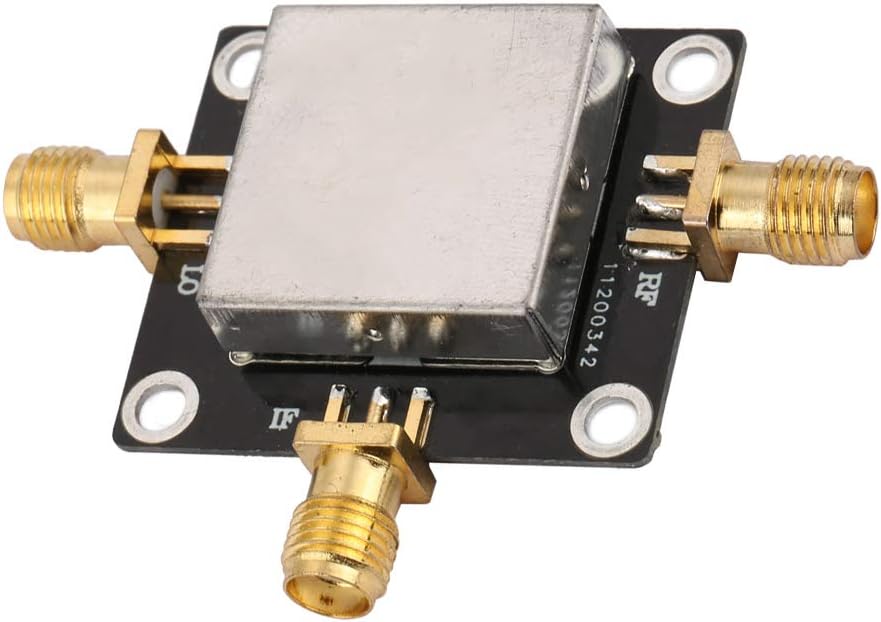

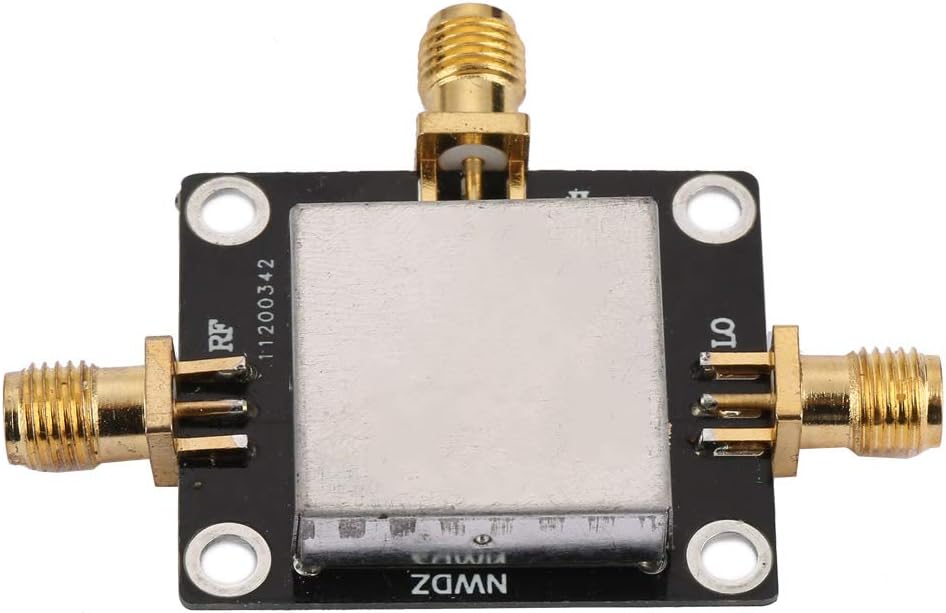

RF Double Balanced Passive Mixer 1.5 to 4.5GHz High Linear Low Noise Frequency Converter for and Signal Processing

SAR 115
Brand
DANAIXZ
– 1 +

Special Features

  • [HIGH-PERFORMANCE FREQUENCY CONVERSION] This RF double balanced passive mixer delivers exceptional frequency conversion with a wide range of 1.5-4.5GHz for RF/LO and DC-1.5GHz for IF. Featuring GaAs Schottky diodes and advanced transformer chip technology, it provides stable and reliable signal conversion for various applications.
  • [SUPERIOR SIGNAL ISOLATION] Engineered for minimal signal interference, our mixer offers outstanding isolation performance with 40dB LO to RF isolation and 35dB LO to IF isolation. This ensures clean signal processing in complex RF environments, making it ideal for professional systems.
  • [COMPACT AND EFFICIENT DESIGN] Designed with miniaturized components, this lightweight mixer (only 10g) combines space-saving convenience with high performance. Its compact form factor allows for easy integration into various electronic devices without sacrificing functionality or quality.
  • [LOW LOSS, HIGH EFFICIENCY] With a remarkably low conversion loss of just 8.5dB, this mixer maximizes signal strength and efficiency. The innovative in-plane transformer chip barron structure ensures optimal performance while maintaining excellent power handling capabilities (8dBm 1dB compression, 18dBm IP3).
  • [VERSATILE APPLICATION RANGE] for multiple RF functions including up-conversion, down-conversion, phase modulation/demodulation, and phase comparison. This highly adaptable mixer is suitable for communications, systems, test equipment, and various RF signal processing applications.

Description

Features:
The mixer has the advantage of high isolation

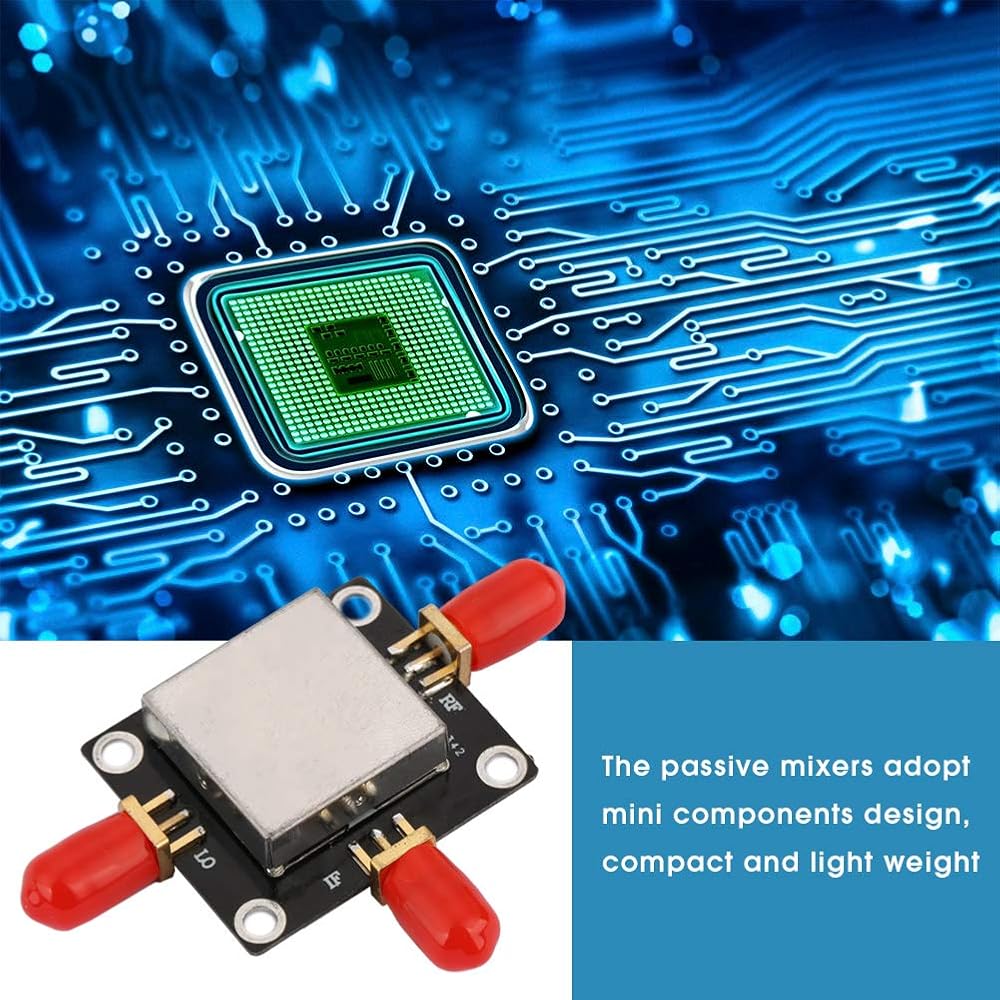

The passive mixers adopt mini components design,compact and light weight
Passive Mixer has low conversion loss of 8.5 dB
GaAs Schottky diode and novel in-plane transformer chip barron structure are used.

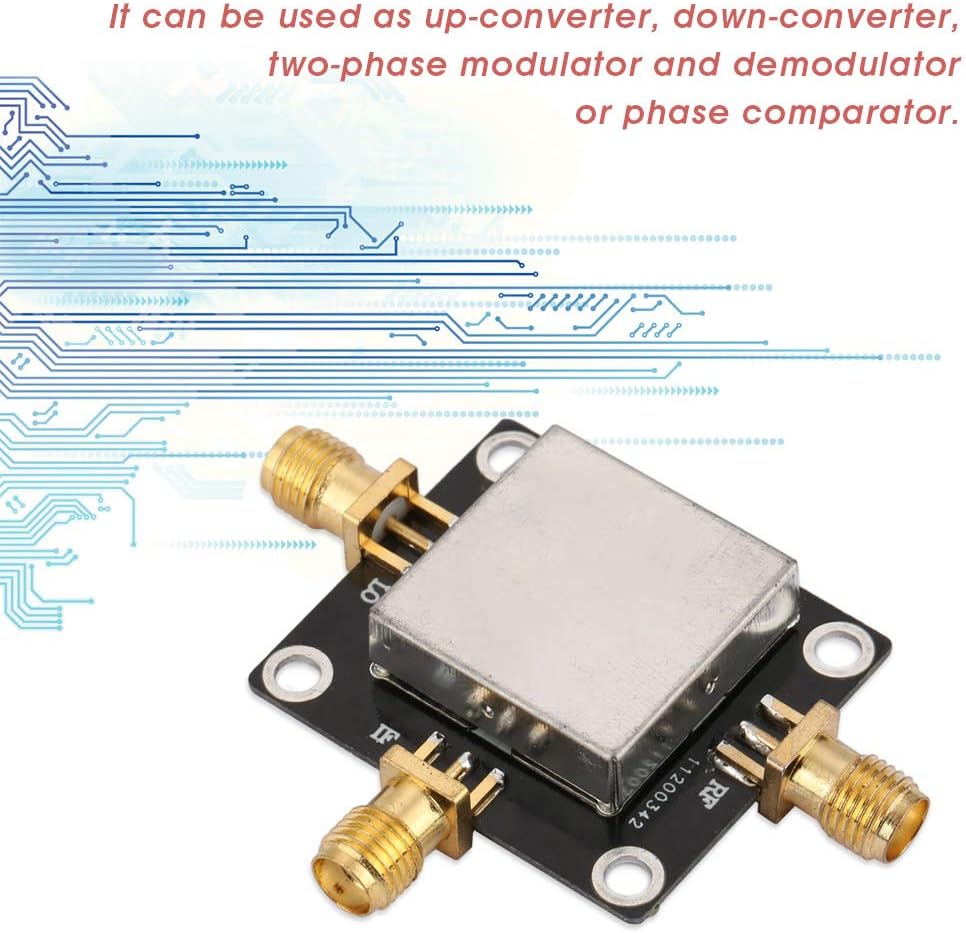

It can be used as up-converter, down-converter, two-phase modulator and demodulator or phase comparator.

Specification:
Conversion loss: 8.5db
LO to RF isolation: 40 dB
LO to IF isolation: 35dB.
Frequency range, RF and LO: 1.5-4.5GHz
Frequency range, IF: dc-1.5GHz
1dB gain compression (input) : 8dBm
IP3 (input) : 18dBm
Weight: Approx.10g/0.4oz

Package list:
1 x Passive Mixer
