مميزات خاصة

UPGRADED PROFESSIONAL GROUND TESTER - Uses mutual induction to detect traditional-method-undetectable ground faults. For grounded loop systems, the earth resistance tester needs no grounding lead disconnection or auxiliary electrodes; safe, fast, easy to use.
CONVENIENT & EFFICIENT - Resistance measurement range of 0.010 to 395Ω, with a 55mm×32mm clamp opening, suitable for measuring most flat grounding conductors. 4-digit LCD display provides higher resolution and accuracy, reducing the need to switch measurement ranges.
HIGH ACCURACY - Grounding loop tester with self-check, clock and alarm functions (1Ω and 10Ω test loops ensure accuracy). Widely used to measure ground resistance in telecom, power, meteorology, data centers, oil fields, power lines, towers, gas stations, factories, lightning rods, etc.
USB DATA TRANSFER - Can store 500 sets of data and export data via a USB cable to upload to your computer for storage and printing. A flashing ‘MEM' symbol indicates that the storage space is full, prompting users to take timely action to ensure test continuity and improve work efficiency.
PACKAGING - Comes with internal resistance tester, 1 x test loop, 1 x protective case, manual, 4 x battery, 1 x USB communication cable. Before measurement, the standard test loop can be used to verify the accuracy of the device, suitable for various scenarios.

وصف

Parameters and Applications:
Clamp-on Ground Resistance Tester - UT273A:
Functions: Ground resistance testing, loop resistance testing
Resistance range: 0.010 ~ 395Ω
Resistance resolution: 0.001Ω ~ 5Ω
Resistance accuracy: 0.010Ω-0.99Ω: ±（1%rdg＋0.01Ω）
1.0Ω-49.9Ω: ±（1%rdg＋0.1Ω）
50.0Ω-99.5Ω: ±（1.5%rdg＋0.5Ω）
100Ω-199Ω: ±（2%rdg＋1Ω）
200Ω-395Ω: ±（5%rdg＋5Ω）
Clamp opening size: 55mmx32mm
Power Supply: 1.5V AA *4PCS
Measurement Method: Mutual Induction Measurement
Display: 4-digit LCD display, 46mm × 36mm LCD size
Fast Measurement: Measurement time 1 time/second
Power Consumption: Approximately 80mA
Power-on self-test: √
Fully automatic gear shifting: √
Low pressure alert: √
Clock function & alarm function: √
USB interface: Equipped with a USB interface, stored data can be uploaded to a computer and saved for printing
Data transmission: USB data transmission
Data storage: 500 groups, ‘MEM' storage indicator, flashing ‘MEM' symbol indicates storage is full
Data retrieval: ‘MR' symbol indicates when retrieving data
Overflow display: ‘OL' symbol indicates when exceeding the measurement range
Instrument weight: 850g (including battery)
Operating Temperature and Humidity: -10°C to 40°C; ≤ 70% RH
Storage Temperature and Humidity: -20°C to 60°C; ≤ 80% RH
Insulation Resistance: Over 20 MΩ (between circuit and housing at 500 V)
Withstand voltage: AC 3700 V/rms (between circuit and housing)
External magnetic field:

مرحبًا،

بحث

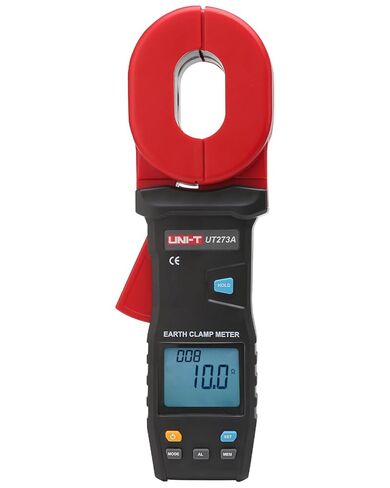

UNI-T جهاز اختبار الأرض بمشبك 0.01 ~ 395Ω USB مقياس مقاومة الأرض، جهاز اختبار مقاومة الحلقة 55 × 32 مم لحقول زيت الأرصاد الجوية الكهربائية UT273A
