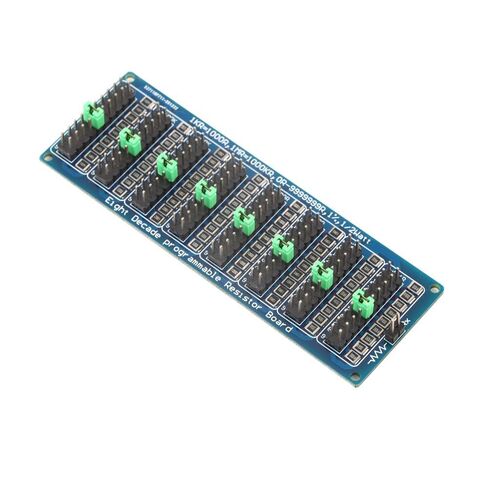

Programmable Resistor Board 0.1-9999999 Ohm 8-Section 0.1R Step Accuracy 1% Tolerance Electronic Component in Saudi Arabia Programmable Resistor Board 0.1-9999999 Ohm 8-Section 0.1R Step Accuracy 1% Tolerance Electronic Component in Saudi Arabia Programmable Resistor Board 0.1-9999999 Ohm 8-Section 0.1R Step Accuracy 1% Tolerance Electronic Component in Saudi Arabia Programmable Resistor Board 0.1-9999999 Ohm 8-Section 0.1R Step Accuracy 1% Tolerance Electronic Component in Saudi Arabia Programmable Resistor Board 0.1-9999999 Ohm 8-Section 0.1R Step Accuracy 1% Tolerance Electronic Component in Saudi Arabia Programmable Resistor Board 0.1-9999999 Ohm 8-Section 0.1R Step Accuracy 1% Tolerance Electronic Component in Saudi Arabia Programmable Resistor Board 0.1-9999999 Ohm 8-Section 0.1R Step Accuracy 1% Tolerance Electronic Component in Saudi Arabia

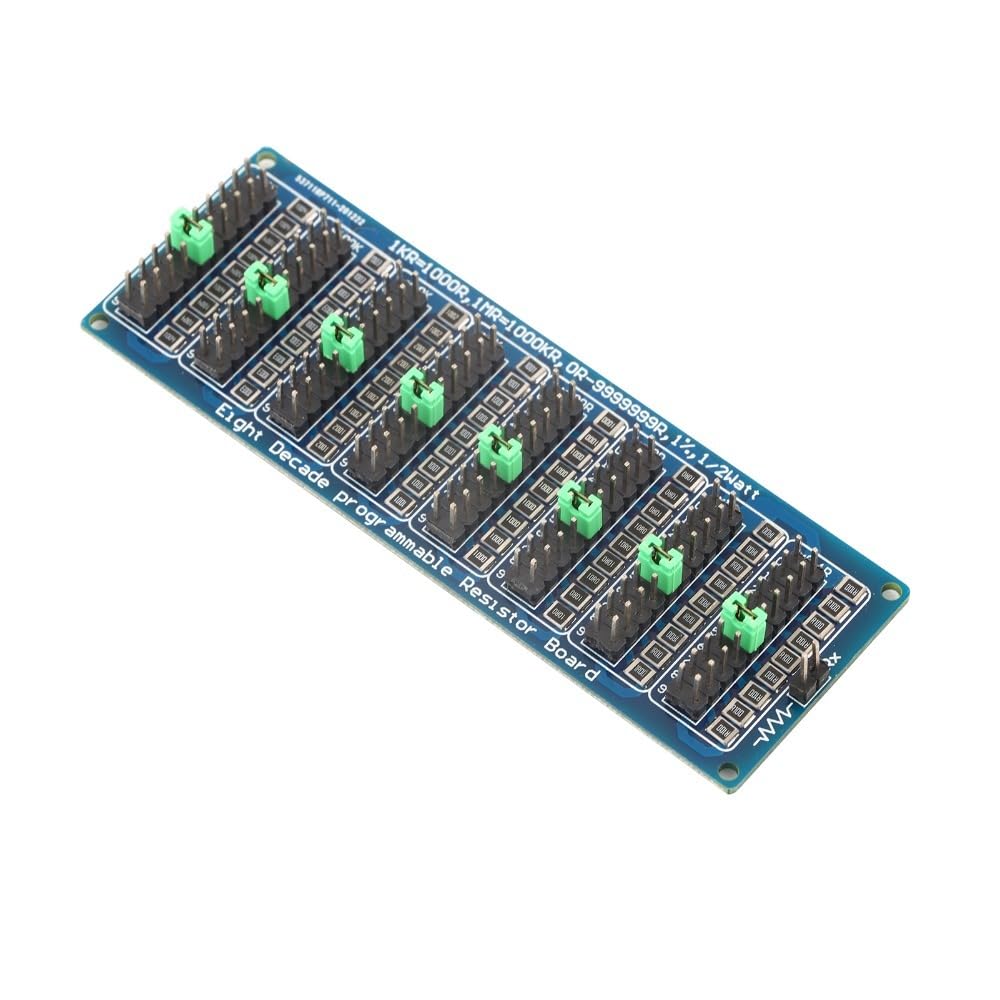

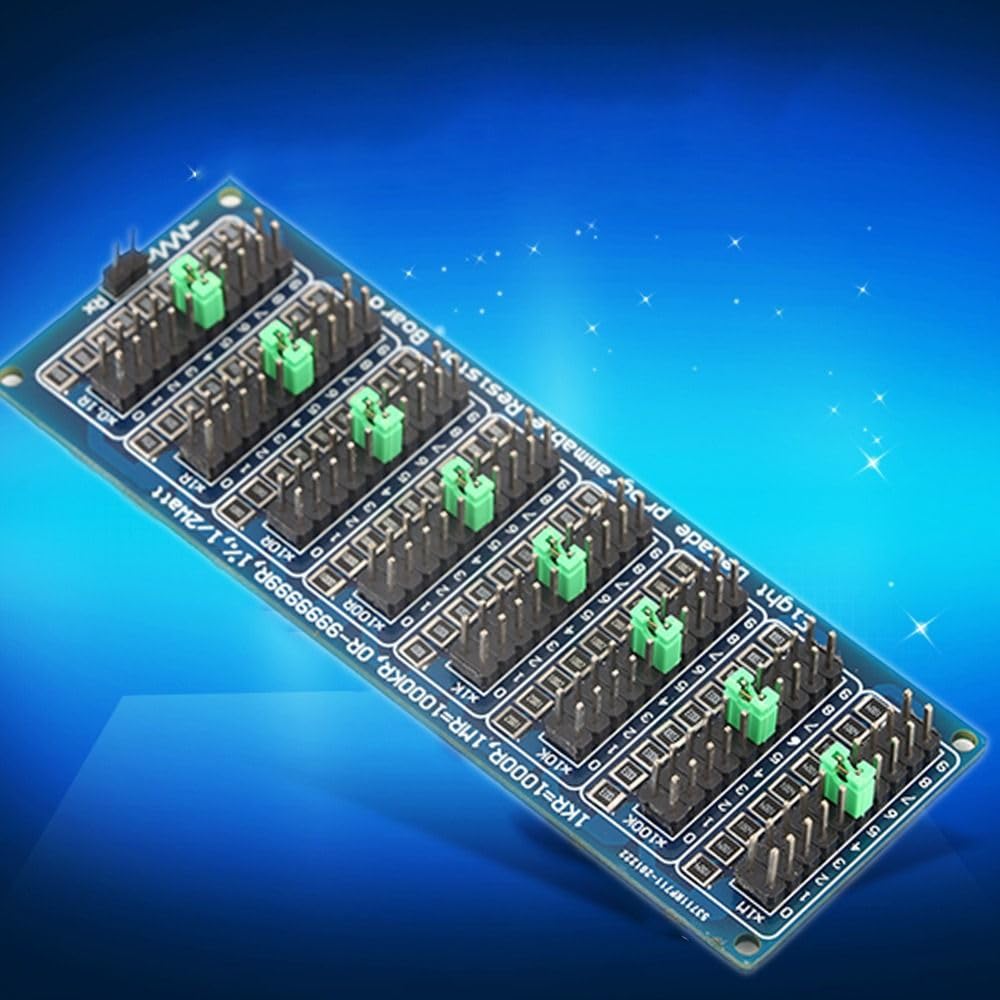

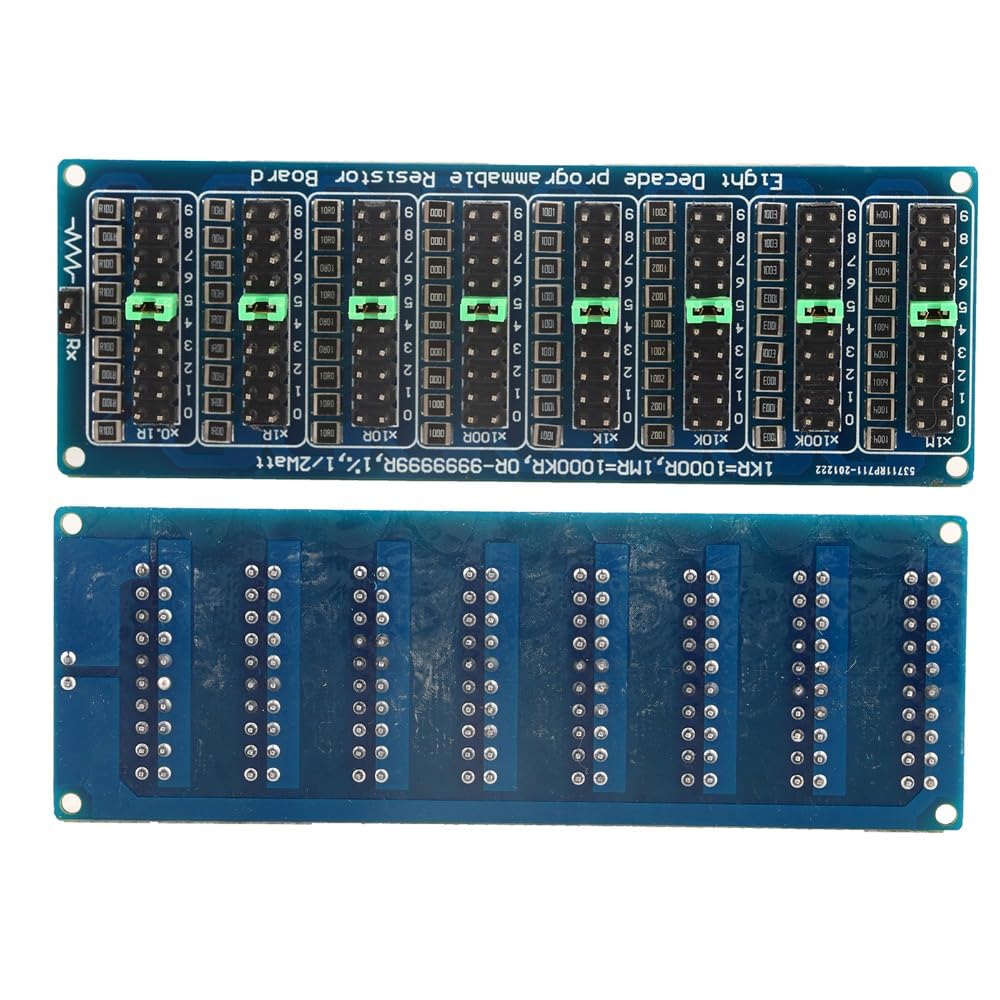

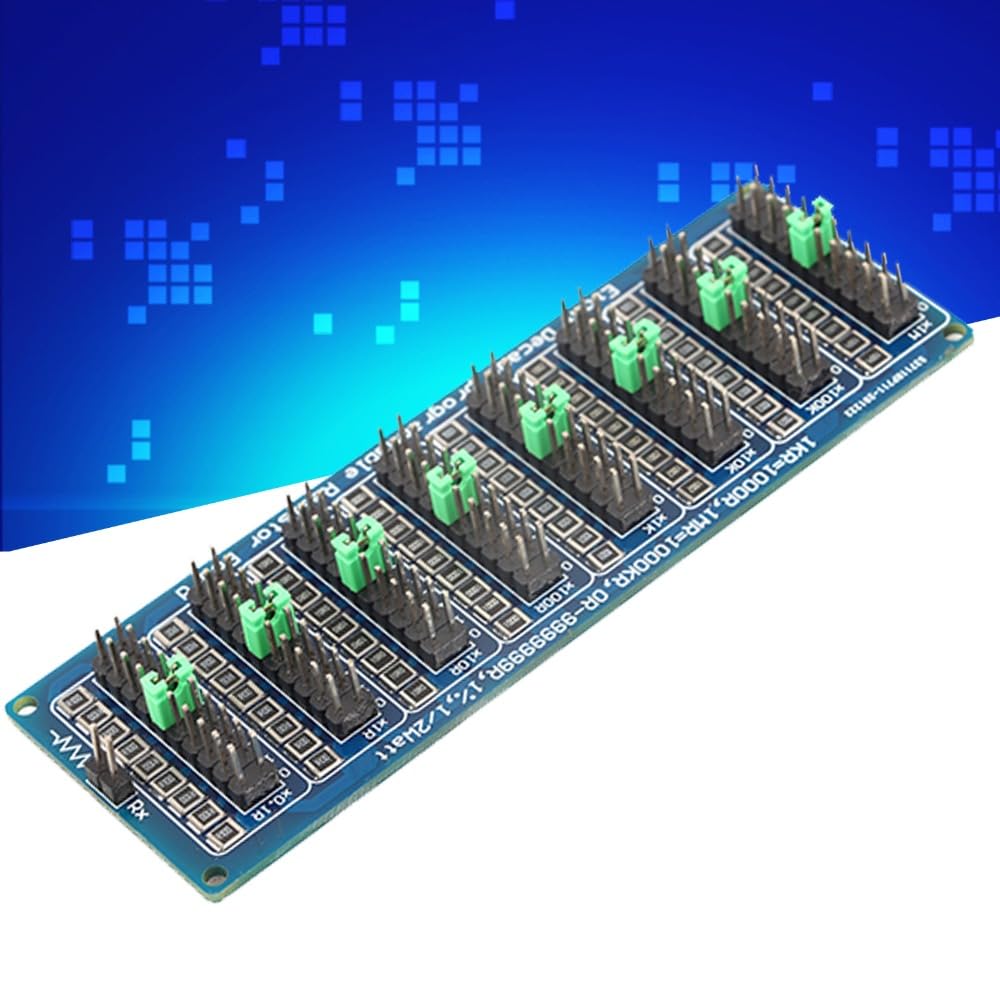

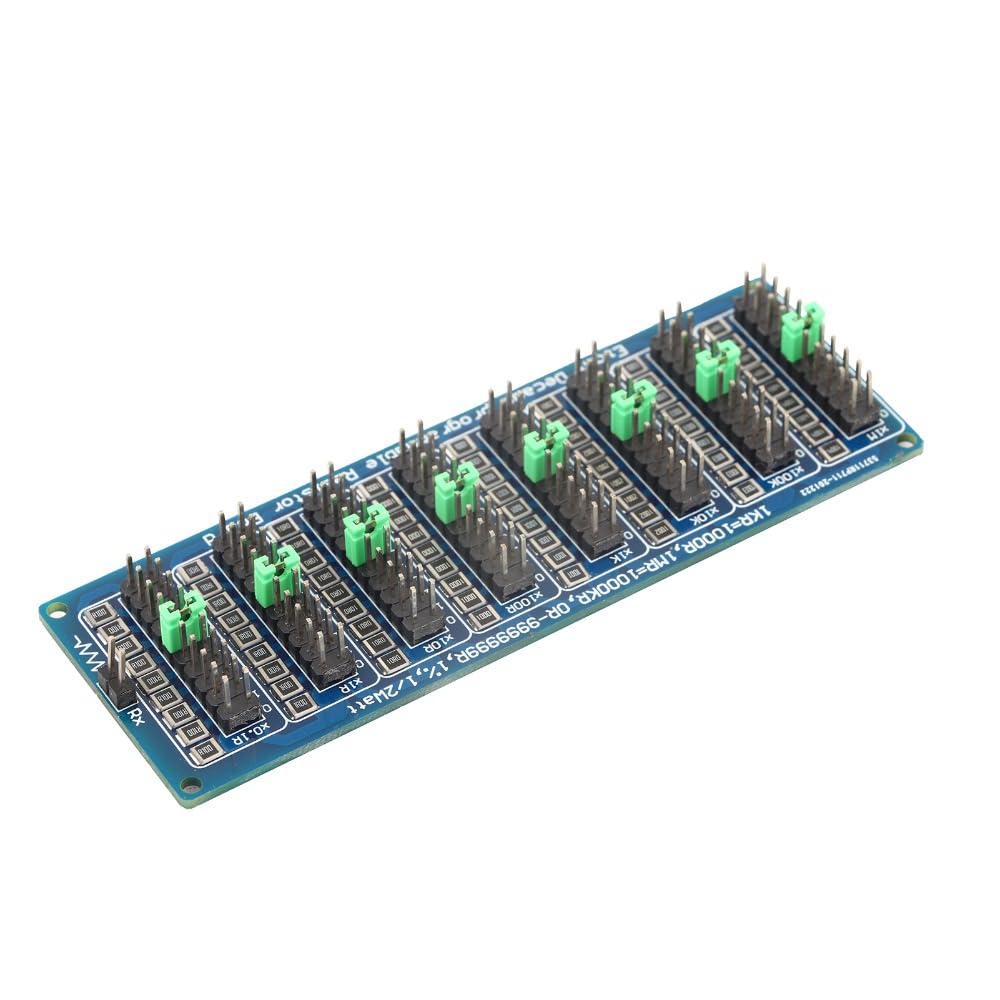

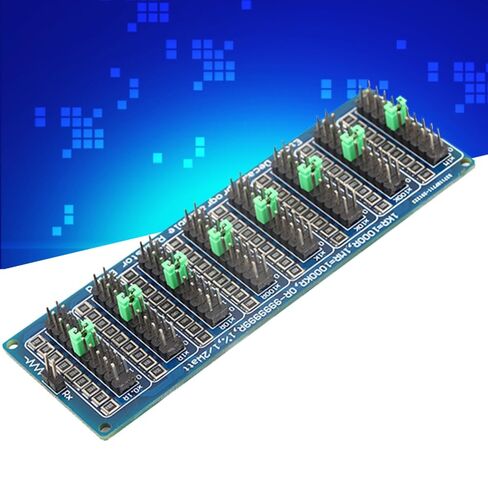

Programmable Resistor Board 0.1-9999999 Ohm 8-Section 0.1R Step Accuracy 1% Tolerance Electronic Component

SAR 43
– 1 +

Special Features

  • ‌Ultra-Wide Resistance Range‌: Programmable from ‌0.1Ω to 9,999,999Ω‌ with ‌0.1Ω step accuracy‌, ideal for precision testing and calibration
  • ‌High Precision & Durability‌: Each resistor has ‌±1% tolerance‌, gold-plated pins for longevity, and screw terminals for secure wire connections
  • ‌Modular Design‌: Includes ‌8 jumper caps‌ for flexible resistance combinations; based on the "Resistor Series" theorem for reliable performance
  • ‌Robust Construction‌: Made of ‌FR4 fiberglass PCB‌ with a compact size 128×36mm; rated for ‌1/2W power‌ per resistor
  • ‌Versatile Applications‌: Suitable for ‌educational labs, circuit debugging, engineering prototypes‌, and trimming electronic designs

Description

Programmable resistor board featuring precision resistance adjustment from 0.1Ω to 9,999,999Ω with 0.1Ω step accuracy

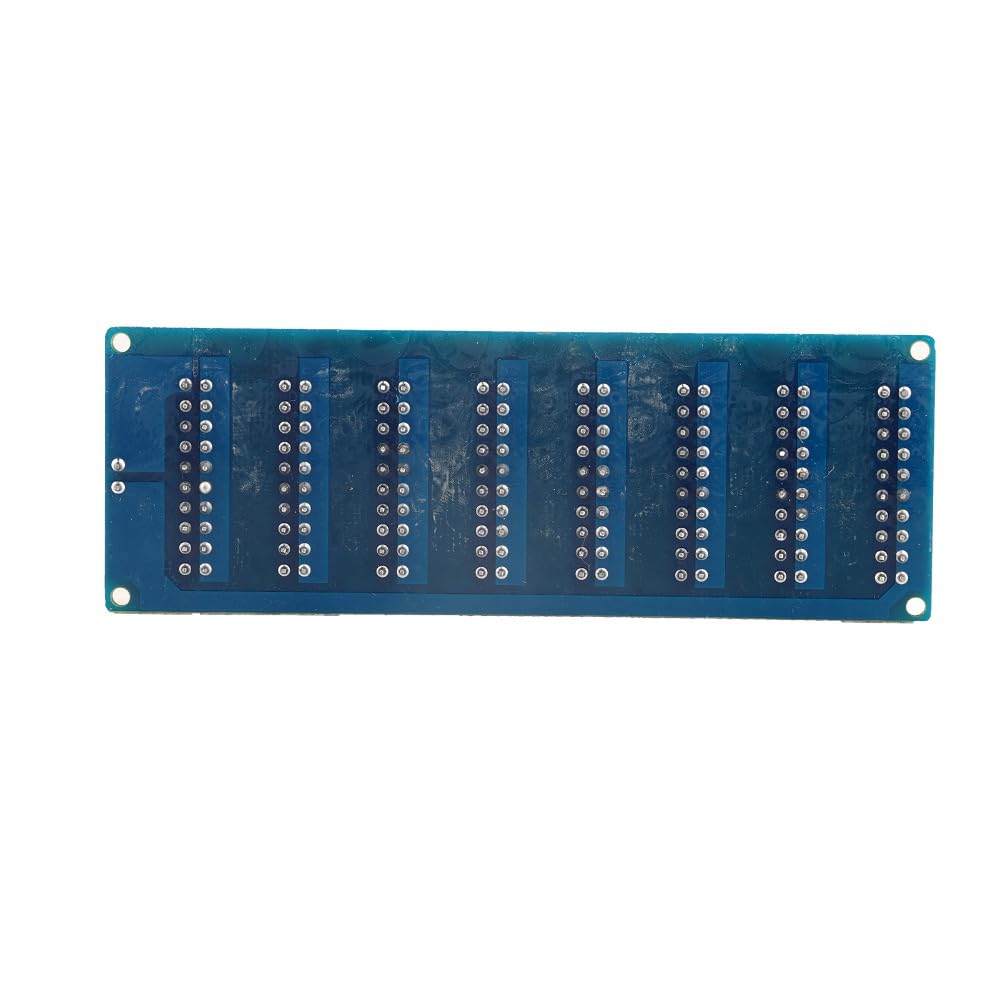

Constructed with FR4 glass fiber printed circuit board for durability and stable performance
Each resistor maintains ±1% tolerance with 0.5W rated power capacity.
Gold-plated double-row pins ensure durable connections and extended service life. Screw terminal blocks facilitate secure wire attachment for various experimental setups
Ideal for educational electronics projects, circuit design verification, and calibration procedures
Specifications:
Item Type: Programmable Resistor Board
Material: FR4 Glass fiber printed circuit board
Resistance Tolerance: +/- 1%
Rated Power: 1/2W.
Programmable Resistance: 0.1 to 9,999,999 ohm, 0.1 ohm/step.

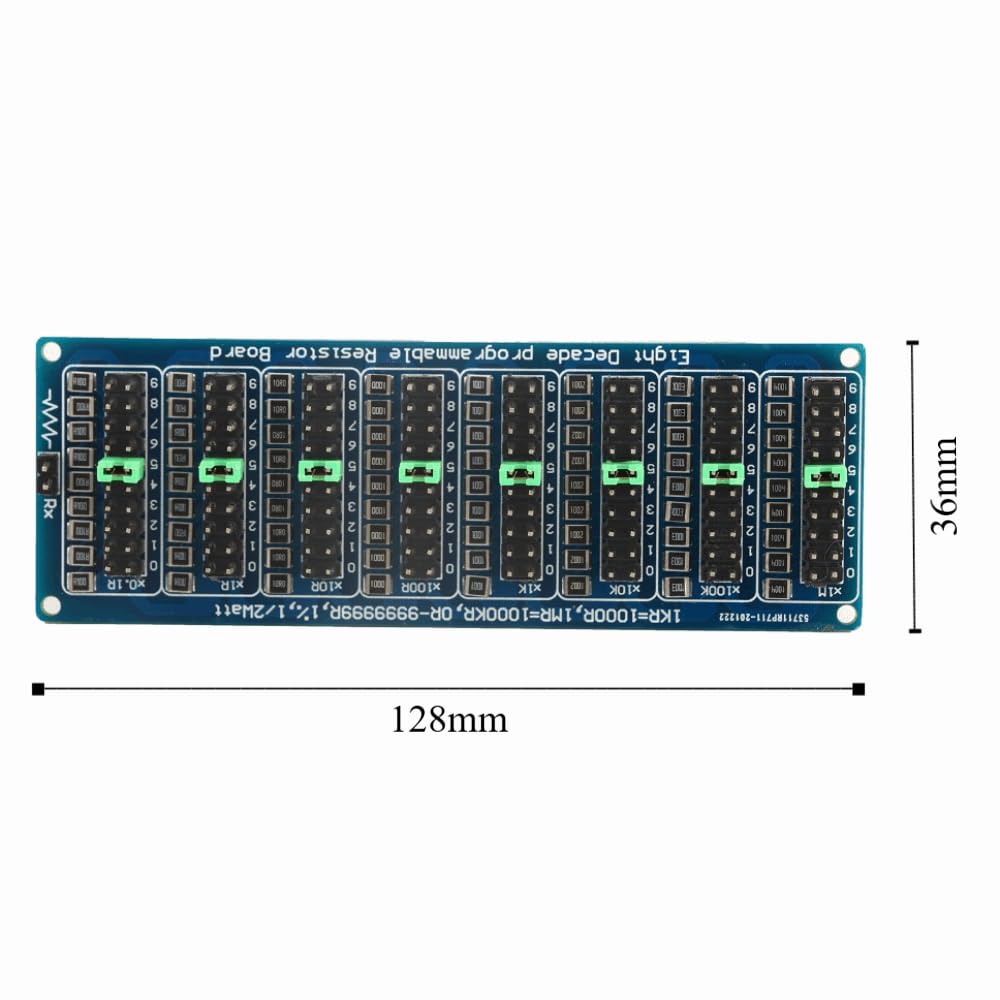

Resistor Board Size:128*36mm(5.04*1.42in)
Fixed hole center distance:121*29mm(4.76*1.14in)
Fixing hole diameter:3.1mm(0.12in)
Package List:
1 x Programmable Resistor Board
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding
