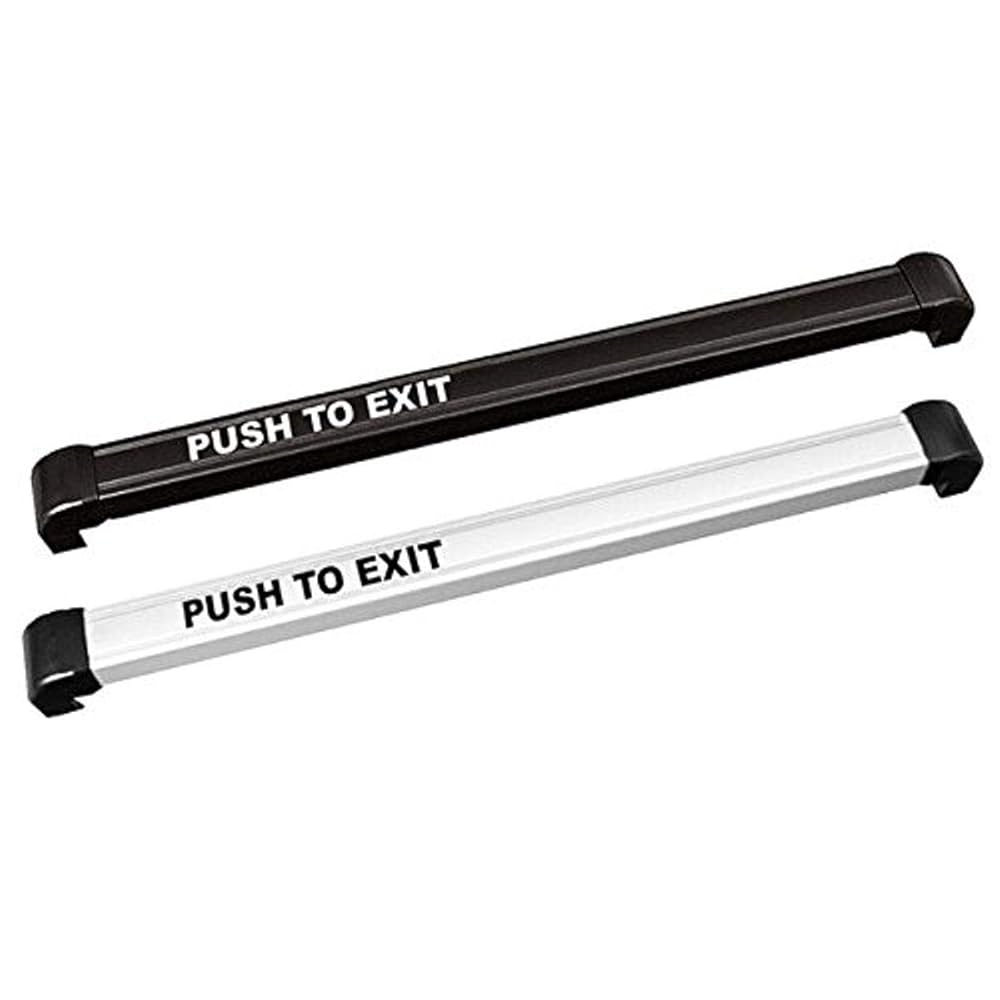

The TSB Touch Sense Bar provides touch-triggered release of magnetically locked, non-fire-rated doors. Touching the bar, even through light gloves or clothing, triggers and electronic sensor that releases the lock. For indoor use only, the TSB installs easily on all types of metal, aluminum or wood frame doors. Meets "no special tools or knowledge" criteria in code requirements.
Can be field cut to accommodate non-standard openings up to 48"
Activates a DPST 2 Amp rated relay when touched (no mechanical movement) which will allow free egress, or initiates the delay on an exit delay timer
Backup push button
Operates on either 12 or 24VDC
Description
The TSB Touch Sense Bar provides touch-triggered release of magnetically locked, non-fire-rated doors. Touching the bar, even through light gloves or clothing, triggers an electronic sensor that releases the lock. For indoor use only, the TSB installs easily on all types of metal, aluminum or wood frame doors. Meets no special tools or knowledge criteria in code requirements. Can be field cut to accommodate non-standard openings up to 48. Activates a DPST 2A rated relay when touched (no mechanical movement) which will allow free egress, or initiates the delay on an exit delay timer. Backup push button. 16 ft. [4. 8m] 22AWG 6 conductor cable and armored door cord included. Automatic dual-voltage 12 VDC/24 VDC. Available ElectroLynx ready. Satin Aluminum Clear Anodized
