Needle-Bearing

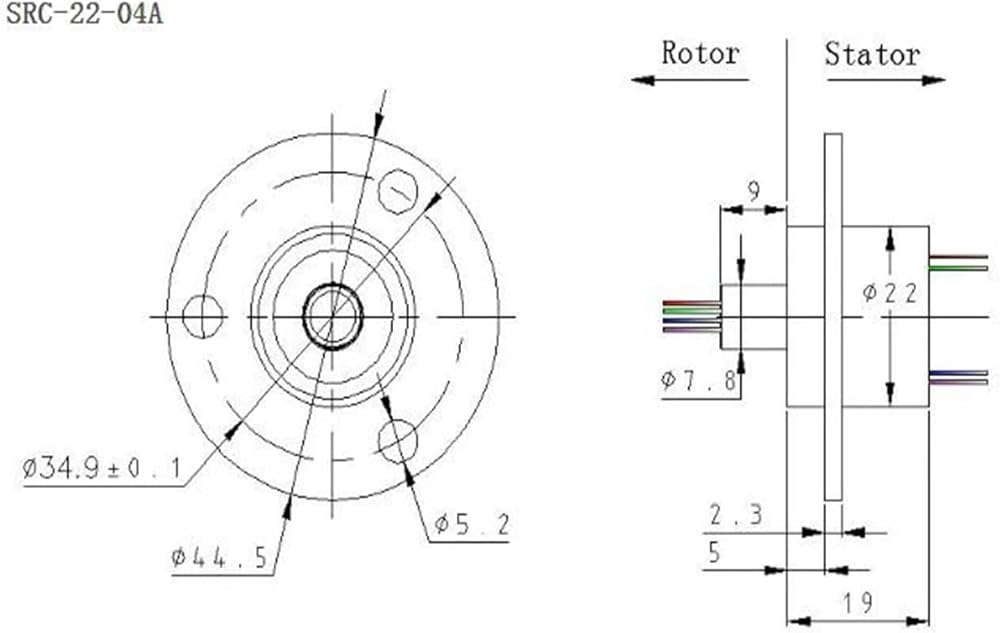

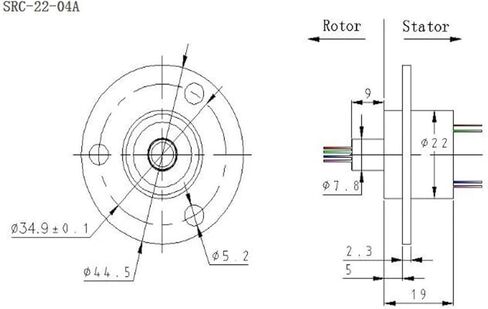

Specification:
Outer diameter 22 mm
Length 19 mm
- 4 circuits, 2A each
Rated voltage: 220V
- Insulation resistance: 500M O@500VDC
- noise: 10mO@6VDC, 50mA, 5rpm
- Working life: more than 5 million rounds
- Operating temperature: -40~+80℃
Relative humidity: 60%
Mechanical vibration: MIL-SID-810E
- Working speed: 250rpm
Protection level: IP54
- Contact material: precious metal
- Shell material: engineering plastic
Torque: 0.01NM
- Bearing: High precision ball bearing
- Cable: AWG28 wire, UL
Cable length: 250 mm
