Specification:

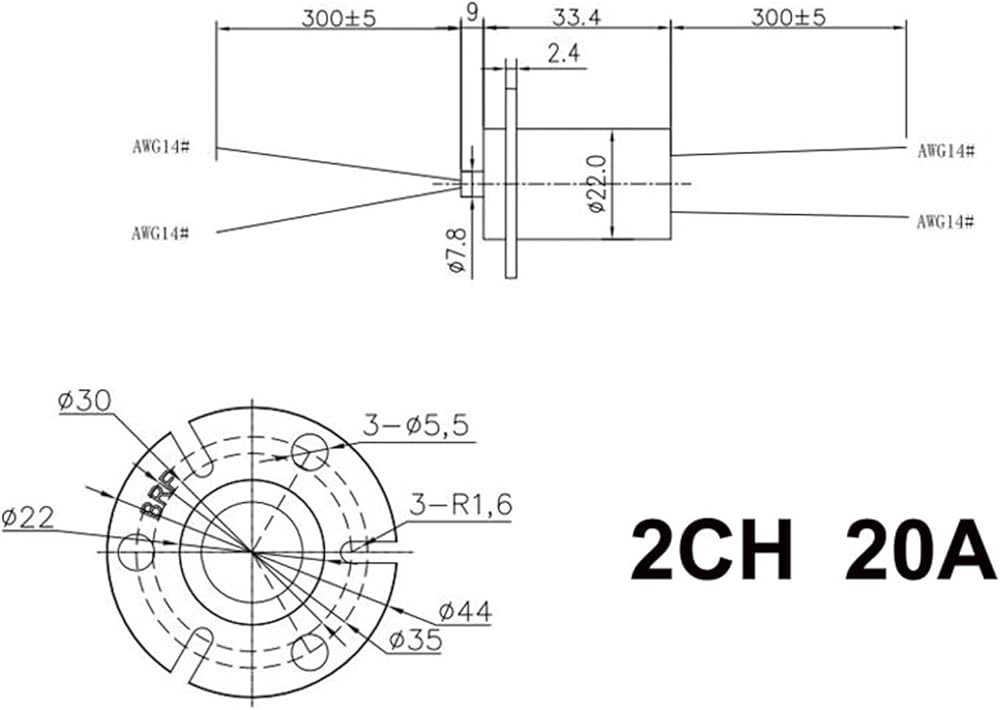

Outer diameter: 22 mm
Channel: 2CH
Current: 20A
Voltage: 240VDC
Speed: 0-250rpm
- Dielectric strength: 500VAC@50Hz,60S
- Insulation resistance: 500M / 500VDC
- Dynamic contact resistance fluctuation value: 10mΩ
- Contact material: precious metal
Shell material: engineering plastic
Working temperature: -20~+80
- Cable length: about 300mm
Protection level: IP51
