Electronic Line Receivers
Model:HDC-HE-24
Current: 16 a
Voltage: 500 v
Connector pin number: 24
Connect a pin material: copper
Surface treatment: silver plating
Contact resistance: 1 m or less
Wiring forms: screw link
Wire specifications: 0.5 4 cubic millimeter
Screw : 0.5 NM
Wire stripping length: 7-9 mm
number: 500 or higher
Working temperature: - 40 to + 125
Shell materials; Die casting aluminum alloy
Color: grey
mode: metal roller, double buckle
The shell surface: high temperature powder coating
The seal: nitrile rubber
Protection grade: IP65

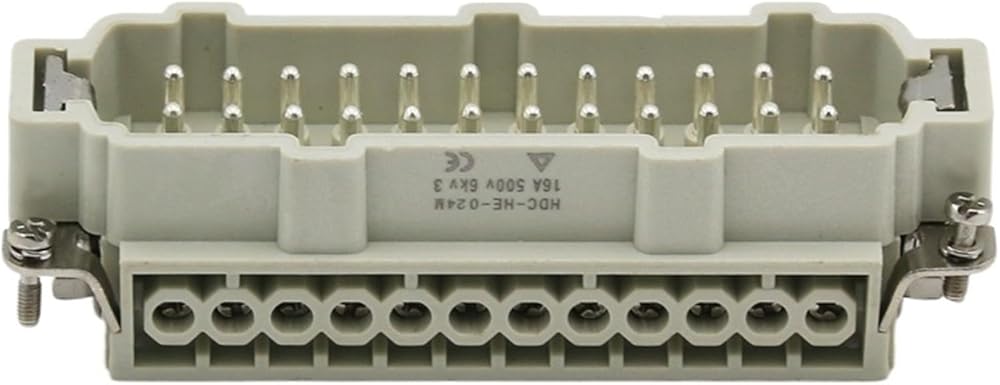

The male connector
Female connector
==========
High-concerned chemical : None
Model Number : HDC-HE-24
Voltage : 415 V
