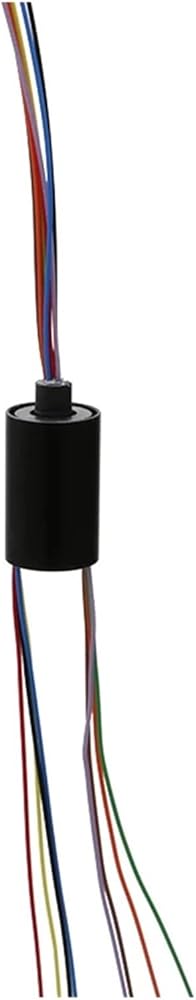

Needle-Bearing
Specification:
Diameter: 12.4 mm
Length: 13.2mm/19.8mm
Channel: 4/6/8/12CH
Rated current: 2A
Rated voltage: 0~240VAC/DC
Rotation speed: 300RPM
Working temperature: -20~80
- Contact material: precious metal
- Wire specification: AWG28
- Cable length: standard 250mm
Protection level: IP51
- Dielectric strength: 500VAC@50Hz, 60 seconds
- Insulation resistance: 500MQ/500VDC
There are 4 types for your reference:
- Diameter 12.4 mm, length 13.2 mm, 4CH 2A
- Diameter 12.4 mm, length 13.2 mm, 6CH 2A
- Diameter 12.4 mm, length 19.8 mm, 8CH 2A
- Diameter 12.4 mm, length 19.8 mm, 12CH 2A
