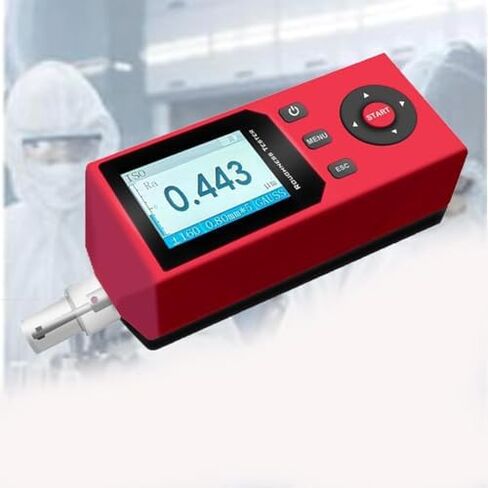

Portable Profilometer, Handheld Surface Roughness Tester, 14 Roughness Parameters,for Machining and Manufacturing

SAR 2,820
– 1 +

Special Features

  • 【Service】: We are very sorry for the shopping experience you have experienced. If you have any problems with the goods you received, please contact us and we will serve you 24 hours a day.
  • 【14 Roughness Parameters】: Its wide range and multi-parameter functionality enable the measurement of 14 roughness parameters: Ra, Rz=Ry (JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, Rz (JIS), Rs, Rsk, Rku, Rsm, and Rmr.
  • 【Protected Sensor and Stylus】: The sensor is equipped with a dedicated protection device that effectively protects the stylus while maintaining reliable measurement accuracy.

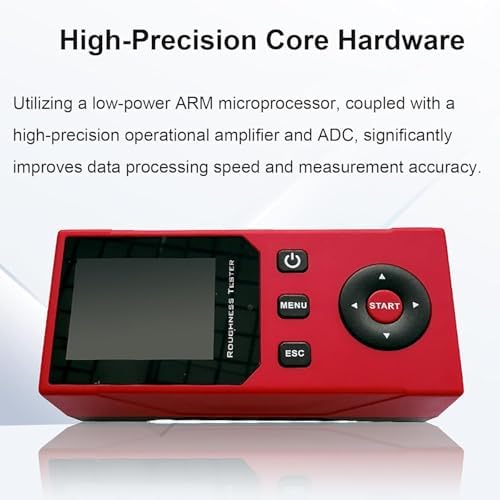

  • 【High-Precision Core Hardware】: Utilizing a low-power ARM microprocessor, coupled with a high-precision operational amplifier and ADC, significantly improves data processing speed and measurement accuracy.
  • 【Wide Applications】: Used for surface roughness inspection in various fields such as automotive manufacturing, machining, metal processing equipment, printing and packaging, and casting.

Description

Product description
Specifications:
Name: Portable Profilometer
Detection Principle: Inductive
Maximum Drive Stroke: less than or equal to 17.5mm
Measuring Range: 320μm
Measuring Range:
Ra, Rq: 0.005μm to 32μm
Rz, Ry, Rt, Rp, Rm: 0.02μm to 320μm
Rsm, Rs: 1mm
Tip Radius: 5μm
Maximum Accuracy: 0.001μm
Tip Material: Natural Diamond
Measuring Force: less than or equal to 4mN
Pin Angle: 90°
Guide Heads Longitudinal Radius: 45mm
Sampling Length: 0.25mm, 0.80mm, 2.50mm
Dimensions: 156x 55x 46.5mm
Instrument Weight: 398g

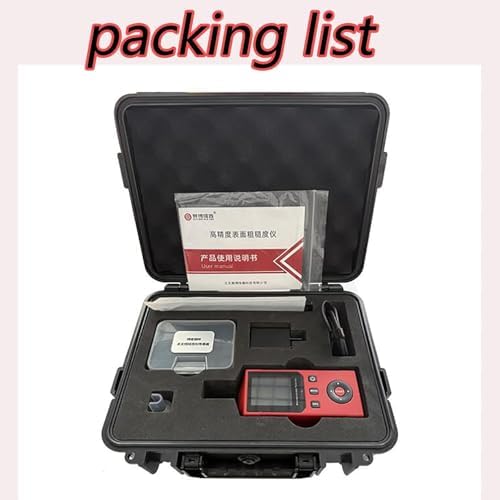

Packaging List:
1 x Surface Roughness Measuring Instrument
