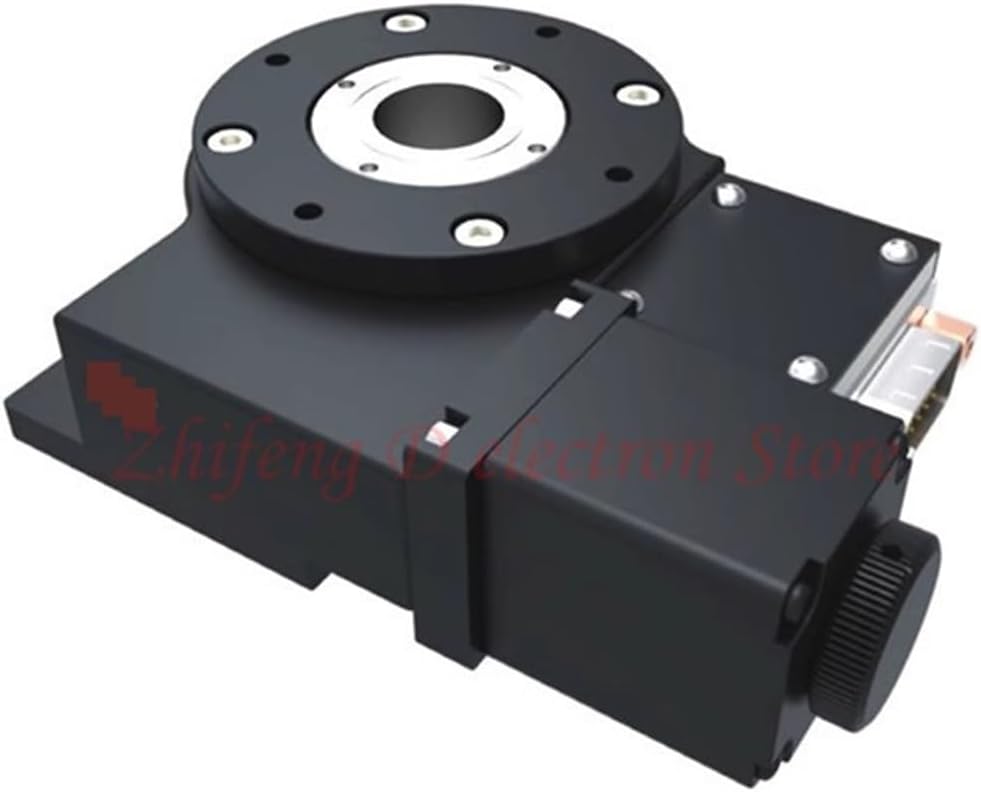

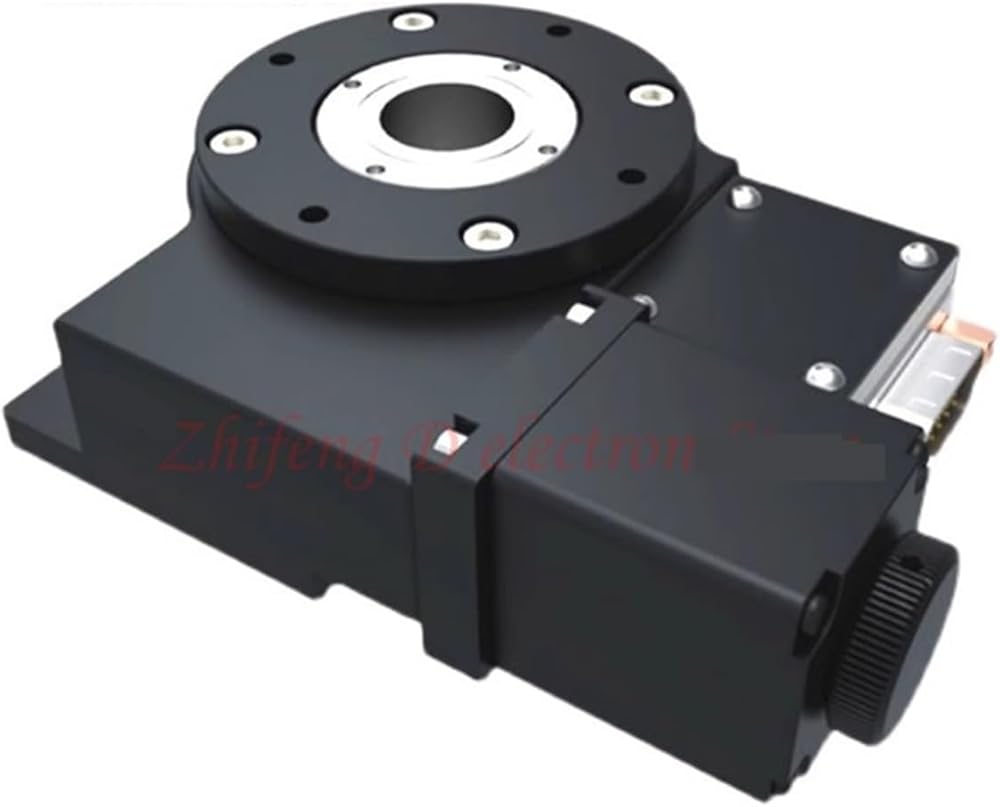

R-axis rotating electric slide RSFR59, Angle indexing plate, 360° mobile platform, Table diameter 59mm, positioning accuracy: 0.1°
Mechanical specifications:
Model: FR59-LDNN-ND
Countertop size: 59 mm
Moving range: 360°
Fuming mode: worm worm gear (reduction ratio 1/180)
Track: Deep full ball bearing
Slide material/surface treatment: aluminum alloy/black poplar
Body weight: 0.6 Kg
Coupling: FSMMS12-5*6
Accuracy level: N: standard type
Outlet direction: N: General outlet
Accuracy specifications:
Resolution (pulsation) Full/Half: 0.01° / 0.005°
Maximum speed (full step): 15°/sec
One-way positioning accuracy: 0.1°
Repeated positioning accuracy: +-0.05°
Load: 4Kgf
Idle rotation: 0.1°
Parallelism: 50 um
Movement concentricity: 30 um
Movement parallelism: 30 um
Electrical Specifications:
Motor: Type/shaft type: 2-phase stepper/port 28 double shaft
Make/model: (optional)
Driver brand/model: (optional)
Connector: Slide side connector: 15Pin male connector D-SUB
Controller side connector: 15Pin female connector D-SUB (optional)
Sensor:
Stroke origin sensor: Photoelectric detector EE-SX4134
Stroke limit sensor: Photoelectric detector EE-SX4134
Power supply voltage: 24V+-10%
Control wheel out: NPN open collector wheel out 24V 8mA or less
Output control: detection (when sensing): output transistor OFF (non-conducting)
The standard connector type of the product is D-SUB.
If the institution needs to be HRS to qualify, please inform us separately.
The general outlet is standard outlet, regardless of left or right outlet.
==========

Material : Aluminium-copper Alloy

Type : Power Tool Parts
