High and low temperature advantages
The product can be used for a long time.
This type of solenoid valve plastic made of PA
Good heat dissipation effect under normal circumstances
Insulation of high grade with waterproof and damp proof wear resistance
Corrosion resistance the advantages of high and low temperature resistance
The coil is currently the world's top coil package packaging waterproof and moisture-proof wear-resistant anti-corrosion
Specifications:
Voltage:12V 24V 220V
Material: metal + plastic
Operating temperature: 90
Nominal diameter: 8 (mm)/0.3 inch
Working medium: tap water pure water
Operation mode: normally closed
Nominal pressure: 0.02-0.8 MPA
Screw diameter:20mm/0.8 inch
Product length:84mm/3.3 inch
Product height:57mm/2.2 inch
Screw hole distance:25mm/1.0 inch
Coil width:34mm/1.3 inch
Coil height:23mm/0.9 inch

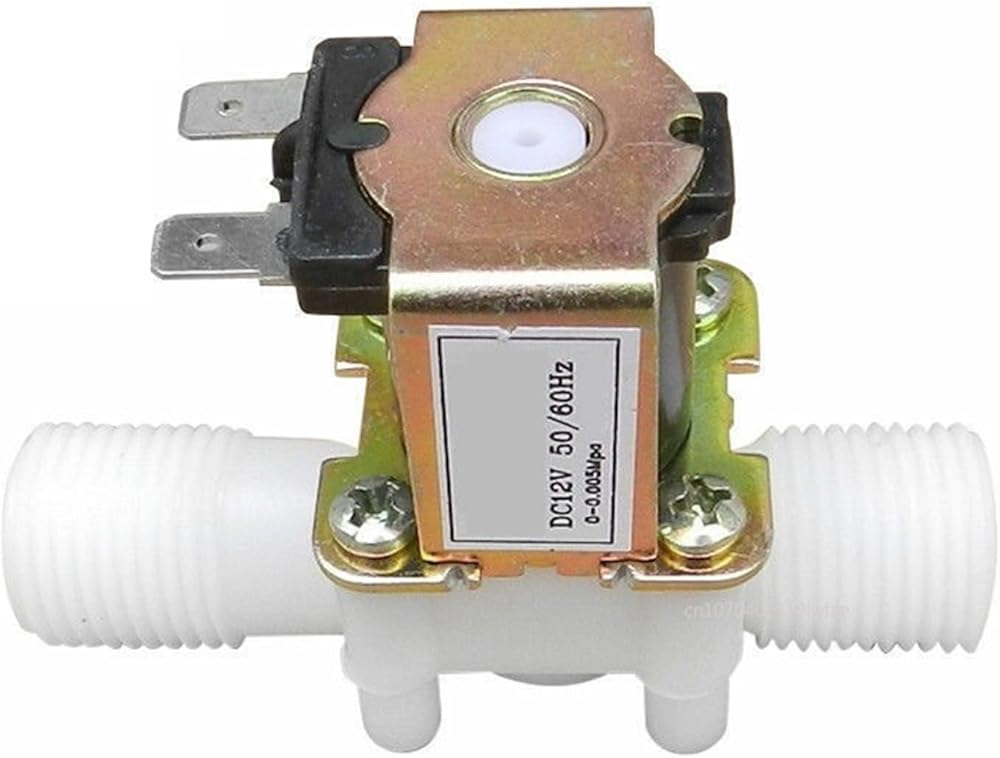

1 x Electric Solenoid Valve Normally Closed
Notes:
Due to the difference between different monitors the pictures may not reflect the actual color of the item.
Compare the detail sizes with yours please allow 1-3cm error due to manual measurement.
