جهاز اختبار خط إشارة كابل XLR 5Pin ذكر DMX512 جهاز اختبار كاشف خطأ إشارة DMX لإضاءة LED الاسمية، وأضواء DJ، وإضاءة الاستوديو، والعرض المباشر (5Pin) in Saudi Arabia

جهاز اختبار خط إشارة كابل XLR 5Pin ذكر DMX512 جهاز اختبار كاشف خطأ إشارة DMX لإضاءة LED الاسمية، وأضواء DJ، وإضاءة الاستوديو، والعرض المباشر (5Pin)

SAR 120
مقاس5Pin
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • ✔XLR 5 Pin DMX Cable Tester – DMX512 Signal Tester is a tool designed for stage lighting signal detection, aiming to quickly and accurately diagnose and troubleshoot DMX512 signal line faults.
  • ✔Quick DMX512 Signal Detection – DMX512 Analyzer Stage Lighting Tester, can judge the quality of the signal line, help find the fault point, and solve problems such as signal failure and uncontrolled lamps.
  • ✔LED Indicator – Get instant visual feedback with bright LEDs. The status of the DMX 512 signal is intuitively displayed through red, green and blue indicator lights. After inserting the signal line, use the indicator light to instantly display the signal status, easily diagnose faults.
  • ✔Application – 5 Pin XLR DMX Signal Fault Detector is Small size, easy to carry, quick on-site testing. for Stage Lighting, LED Par lights, Studio lighting, LED displays, Beam lights, Live Show, Moving Head, LED Bar, DMX Dimmer Pack, LED Wall Washer and so on.
  • ✔Note – The XLR 5Pin Cable Tester can only be used to test DMX512 light signals, and cannot be used in audio and dimming consoles, otherwise the detector will burn out!!!
  • ✔Custom Cable – We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.

وصف

Specification:
Product Name: XLR 5Pin DMX512 Signal Tester
Part No.: PCM-S-0635

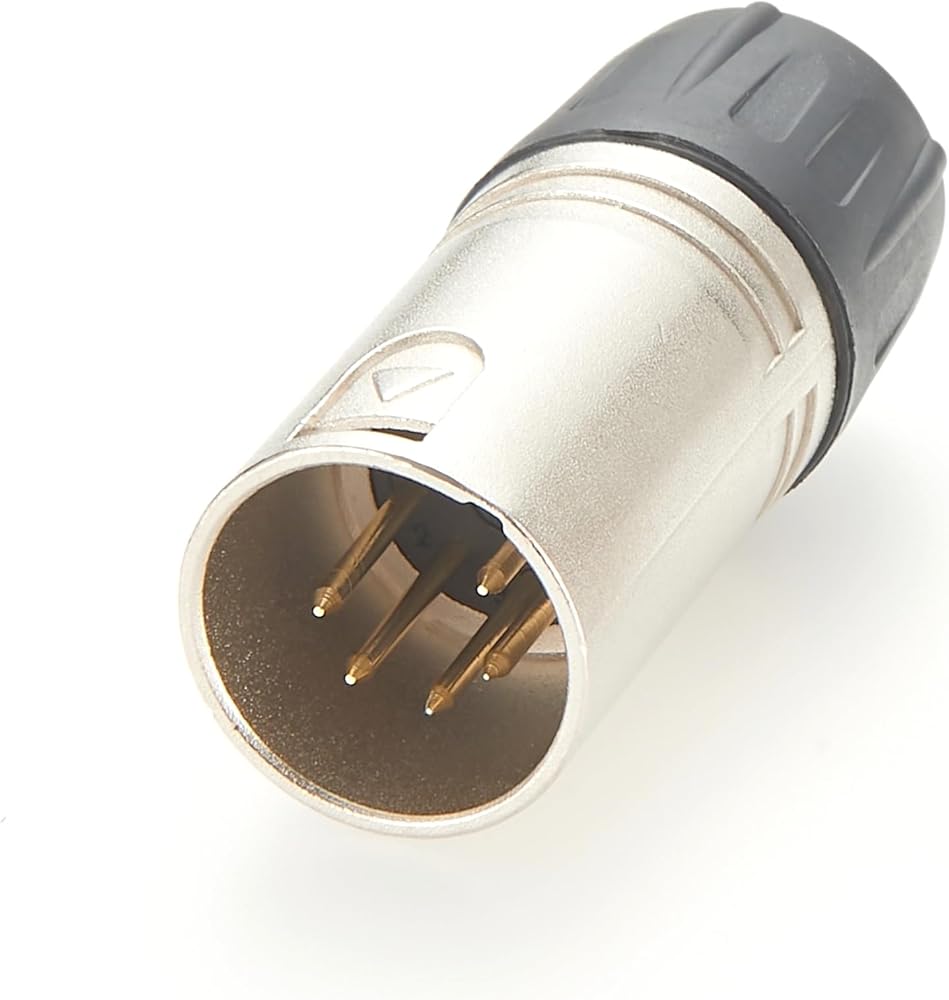

Connector Type: XLR 5Pin Male
There are three LED indicators on the tester:
L1 (Red) → XLR Pin 1
L2(Green)→ XLR Pin 2
L3 (Blue) → XLR Pin 3
Indicator Status:
All LEDs on —— DMX Signal output normal.
Only L1 on —— Pin 1 open circuit or no signal.
Only L2 on —— Pin 2 open circuit or no signal.
Only L3 on —— Pin 3 open circuit or no signal.
L1+L2 on —— Short circuit between Pin 1 and Pin 2.
L1+L3 on —— Short circuit between Pin 1 and Pin 3.
L2+L3 on —— Short circuit between Pin 2 and Pin 3.
All LEDs off —— More than two pins open circuit or no signal.
Notes:
For DMX512 light signals only.
Please do not test other equipment to avoid damage.
