This multi-turn precision resistor potentiometer is for electronic design and industrial control circuits. Its multi-turn design allows fine resistance adjustment. It provides reliable performance in circuit calibration, voltage division, and current control tasks within industrial controls, test equipment, and communication devices.

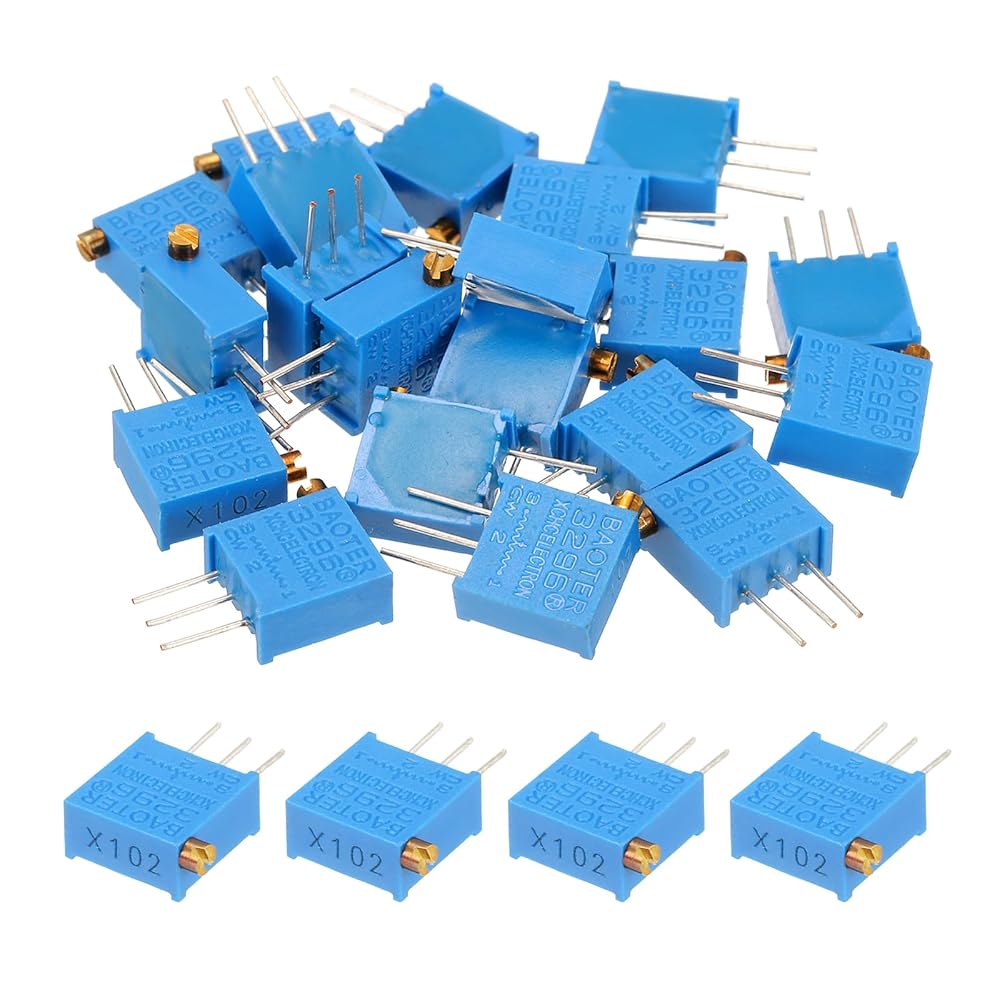

Multiturn Trimmer Potentiometer; Color: Blue; Overall Size: 16 x 11 x 4.8 mm / 0.63 x 0.43 x 0.19 inch(LxWxH); Model: 3296X Side Adjustment; Resistance Value: 1M Ohm; Resistance Tolerance: +/-10%; Temperature Range: -55°C-125°C; In the package of: 20Pcs Potentiometers.
This multi-turn potentiometer allows for precise resistance adjustments, enabling a wide range of change. It delivers stable performance with minimal drift across an operating temperature range of -55°C to 125°C, supported by low noise, making it suitable for diverse electronic applications.
To use this trimmer potentiometer, securely mount it to your printed circuit board using the provided pins. Carefully turn the adjustment screw with a compatible tool to achieve the desired resistance. For optimal results, test the resistance value with a multimeter during adjustment to ensure it aligns with circuit requirements.
Ensure the selected resistance value matches your circuit requirements to avoid performance issues. Avoid over-tightening during installation. Keep within specified temp and humidity ranges.
