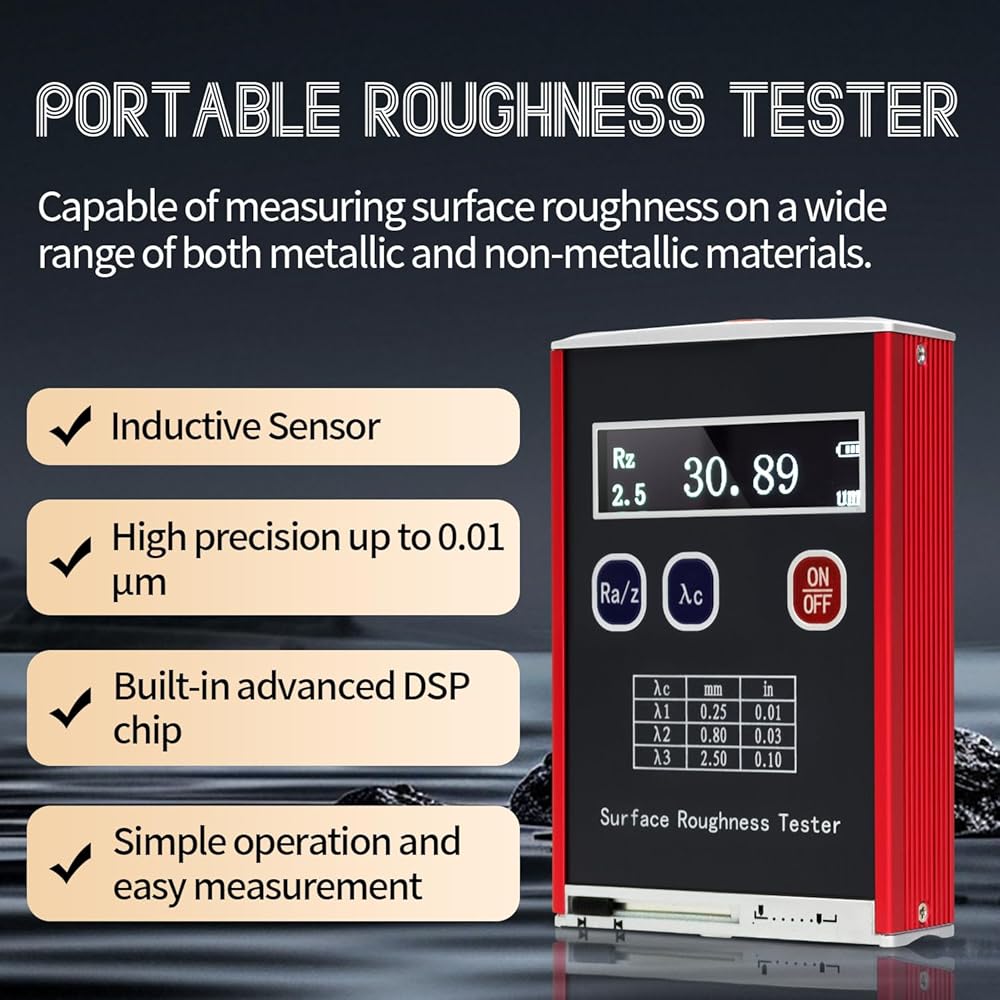

High-Precision Professional Tester - This TR100 surface roughness tester is a high-accuracy precision measuring instrument compliant with GB, ISO, DIN, and JIS standards, widely applied to test the surface roughness of various metal and non-metal materials. Its integrated sensor and main body, compact design, make it ideal for flexible on-site measurement in production sites, quality inspection workshops, and manufacturing scenarios.

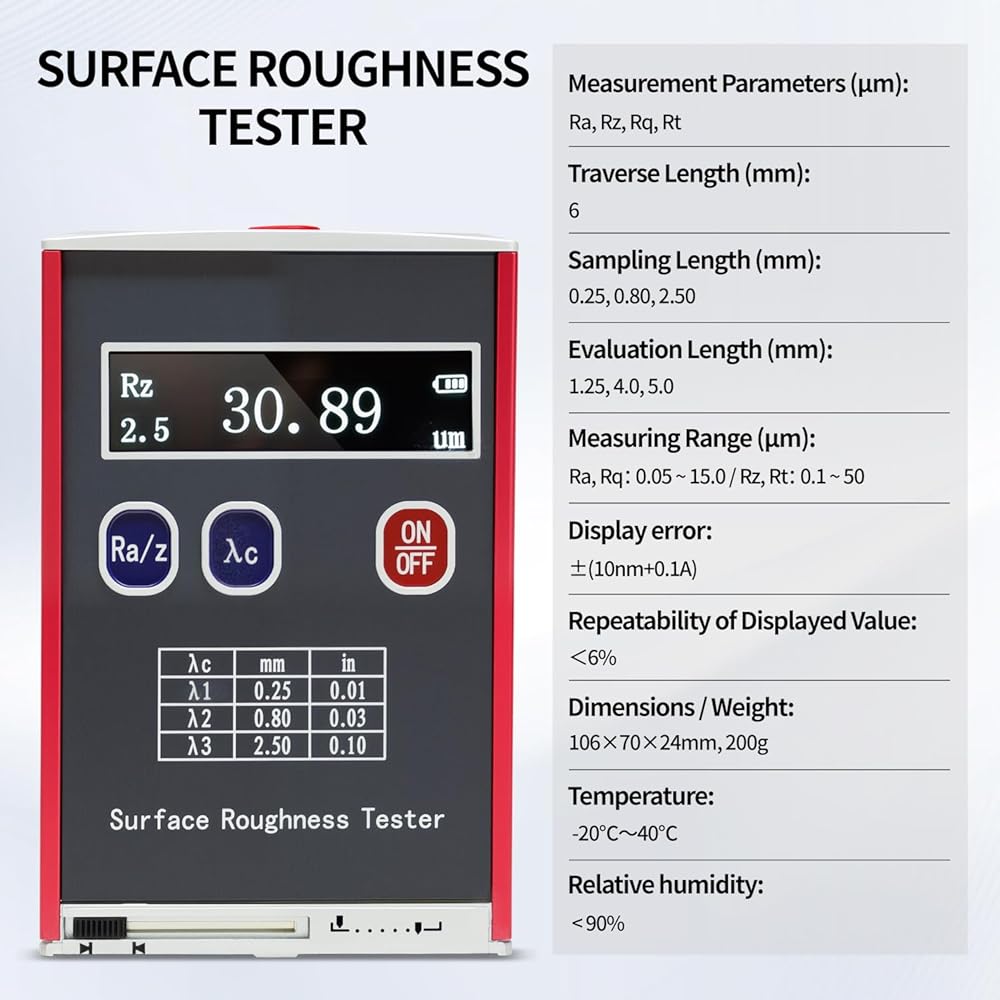

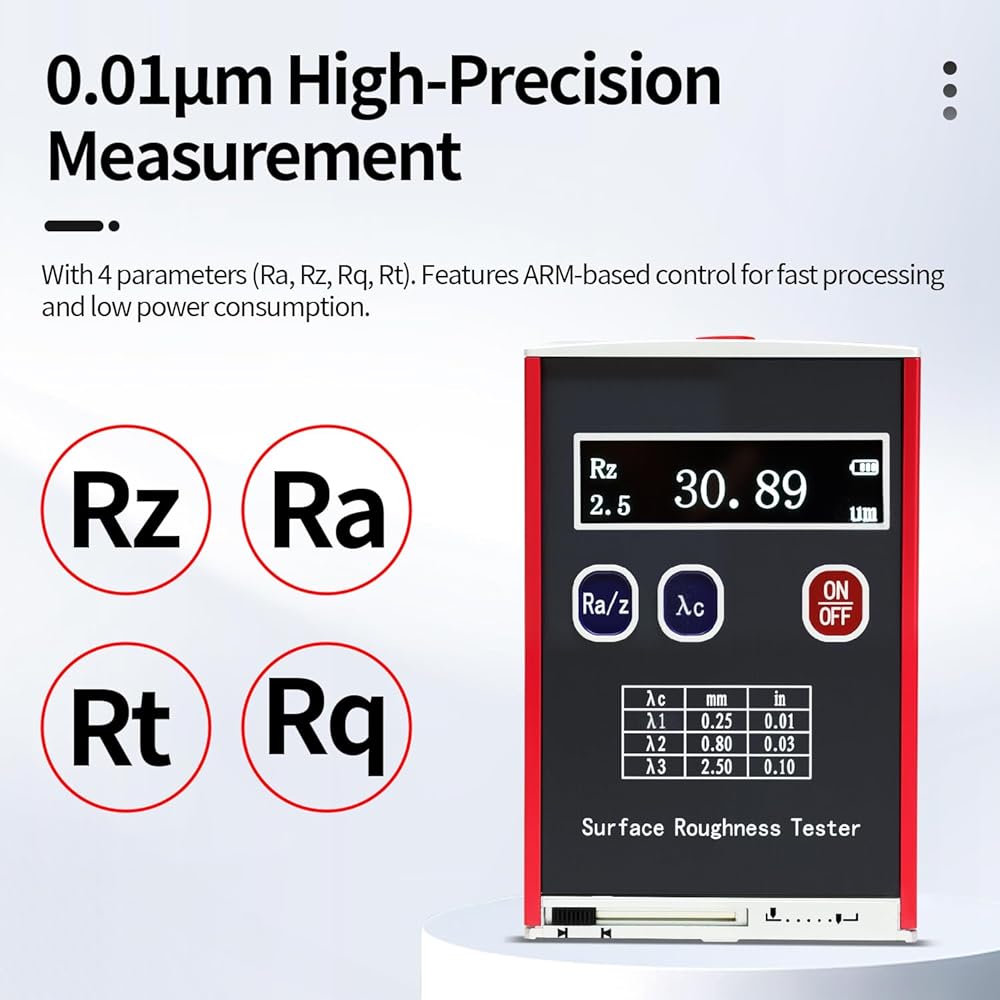

Full Measurement Parameters - TR100 Surface roughness tester supports 4 core roughness parameters: Ra, Rz, Rq, Rt, with a measuring range of 0.05~15.0μm for Ra/Rq and 0.1~50μm for Rz/Rt. It delivers a display error of ±(10nm+0.1A) and a repeatability of displayed value less than 6%, and offers 3 optional sampling lengths (0.25mm / 0.8mm / 2.5mm) to adapt to different testing requirements.

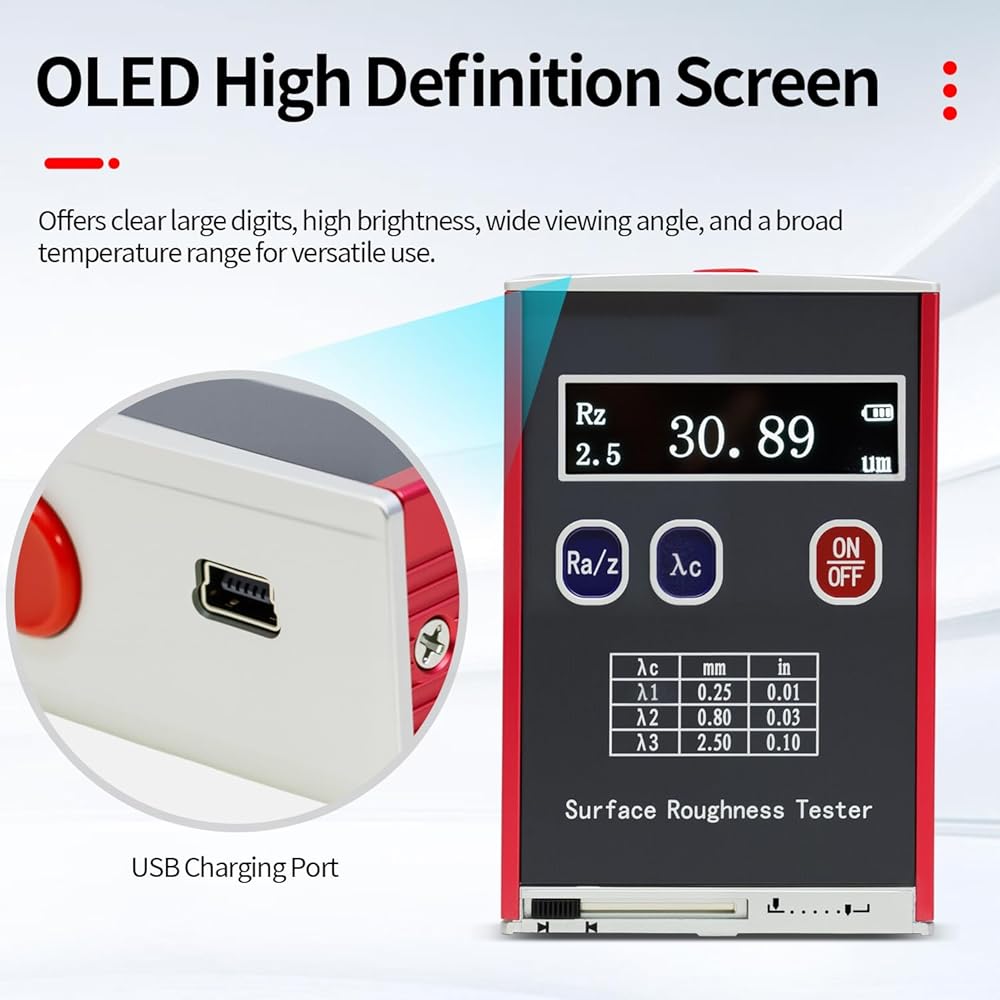

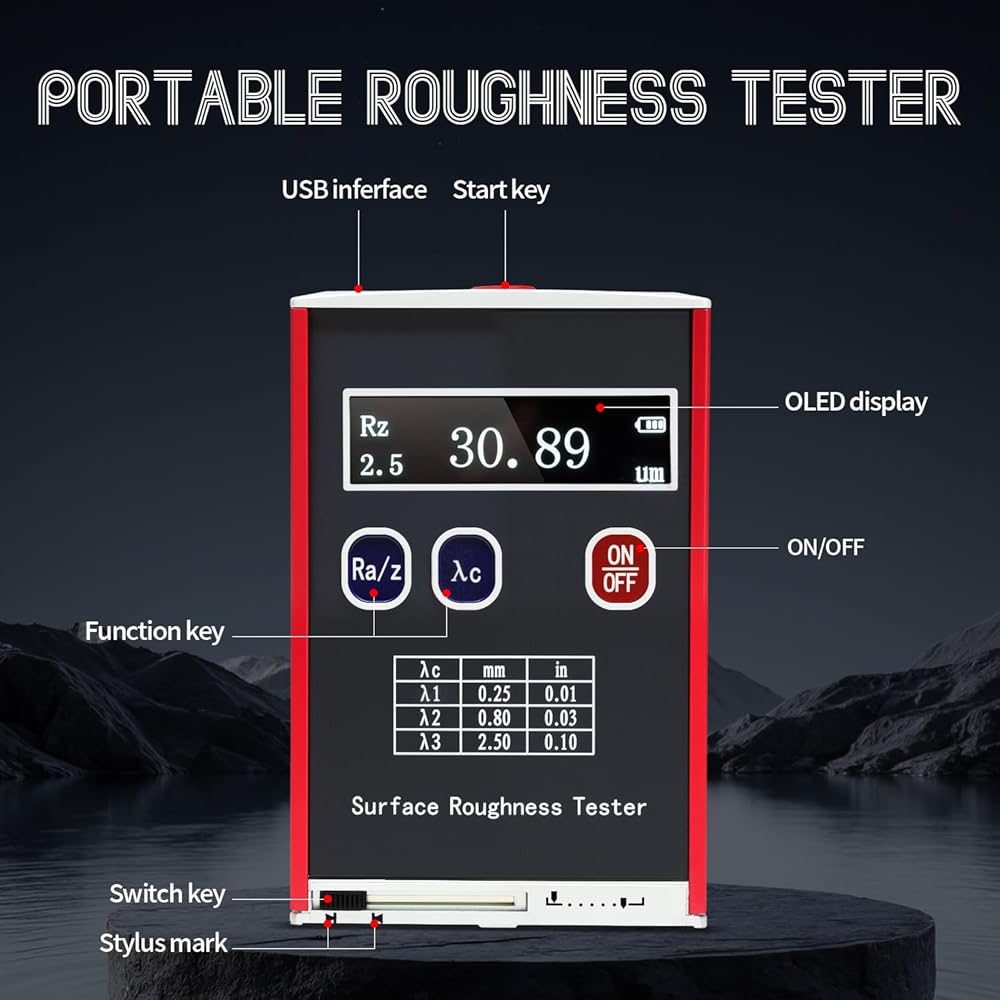

Easy Operation & Fast Measurement - Surface roughness gauge Equipped with a high-brightness 256*64 OLED display for clear and easy data reading, it supports one-key start measurement, and only takes 2 seconds to complete data calculation after the measurement stroke. The one-point calibration function is simple to operate, enabling users to finish calibration quickly; it also supports metric/inch mode switching and 10-minute auto power-off for energy saving.
Durable Structure - TR100 surface roughness tester adopts a firm and durable piezoelectric ceramic sensor, with a diamond stylus (tip radius 10μm±1μm, 90° tip angle) for accurate and stable testing. The metal shell provides strong anti-interference ability, as well as anti-shock and anti-vibration performance, with a stationary measuring force ≤0.016N to protect both the tested surface and the stylus tip.

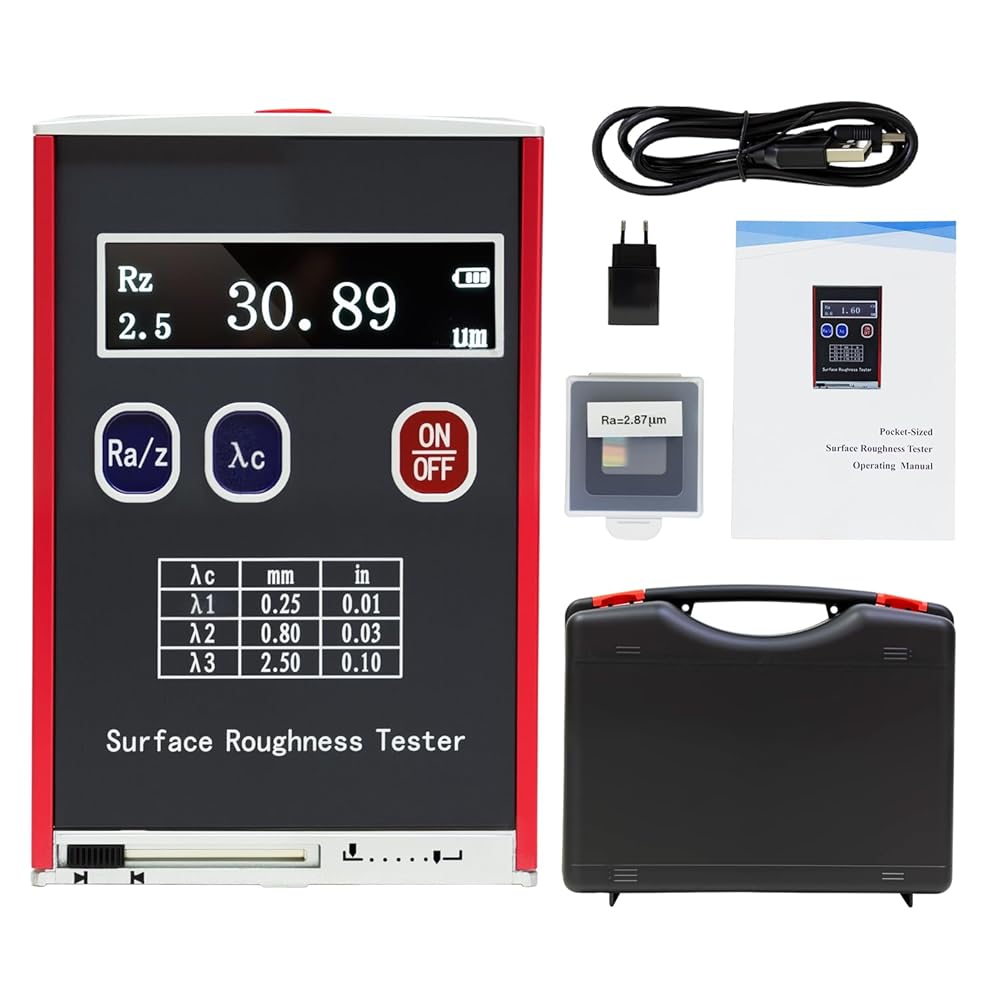

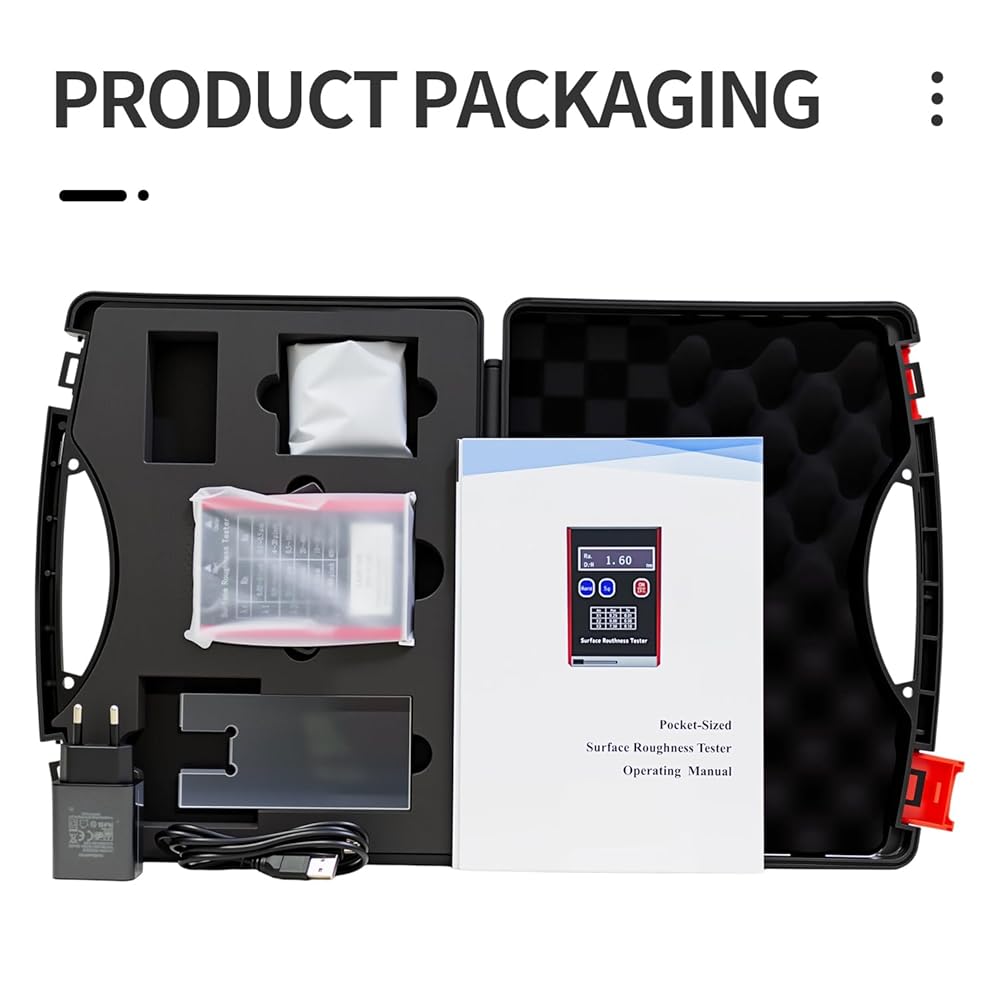

Complete Accessories Kit - Comes with a full set of standard accessories: host device, 5V power adapter, USB cable, operating manual, standard sample template, equipment case, warranty card, qualification certificate and packing list, fully meeting your daily testing and calibration needs.
Description
Portable Surface Roughness Tester, High Precision Surface Profiler Gauge with Ra Rz Rq Rt Measurement, 0.05-15μm Measuring Range, OLED Display for Metal & Non-Metal Surface Inspection(TR100)
