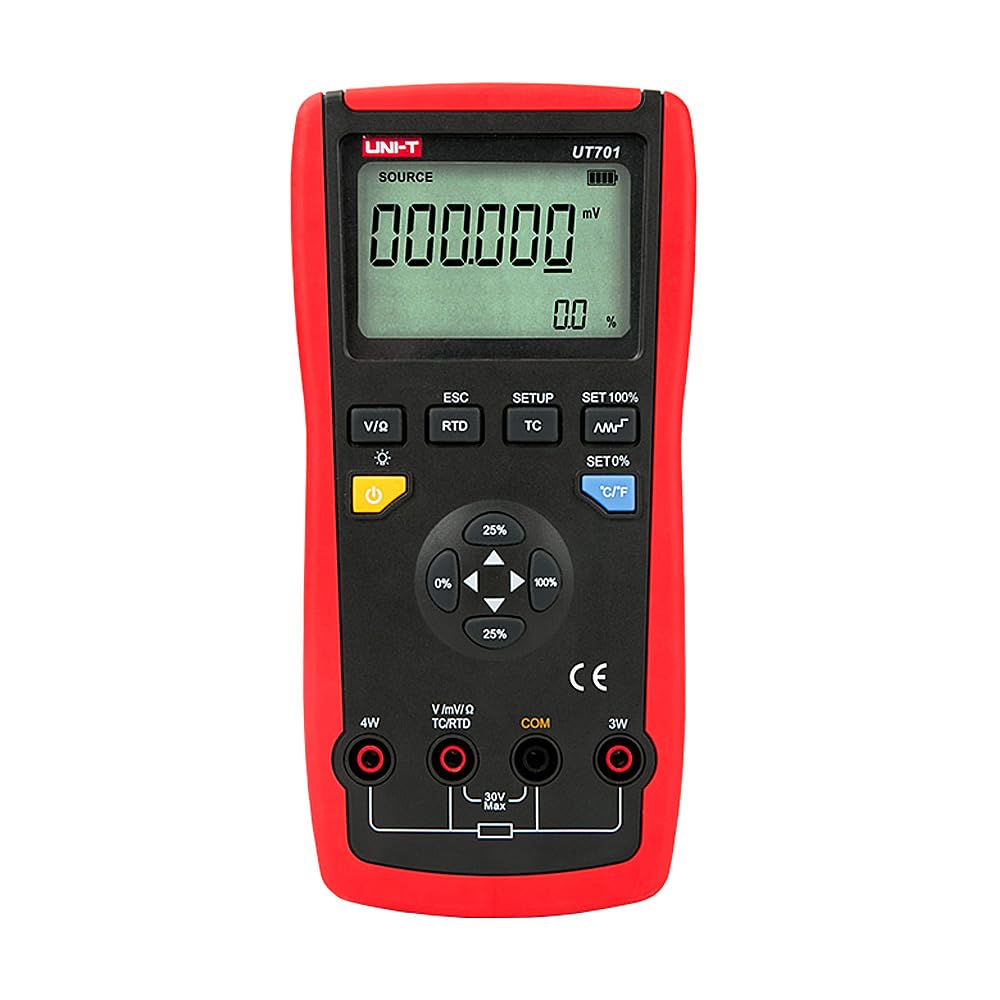

UNI-T UT701 Temperature Calibrator High-Precision Single Function Thermocouple Calibrator 0.05 Percent Output Accuracy

SAR 1,614
Brand
UNI-T
Category
Calibration
Material TypeUT701-FBM
– 1 +

Special Features

  • UT701 is professional and convenient for users to calibrate and repair various temperature testers. It is equipped with 10 thermocuple types, 4 RTD types, and voltage/resistance output function.
  • Easy-to-operate keys, selectable steps and ramp outputs make operations efficient and accurate.
  • The temperature calibrator features LCD backlight, 6-digit display, auto power off, bi-color injection case,1m drop proof, stores and recalls setups.
  • Output functions: DC voltage, resistance, thermocouple, and thermal resistance; Up to 0.05% output accuracy.
  • High precision automatic cold junction compensation for thermocouple outputs.
  • Manual stepping and automatic stepping and ramping; Certifications: CE, UKCA.
  • We provide 6-month worry-free warranty and friendly customer service. If you need technical support for the thermocouple calibrator and have any questions about the order, please feel free to contact us and we will handle it within 24 hours.

Description

Source accuracy:
DC mV: 100.000mV ±(0.05%＋3); 1000.0mV ±(0.05%＋3)
Resistance (Ω): 500.0Ω ±(0.05%+2); 5000Ω ±(0.05%+2)
Thermocouples:
J: -20~1200℃ (-328~2192℉) ±0.7℃
K: -200~1370℃ (-328~2498℉) ±1℃
T: -200~400℃ (-328~752℉) ±0.8℃
E: -200~950℃ (-328~1742℉) ±0.7℃
R: -20~1750℃ (-4~3182℉) ±1.4℃
S: -20~1750℃ (-4~3182℉) ±1.5℃
B: 600~1800℃ (1112~3272℉) ±1.4℃
N: -200~0~1300℃ (-328~2372℉) ±0.9℃
Wre325: 0~2000℃ (32~3632℉) ±1.8℃
Wre526: 0~2300℃ (32~4172℉) ±1.8℃
RTDs:
Pt10: -200~850℃ (-328~1562℉) ±(0.5%+6℃)
Pt100: -200~850℃ (-328~1562℉) ±(0.05%+0.6℃)
Cu50: -50~150℃ (-58~302℉) ±(0.05%+0.6℃)
Cu100: -50~150℃ (-58~302℉) ±(0.05%+0.6℃)

Features:
Ramp functions:
Source functions: Voltage, resistance, temperature
Ramps: Slow ramp, fast ramp, 25% step-ramp
Step functions:
Source functions: Voltage, resistance, temperature
Steps: 25% of range, 100% of range

General Characteristics:
Power: 9V battery (6F22), no include
Package include: Temperature calibrator(UT701), Test leads, Gift box, English manual, cloth bag
Display: 63mm x 40mm
Product color: Red and grey
Product net weight: 410g
Product size: 96mm x 193mm x 47mm
