Pillow Blocks
Details
Model: LM25UU
Ball circuit: 6
Inscribed circle Diameter: 25 mm
Out Diameter: 40 mm
Length: 59 mm
Dynamic Cr: 100 kgf
Static Cor: 160 kgf
Weight: 206 g
Quantity: 1 Lot = 2 PCS
Grade: ABEC-5
Model: LM30UU
Ball circuit: 6
Inscribed circle Diameter: 30 mm
Out Diameter: 45 mm
Length: 64 mm
Dynamic Cr: 160 kgf
Static Cor: 280 kgf
Weight: 240 g
Quantity: 1 Lot = 2 PCS
Grade: ABEC-5
Model: LM35UU
Ball circuit: 6
Inscribed circle Diameter: 35 mm
Out Diameter: 52 mm
Length: 70 mm
Dynamic Cr: 170 kgf
Static Cor: 320 kgf
Weight: 370 g
Quantity: 1 Lot = 2 PCS
Grade: ABEC-5
Advantages of the Product：
1.The friction is small the noise is small the moment of inertia is low the noise is smaller the operation runs smoothly.
2.Efficient operation long life due to fluidity contact can greatly reduce the starting friction resistance and dynamic friction resistance
3.Rugged good material high quality rotation accuracy not easy to burn suitable for high-demand occasions.
Application
The nut uses high-carbon chromium bearing steel and its outer and inner surfaces are ground after being heat-treated.

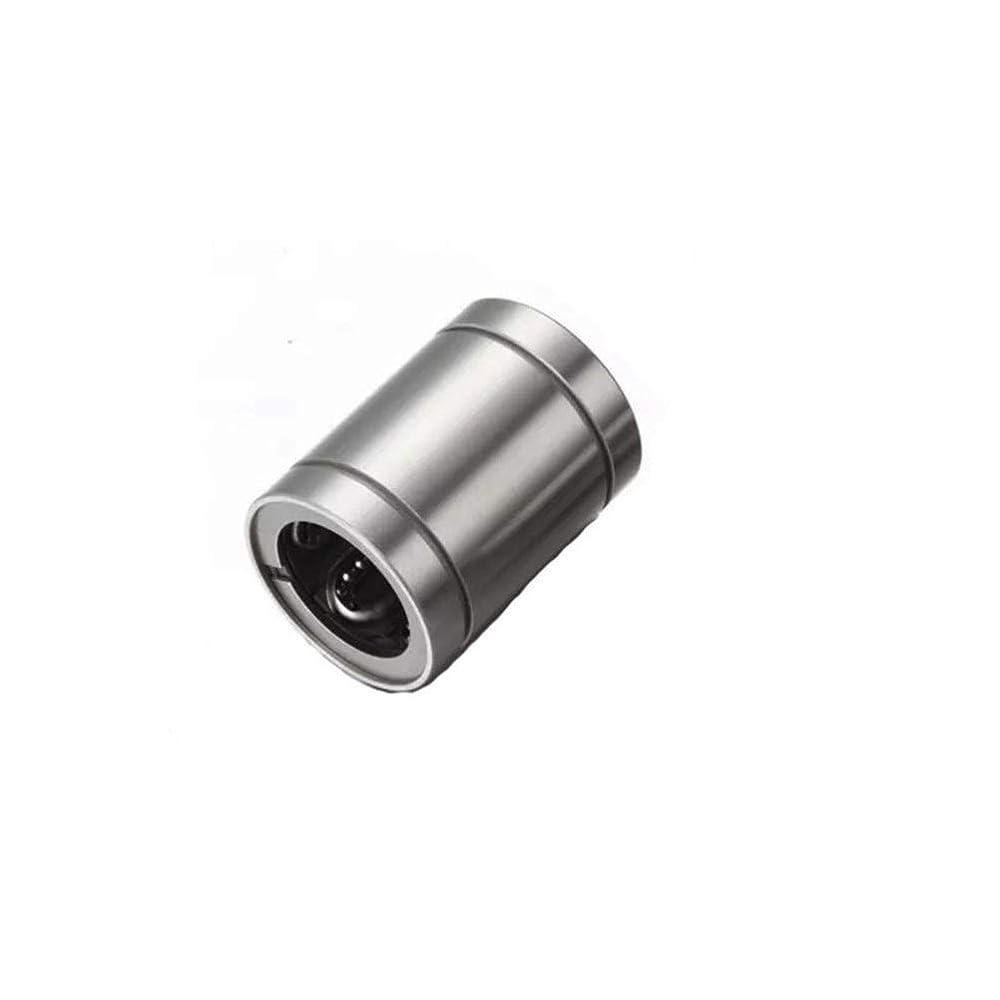

The Linear Bushing is used in a broad array of applications such as slide units of precision equip-ment including OA equipment and peripherals measuring instruments automatic recorders and dig-ital 3D measuring instruments industrial machines including multi-spindle drilling machine punching press tool grinder automatic gas cutting apparatus printing machine card selector and food pack-ing machine.
