Pillow Blocks
Suitable for Semiconductor manufacturing equipment printed circuit board IC assembly equipment medical equipment; machine arm precision measuring instruments office automational equipment and other small linear sliding devices
Hardness: HRC602
Surface hard thickness: 0.8u~3mm
Accuracy: G6
Outer diameter: 8mm / 10mm/12mm
Optional Length: 200mm;300mm;400mm; 500mm;600mm
Axis Shaft Support Specification
Inside Diameter: 8/10mm (Applicable to the optical axis diameter 8mm)
Size : 42 x 14 x 32.8mm / 1.65" x 0.55" x 1.29"(W*L*F);
Axis Shaft Support Specification
Inside Diameter: 12mm (Applicable to the optical axis diameter 12mm)
Size : 42 x 14 x 37.5mm / 1.65" x 0.55" x 1.47"(W*L*F);
Linear Ball Bearing Specification
Model: SC8UU
Inner Diameter: 8mm/0.31
Length: 34.5mm
Linear Ball Bearing Specification
Model:SCS10UU
Inner Diameter: 10mm/0.39
Overall Size: 35x40x26mm/1.38"x1.57"x1.02"(L*W*H)
Linear Ball Bearing Specification
Model: SC12UU
Inner Diameter: 12mm
Overall Size : 36 x 42 x 28mm/ 1.4" x 1.7" x 1.1"(L*W*H)

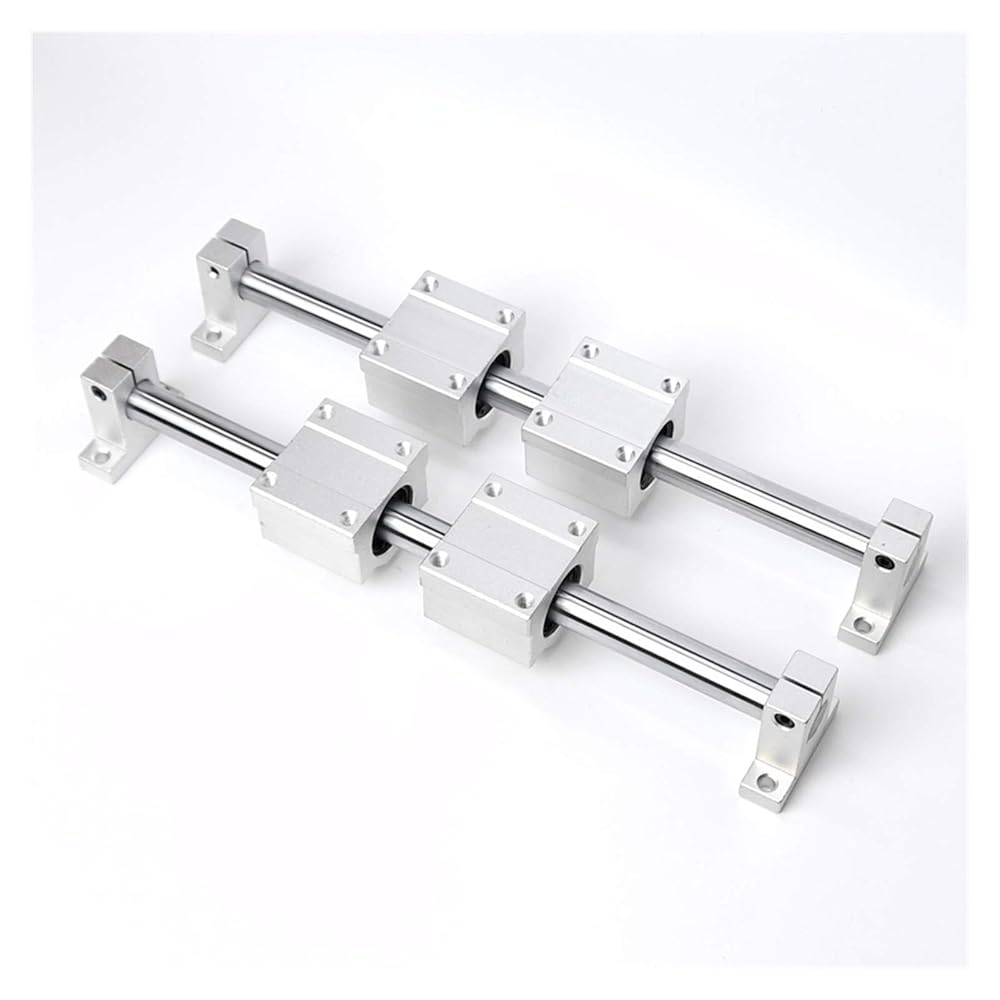

Package include:
2 x Optical Axis
4 x Linear Rail Support
4 x Linear Slide Block
