Comparator
Medium U-shaped dual triode, used in voltage amplifier circuits. Can directly replace 6N8P and 6SN7GT.
Hot line voltage
Ultra high 6.3 volts
Current 0.6A
Static parameters
UA 90 250V
Voltage 0 -8V
Current 109 mA
Transconductance3 2.6 mA/V
Richter 6.7 7.7 thousand
20 20
Ia When Ug=-12.5V_ 1.3mA
Ia=-10uA when Ug -7 - 18V
Extreme Rating
A1 magnification (each side)
450 volts
Current - 20mA
Pa 5 watts
Pa (No. 1+No. 2) 7w
1M
Voltage ±100V

Channels: 1

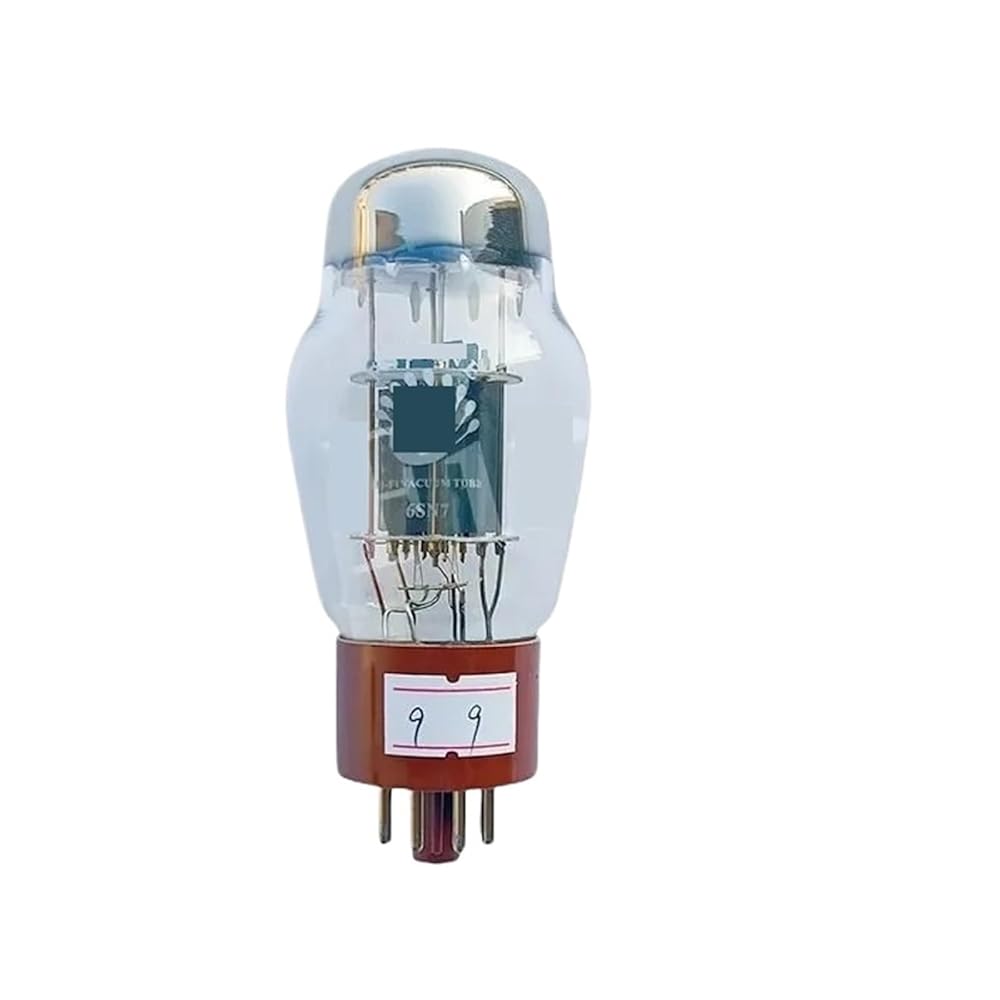

Model: 6SN7
Maximum power per channel: No power supply
