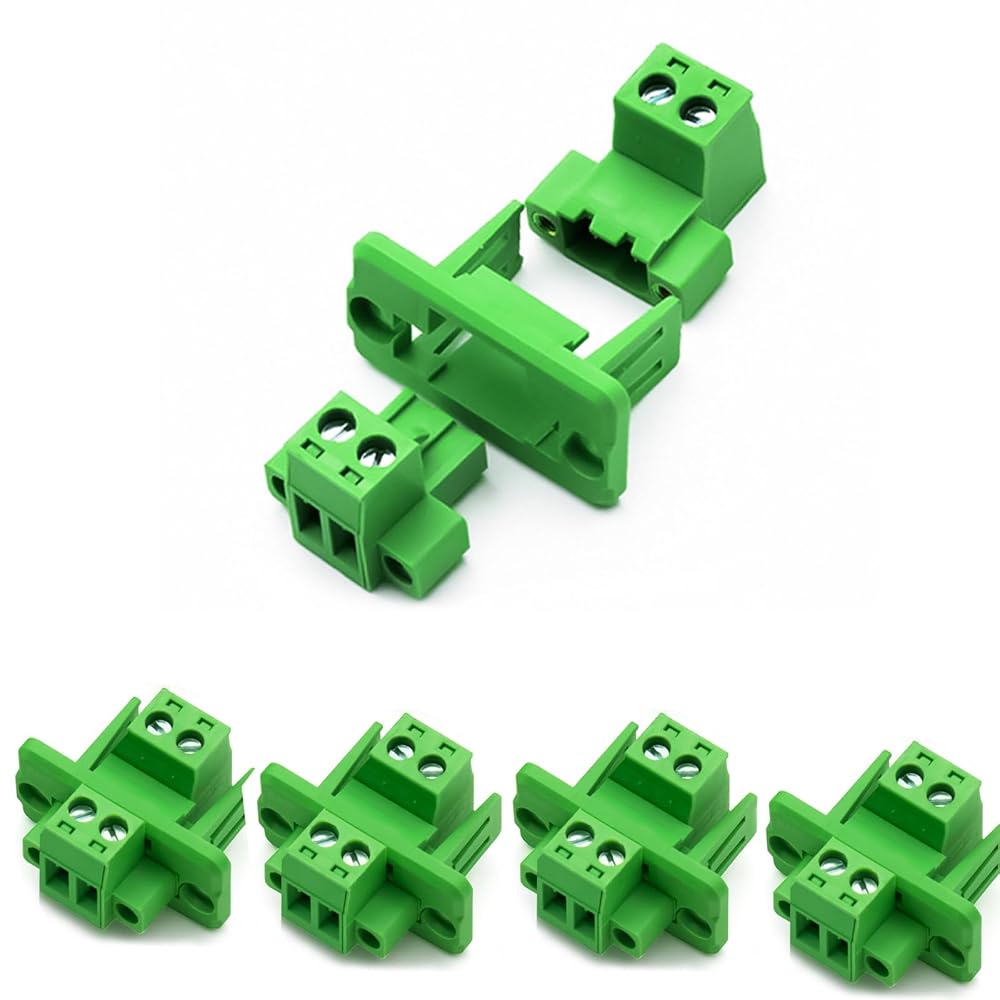

5 Set 6 Pin 5.08mm Pitch Screw Terminal Panel Mount, Through-Wall Phoenix Connectors-24-12 AWG,300V 15A in Saudi Arabia

5 Set 2 Pin 5.08mm Pitch Screw Terminal Panel Mount, Through-Wall Phoenix Connectors-24-12 AWG,300V 15A

SAR 47
Brand
XUGERIP
Size2P-5Set
– 1 +

Special Features

  • Safe Wiring Connection: 6-pole 5.08mm through-wall screw terminal, rated 300V 15A. Provides stable and safe electrical connections for various devices.
  • Durable & Flame-Retardant: Made of PA66 high-temperature V0 flame-retardant material. No leakage, no short circuit, long service life.
  • Easy to Use: Loosen the screws, insert the wires, and tighten. Quick disconnect design makes device replacement fast and simple.
  • Strong Contact Design: Anti-vibration structure with tin-plated brass and nickel-plated phosphor bronze contacts for reliable conductivity.
  • Package: 5 Set 6pin (Male Plug+ sleeve+ female socket) Pitch: 5.08mm. Wire: 24–12AWG. Strip length: 5–8mm. Use M2.5 screws (not included).

Description

Feature
-Type: Through-Wall Terminal Connectors
-Pin: 6 Pin
-Pitch: 5.08mm
-Gender: male & female
-Contact (Female Socket): Tin Plated Brass
-Contact (Male Plug): Nickel Plated Phosphor Bronze
-Plastic Components: PA66, Flame-Retardant
-Rated Value: 15A 300V
-Wire Range:16-28AWG
-Withstanding Voltage: AC1500V/1Min
-Torque:0.4Nm (3.5lb-In)
-Stripping length:7-8mm
-Temperature range:-113°F ~ + 221°F
-Screw and Push-in connection design
Package:
-5set x 6Pin 5.08mm Pitch male plug & female socket Terminal Block Connector
Notice:It's crucial to select terminal blocks that match the specifications of your project to ensure reliable connections and proper functionality within the circuit.
