Resistor Chip Arrays
RX20-50W Size: Length 90mm, Diameter: 30mm
ZG11-50W Size: Length 90mm, Diameter: 20mm
Scope of applicationApplications
Mainly used for large power supplies,power equipment,Electrical equipment,Locomotive, etc.,
Product featuresFeatures
Using high temperature glass glaze as surface coating
The resistor body adopts high temperature refractory porcelain body or alumina porcelain body,Fully welded structure
Excellent high temperature load characteristics
TThe series is adjustable.NSeries is senseless
Environmental conditions for use
Ambient temperature:-55~+315
Relative temperature: the temperature is+40,up to98%
Atmospheric pressure: up to7.5mHg:
vibration:010-500HZ,10g;
:40-80/,25g;
:25.
:

(W)
(W)

(mm)

RX20
Rx20-T
RX20-2.5
2.5
5.1-510
f13 x 26
±5%
±10%
RX20-8
8
5.1-3.3k
f14 x 35
RX20-10
10
5.1-10k
5.1-200
f14 x 41
RX20-16
16
5.1-15k
5.1-220
f17 x 45
RX20-20
20
5.1-20k
5.1-430
f17 x 51
RX20-25
25
10-24k
10-510
f21 x 51
RX20-30
30
10-30k
10-1k
f21 x 71
RX20-40
40
20-51k
20-1.2k
f22 x 87
RX20-50
50
20-51k
20-1.5k
f29 x 91
RX20-75
75
24-56k
24-2k
f29 x 140
RX20-100
100
24-62k
24-2.7k
f29 x 170
RX20-150
150
20-150k
20-4.3k
f34 x 215
RX20-200
200
20-110k
20-5.3k
f29 x 265
==========

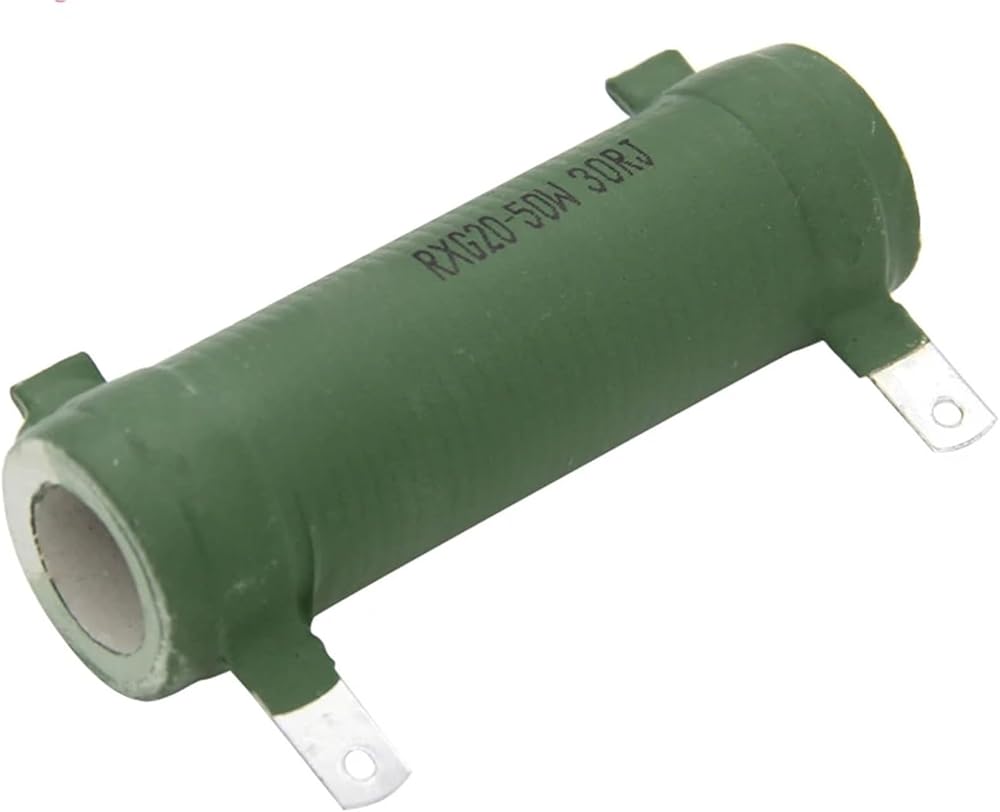

Model Number : RXG20-50W
is_customized : Yes
Origin : Mainland China
Resistor category : winding resistor
