Technical Specifications
* Function: DC, AC current measurement
* Clamp Size: 108mm×148mm (can clamp electric cable of 108mm diameter, or 160mm×4mm flat cable and steel earth wires)
* Display Mode: 4 digital LCD display, length 47mm×width 28.5mm
* Measurement Range: AC 0.0A～1000A; DC 0.0A～2000A
* Resolution: 0.1A
* Measurement Accuracy (23C±3C, below 70%RH, measured wire at the center of the clamp): 0.0A～999A: ±2%±5dgt ; 1000A～1499A: ±3%±5dgt ; 1500A～2000A: ±4%±5dgt
* Data Storage: 99 sets“FULLthe memory is full ” symbol indicate

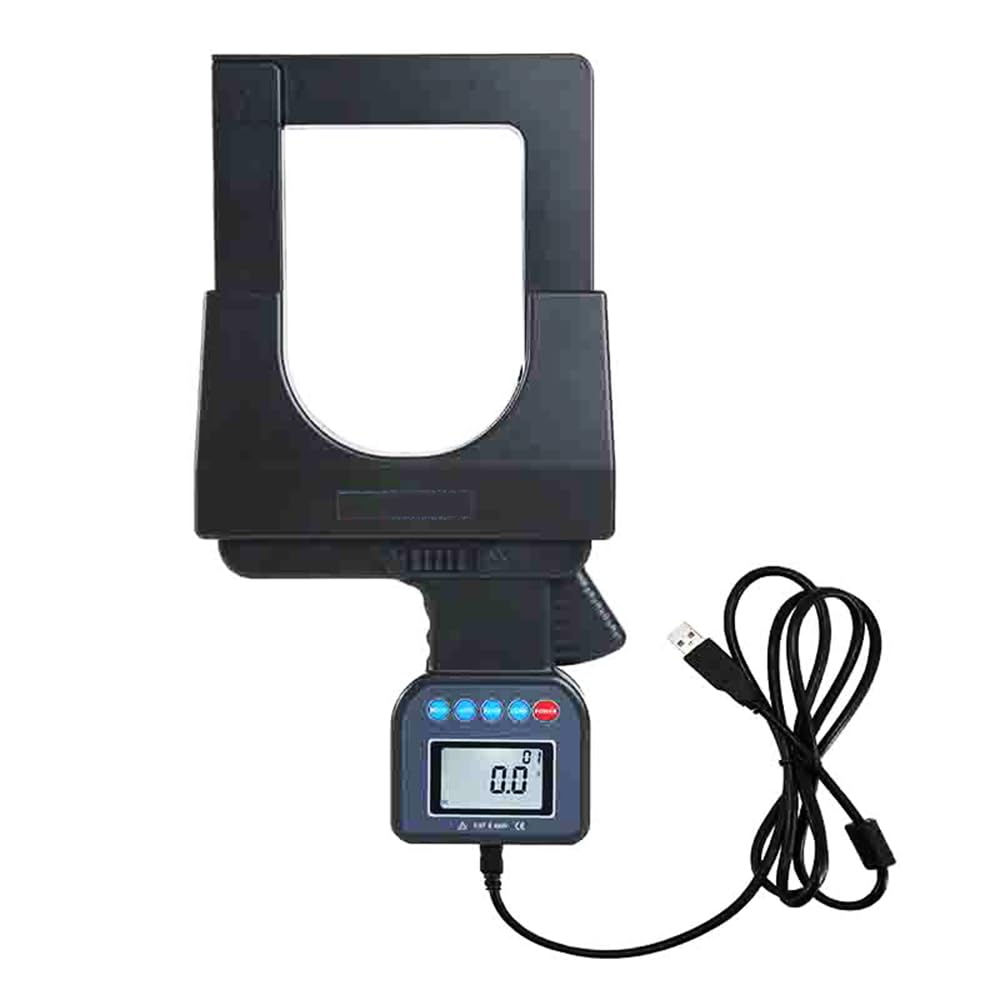

* RS232 Interface: With RS232 interface, download data to computer for analysis and management
* Automatic Shutdown: Automatically shutdown about 5 minutes after power on
* Working Temperature and Humidity: -10C-40C; 80%rh; Storage -10C-60C; below 70%rh
* Test Mode: Clamp CT, integral mode
* Frequency: AC: 45Hz～400Hz
* Data Hold: "HOLD symbol appears”
* Overflow: "OL symbol appears”
* Peak hold: Peak capture and hold function, long press HOLD during test to show peak value
* Polarity indication: Automatically identify when DC current is detected, display "-" sign
* Line Voltage: Below AC 600V line measurement
* Gear Shift: Automatic shift
* Sample Rate: About 0.5 second/times
* Battery voltage: Low battery symbol appears to remind the replacement of battery when the battery voltage drops below 4.6V.
* Insulation strength: AC 3700kV/rms(between core and shell)
* Safety Specifications:IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT (600V)
* Meter Size: (LxWxH)350mm × 180mm × 55mm
* Power: 6V DC(LR6×4 alkaline dry batteries,（Battery not included in the package） continuously working for 12 hours)

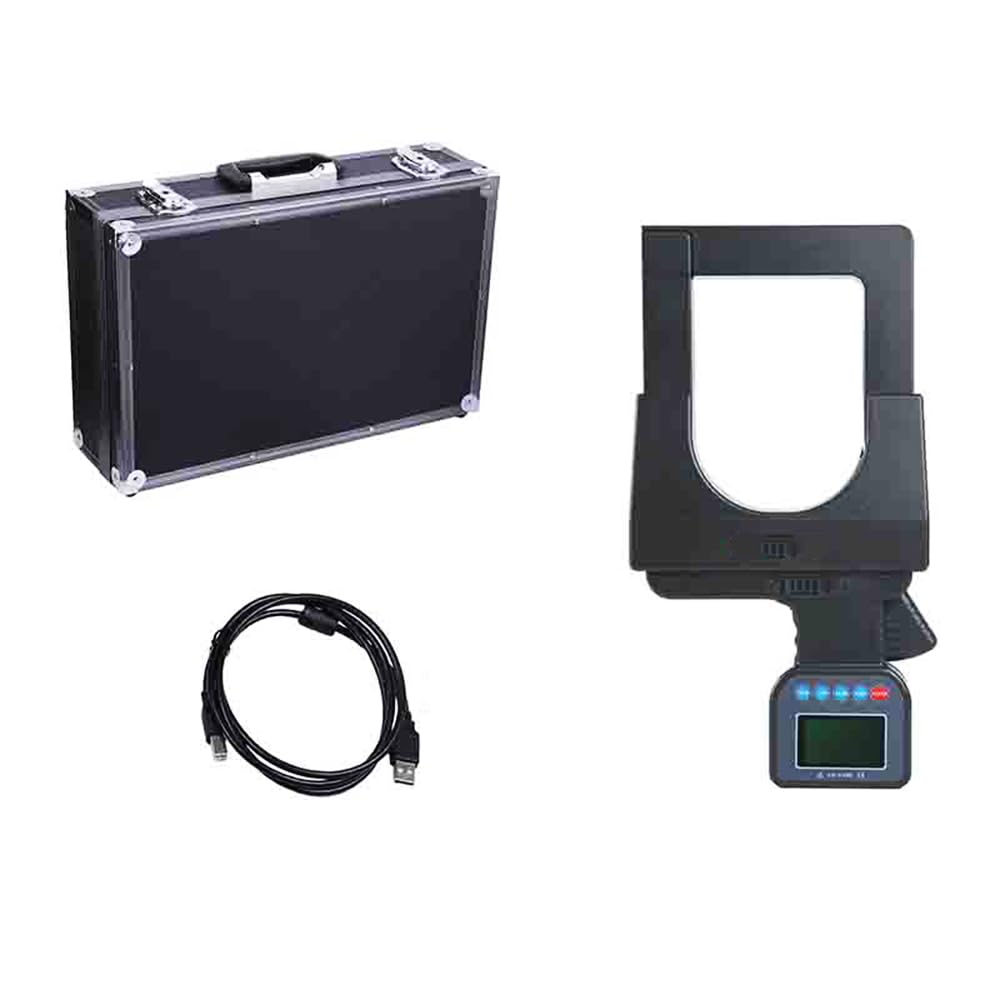

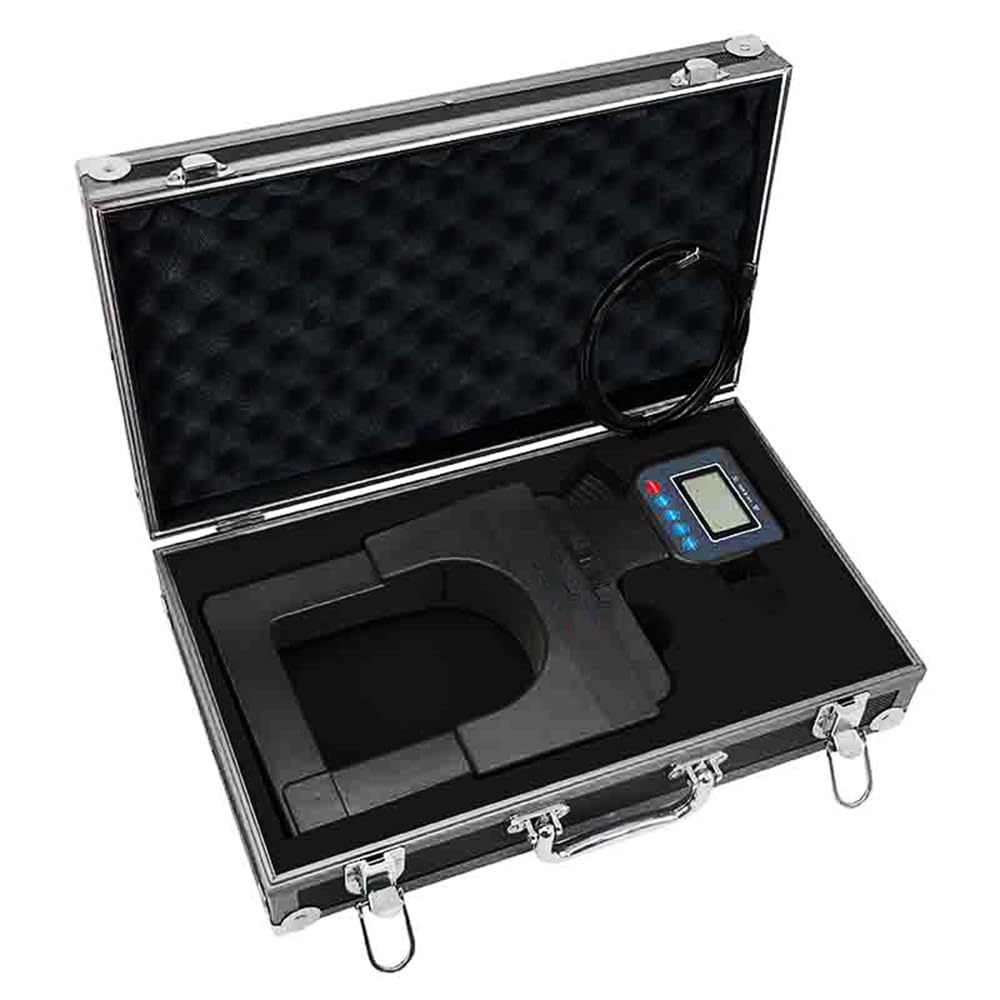

* Accessories: Meter: 1 PC; RS232 Data Line: 1 PC; Disk: 1 PC; Meter Box: 1 PC
