Linear Stage Actuator Travel, 100/200MM Linear Guide Rail CNC Slide Stage Actuator Ball Screw Motion Table (100mm, KR60S)

SAR 360
Size100mm
StyleKR60S
– 1 +

Special Features

  • ✔【Good Assistant】This linear stage actuator travel can move 10cm(3.94in)/20cm(7.87in) in the middle, which can support and guide moving parts to the maximum extent, and is your good helper! Its repeated positioning accuracy can reach ±0.05mm/0.002in, providing you with a more professional experience.
  • ✔【Ergonomic Design】Its rotating handle is a very ergonomic design. When you work, it will be more stable and comfortable to hold, and it can also provide you with more stable operation. It can carry 30kg/66.14lbs in the horizontal direction and 20kg/ 44.09lbs in the vertical direction to meet your needs in different directions.
  • ✔【Durable Material】It is made of high-quality 606 aluminum, with good strength, so you can use it for a long time. The precision guide rail processed by CNC makes it more smooth, and the friction is small when used. This linear stage actuator travel has an M6 counterbore at the bottom, which is convenient for you to install on the workbench. In addition, it can be folded and slid directly, which is convenient for you to use.

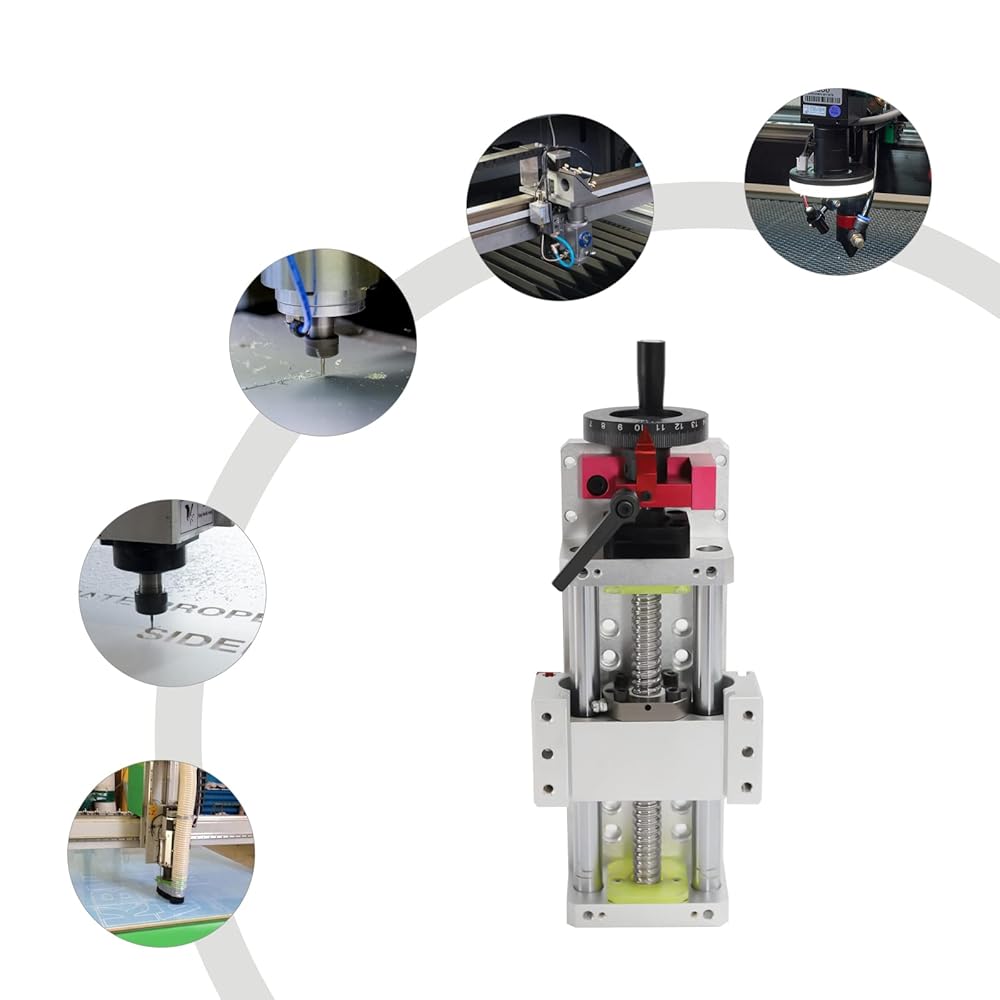

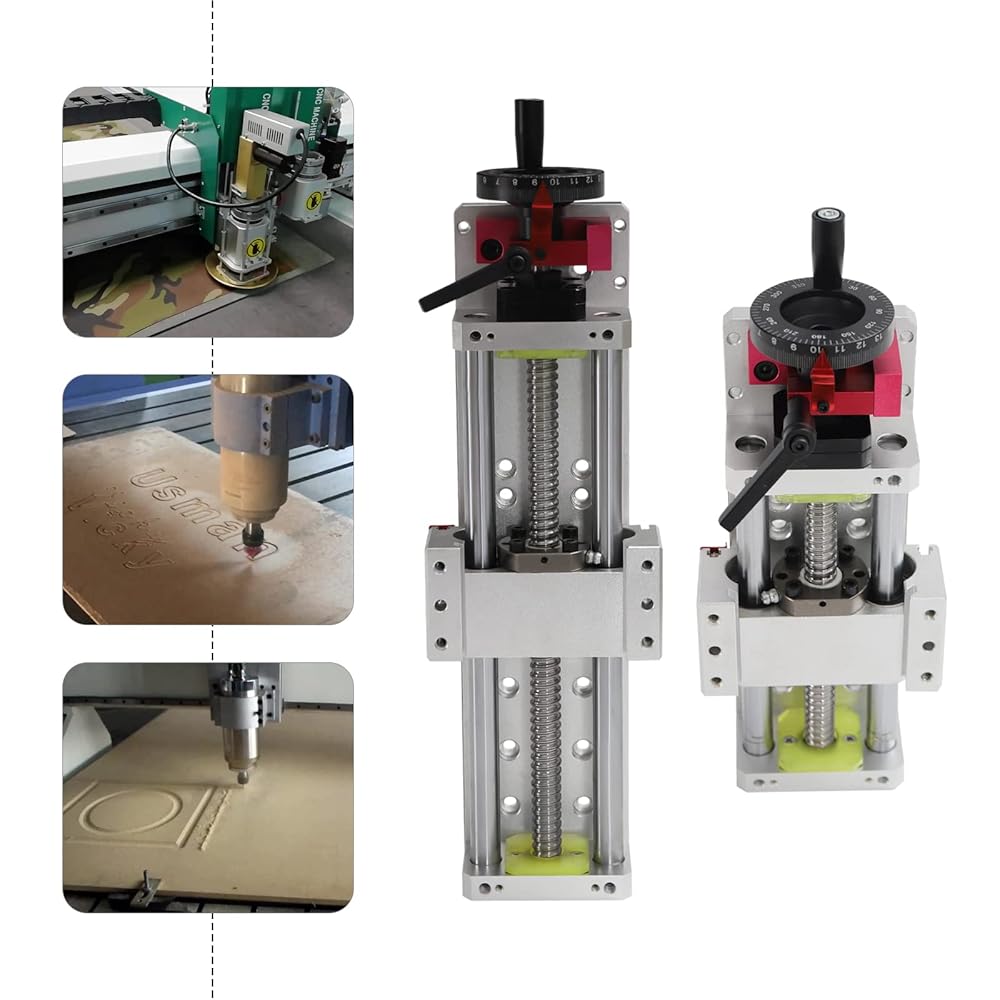

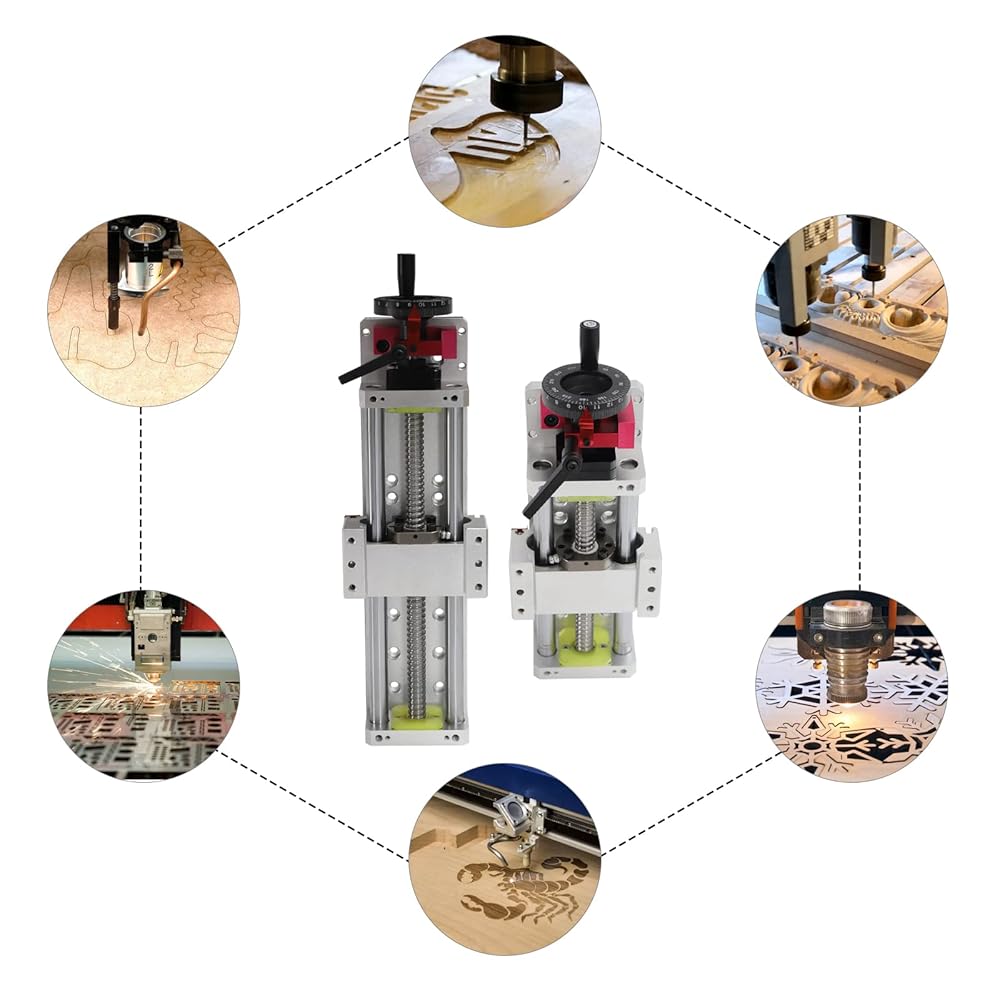

  • ✔【Application】This linear stage actuator travel is widely used in dispensing machines, engraving machines, punching machines, 3D printers, mask machines, and other automation equipment.
  • ✔【Two Modes to Choose from】This manual linear rail guide has a linear rail stork of 10cm/3.94in or 20cm/7.87in for you to choose from. You can choose according to your needs.

Description

Description

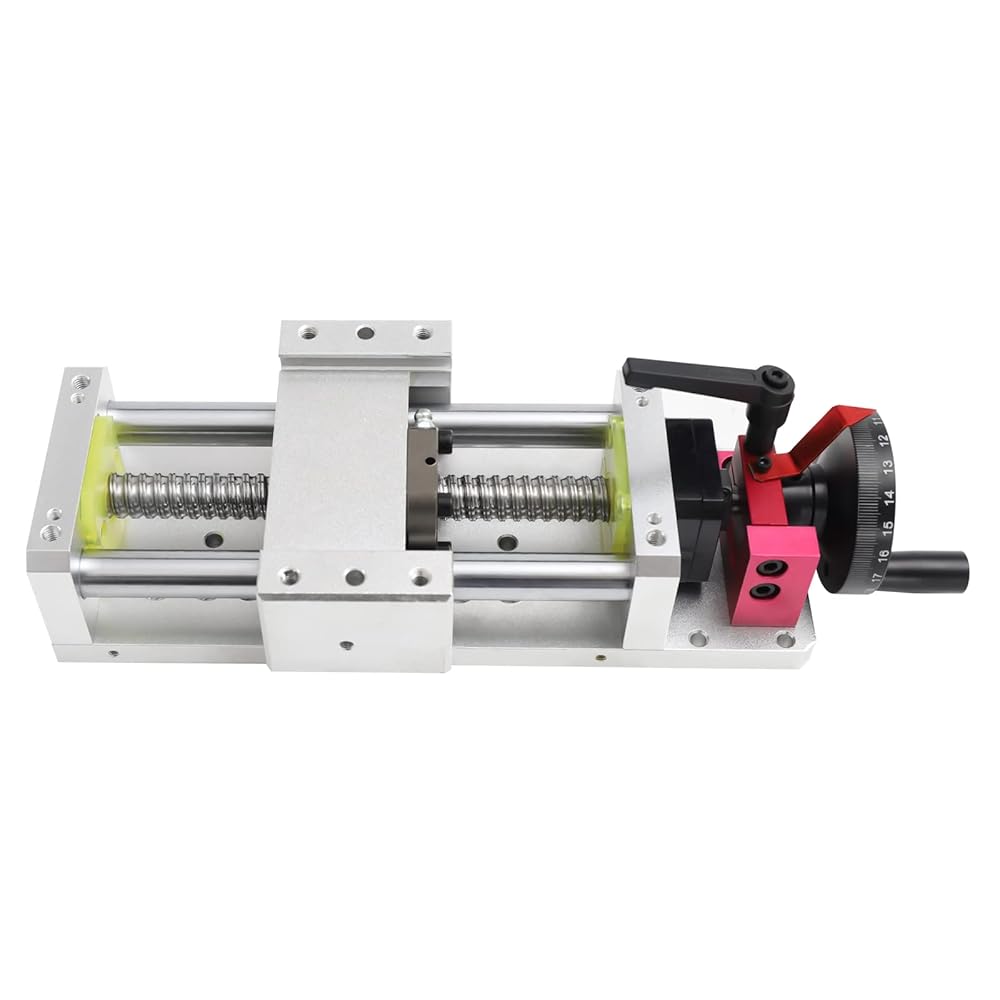

This is a linear stage actuator travel with high accuracy, low noise, and high quality. With it, it can support and guide the moving parts and make them move in a reciprocating straight line in a given direction. Its repeatability is up to ± 0.05mm/0.002in, allowing you to enjoy a higher standard and professional user experience!

Details

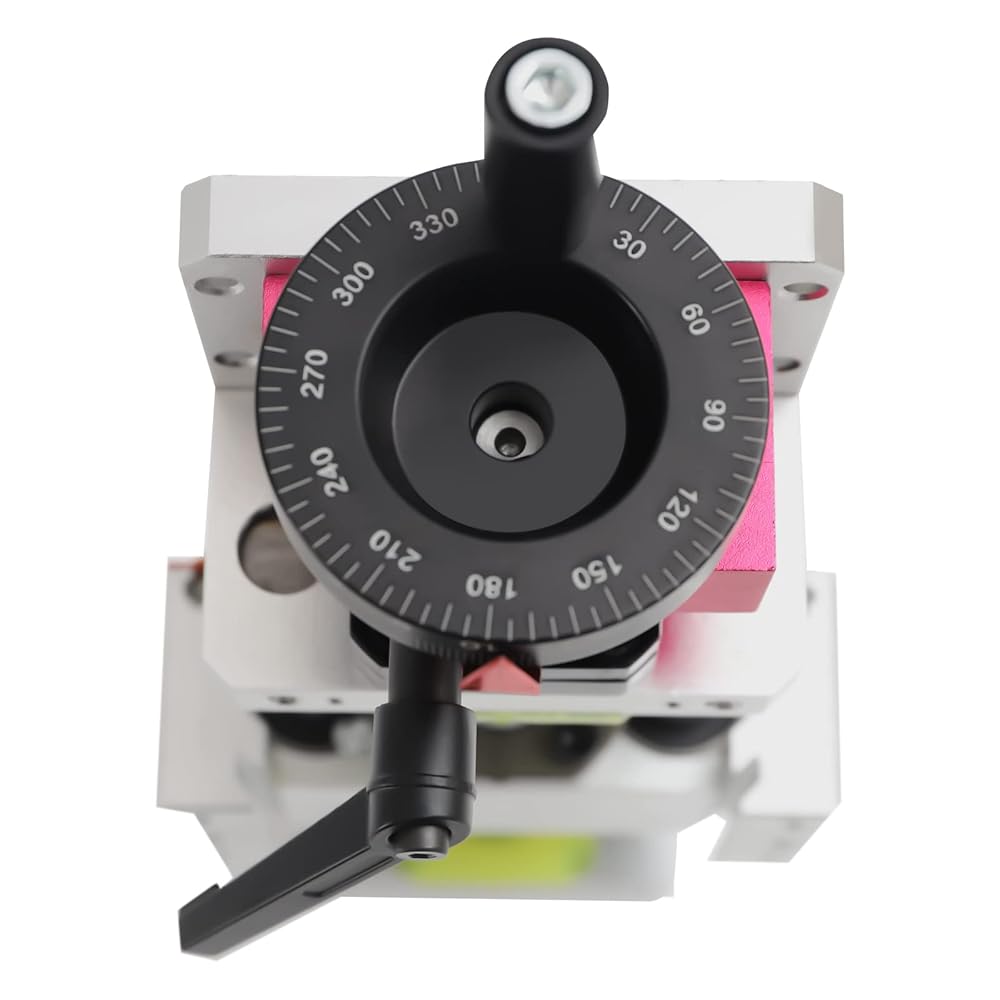

Hand Wheel: Its hand wheel is engraved with a scale and equipped with a locking device, providing you with a more accurate operation.
Surface Treatment: Its surface is sandblasted and oxidized to make it more beautiful and professional.

Specification
Model: KR60S-100/KR60S-200
Round Guide Rail Model: HG15

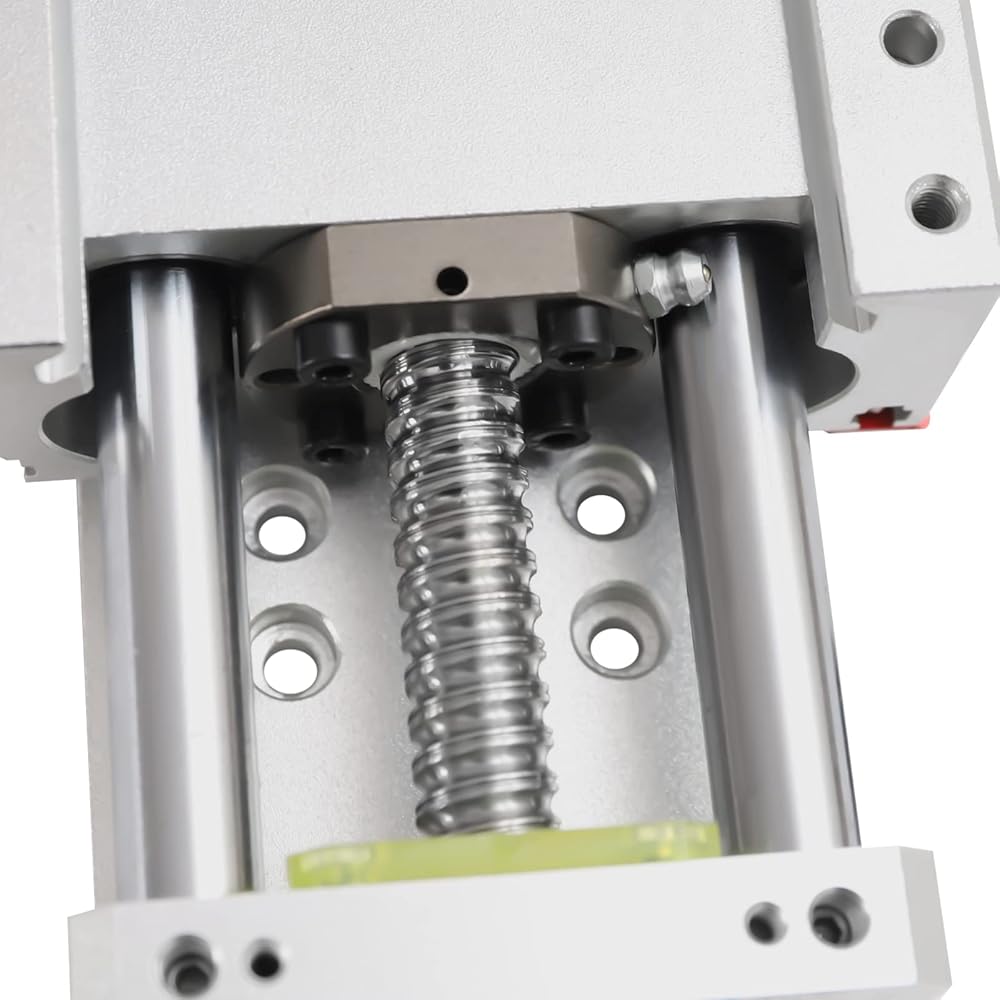

Screw Rod: 1605
Type: Manual
Guide Rail Type: Double Optical Axis Guide
Color: Silver
Material: 606 Aluminium
Surface Treatment: Sand Blasting Oxidation Treatment
Process: CNC
Position Accuracy: ±0.05mm/ 0.002in
Ball Screw Diameter: 16mm/ 0.63in
Ball Screw Lead: 5mm/ 0.197in
Horizontal Load: 30kg/ 66.14lbs
Vertical Load: 20kg/ 44.09lbs
Linear Rail Stork: 20cm/ 7.87in(KR60S-200 ) 10cm/ 3.94in ( KR60S-100)

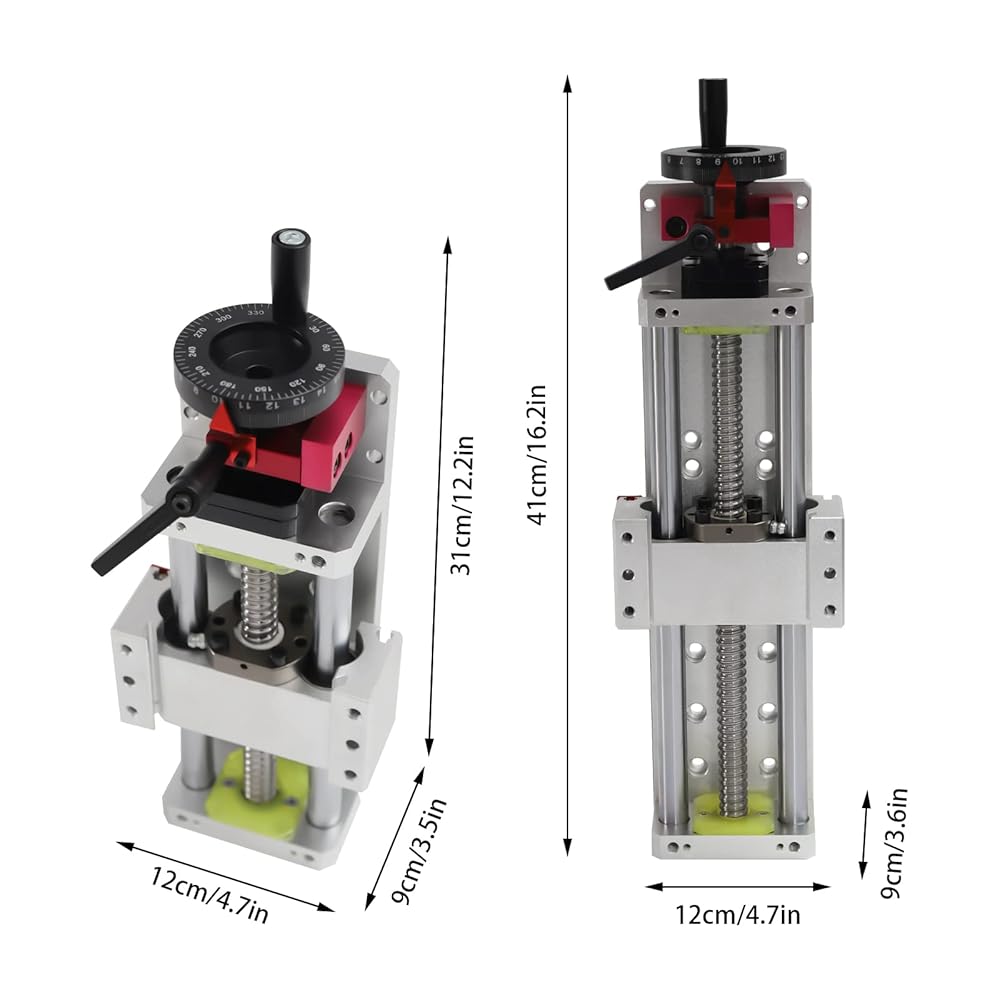

Product Size: (KR60S-100) 12*9*31cm/ 4.7*3.6*12.2in, (KR60S-200) 12*9*41cm/ 4.7*3.6*16.2in
Package Size: (KR60S-100) 38*22*15cm/ 14.96*8.66*5.91in, (KR60S-200) 48*22*15cm/ 18.9*8.66*5.91in
Net Weight: (KR60S-100) 4kg/ 8.82lbs, (KR60S-200) 4.5kg/ 9.92lbs
Gross Weight: (KR60S-100) 4.5kg/ 9.92lbs, (KR60S-200) 5kg/ 11.02lbs

Package Included
1* Linear Stage Actuator Travel
Other Needed Accessories

Notes
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
