Description
Features:
1. With LED indicator: green LED power indicator, working status at a glance
2. Digital signal output: low level output when the key is pressed, high level output when the key is released, fast and accurate response
3. High-quality key design: 8-bit independent light touch keys, feel good, long service life
4. Easy to install and integrate: moderate size, with fixed screw holes, easy to embed in a variety of projects
5. Built-in pull-up resistor: simplify the circuit design, no need to connect external pull-up resistor, improve stability
Parameter:

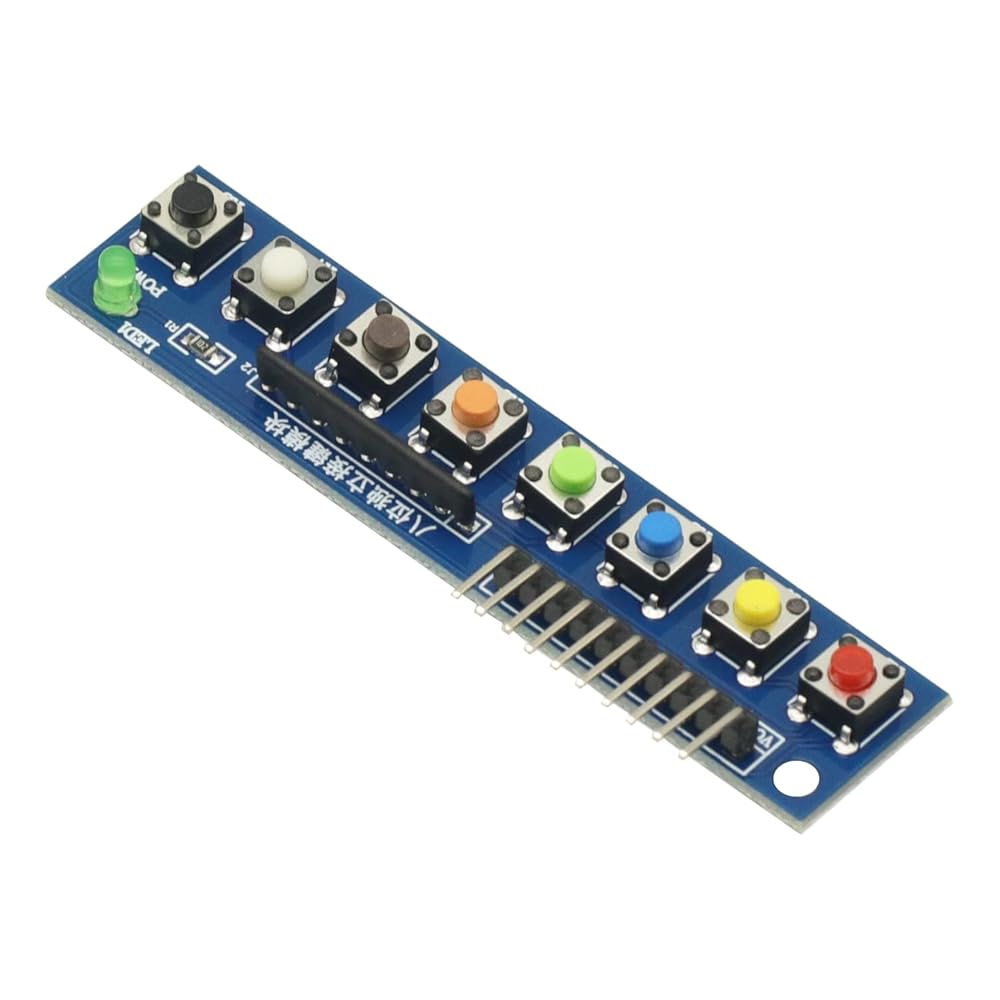

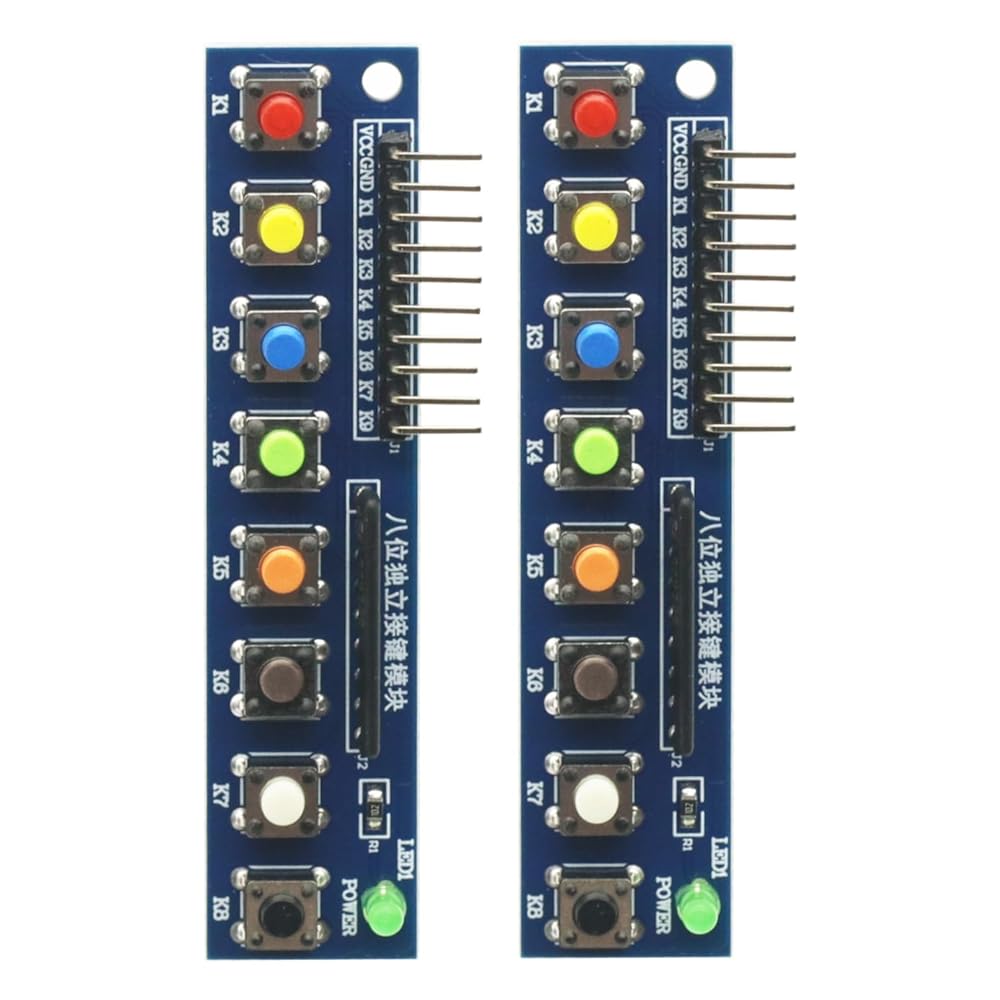

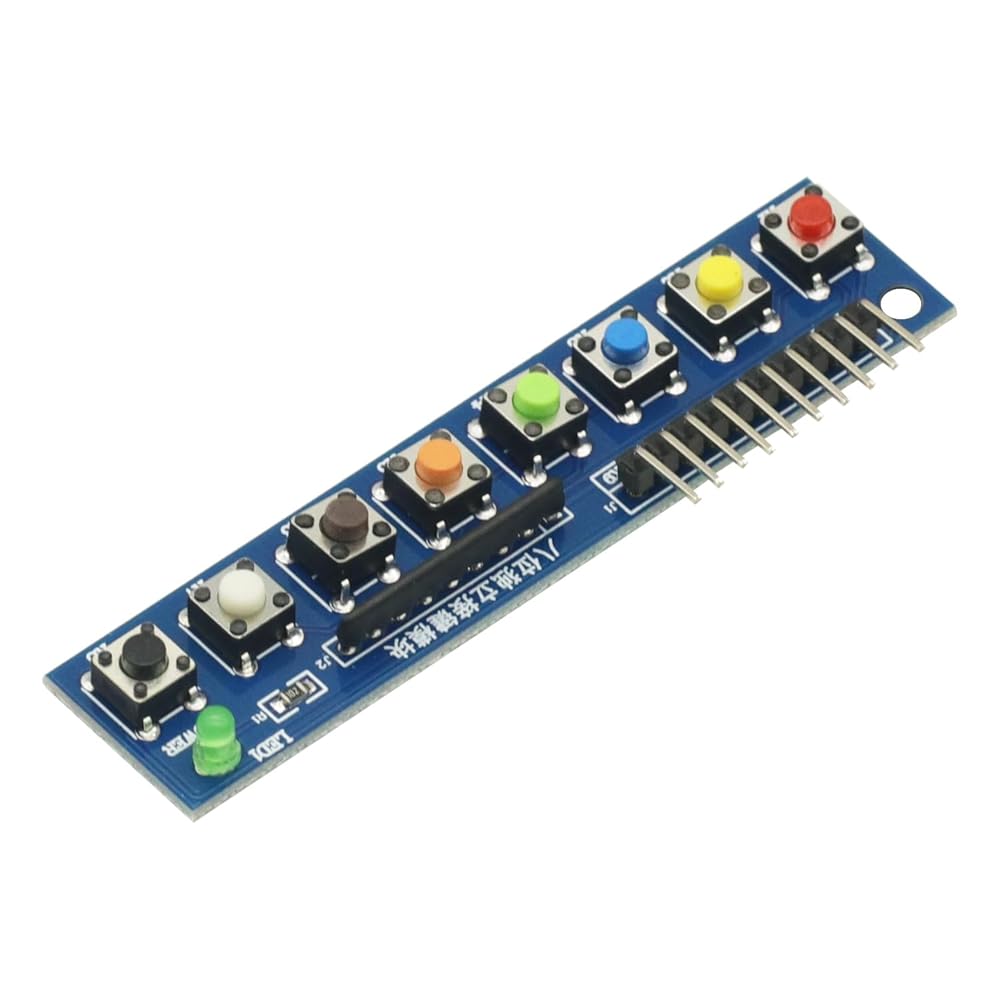

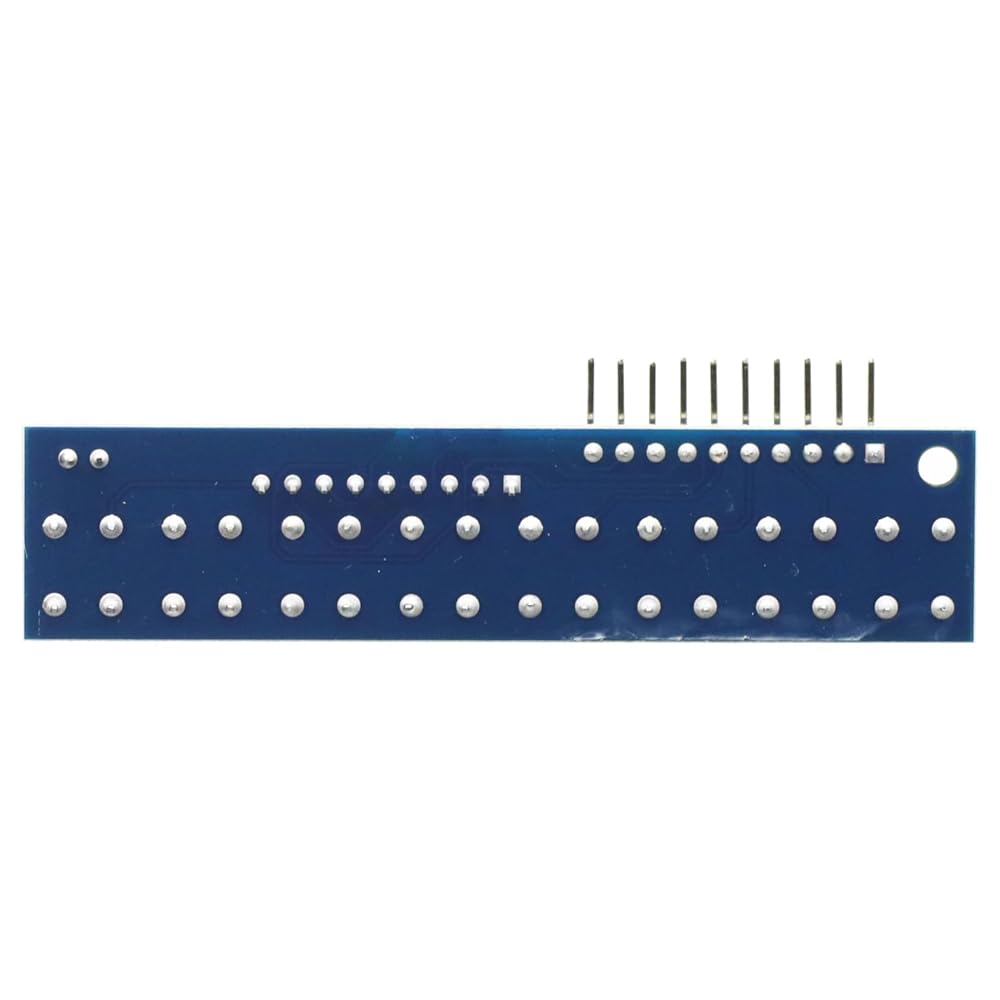

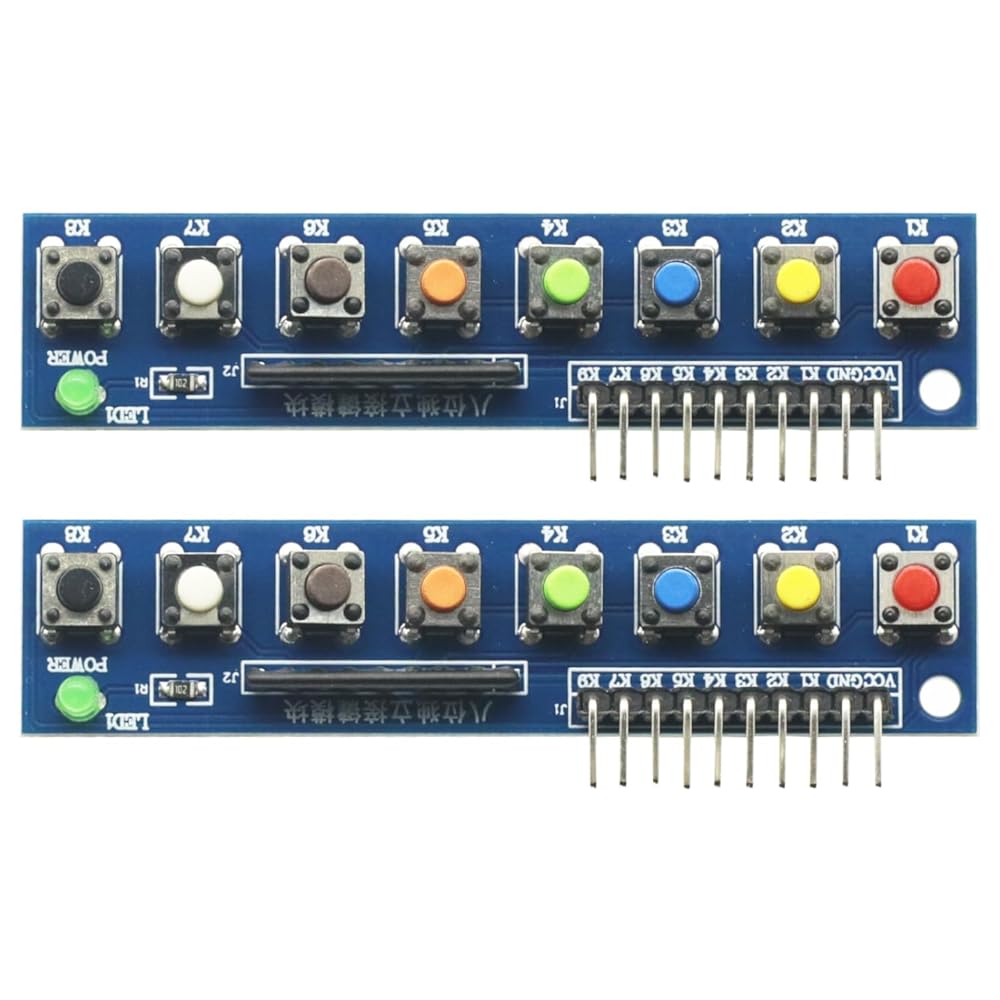

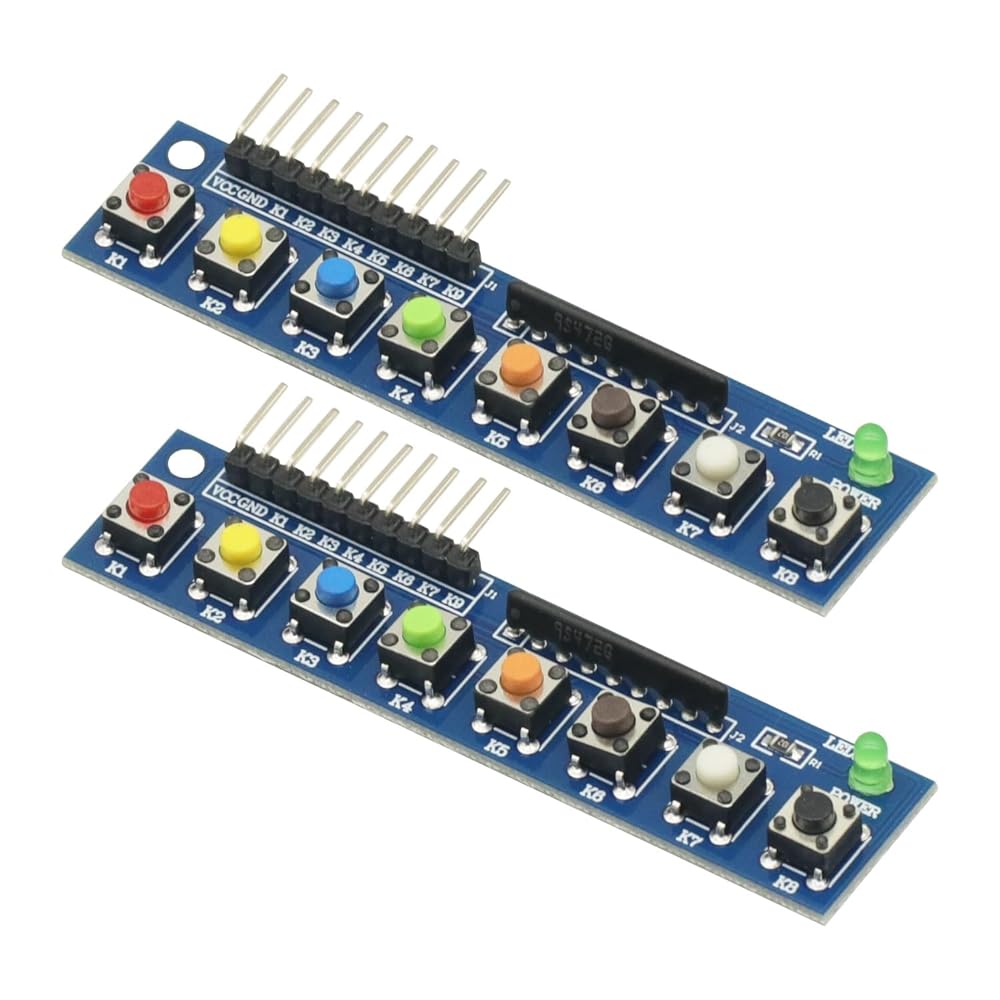

Product name: 8-bit keypad module
Operating voltage: DC 3.3-5V
Output mode: digital signal output (key press output low level signal, release key output high level signal)
Pull-up resistor: Yes
Power indicator: green LED
Process: plug-in / SMD
Size: 77.5*17.9*6.5mm

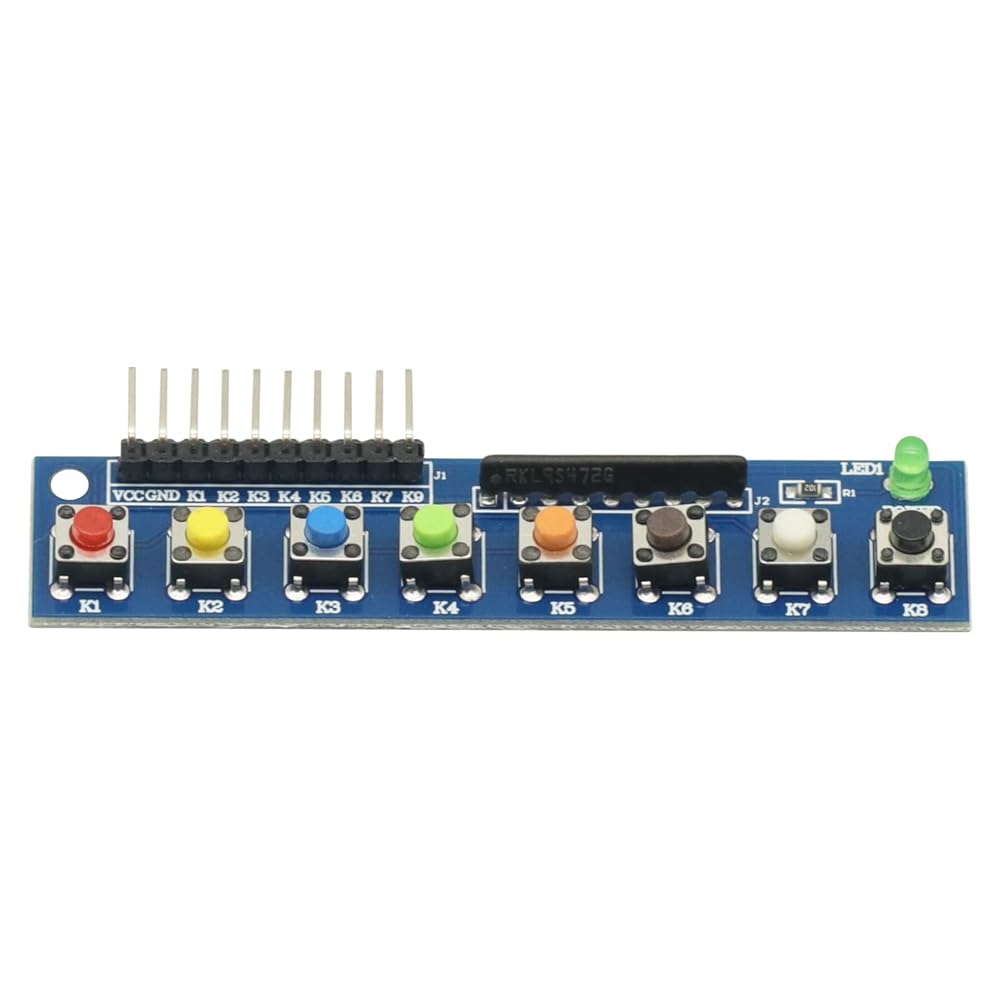

Interface: VCC to power positive, GND to power negative (or ground), K1-K8 to controller IO pin
Mounting holes: diameter 3mm fixed mounting screw holes 1
Working platform: For Arduino microcontroller, For ARM, For Raspberry Pi
Package include:
Key module x2
