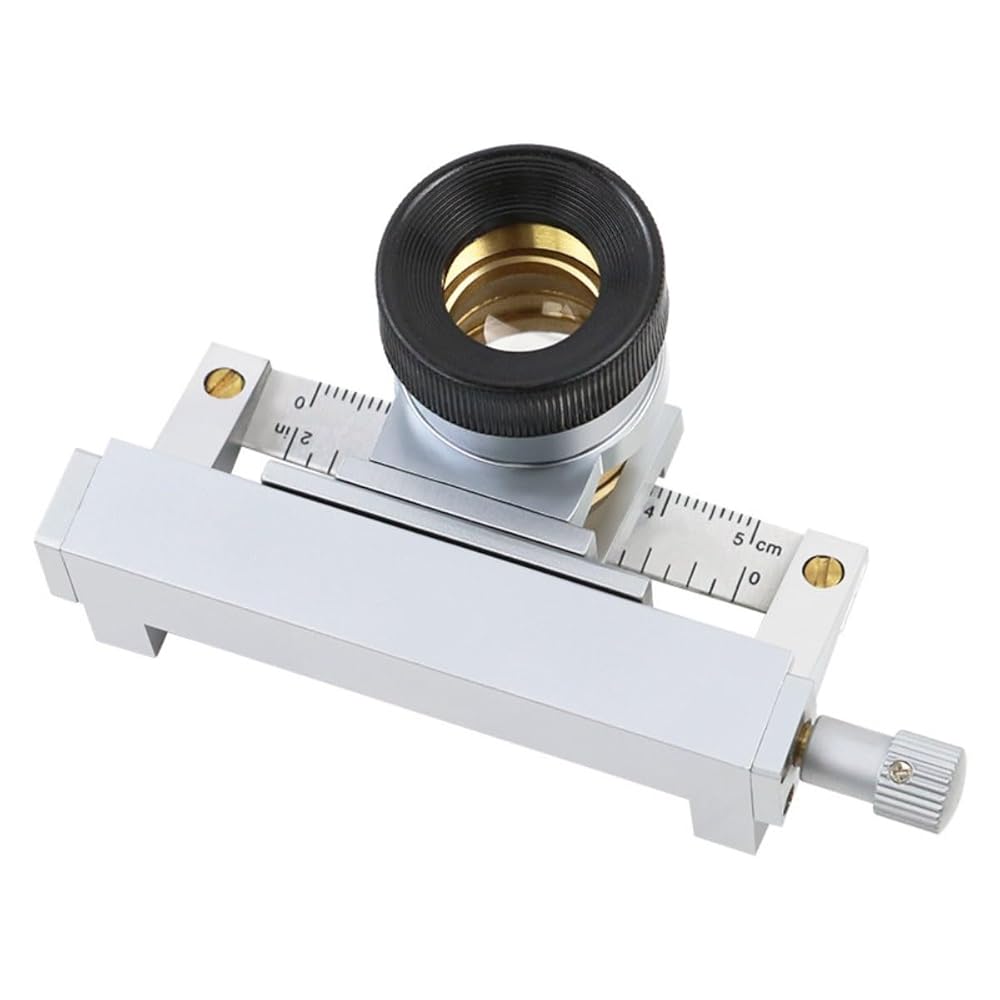

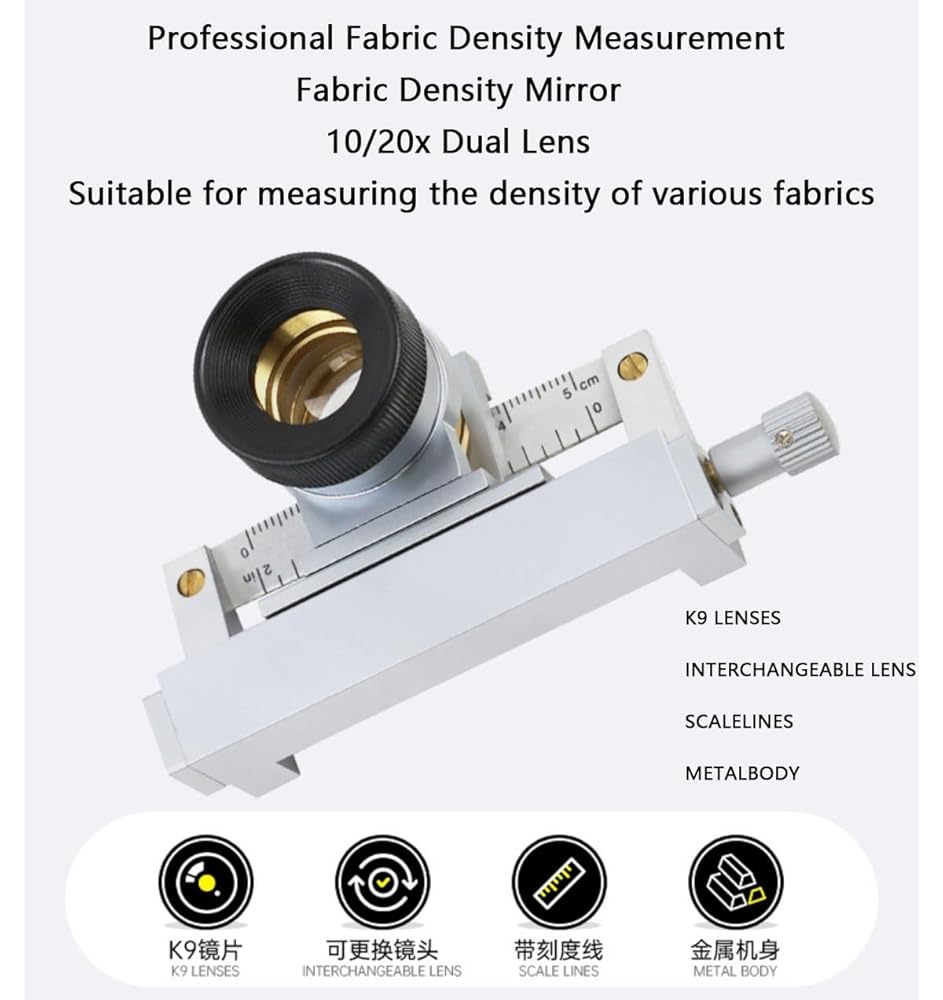

Y511B Fabric Density Mirror Analyzer Warp and Weft Measuring Instrument 10/20x

SAR 429
Brand
YXHXWKJ
Weight
499 g
– 1 +

Special Features

  • 【Professional Fabric Density & Weave Analysis】：This fabric density scope accurately counts the warp and weft yarns per unit length of fabric, allowing you to quickly determine fabric tightness and physical properties—an essential tool for precise textile inspection and quality assessment.
  • 【Durable Aluminum Alloy Construction】：Crafted from high-quality aluminum alloy, all components of this density mirror are sturdy and stable, resisting wear and deformation for long-term reliable use in daily inspection, production, and craft projects.

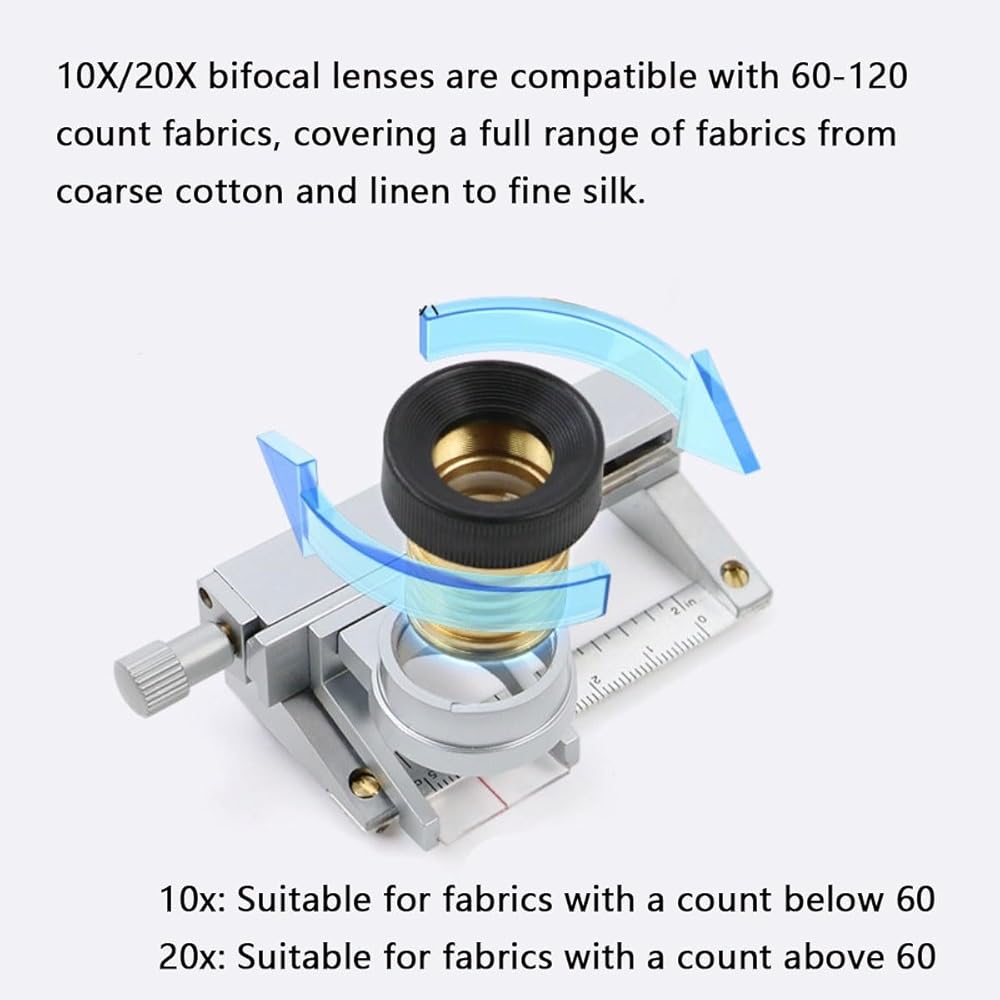

  • 【10X/20X Dual Magnification with Targeted Fabric Compatibility】：Features 10X and 20X magnification with a 0-5cm (0-2in) lens moving range; 10X is ideal for fabrics below 60 counts, while 20X perfectly suits fabrics above 60 counts, meeting all your different textile testing needs.
  • 【Simple, Intuitive Operation】：No complex setup required—just adjust the lens to the clearest focus, mark a starting point, slide the density mirror to count vertical yarns up to 1 inch, then rotate 90° and repeat for weft yarns. Easy for both professionals and beginners to use.
  • 【Universal Compatibility with All Common Fabrics】：Specially designed to measure warp and weft density for a wide range of textiles, including cotton, wool, silk, linen, and all blended fabrics. Perfect for textile industry quality control, fabric design, sewing, and craft fabric analysis.

Description

Product description

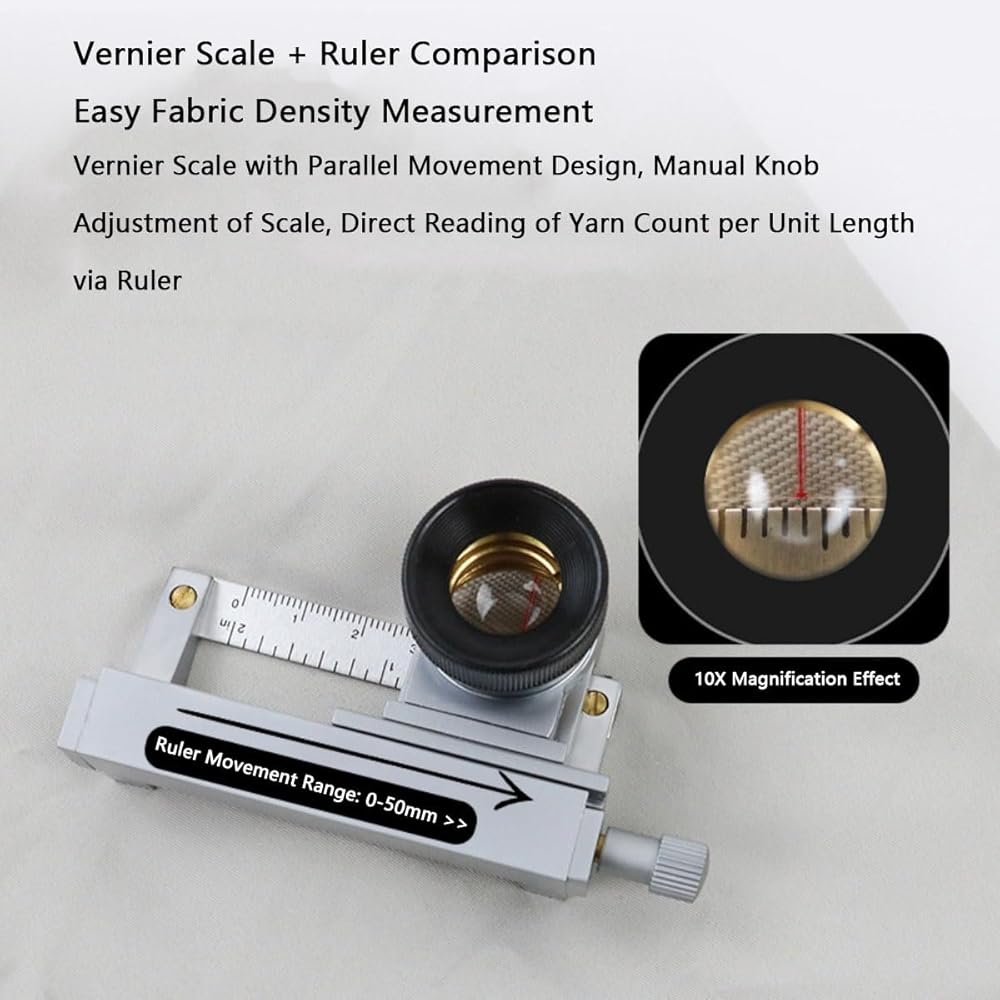

During operation and measurement, place the instrument on the object being measured, parallel to the warp and weft yarns of the fabric. Adjust the lens height to achieve the clearest image. Hold the top surface of the instrument cube with your left hand and rotate the adjustment knob with your right hand until the lens graduations are aligned with the zero position. Then reverse the adjustment knob to count the number of warp and weft yarns per unit length.

Specifications:
Material: Aluminum Alloy
Lens: 10x X1-Applicable to fabrics below 60 counts
Lens: 20x X1-Applicable to fabrics above 60 counts
Lens movement range: 0~5cm
Dimensions: 100X54X36mm

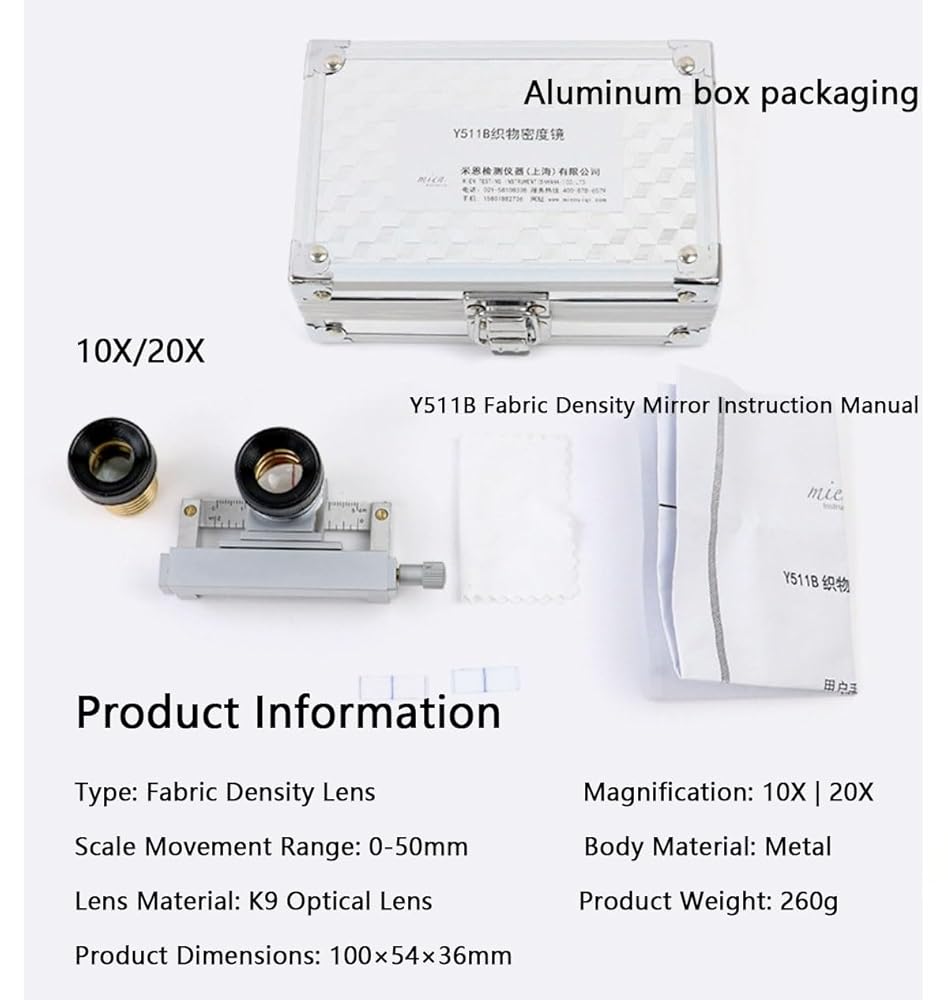

Product includes:
1*Fabric Magnifying
2*Lens
