مميزات خاصة

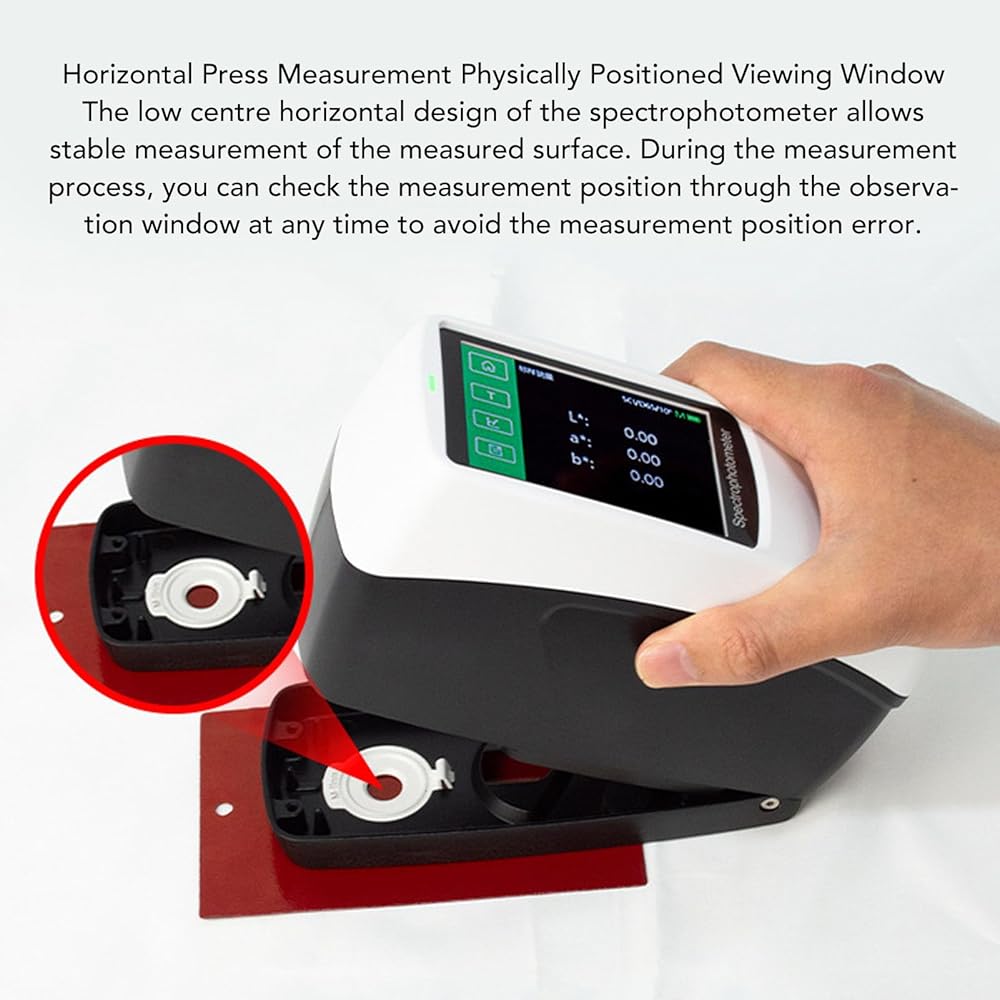

Horizontal Design: The portable spectrophotometer features a low center horizontal design, ensuring a stable measurement on the surfaces being tested. This design minimizes the risks of tipping or movement during the measurement process, resulting in more stable data. The integrated observation window also allows users to monitoring the measurement position easily, preventing errors in positioning.

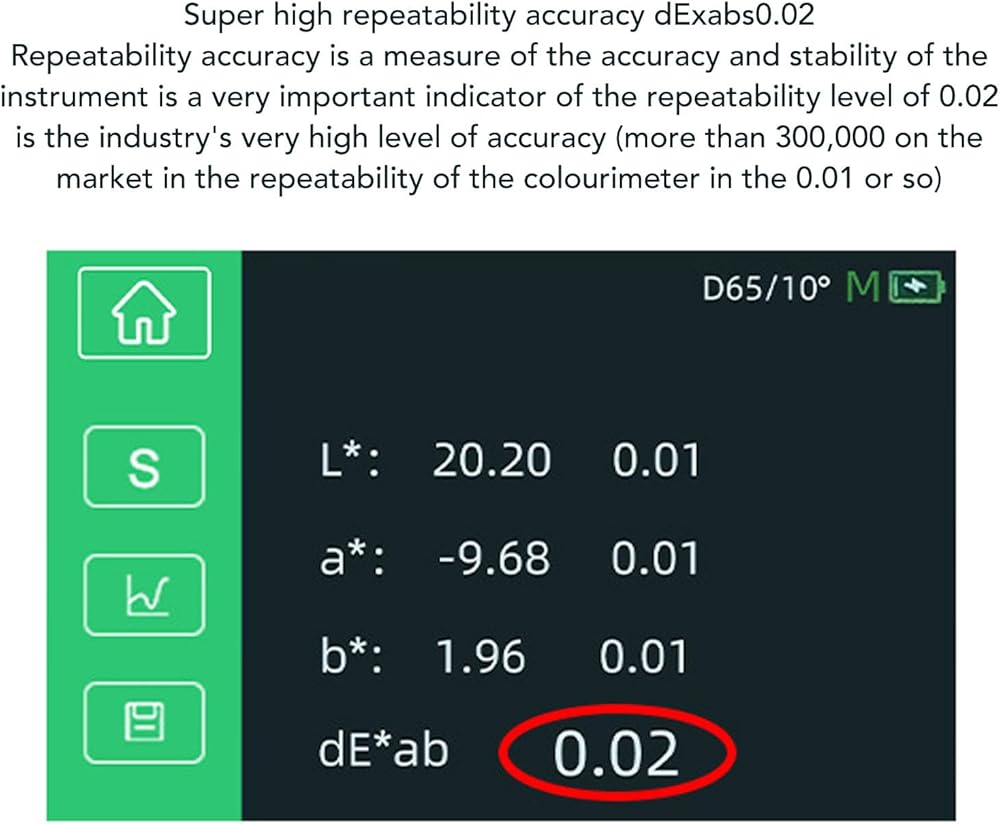

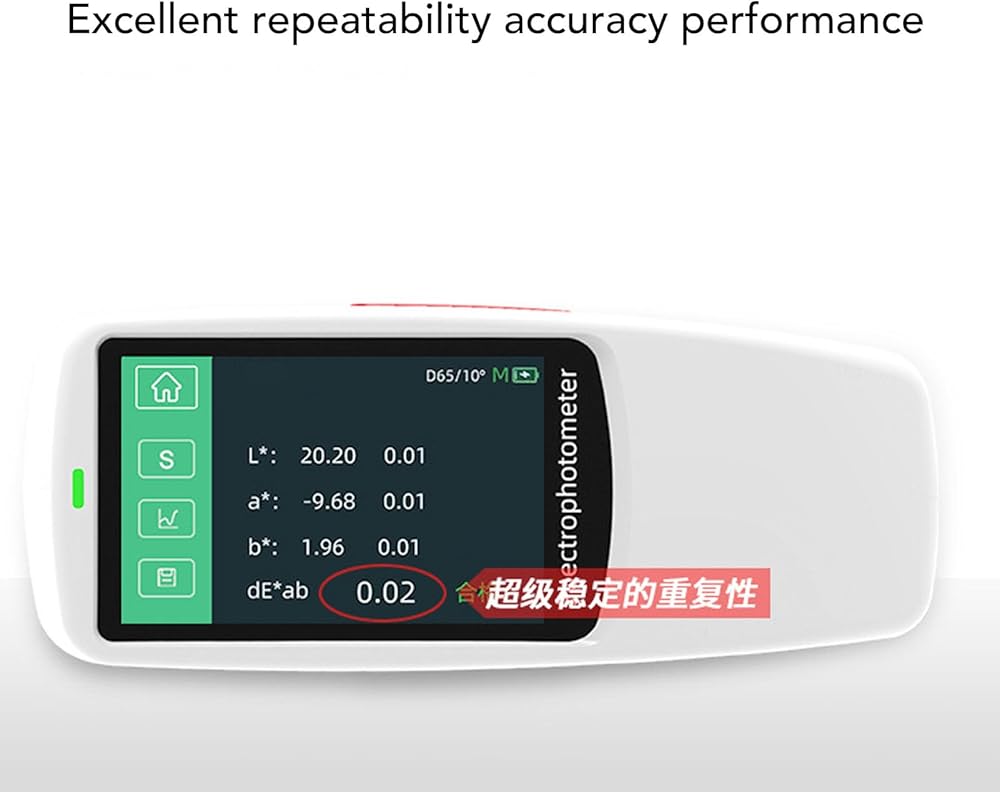

High Accurate: The repeatability accuracy of a digital lab spectrophotometer is a crucial indicator, and this model excels with a high accurate nano spectroscopic device. Its repeatability accuracy is unparalleled in its category, achieving a dExab value of ≤0.02. This means users can consistently obtain accurate measurements, which is essential for quality control and research applications.
Comprehensive Measurement Capabilities: This portable color difference meter provides over 30 different measurement indicators, including spectrum reflectance, CIE-Lab, CIE-LCh, ΔExab, opacity, whiteness, and yellowness. Such comprehensive capabilities allow it to meet a broad range of measurement needs, making it an ideal choice for industries that require detailed color analysis.

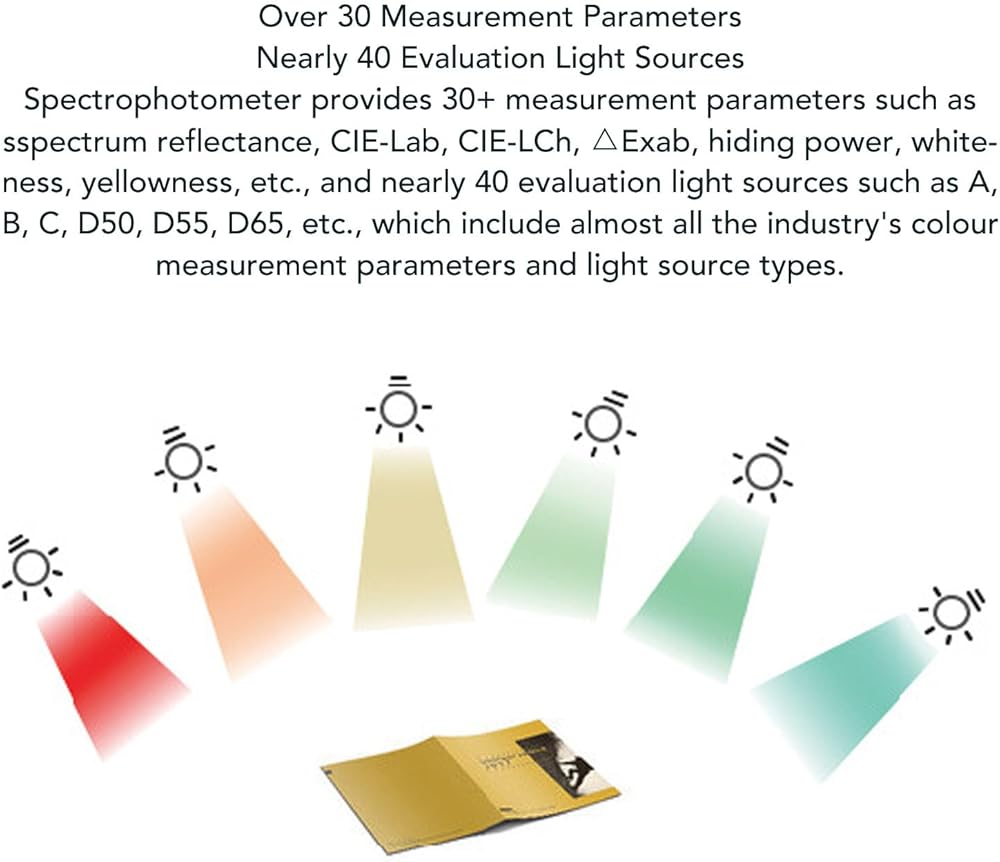

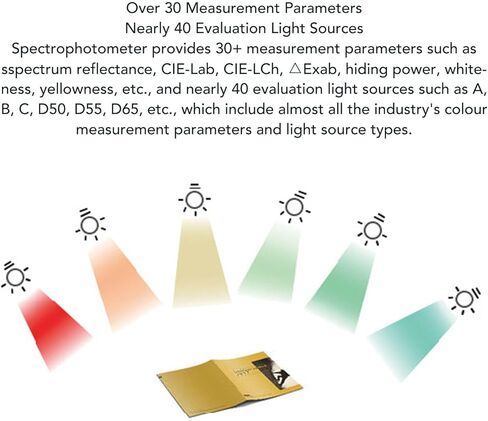

Versatile Lighting Options: With nearly 40 selectable evaluation light sources, including A, B, C, D50, D55, and D65, this digital spectrophotometer can accommodate almost all industry standard color measurement parameters and lighting conditions. This versatility enables users to conduct color assessments under various lighting scenarios, enhancing the instrument's usability across different applications.
Good Performance: Given its exceptional accuracy, extensive measurement capabilities, and adaptability, this color spectrometer is an indispensable tool for quality control in manufacturing, research in materials and coatings, and any application where accurate color measurement is useful.

وصف

Specification
Item Type: Spectrophotometer
Material: ABS
Model: DS62
Measurement Geometry: D/8, SCI+SCE
Combined Measurement of SCI+SCE: Supported

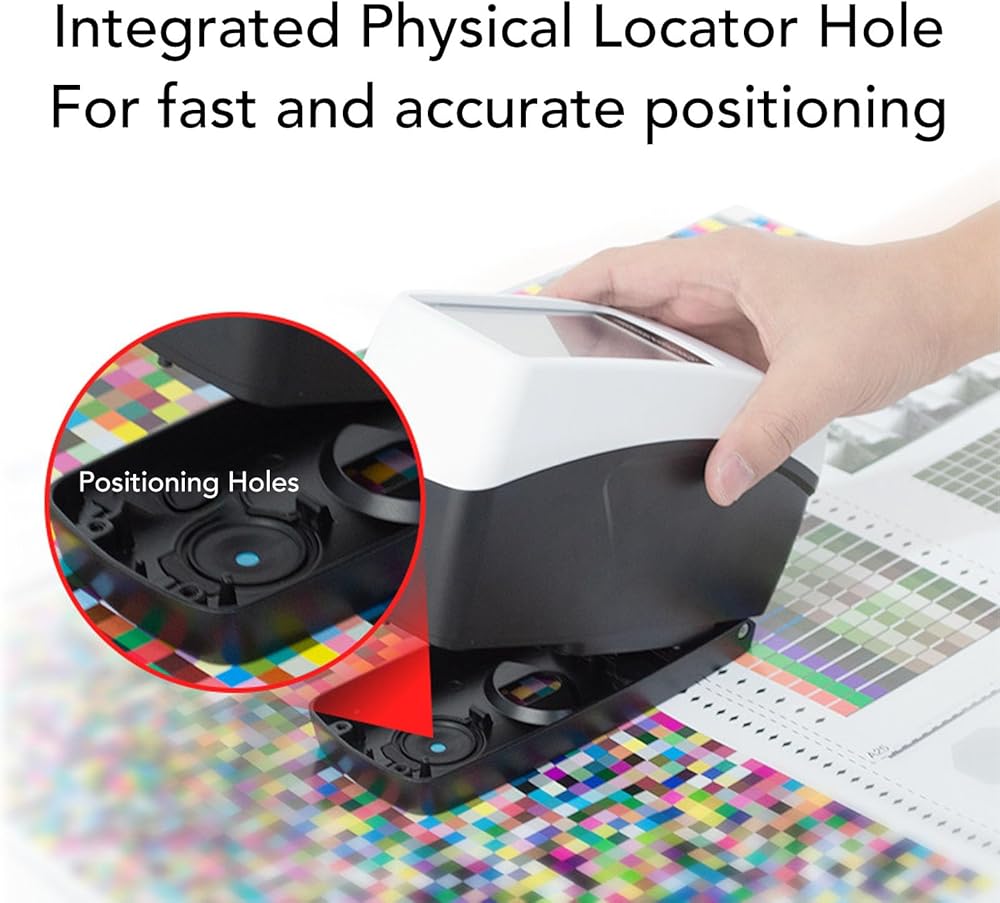

Integrated Physical Positioning Hole: Supported
Measurement Reproducibility: dExab≤0.02
Display Accuracy: 0.01
Illumination Source: Full Band Balanced LED Light Source
Light Source: Supported

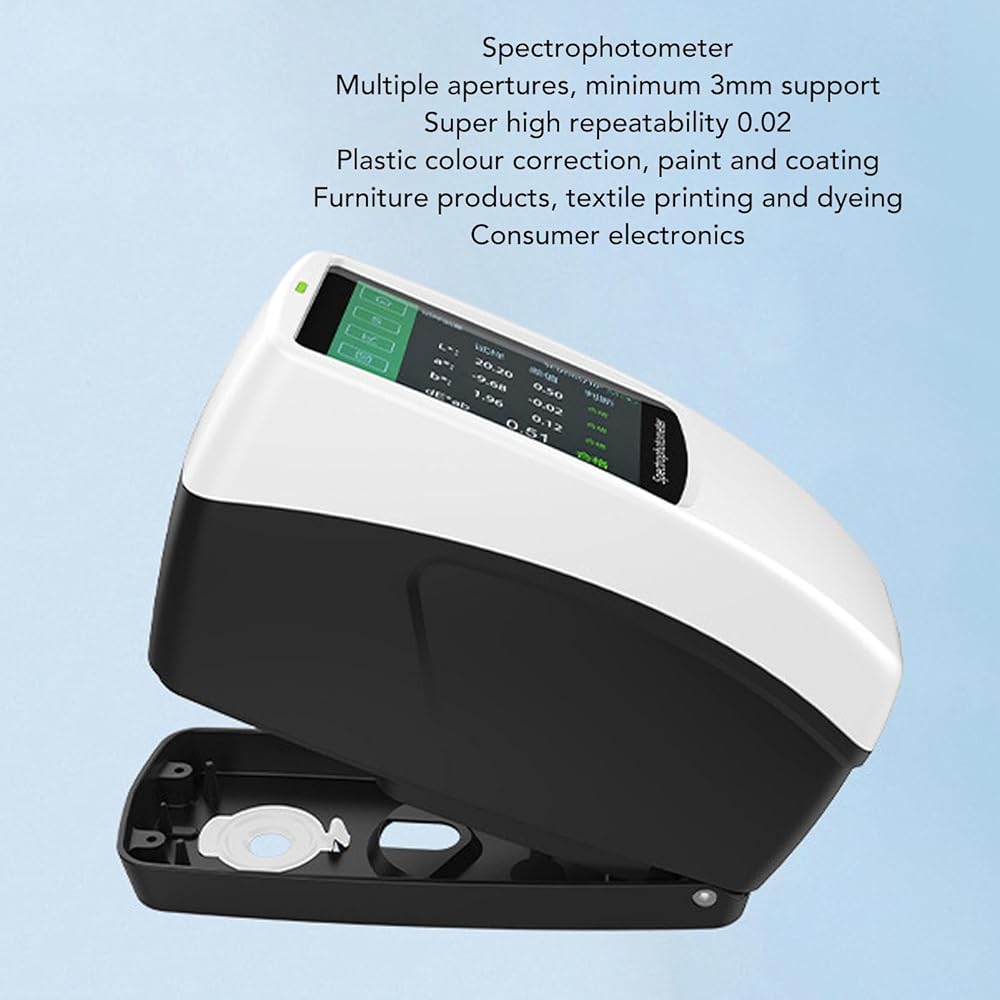

Aperture: Diameter Approx. 11mm / 0.43in, 6mm / 0.24in, 3mm / 0.12in
Viewing Angle: 2°10°
Integration Sphere Diameter: Approx. 40mm / 1.57in
Compliance with Standards: CIENo.15, GB/T3978, GB2893, GB/T18833, ISO7724-1, ASTME1164, DIN5033T7
Spectroscopic Mode: High Accurate Nano Spectrophotometer
Sensor: Double 16 Group Silicon Photodiode Array
Wavelength Interval: 10nm
Wavelength Range: 400-700nm
Reflectance Measurement Range: 0-200%
Reflectance Resolution: 0.01%
Measurement Time: Approx. 1 Second
Interface: USB, BT
Screen: Full Color Display, 3.5 Inches
Battery Capacity: Single Charge Can Continuously Measure 8000 Times, 7.2V Rechargeable Li Battery 3000mAh x 1 (Included)
Light Source Lifespan: 5 Million Times
Language: Simplified Chinese, English
Data: Instrument: 10000 Data, APP: Massive Storage

How to Use
Press the side button to turn on, then press to test.

Package List
1 x Spectrophotometer

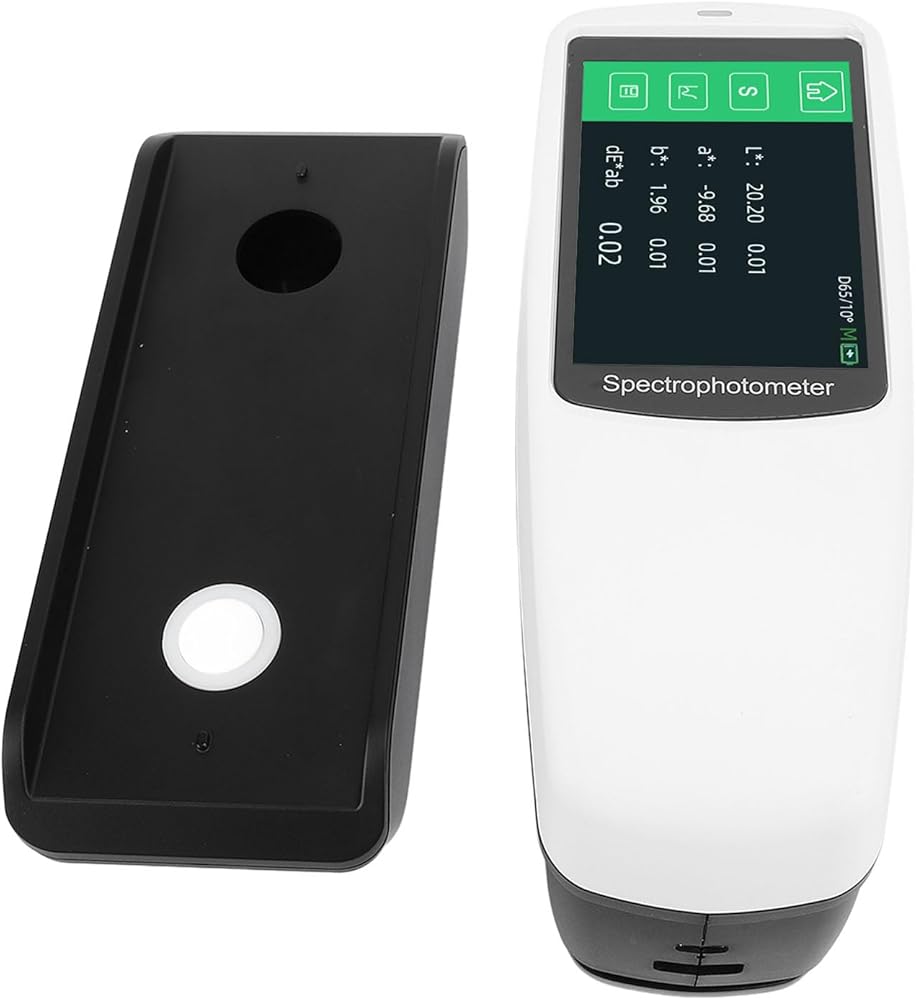

1 x Base
1 x USB cable
2 x Measuring Aperture Accessories
1 x Lanyard
1 x Storage bag
