Comparator

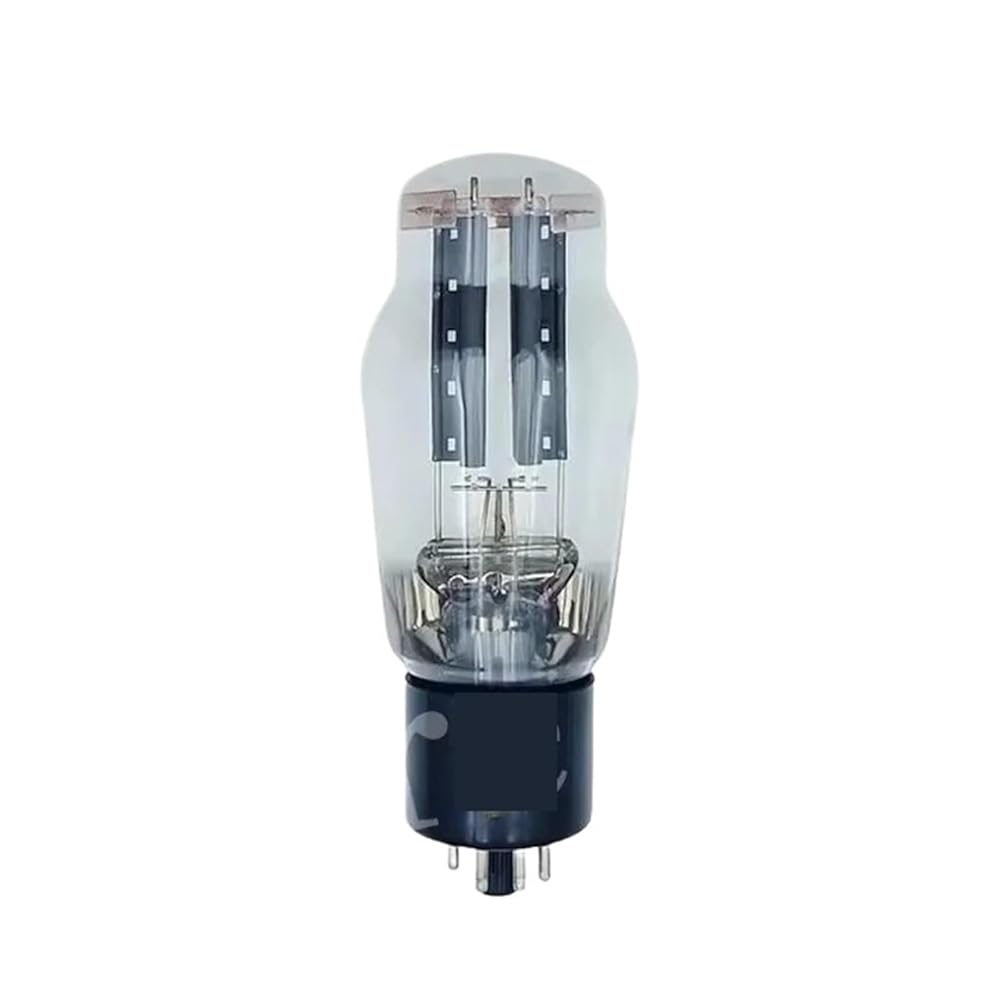

The glass-enclosed eight-pin direct-heated full-wave rectifier is similar to 5U4G and 5Z3P and can be interchanged.
Filament Heating
U5V
If 2A
Extreme Rating
Peak Anode Reverse Voltage................................1550V
Peak anode current......750mA
Recommended working status
Anode power supply voltage 2×500V
Impedance per arm 75
Load impedance 2000
Filter capacitor 4F
Rectification current 220mA

Channels: 1
Model: WE274B
Maximum power per channel: No power supply
