Features:

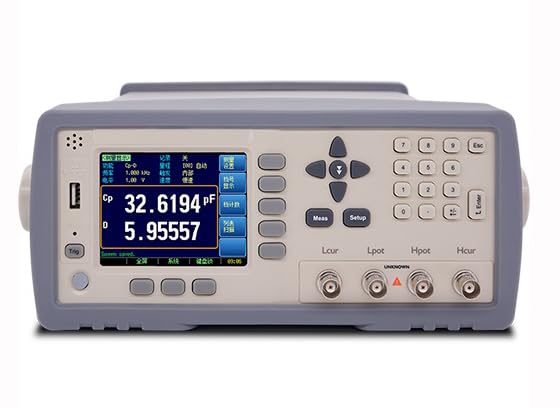

● True colour 16M colours, TFT-LCD display.
● Storage of 999 LCD screen files, trigger delay, automatic alignment control (ALC).
● Calibration function: full range open circuit and short circuit sweep zero, three groups of user point frequency calibration.
● Multi-frequency test: Support 10 frequency sweep test.
● Multi-level test: support 10 level sweep test
● 10 groups of file management, can be completely stored instrument status, list sweep settings and comparator settings.
● Enhanced Comparator (Sorting) Function: Programmable P1~P9 nine-speed sorting, display and output of main parameters HI, IN, LO, display and output of NG, AUX, SREJ, IDX, EOM.
● Absolute bias (ABS) comparison method, relative bias (PER) and sequential (SEQ) comparison method.
● Switchable auxiliary gear (AUX) sorting.
● Programmable from 1 to 200 averaging times to provide stability.
● Customisable sorting result signal.

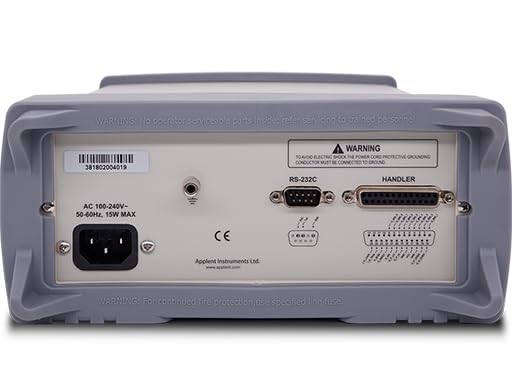

● Built-in RS232C interface and Handler interface.
● 1000V shock protection

specifications
● Measurement parameters: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCR
● Basic Accuracy Slow/Medium speed: 0.05%; Fast: 0.1%
● Test frequency: 10Hz～20kHz (resolution 0.001Hz)
● Test range: Auto, manual and nominal range, 9 ranges
● Test speed: 40 times/sec, 10 times/sec, 3 times/sec
● Display range:
L: 0.00001μH-9999.99H
C: 0.00001pF - 9999.99μF
R,X,Z: 0.00001Ω - 99.9999MΩ
D, 0.00001 - 9.99999
Q: 0.00001 - 99999.9
Δ%: -99999999% - 999999%
θ(deg): -179.999° -179.999°
θ(rad):-3.14159 - 3.14159
DCR: 0.00001Ω ~ 99.9999MΩ
● Output Impedance: 30Ω, 50Ω and 100Ω
● Monitoring Parameters: Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%
● Readings Full 6 digits for all parameters: 999999
● Equivalent mode: Series and parallel equivalent
● Signal Level:
10.00mV~2.00V AC (Constant Level Support)
100.0μA~20.00mA AC (support constant level)
● DC Bias: -2.5V~+2.5V (0.5%+0.005V)
● Average number of times: 1~256
● Trigger Method: Internal, Manual, External and Remote
● Trigger Delay: 0.01ms~60s
● Comparator: 14 steps of sorting, 10 sets of compartmentalised steps, 1 set of unqualified steps, and1 group of subparameter failed file
● Function of file counting: file counting 999999
● List scanning: 10 steps (frequency, voltage and current)
● Comparison mode: Sequential/absolute deviation/relative deviation
● Calibration: Open-circuit clearing, short-circuit clearing (sweep and spot)
● Files:
Internal storage of 10 files
External USB storage of 10 files Data logging: 9999 sets of files (.csv)
● Audible Function: Off/Pass/Fail
● Interface: RS232/USB/HANDLER (standard) RS485/GPIB (optional)
● Communication protocol: SCPI/Modbus
● Other Functions: Auto LCZ
● Power Requirements: AC 100V-240V, 50Hz-60Hz20W MAX
● Dimensions and Weight: 264 (W)x107 (H)x350 (D) 3kg, net weight
