1 Piece HAD20B Automatic Condensate Mechanical Round Float Drain Valve 1/2BSP 400LH 20Bar, No Electricity Required, No Compressed Air Loss, for Compressed Air Equipment in Saudi Arabia 1 Piece HAD20B Automatic Condensate Mechanical Round Float Drain Valve 1/2BSP 400LH 20Bar, No Electricity Required, No Compressed Air Loss, for Compressed Air Equipment in Saudi Arabia 1 Piece HAD20B Automatic Condensate Mechanical Round Float Drain Valve 1/2BSP 400LH 20Bar, No Electricity Required, No Compressed Air Loss, for Compressed Air Equipment in Saudi Arabia 1 Piece HAD20B Automatic Condensate Mechanical Round Float Drain Valve 1/2BSP 400LH 20Bar, No Electricity Required, No Compressed Air Loss, for Compressed Air Equipment in Saudi Arabia 1 Piece HAD20B Automatic Condensate Mechanical Round Float Drain Valve 1/2BSP 400LH 20Bar, No Electricity Required, No Compressed Air Loss, for Compressed Air Equipment in Saudi Arabia 1 Piece HAD20B Automatic Condensate Mechanical Round Float Drain Valve 1/2BSP 400LH 20Bar, No Electricity Required, No Compressed Air Loss, for Compressed Air Equipment in Saudi Arabia 1 Piece HAD20B Automatic Condensate Mechanical Round Float Drain Valve 1/2BSP 400LH 20Bar, No Electricity Required, No Compressed Air Loss, for Compressed Air Equipment in Saudi Arabia 1 Piece HAD20B Automatic Condensate Mechanical Round Float Drain Valve 1/2BSP 400LH 20Bar, No Electricity Required, No Compressed Air Loss, for Compressed Air Equipment in Saudi Arabia 1 Piece HAD20B Automatic Condensate Mechanical Round Float Drain Valve 1/2BSP 400LH 20Bar, No Electricity Required, No Compressed Air Loss, for Compressed Air Equipment in Saudi Arabia

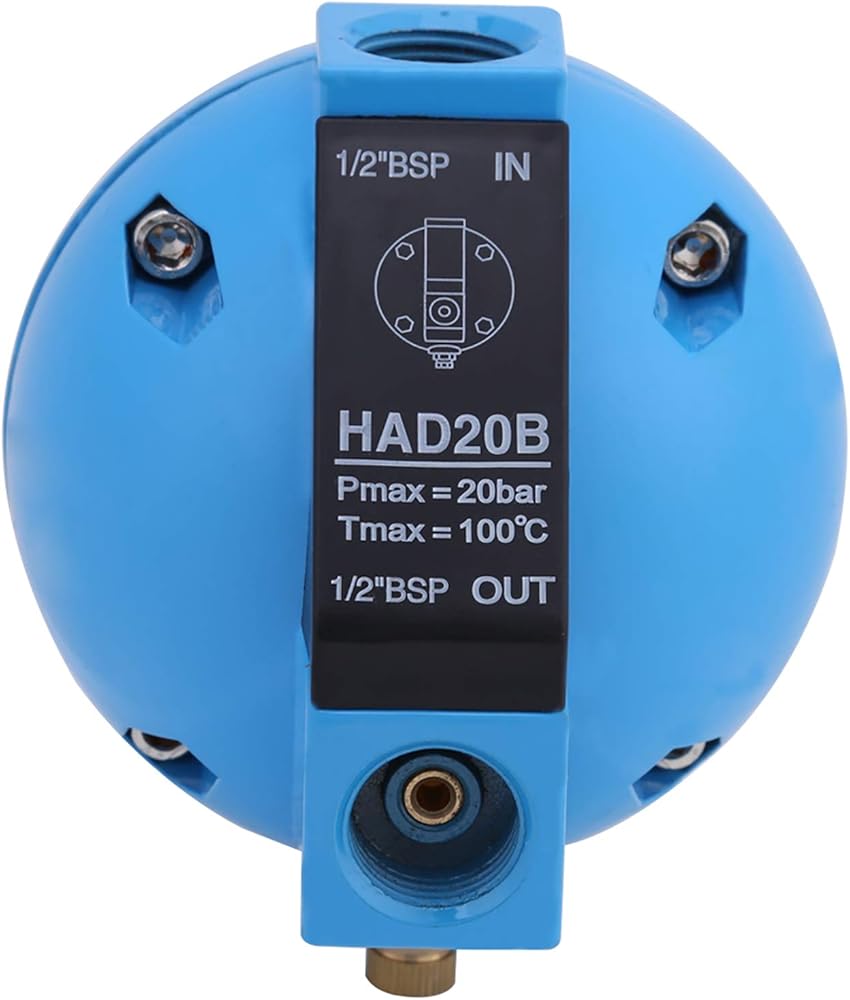

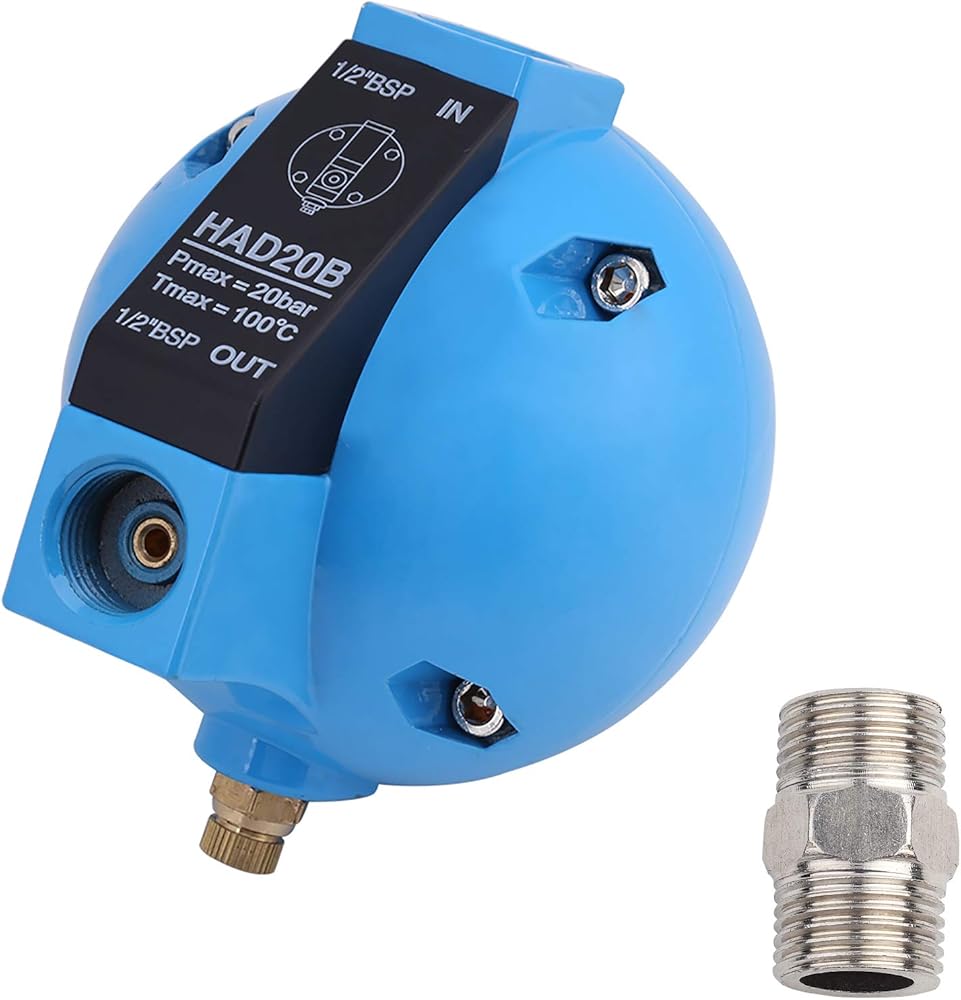

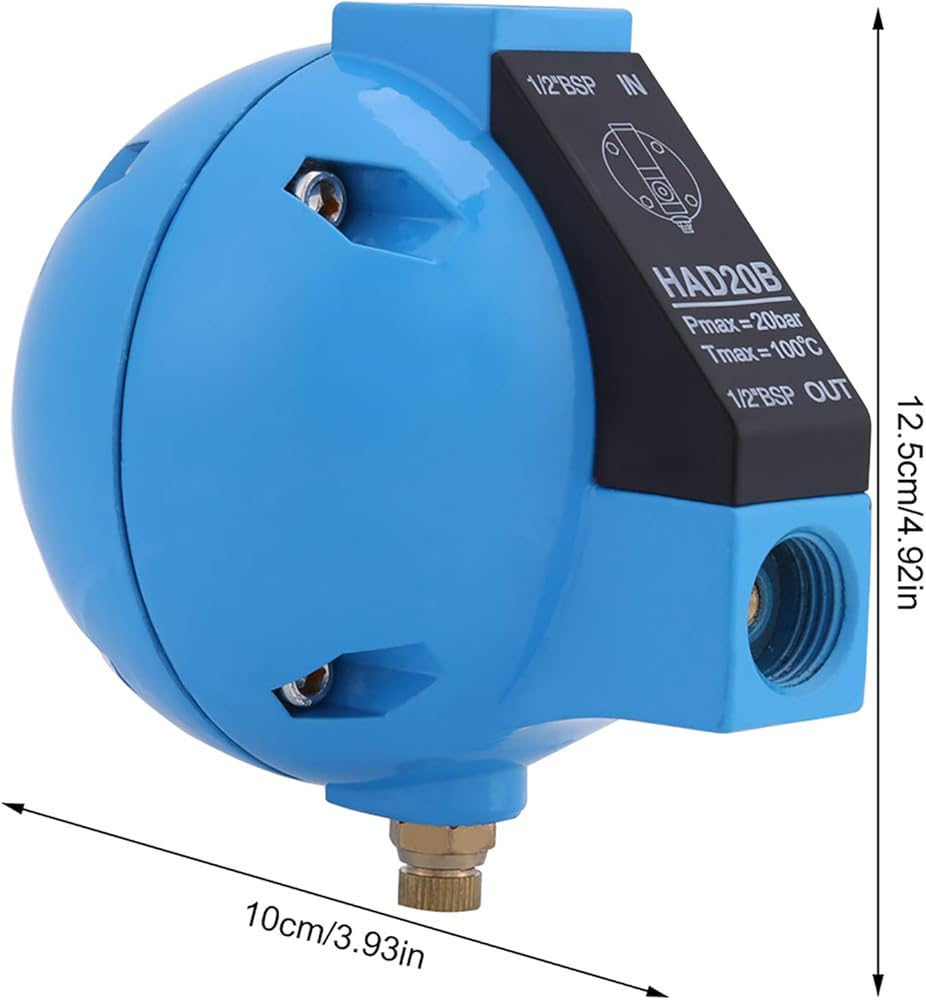

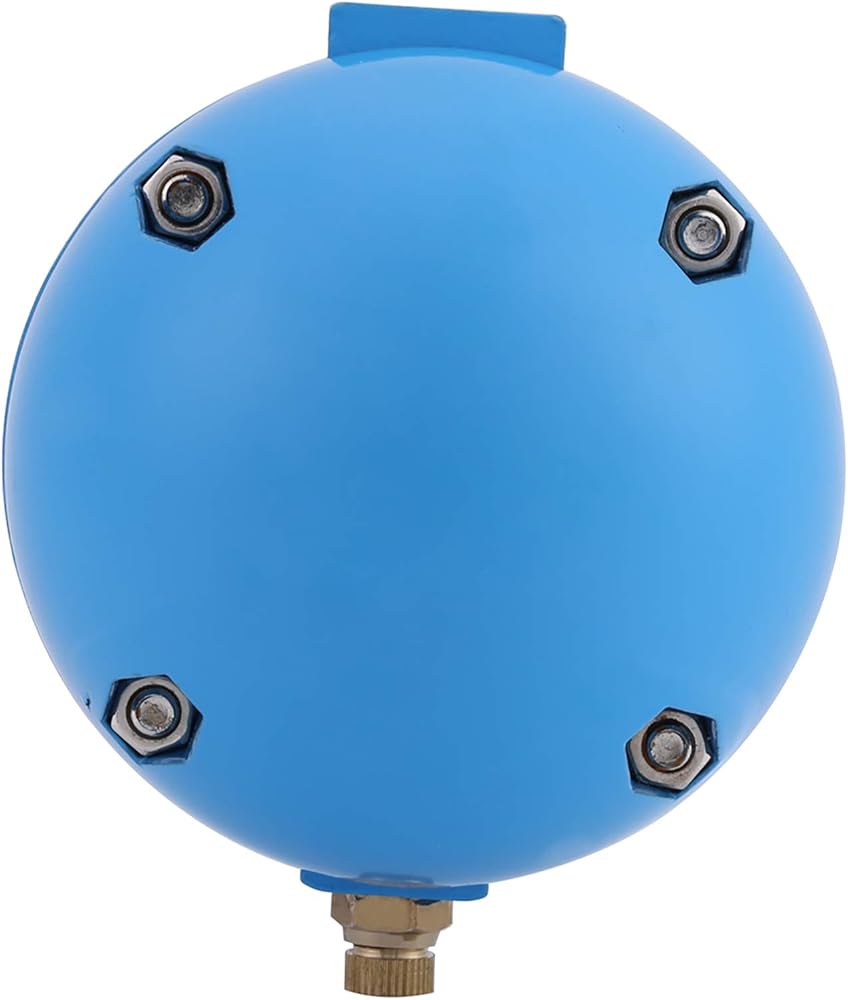

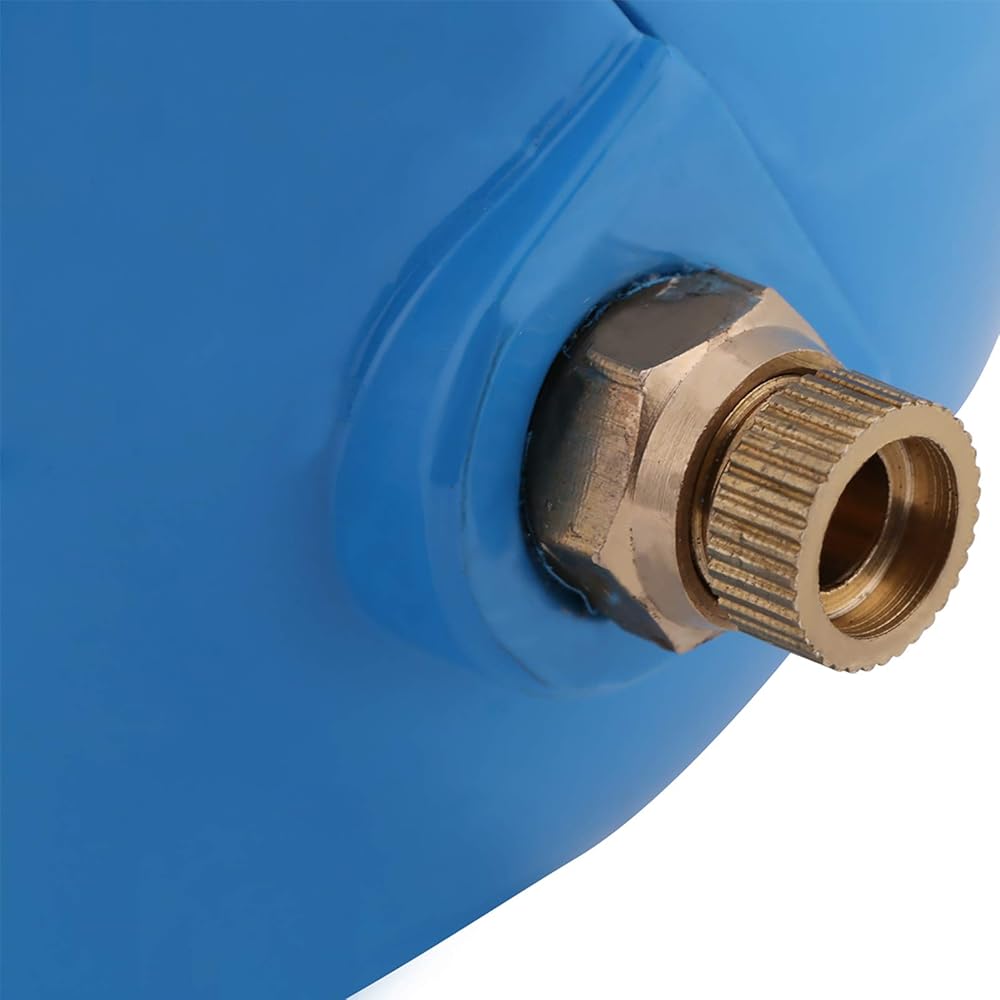

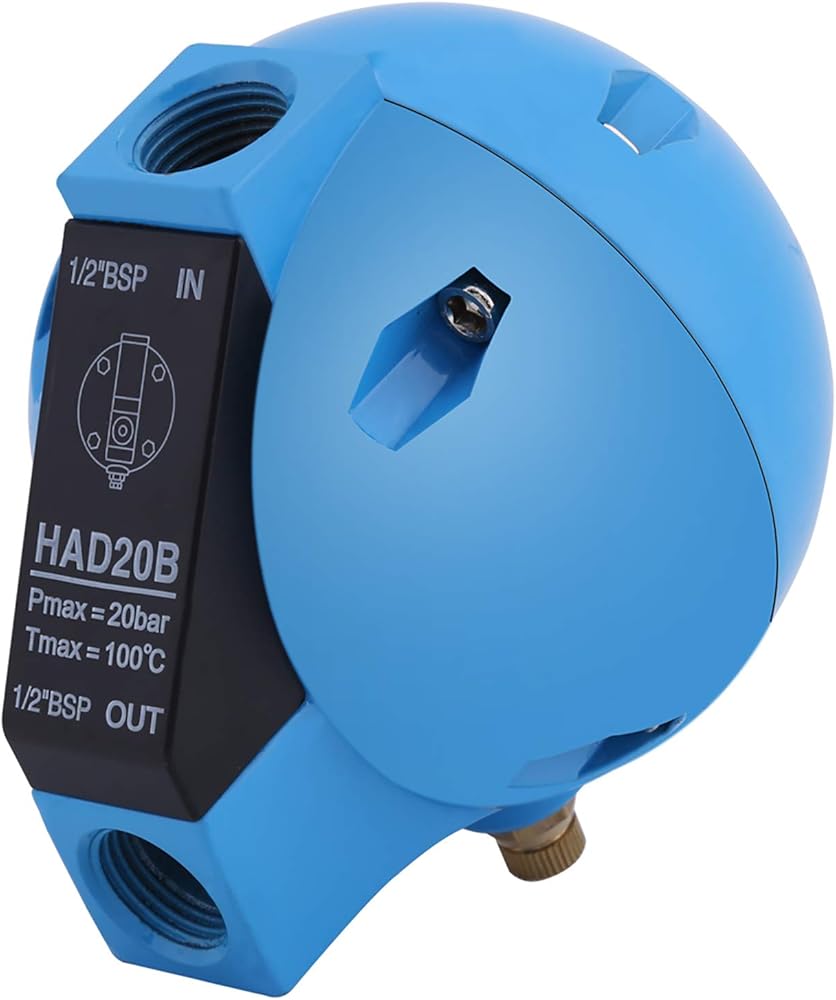

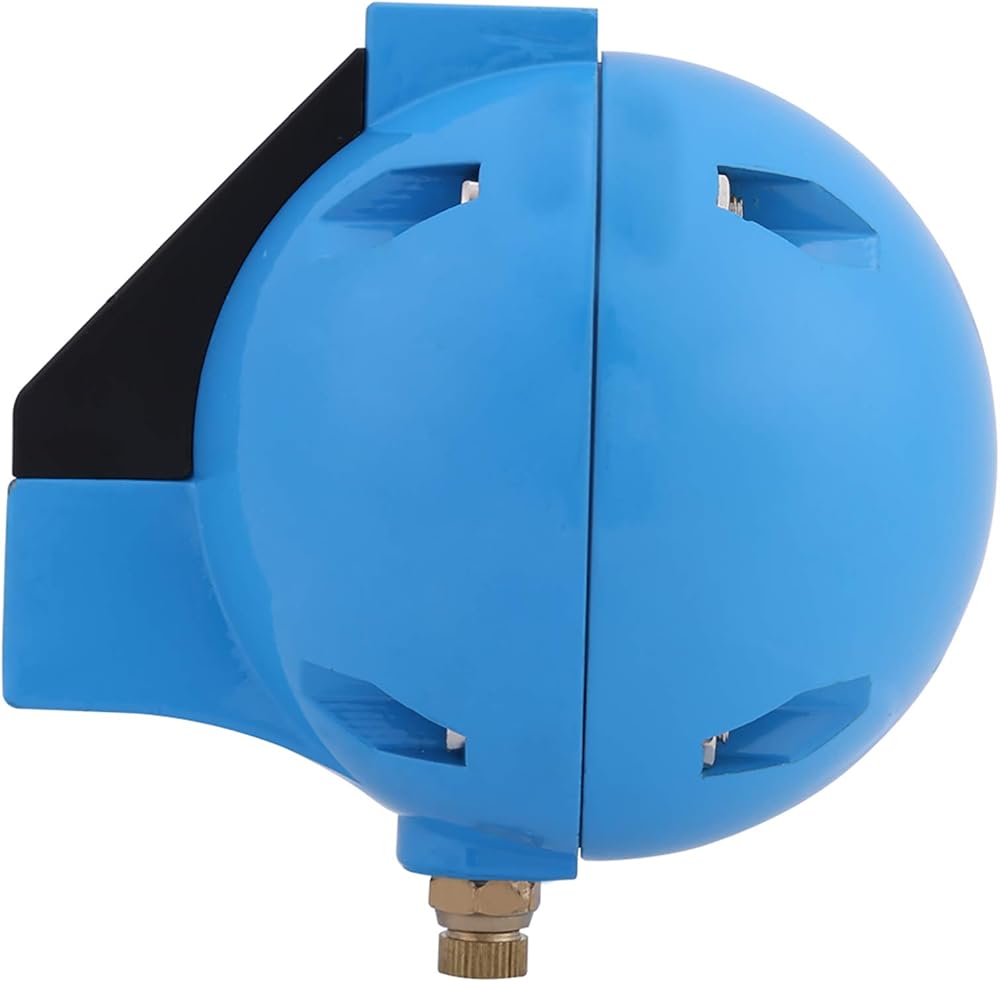

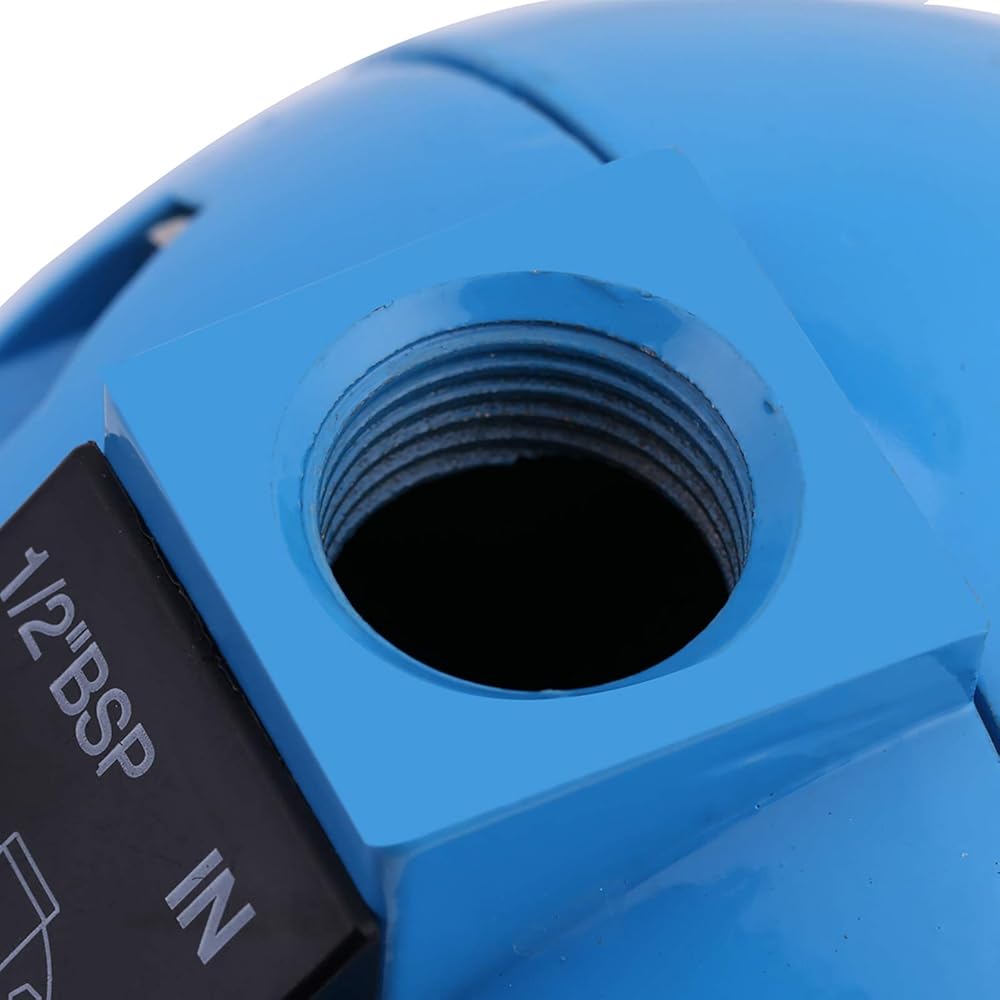

1 Piece HAD20B Automatic Condensate Mechanical Round Float Drain Valve 1/2BSP 400LH 20Bar, No Electricity Required, No Compressed Air Loss, for Compressed Air Equipment

SAR 113
– 1 +

Special Features

  • CONSTRUCTION: Constructed of cast aluminum alloy with a plastic powder coat finish, this drain valve is built to last. It can withstand high pressure of up to 20 bar and is therefore suitable for various compressed air applications.
  • luggage The HAD20B automatic condensation mechanism
  • Space and Cost Saving: This mechanical drain valve eliminates the need for complex electrical systems, saving valuable space and reducing installation costs. It is a cost-effective for any compressed air equipment.
  • EASY TO MAINTAIN: With its large drain outlet, the round float drain valve does not clog easily, reducing the need for frequent maintenance. Say goodbye to clogged drains and look forward to trouble- .
  • EFFICIENT AND: The HAD20B automatic mechanical condensate drain valve with round float drains compressed air condensate quickly and efficiently. Its continuous drip drain design ensures without power or noise.

Description

1. This compressed air automatic steam trap is very different from traditional mechanical automatic traps which belong to continuous drip drain
2. The shell is made of cast aluminum alloy with a plastic powder coating
3. Automatic dehydrator is extremely in , no electricity required, no noise, no loss of compressed air
4. Drainer has a large drain that cannot be easily blocked; It is a new generation and a wide range of arresters for compressed air equipment
5. This is a fairly stable drainer with excellent performance and low failure rate

Technical dataification:
Description:
This automatic compressed air steam trap is a mechanical automatic trap with a cast aluminum alloy body and an internal float ball drain system. The drain outlet is closed when the buoyancy of the drain is less than the weight of the floating ball plus compressed air pressure. and it opens as buoyancy increases to drain condensed fluid.
Characteristics:
This compressed air automatic steam trap is significantly different from traditional mechanical automatic steam traps that belong to continuous drip draining.
Housing is made of cast aluminum alloy with a plastic powder coating.
The automatic drainer is extremely in , requires no electricity, no noise and no loss of compressed air.
The drainer has a large drain outlet is not easy to block; It is a new generation and a wide range of compressed air drainers.
This is a fairly sturdy drainer with excellent performance and low failure rate.
Technical data:
Model: HAD20B
Port Size: Inlet=Outlet=1/2BSP
Maximum pressure: 20 bar
Maximum temperature: 100℃
Maximum capacity: 400L/h
Weight: 602g (approx.)
Directions:
Before Installation When using this drainer basket, please use compressed air to remove contaminants from the pipes until they
