MP-3000E+ Split-Type 3-Axis Variable Frequency Vibration Test Bench, 132lbs Load, 1-400Hz Adjustable Frequency 110V 1.5KW

SAR 17,577
Brand
HayWHNKN
Weight
205.5 kg
– 1 +

Special Features

  • High-Efficiency Three-Axis Testing for Realistic Simulation: Capable of conducting vibration tests along the X, Y, and Z axes simultaneously with a single setup. This eliminates the need for repeated re-fixturing, significantly boosts testing efficiency, and more accurately simulates the multi-directional, complex vibrational environments encountered during transport or use.

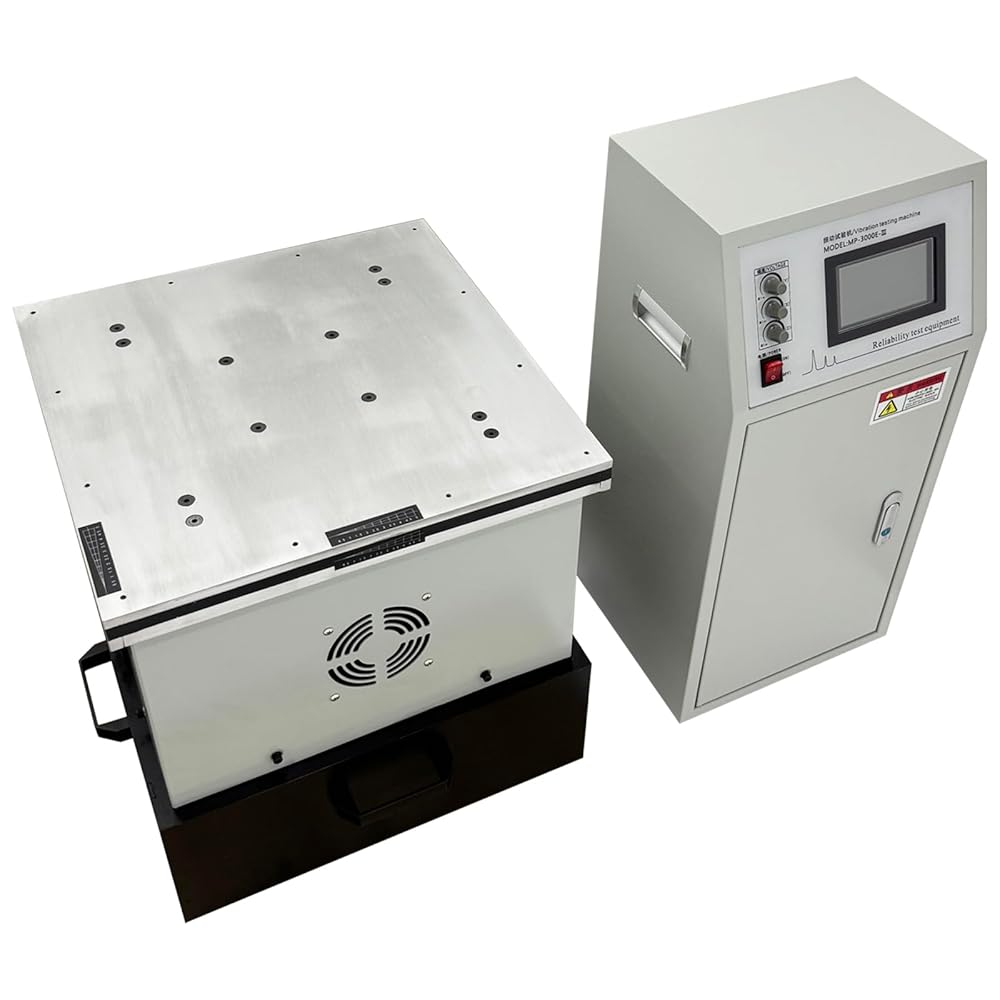

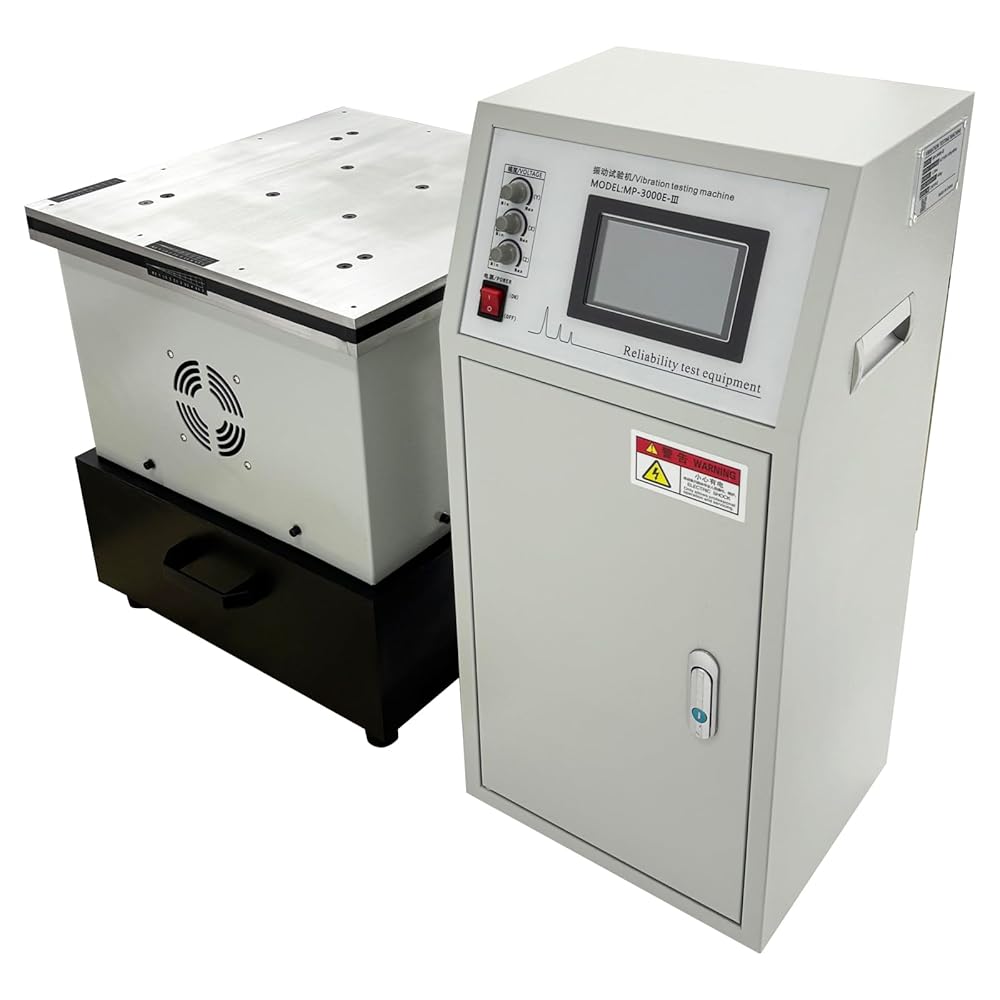

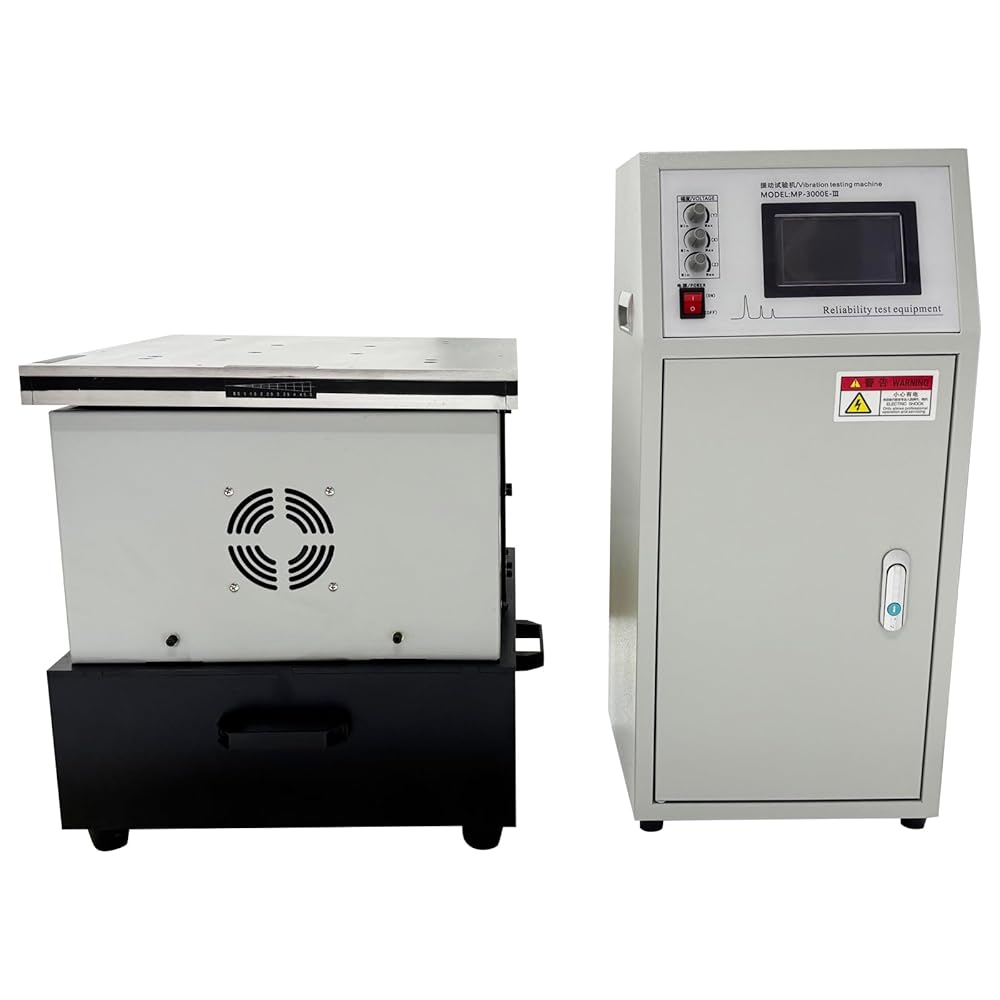

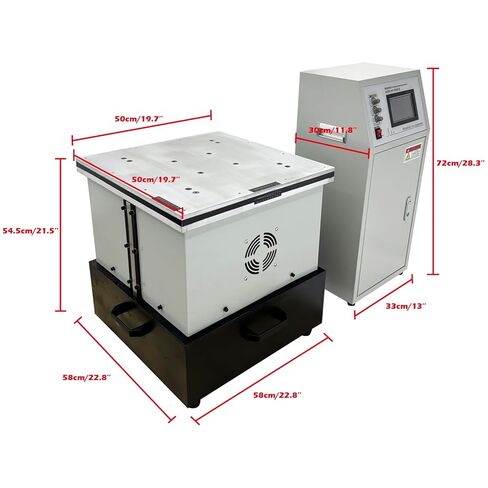

  • Split-Type Design for Stable Performance & Flexible Layout: The separate table and controller cabinet design effectively isolates the electronics from vibration interference, ensuring long-term operational stability and longevity of the control system. It also offers greater flexibility for laboratory space planning.
  • Multiple Test Modes for Diverse Requirements: Supports various vibration modes including fixed frequency and sine sweep, with the capability to program up to 20 test steps. It effortlessly handles everything from simple durability tests to complex multi-stage profile simulations.

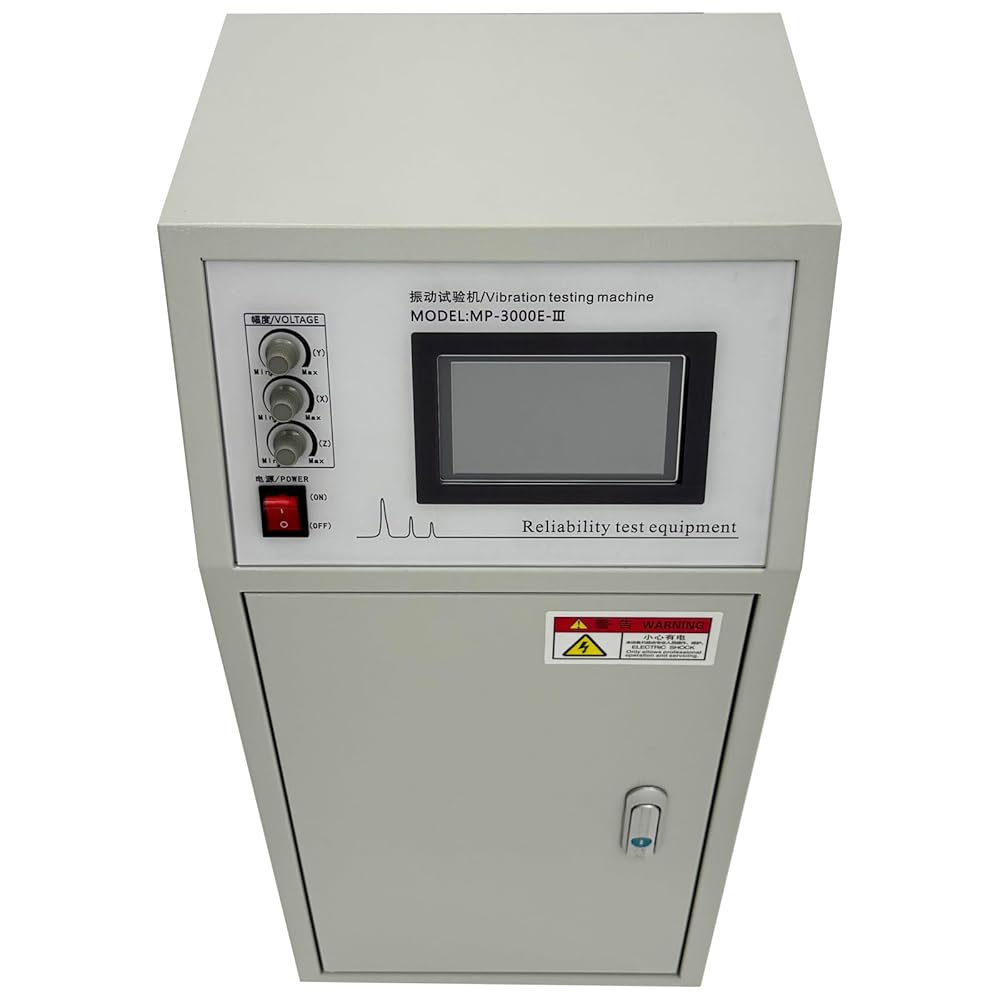

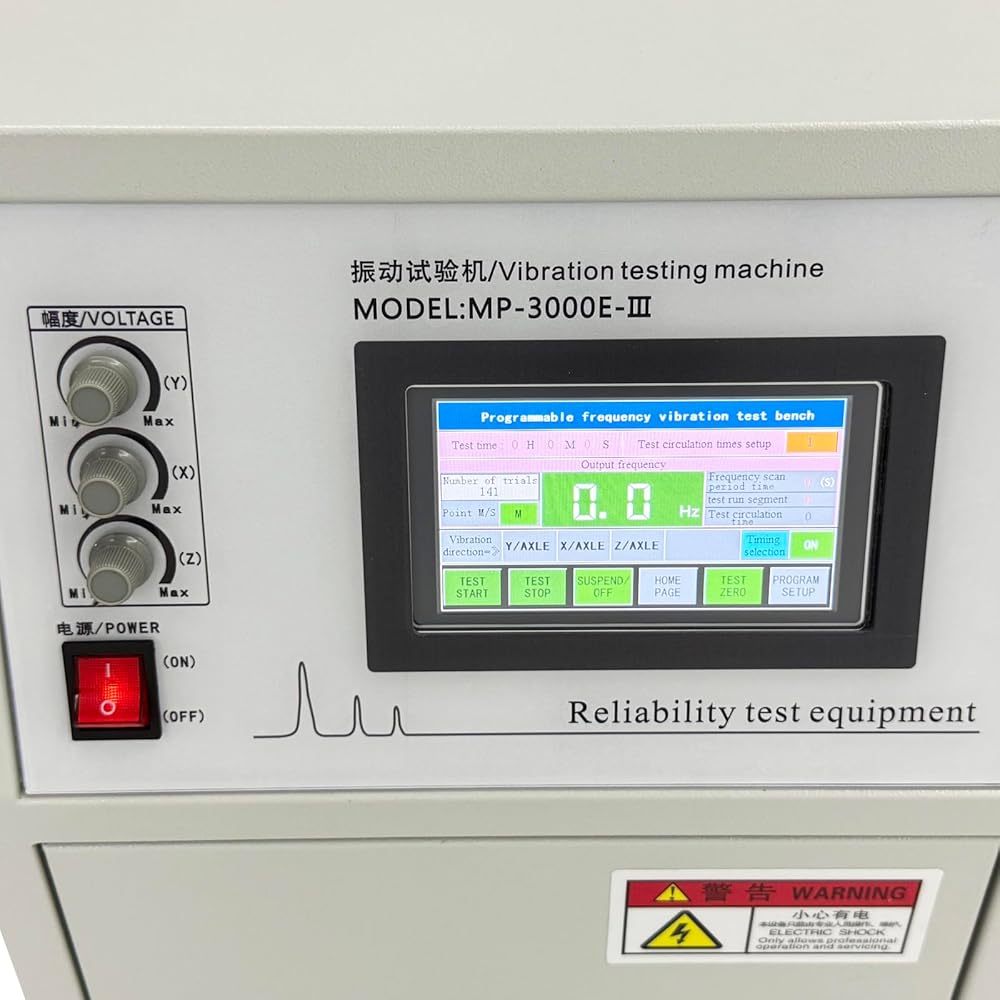

  • Precise Control & Safe Operation Ensure Test Reliability: Equipped with high-precision sensors and an intuitive touchscreen interface for accurate control over vibration parameters (frequency, amplitude, time). Comprehensive safety features including overload protection, and safety interlocks provide dual assurance for both the test process and the operator.
  • User-Friendly Design Enhances Operational Convenience: Featuring an intuitive touchscreen control, straightforward parameter setup, and multiple operation modes (Timed/Manual), the system significantly reduces the learning curve, enabling users to get started quickly and perform tests efficiently.

Description

Product Parameters
Model: MP-3000E+
Voltage: AC110V±10%/50-60Hz
Power: 1.5kW
Rated test load weight: 132lbs(60kg)
Vibration frequency range: 1~400hz(Fixed frequency or sweep frequency can be set arbitrarily)
No-load maximum displacement (amplitude): P～P/5mm

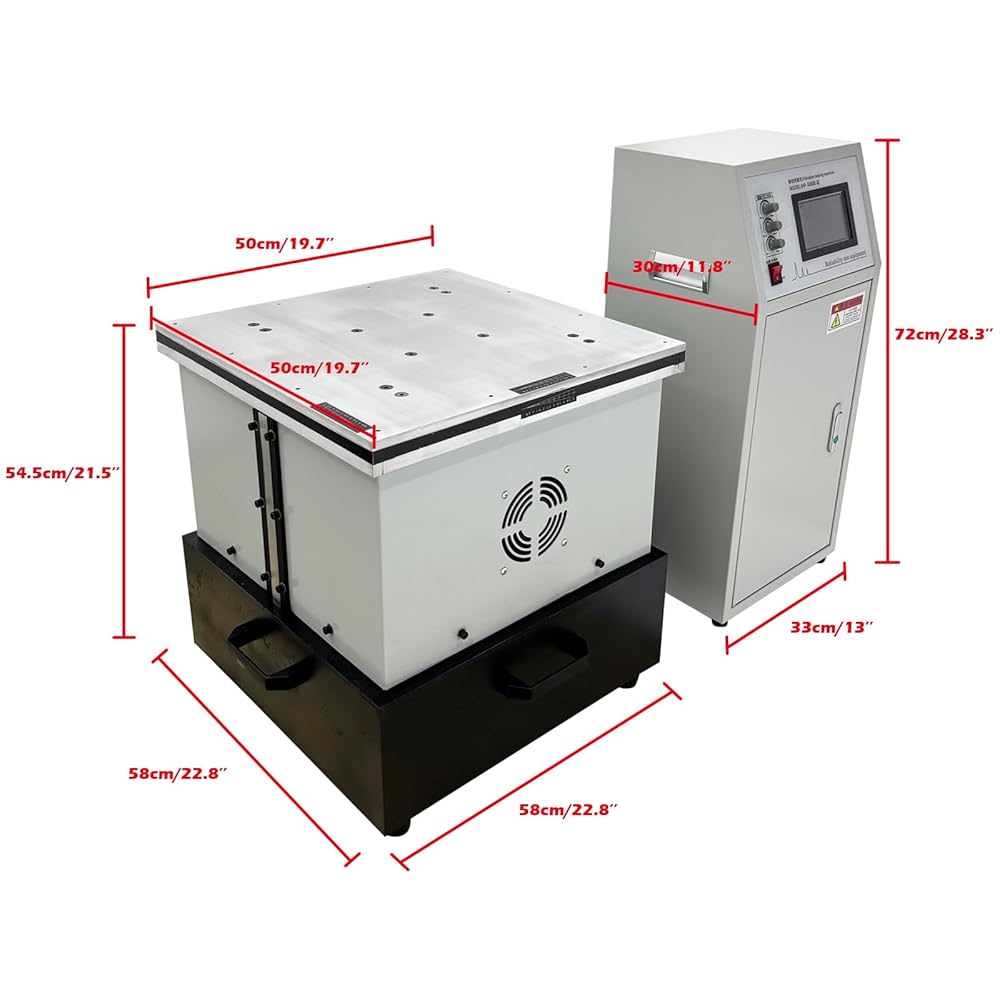

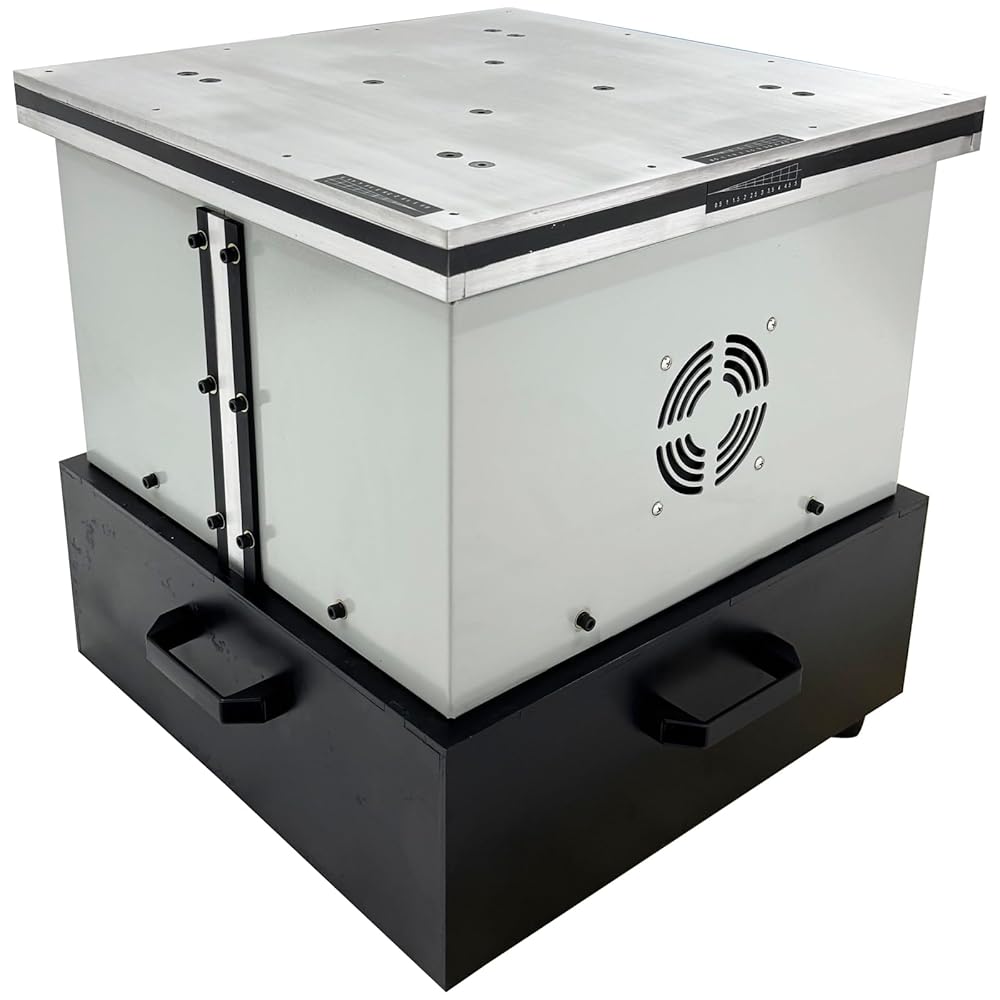

Working surface size: 19.7"*19.7"(50cm*50cm)
Vibration direction: Vertical(Y), Horizontal(X), Longitudinal(Z)
Operating conditions: 0～40℃, RH Net weight/Gross weight: 393.5lbs(178.5kg) / 451.9lbs(205kg)
Different vibration parameters can be set in 20 segments, the maximum test time of each period is 999 minutes (i. e. 16 hours), and the number of cycles of 0～200 times can be set arbitrarily.
