3-Axis Variable Frequency Vibration Test Bench MP-3000E+ Intelligent Vibration Testing Machine 1-400Hz Variable Frequency Vibration Test Bench with 132lbs(60kg) Loading, AC110V

SAR 17,594
Brand
Yokoma
Weight
178.5 kg
– 1 +

Special Features

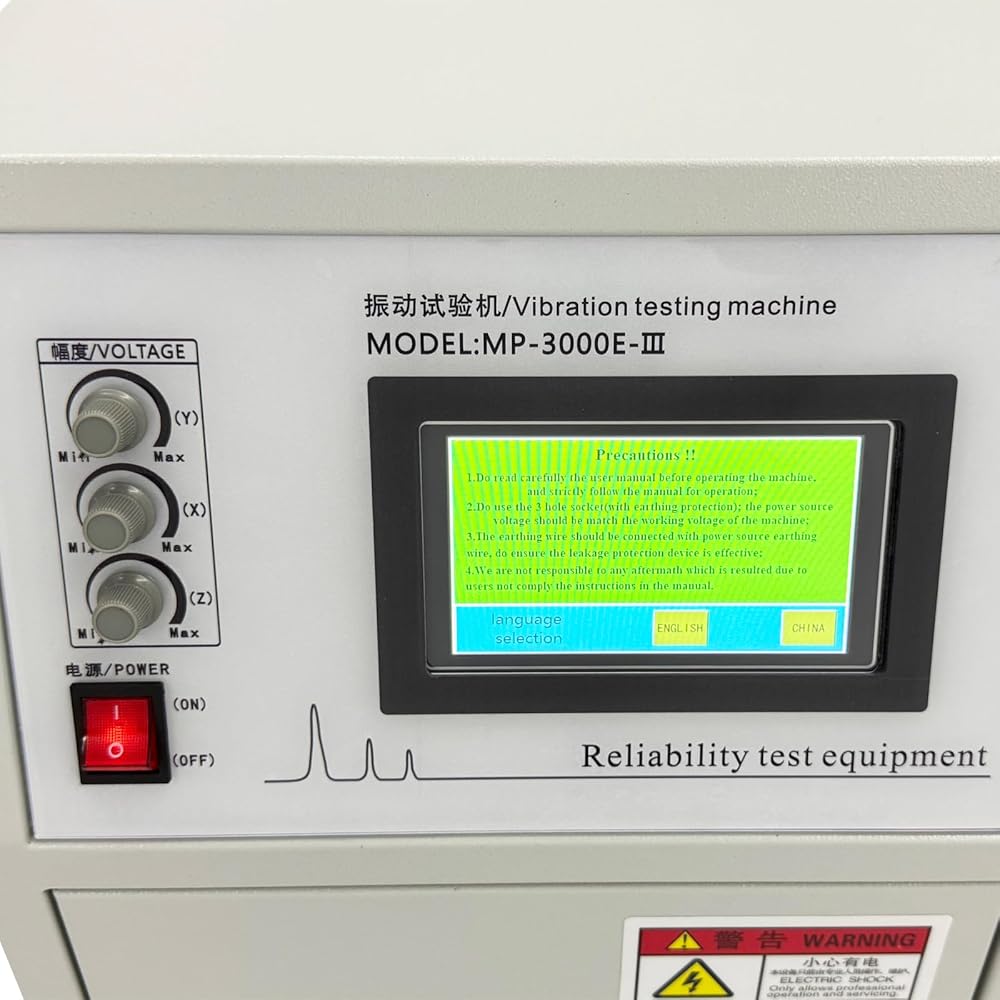

  • 3-Axis Intelligent Control: The control panel combines X, Y, Z-axis knobs with a touch screen, the dedicated output ports and built-in fuses for the X, Y, and Z axis provide precise and reliable connections, the knob design allows to make quick adjustments through intuitive tactile response, while the touch screen enables precise setting of frequency, time, and complex test sequences, meeting all test requirements from rapid debugging to fully automatic operation
  • Flexible Multiple Testing Modes: The 3-Axis test bench supports various vibration modes including fixed frequency and sine sweep, with the capability to program up to 20 test steps, it effortlessly handles everything from simple durability tests to complex multi-stage profile simulations, besides, the vibration frequency range is 1-400Hz, fixed frequency or sweep frequency can be set arbitrarily

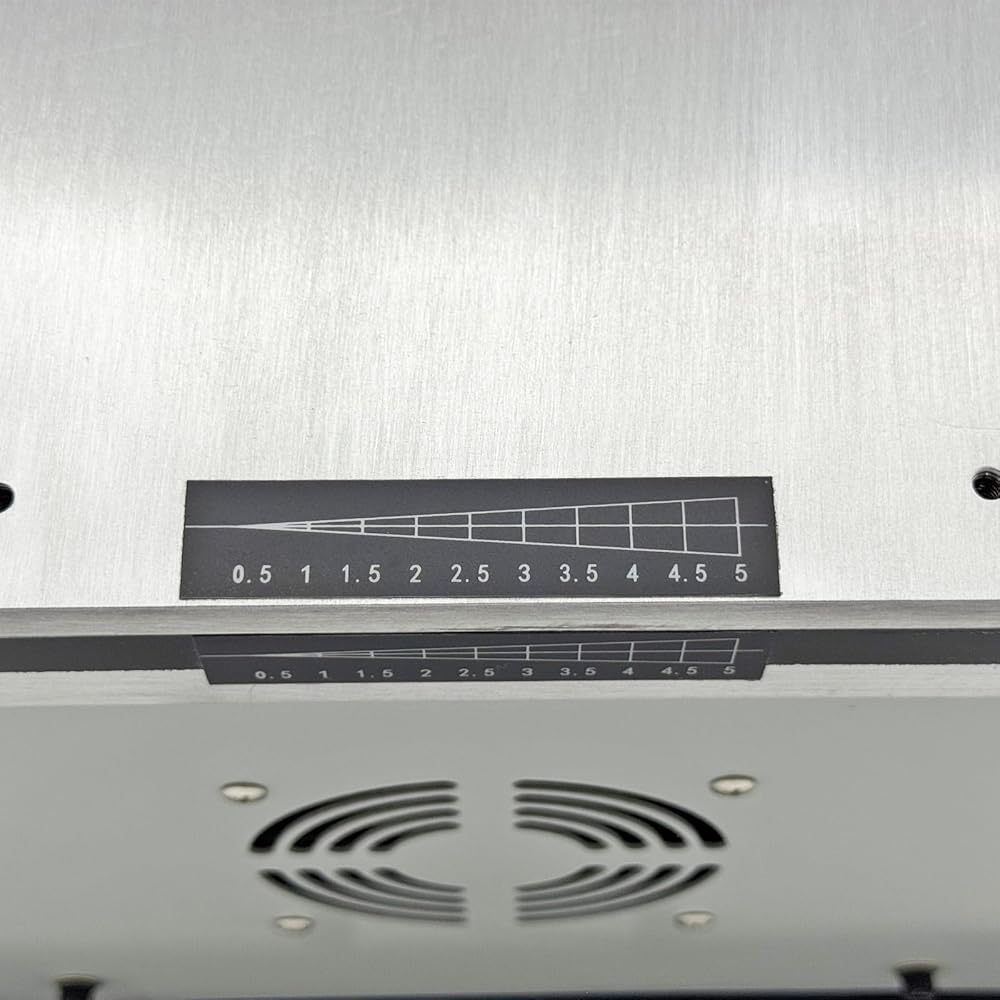

  • Real-Time Data Check: The integrated visual amplitude scale (0.5 - 5) combined with its dynamic response indicator forms an intuitive monitoring system, allowing operators to directly observe and verify the actual amplitude in real time, this design effectively prevents test data deviations caused by sensor drift or incorrect settings, thereby ensuring objectivity and reliability

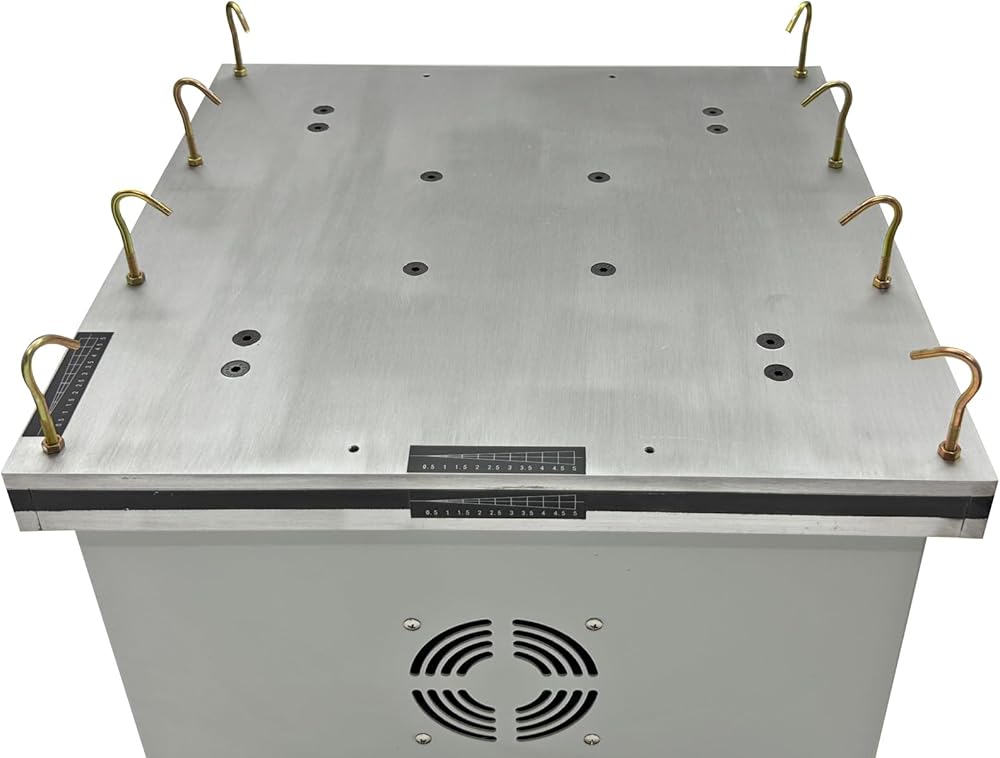

  • Safety Clamping Device: The workbench has 12 standard threaded holes, 8 dedicated hooks and high-strength rubber elastic fastening devices, suitable for samples of different sizes and shapes, the clamping device can be quickly operated, installed, and removed to improve the test swallowing capacity, the safe structure with multi-point elastic constraints can effectively prevent the sample from sliding or tipping, thus ensuring safe operation and reliable test results

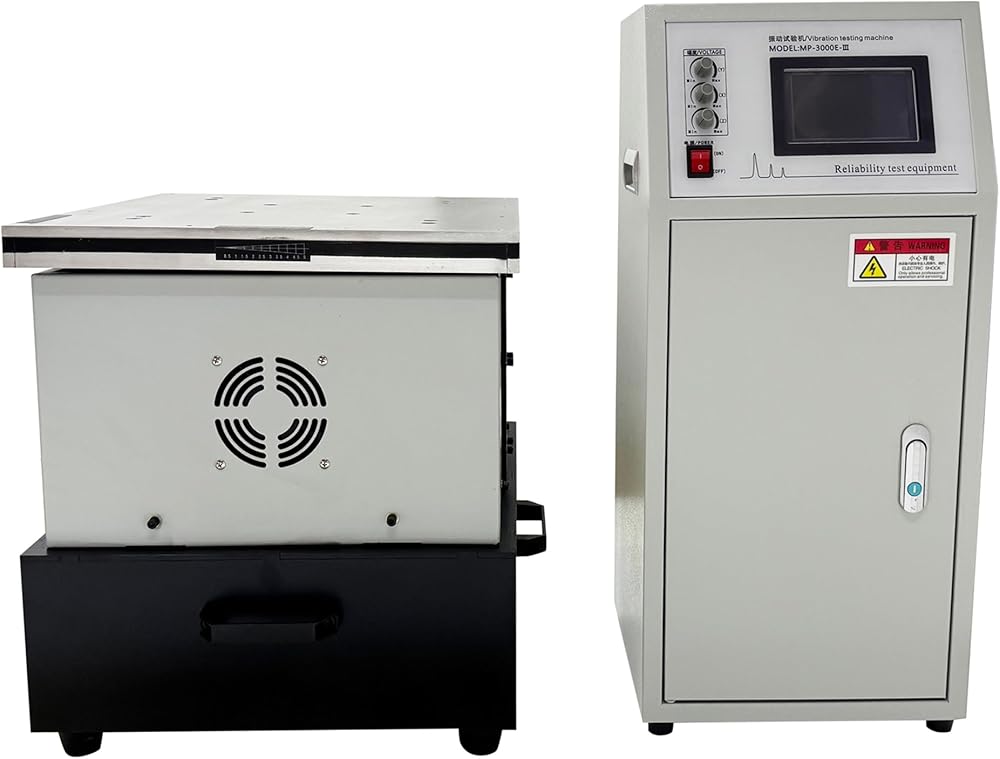

  • Split-Type Structure Design: The entire machine set adopts split-type design, the separate workbench and control cabinet isolate the electronic equipment from vibration interference, ensuring the long-term stability of the control system, it also provides greater flexibility for the space planning, moreover, the side of the vibration table is equipped with vents for air circulation, ensuring that the interior maintains the optimal working temperature

Description

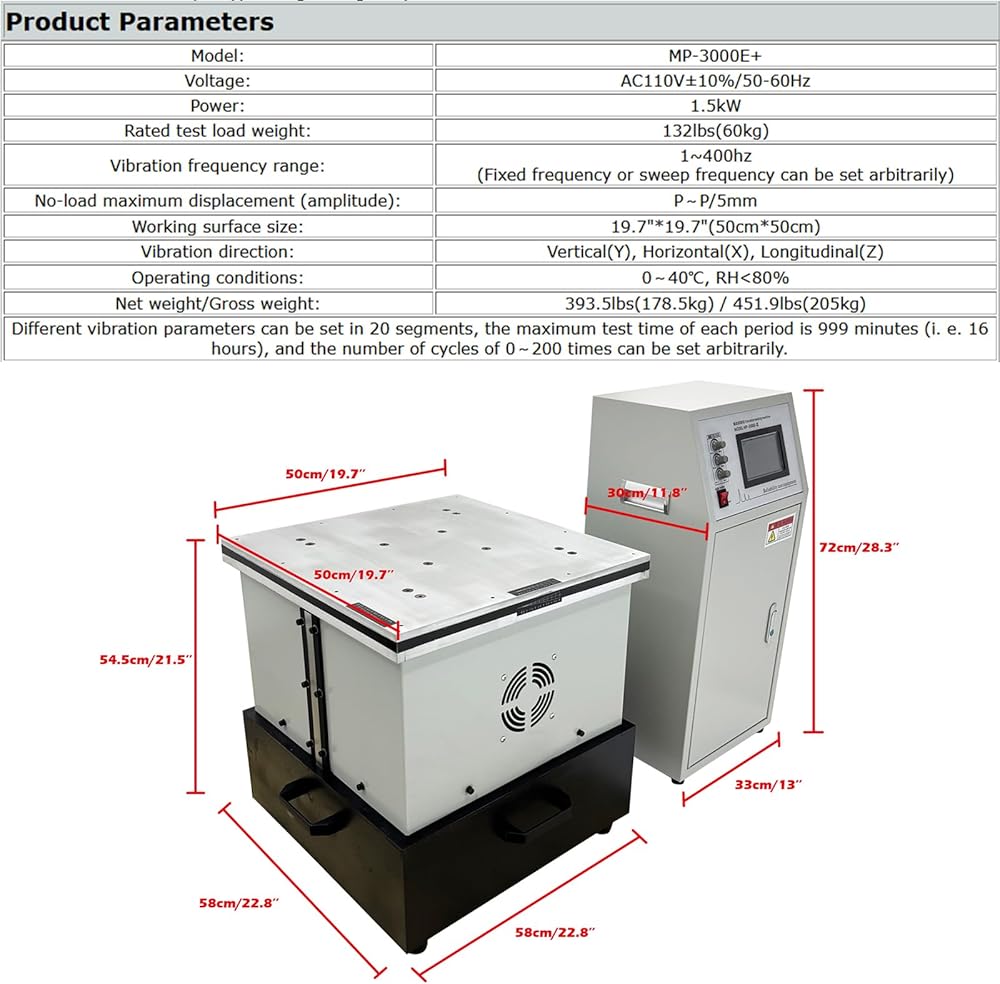

Product Parameters
Model: MP-3000E+
Voltage: AC110V±10%/50-60Hz
Power: 1.5kW
Rated test load weight: 132lbs(60kg)
Vibration frequency range: 1-400hz (Fixed frequency or sweep frequency can be set arbitrarily)
No-load maximum displacement (amplitude): P～P/5mm
Working surface size: 19.7*19.7" (50×50cm)
Vibration direction: Vertical(Y), Horizontal(X), Longitudinal(Z)
Operating conditions: 0-40℃, RH Test bench size: 19.7*19.7" (50×50cm)
Product size:
Control device size: 13*11.8*28.3" (33×30×72cm)
Tester size: 22.8*22.8*21.5" (58×58×54.5cm)
Net weight/Gross weight: 393.5lbs(178.5kg) / 451.9lbs(205kg)
One package includes
Variable Frequency Vibration Test Bench *1
Accessory Kit *11
Please note that
Different vibration parameters can be set in 20 segments,
the maximum test time of each period is 999 minutes (i. e. 16 hours),
and the number of cycles of 0～200 times can be set arbitrarily
