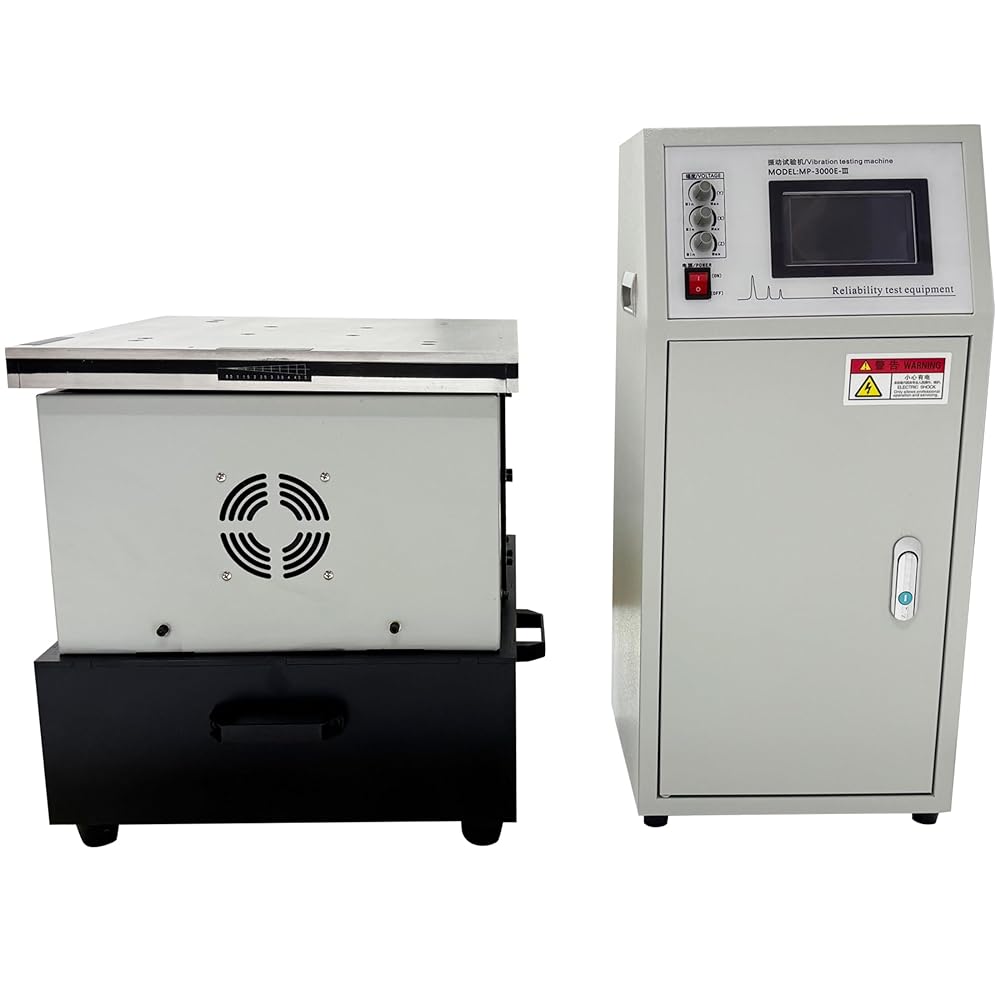

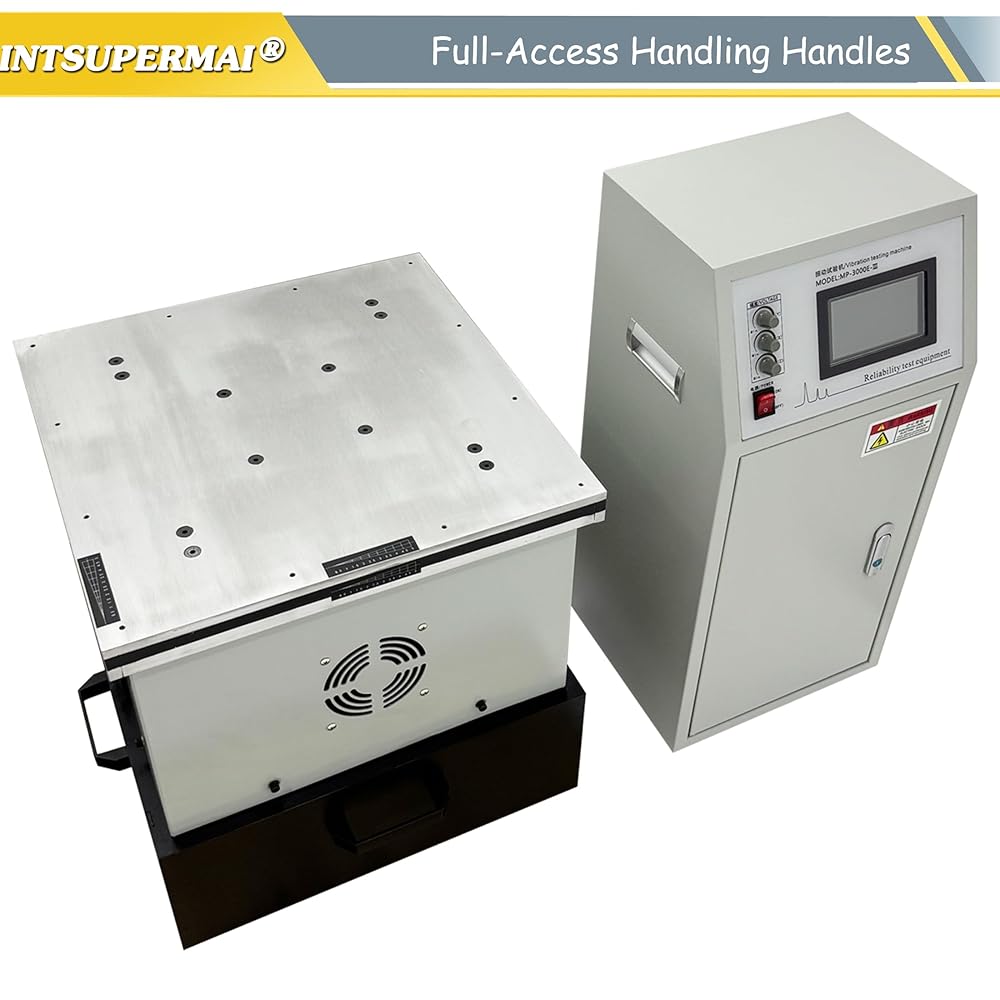

MP-3000E+ intelligent vibration testing machine is used to simulate the various environments encountered in the manufacturing, assembly, transportation and use of the execution stage, to identify whether the product is able to withstand environmental vibration, suitable for the research, development, quality control and manufacturing of electronics, mechanical and electrical, optoelectronics, motor vehicles, toys and other industries.
The test method of the machine is based on the digital control of random vibration, and the vibration of various environments is simulated and provided to determine the ability of the test sample to withstand the specified broadband random vibration. The split type design can greatly reduce the failure rate of the control circuit.

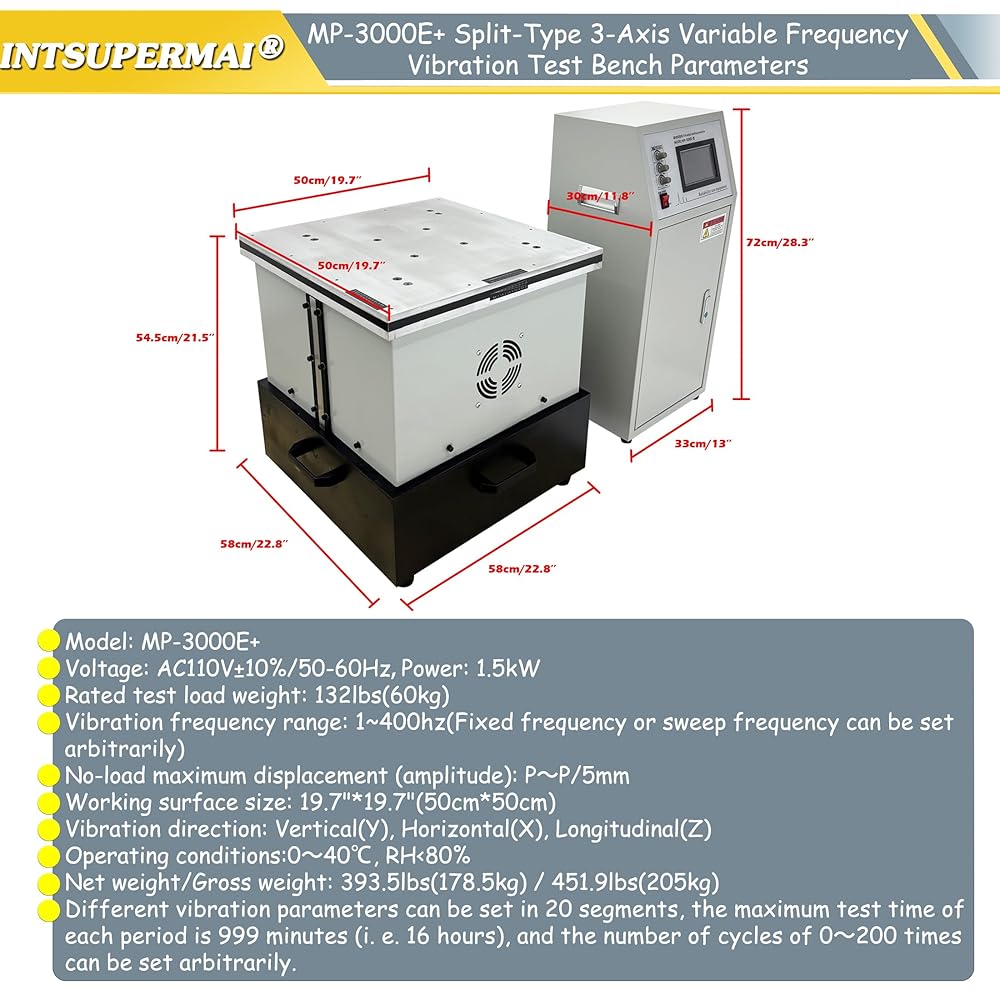

Product Parameters

Model: MP-3000E+

Voltage:AC110V±10%/50-60Hz

Power: 1.5kW

Rated test load weight: 132lbs(60kg)

Vibration frequency range: 1~400hz

(Fixed frequency or sweep frequency can be set arbitrarily)

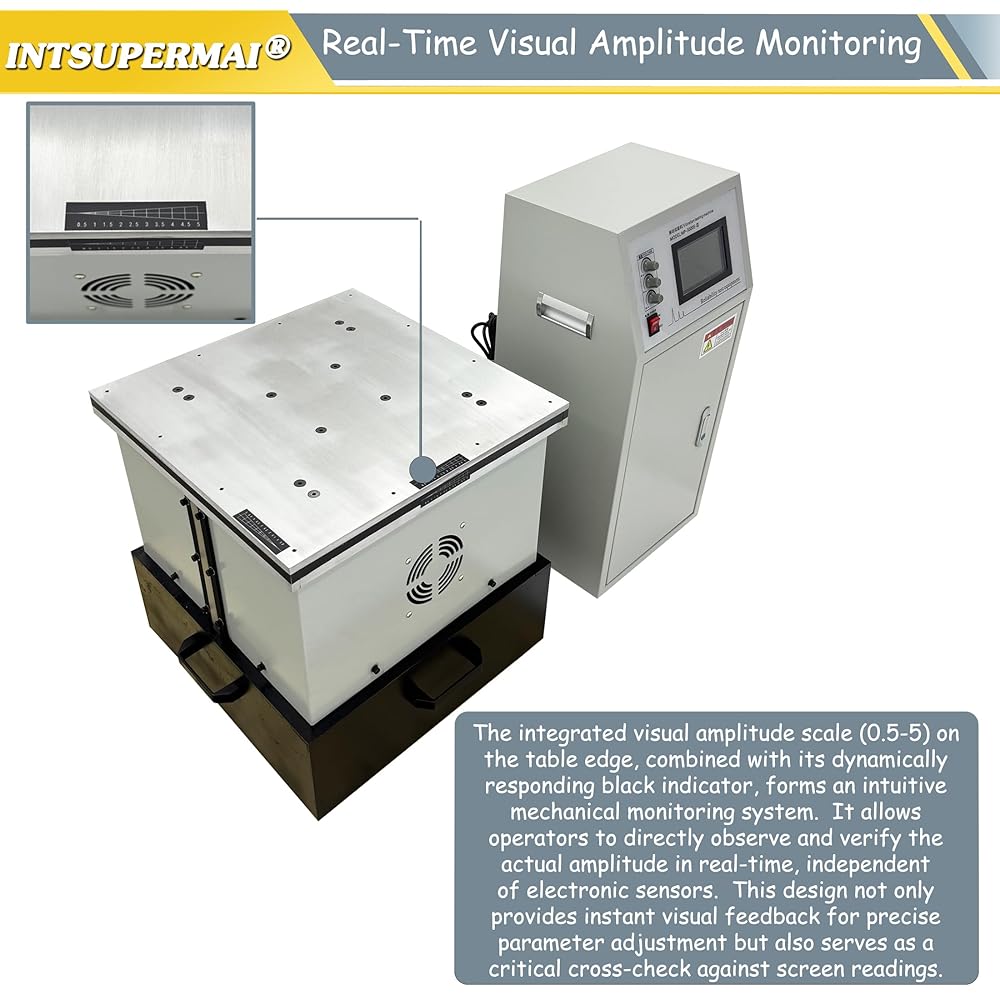

No-load maximum displacement (amplitude):P～P/5mm

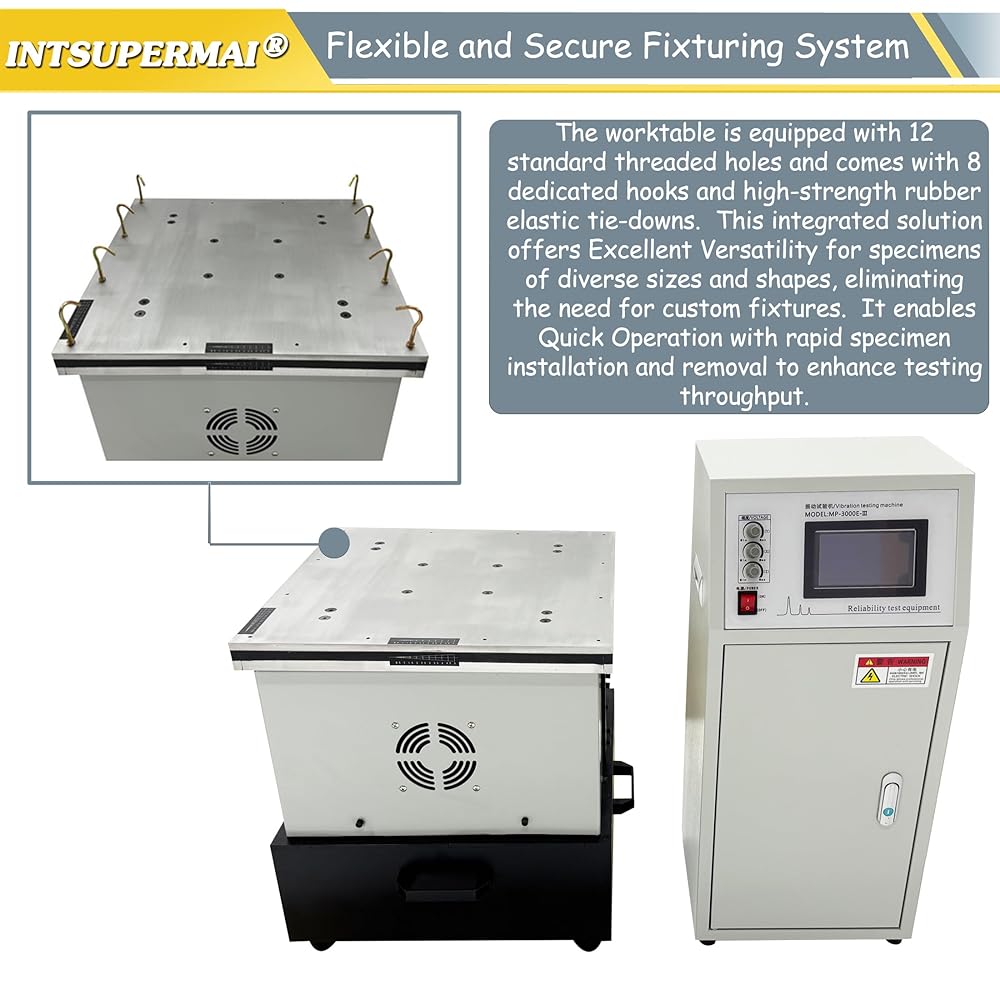

Working surface size: 19.7"*19.7"(50cm*50cm)

Vibration direction:Vertical(Y), Horizontal(X), Longitudinal(Z)

Operating conditions:0～40℃, RH
Net weight/Gross weight: 393.5lbs(178.5kg) / 451.9lbs(205kg)

Different vibration parameters can be set in 20 segments, the maximum test time of each period is 999 minutes (i. e. 16 hours), and the number of cycles of 0～200 times can be set arbitrarily.
