【Data Storage】Storing up to 41 sets of data through USB communication, which allows you to transfer data effortlessly. Ideal for measuring the stress of 10 different materials.
Wide range of applications: Ideal for industries such as wires and cables, textiles, chemical fibres, metal wires and carbon fibre, providing accurate stress measurement and systematic data processing.

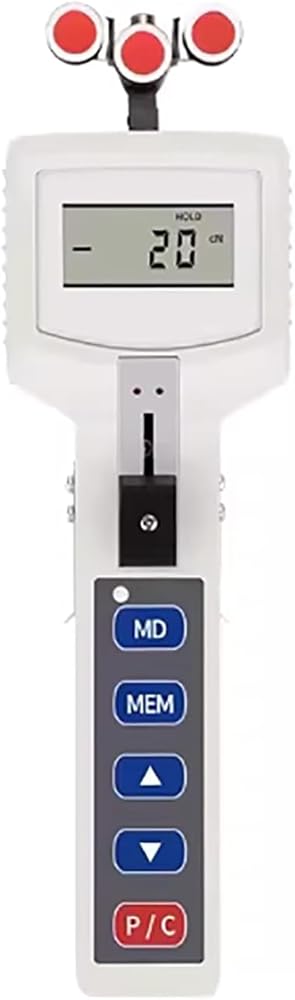

Portable digital tensiometer: Portable device designed to accurately measure the stress of various textile materials, such as textile threads, steel wires and fibres.
Multiple working modes: Easily switch between real-time measurement modes, pause and peak measurement, with thickness adjustment for increased accuracy.
Versatile unit options: Measuring tension in six units – cN, gf, oz, kgf, N, and lb – with an accuracy of 2.5% of the full scale for reliable results.
وصف
Specifications: Available models: 2N, 5N, 10N, 20N, 25N, 50N and 100N. The measuring head width is 65mm for 2N-20N and 116mm models for 25N-100N models. The calibration material is PA textile monofilament available in different diameters: Φ0.12, Φ0.12-0.2, Φ0.2-0.4, Φ0.4-0.7, Φ0.6-1.2 and Φ0.8-1.4mm. The dimensions of the device are 270mm x 118mm x 55mm, and its net weight is about 640g. The power requires two 3.7V lithium batteries. International tension units are as follows: 1 cN equals 1.02 g or 0.01 N; 100 N equivalent to 10.2 kg or 10000 cN. Zawartość opakowania: 1 cyfrowy miernik naprężenia, 1 instrukcja obsługi 1 certyfikat zgodności 1 certyfikat kontroli, 1 kabel USB do transmisji danych, 1 ładowarka 12 V i 1 oprogramowanie online.
