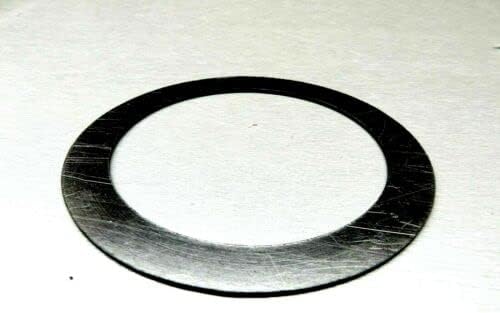

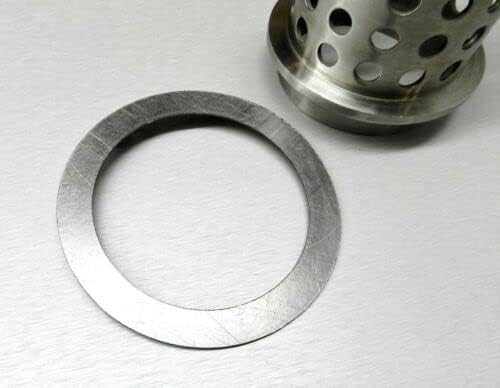

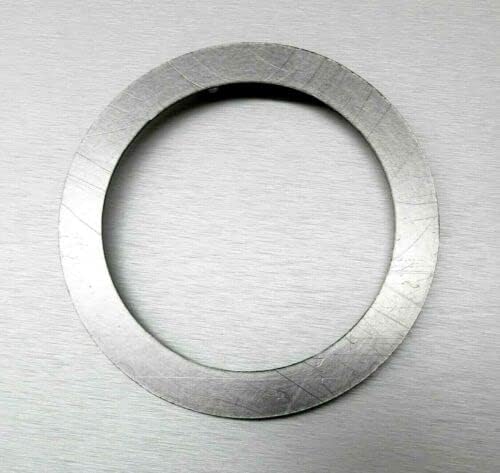

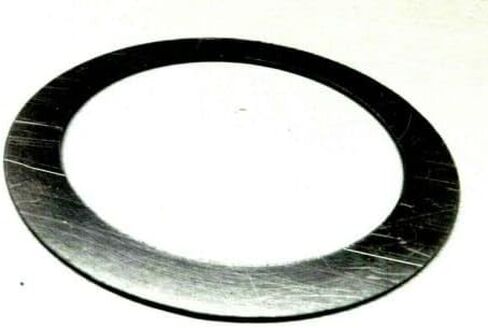

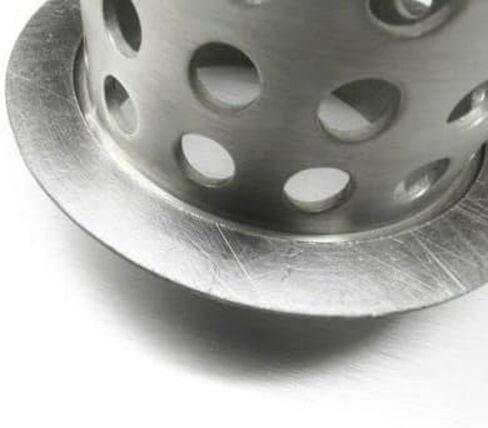

- Graphite Gasket for use in Vacuum Casting for sealing of the flange and the casting chamber.
- This graphite gasket is suited for 5" casting flask, is 1/16" thick material will withstand temperatures of up to 1200°F - 649°C.
- Gasket are long lasting, can be used even when they wear down to almost paper thin.
- Note: The Graphite gasket will last long and can be used as long as they are handled properly… avoiding cracking or breakage, they are subject to breakage.
- Graphite gaskets can be used in combination, along with silicone gaskets for optimum vacuum seal and heat protection. The graphite will prolong the life of the silicone gasket.
- SPECIFICATIONS: JETS Product # 0304-15250
- Material: High Temperature Graphite
- Flask Diameter: 5" - 127 mm
- Gasket Outside Diameter: 6-3/4" - 171.4 mm
- Gasket Inside Diameter: 5-1/4" - 130 mm
- Gasket Face Width: 3/4" - 19 mm
- Thickness: 1/16" - 1.65mm
