مميزات خاصة

Multiple Sizes Available: It is available in two sizes, 9 inches (387mm) and 10 inches (427mm), which can meet different flight needs. It is suitable for both speed racing flights and long-range flights that focus on stability.

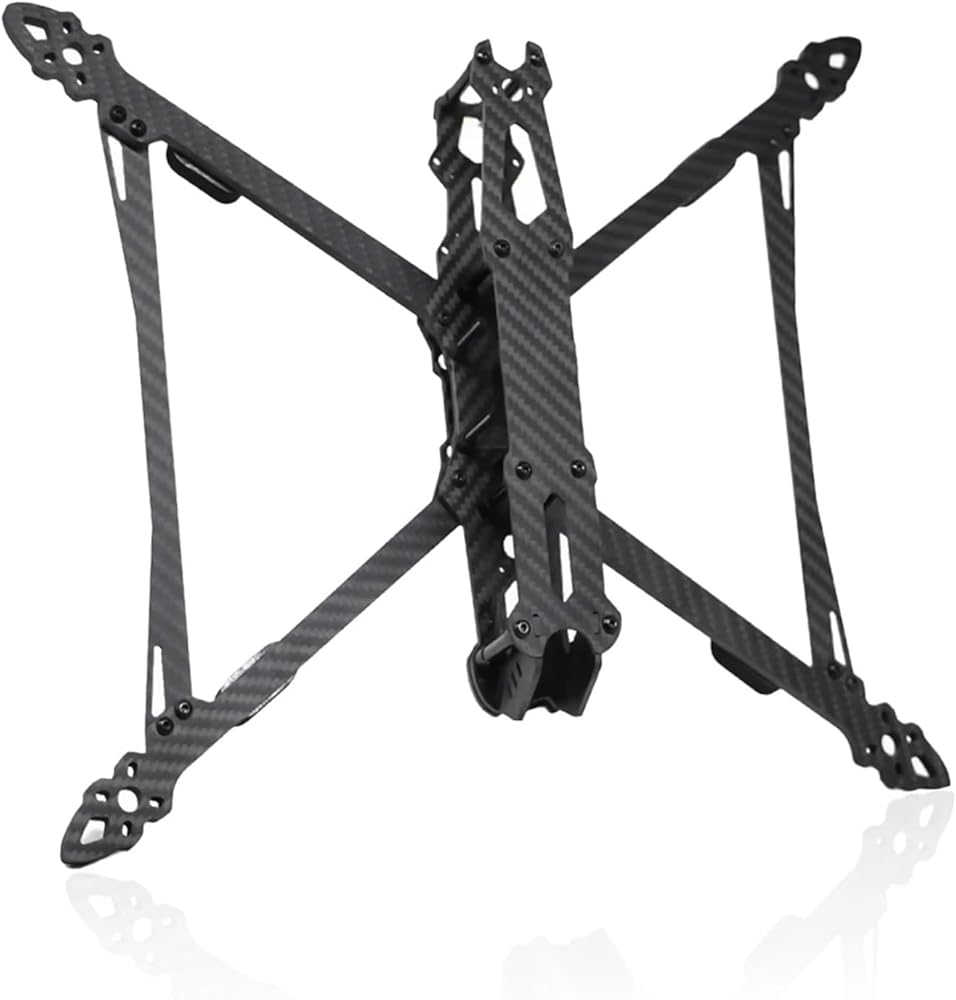

X-type Frame Structure: The X-type frame design is adopted, which can provide a balanced power distribution and excellent maneuverability during flight, making the drone more flexible and stable in free flight and high-speed turns.
High-Quality Carbon Fiber Material: Made of high-quality carbon fiber, it has high strength and low weight, ensuring that while the fuselage is strong, the overall weight is reduced, improving flight efficiency and endurance.
Abundant Mounting Holes: It is equipped with 20x20mm and 30.5x30.5mm mounting holes for flight controllers and image transmission systems, as well as 19mm camera mounting holes, which is convenient for installing various devices and easily building a personalized FPV system.
Convenient Assembly Design: The frame structure is reasonably designed and comes with complete assembly accessories. The assembly process is simple and fast, and both beginners and experienced players can easily complete the assembly.

وصف

Model: MAK4 V2 10inch
Wheelbase: 427mm
Weight: about 227g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6-7mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30530.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 1919mm
Model MAK4 V2 9inch
Wheelbase: 387mm
Weight: about 220g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30530.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 1919mm
==========
Hign-concerned Chemical : None
Is Electric : No Battery
Quantity : 1 pcs
Is it battery/power supply : N
Is it charger/adapter : N
Is Batteries Included : No
Model Number : Mark4 V2
For Vehicle Type : Airplanes
Material : Carbon Fiber
Use : Vehicles & Remote Control Toys
