ET510 DC low resistance tester can be used to test various DC medium, low value resistance, including transformer and other winding resistance, relay and other contact resistance, cables and other conductor resistance, connection resistance between metal components, fuse, conductive rubber and other types of DC resistance.

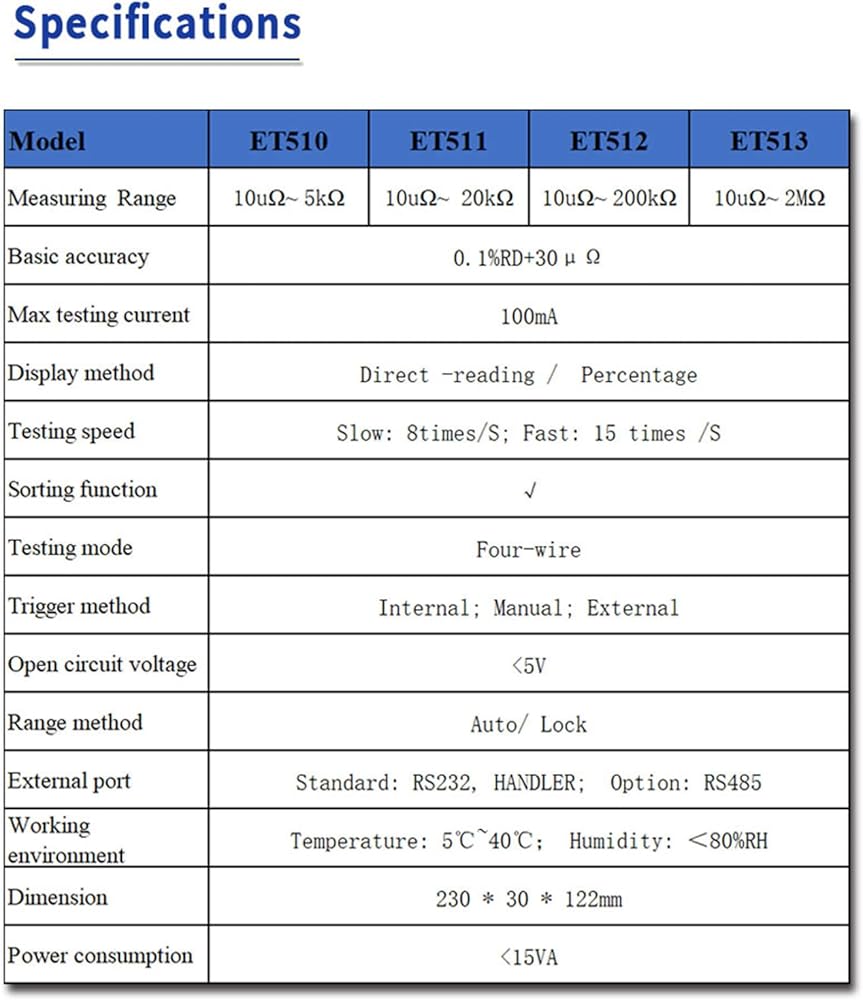

Specifications:
Plug: US / EU / UK (Optional)
Model: ET510
Measuring Range: 10μΩ~5kΩ
Basic Accuracy: 0.1%RD+3words(minimum resolution 10μΩ)
Max Testing Current: 100mA
Display Method: Direct -reading / Percentage
Testing Speed: Slow: 8times/S; Fast: 15 times /S
Sorting Function: √
Trigger Method: Internal; Manual; External
Open Circuit Voltage: Range Method: Auto/ Lock
External Port: Standard: RS232, HANDLER; Option: RS485
Working Environment: Temperature: 5℃~40℃; Humidity: Power Consumption: Material: ABS

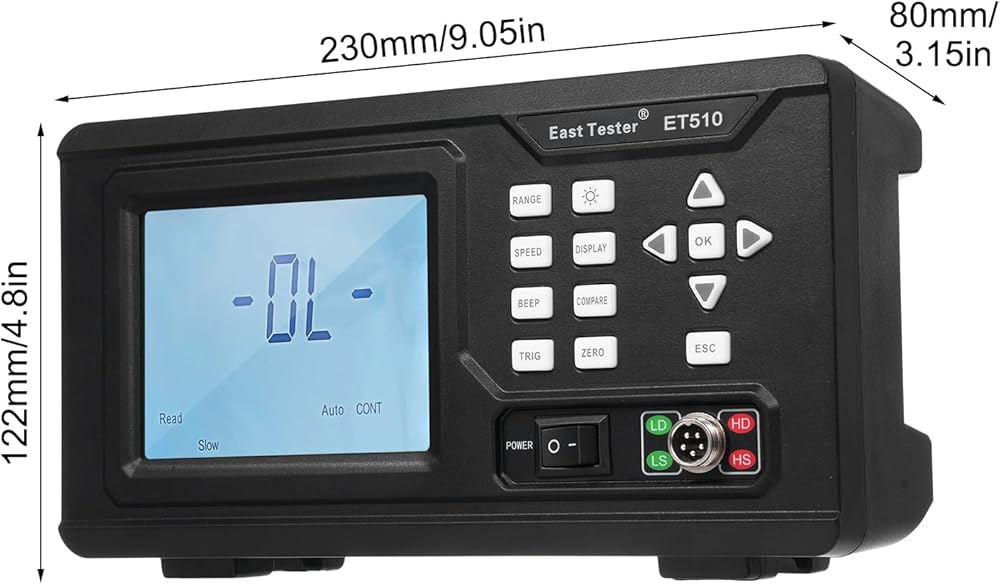

Item Size: 23 * 12.2 * 8 cm / 9.05 * 4.8 * 3.15 inch
Item Weight: 500g / 17.64oz
Package Size: 29.5 * 20.7 * 13.7 cm / 11.61 * 8.15 * 5.39 inch
Package Weight: 908g / 32.03oz

Package List:
1 * DC Low Resistance Tester
1 * Power Cable

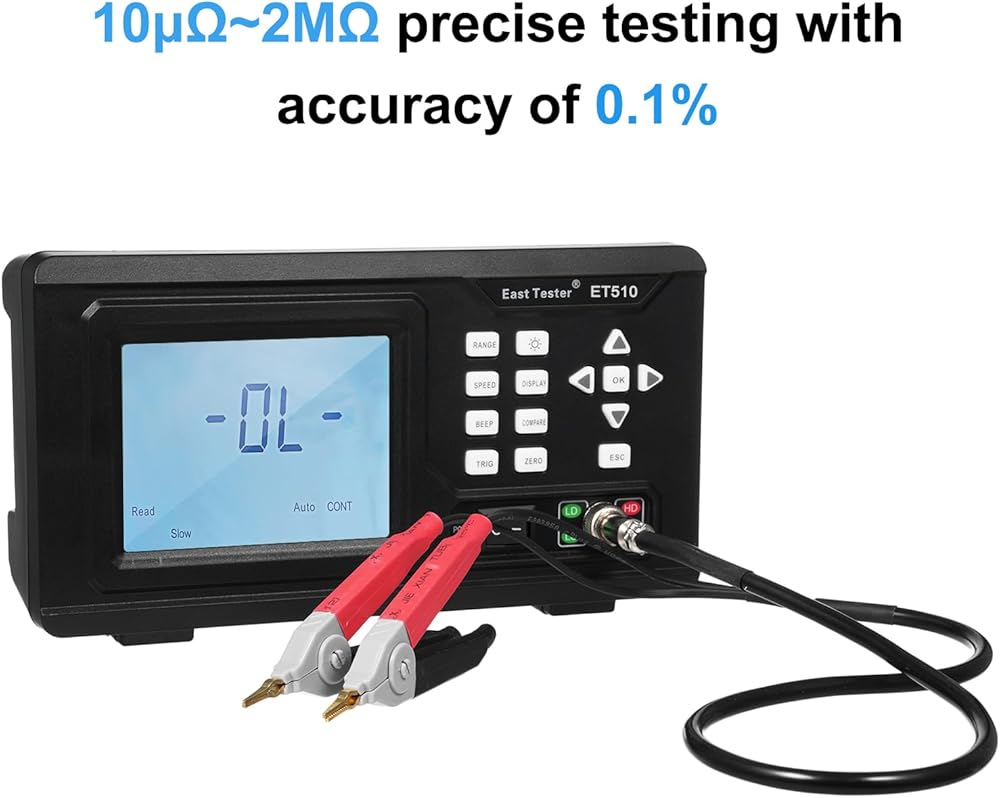

1 * Test Cable
1 * User Manual (English)
