Bearings

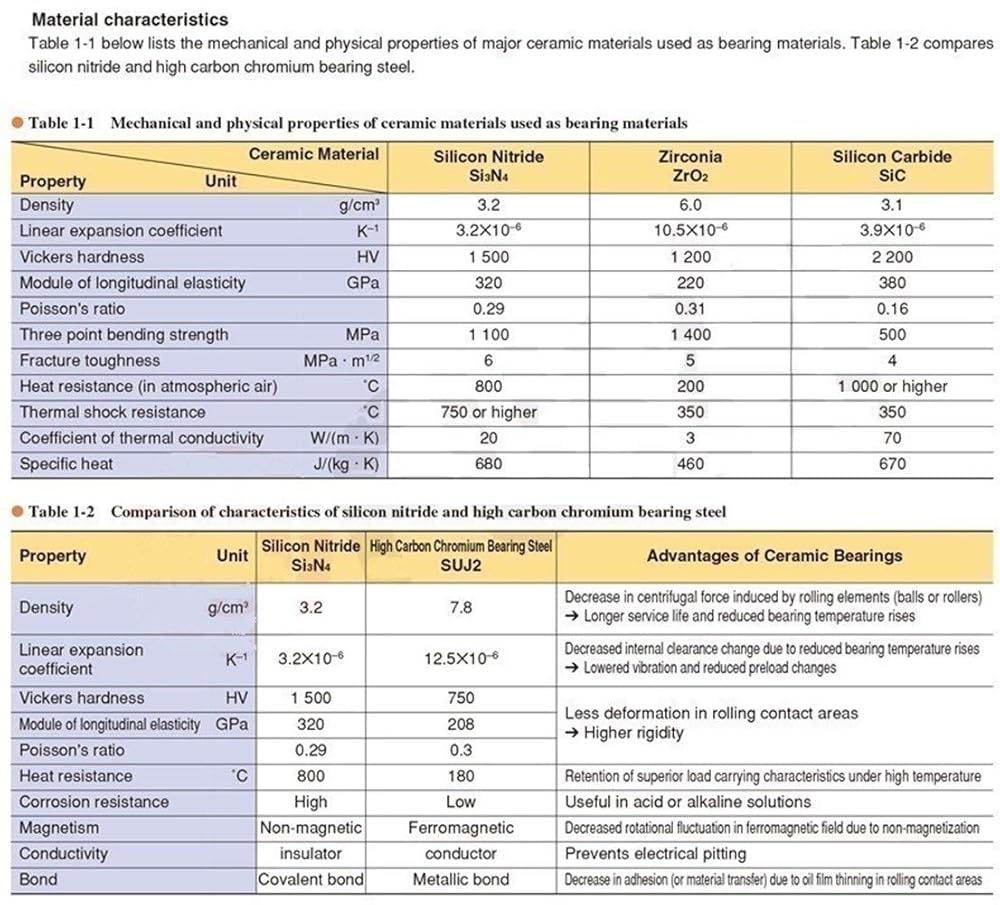

Properties of Full Cearmic Materials
Ceramic Bearings including components made from ceramic have the special properties that steel bearings do not have such as being non-magnetic or insulating. They can be used in new applications where conventional bearings have not been practical.
Ceramic Bearings are highly heat resistant enabling a rolling bearing to be practical in a high temperature environment. The low density of ceramic decreases the centrifugal force induced by rolling elements (balls or rollers) contributing to an increased speed of the apparatus.

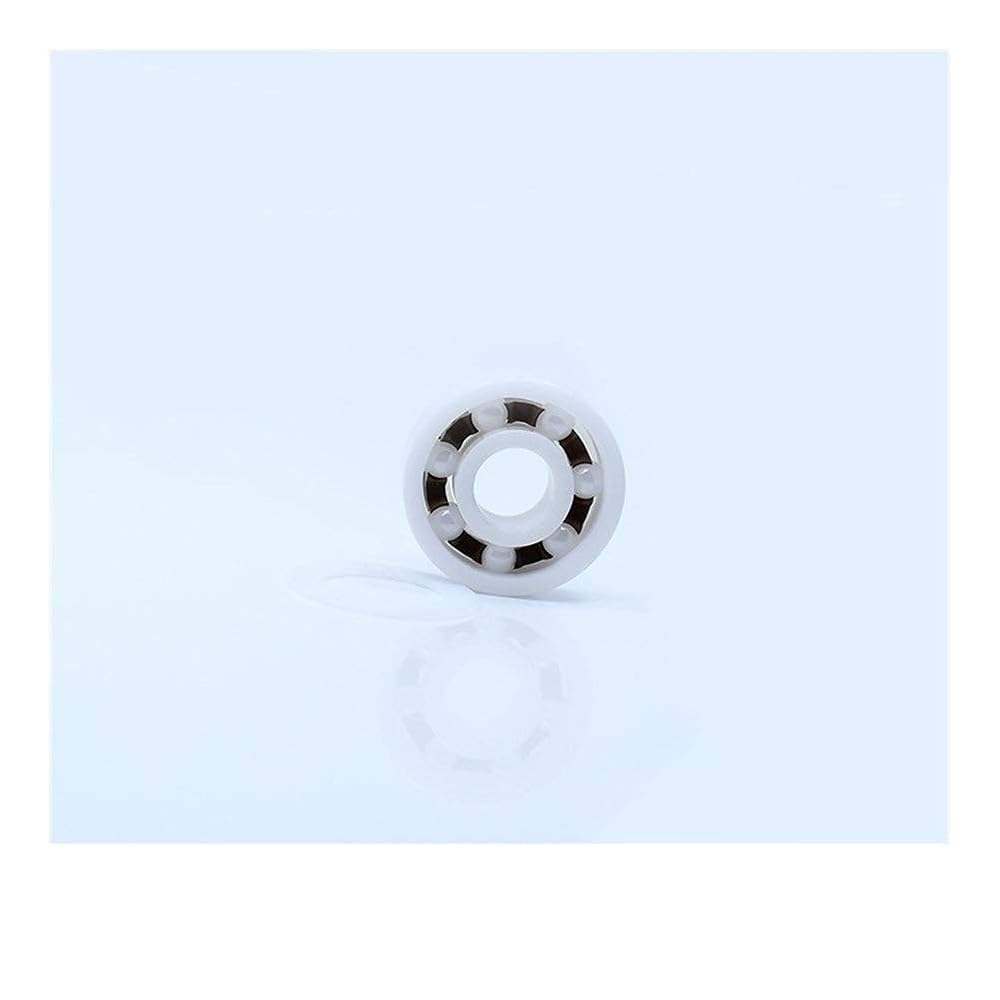

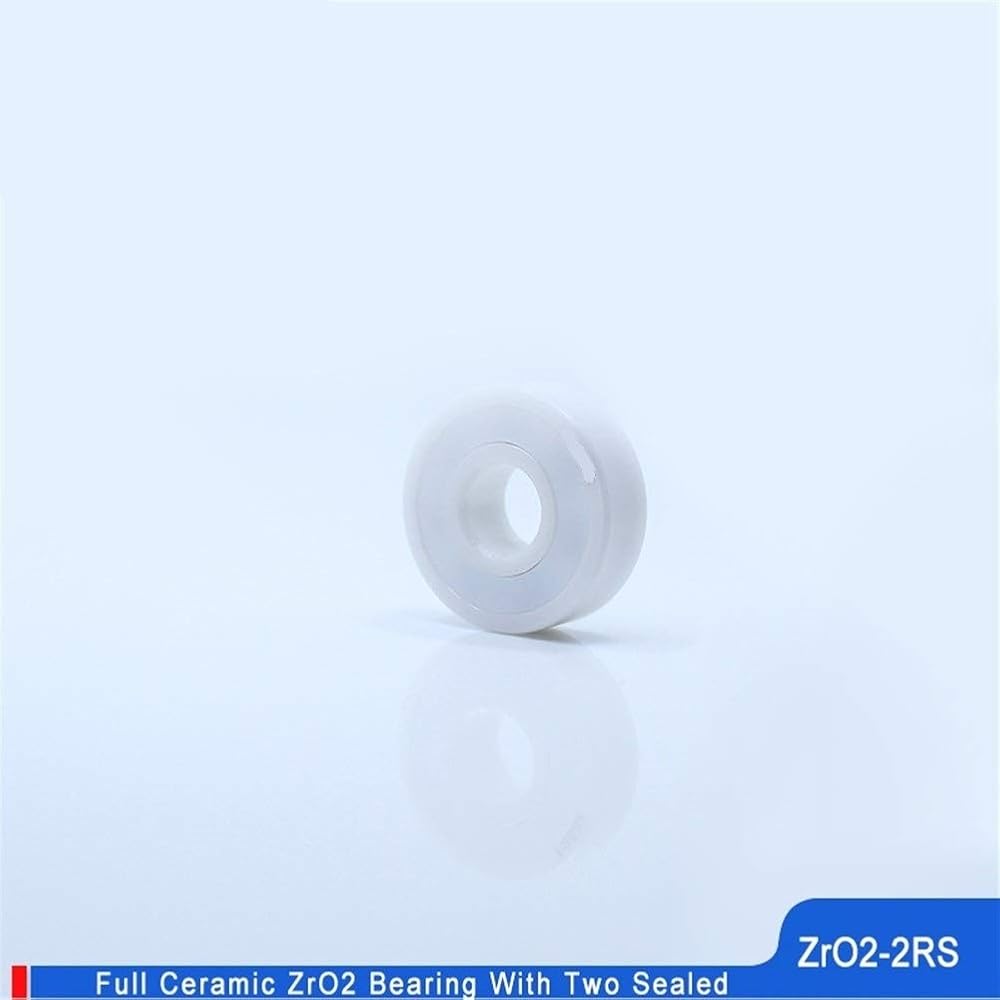

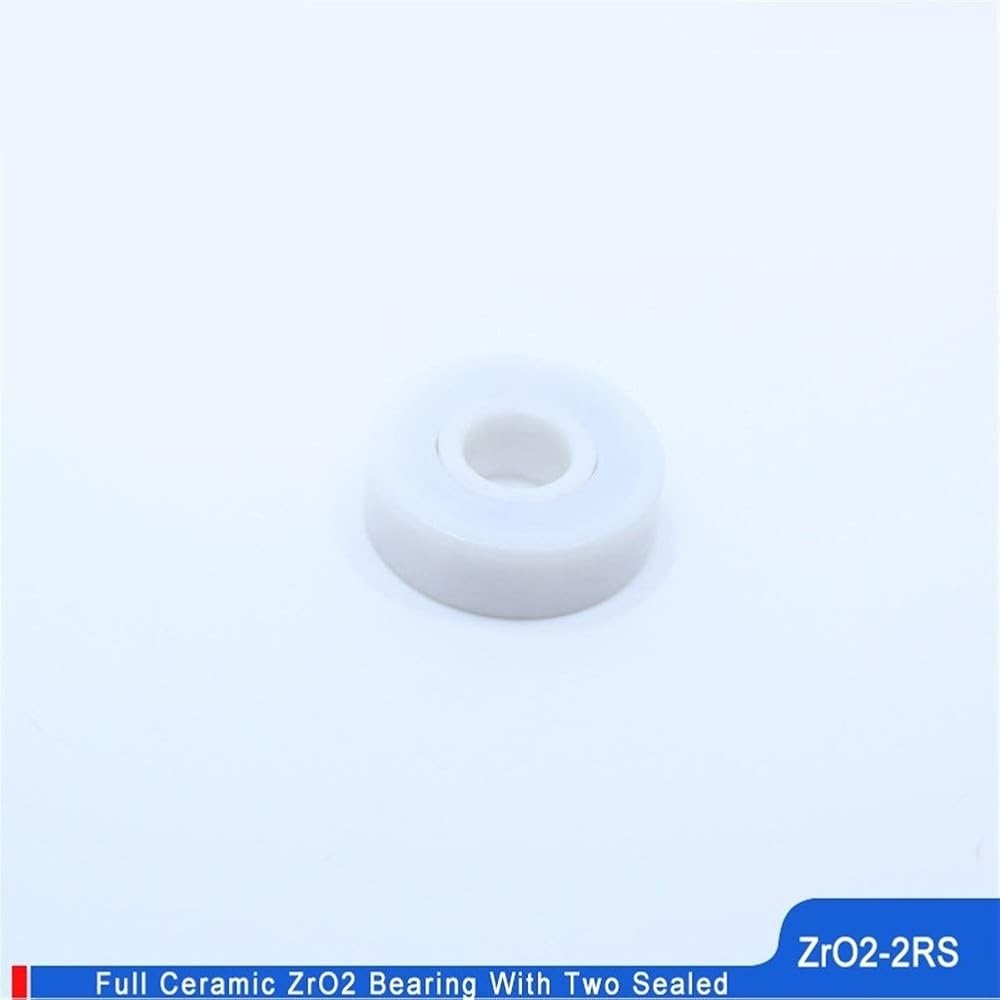

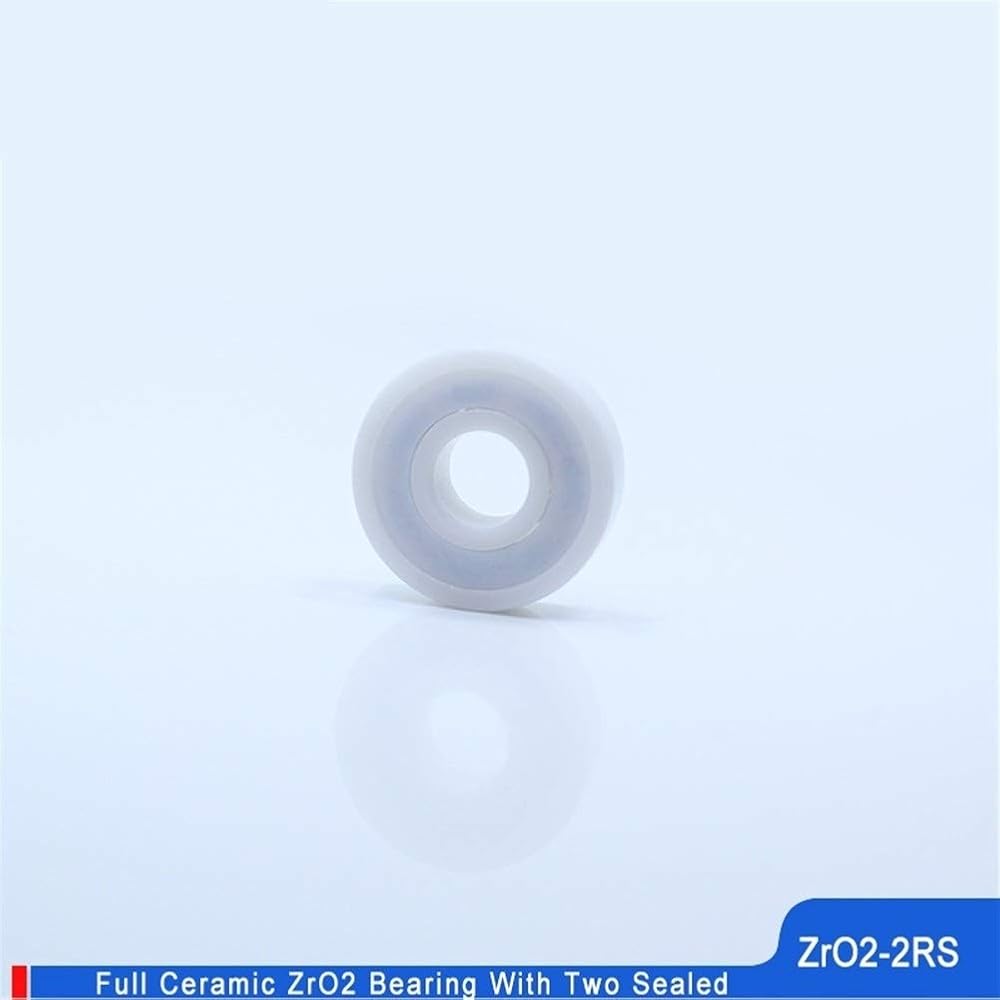

Model Number: 6904-2RS Bearing
Material: Full ZrO2 Ceramic
Bearing Type: Ball
For Load Direction: Radial
Construction: Single Row
Seal Type: Two Sealed
Part Number: 6904
For Shaft Diameter: 20mm
Bore Dia (d): 20 mm
For Housing ID: 37mm
Outer Dia (D): 37 mm
Width (B): 9 mm
Ring Material: ZrO2 Ceramic
Ball Material: ZrO2 Ceramic
Cage Material: PTFE
Sealed Material: PE
Lubrication: NO Grease
Shaft Mount Type: Press Fit
Temperature Range: -20 to 350
ABEC Rating: ABEC-5
Radial Clearance Trade No.: C0
