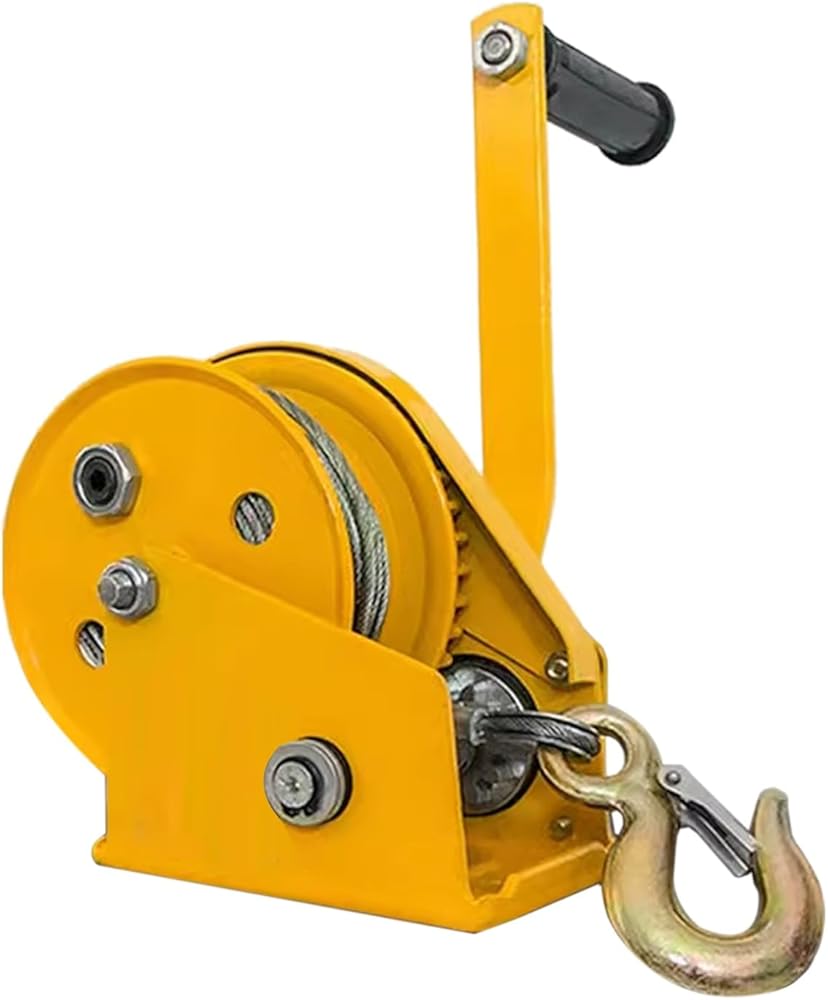

【Large Capacity】 With a gear ratio of 4:1, it reduces the required labor output and increases traction, enabling effortless lifting and improved efficiency; Horizontal tractio load 500kg/1100lbs and Vertical tractio load 150kg/330lbs. Do not exceed the working load.
【Two-Way Ratchet】Equipped with a mooring hook and safety pawl, the winch offers two-way ratcheting functionality. This feature allows for both forward and reverse operations, making it suitable for various tasks such as lifting heavy objects, dragging boats, or setting up volleyball nets.
【Durable Steel Winch and Gear】The hand winch is built with high carbon steel gears. Its galvanized finish provides superior protection against rust. With a 4mm/0.16" diameter cable rope, this winch delivers reliable performance for lifting and pulling tasks.
【Comfortable Crank Handle】The non-slip hand crank winch is designed ergonomically and built-in bearing wheel. It provides a strong and firm grip for reduces hand fatigue, and saves 90% of the effort.
【Easy to Install】Suitable for screws up to 10mm, mounting screws not included and comes with a free wall bracket. Great for many trailer, truck and boat applications.

وصف

Ours towing winches are designed for pickup trucks, trailers, and towing boats, loading boats, trucks, ATV, UTV, Jet Ski, etc. Their sturdy construction ensures durability and reliability, even in tough weather conditions.

●Specification
Material: Carbon Steel
Gear Ratio: 4:1
Horizontal Tractio Load: 500kg/1100lbs
Vertical Tractio Load: 150kg/330lbs
Manual Handle Force: 180 N
Wire Diameter: 4mm/0.16 in
Hook Tractio Load: 500kg/1100lbs
Winch Bare Weight: 4kg/8.8lbs
Lifting Speed: 20ft/Min

●Our Advantages
Two-way ratchet, allows for both forward and reverse cranking from one side.
Winches with mooring hooks and safety jaws offer bi-directional ratcheting capability.
Non-slip rubber grip with ergonomic design, easy to use for easier and more comfortable operation.

●Warm Tips
1. Perform routine inspection of the tool before use, do not use damaged tools, and regularly apply lubricant to the operating parts. Keep other people away from the operating area during operation.
2. Do not use the wire rope if it is found to be worn/broken and do not exceed the working load. Do not use handle expanders to increase leverage.
3. Loads should be in a straight line and hook to hook, keep hands and clothing away from all running parts do not wrap the rope around an object or hook yourself.
4. Use the original setup and do not modify it. Make sure that the safety clasp of the hook is tightly fixed.
5. Do not place the protruding part of the hook on the tip of the gear.
