Special Features

【ENGINEERING SPECIFICATIONS】 T9AS1D22-24 Relay features a high-performance 24VDC coil and a heavy-duty 30A 240VAC contact rating. This 4-pin SPST-NO (1 Form A) power relay provides high breaking capacity and maintains circuit integrity in high-wattage appliance heating control circuits
【EXTENSIVE APPLIANCE FIT】 Precision-engineered to be Compatible with Whirlpool, KitchenAid, and Kenmore double oven control boards. This component serves as a direct Replacement for T9AS1D22-24 and similar Potter & Brumfield series power relays found in household ranges and industrial controllers
【HEATER SYSTEM RESTORATION】 Specifically designed to resolve failures such as "oven not heating," "broil element not engaging," or specific error codes on the digital display. By replacing only the faulty PCB-mounted relay, you can effectively restore full cooking functionality without the cost of a new control module
【INDUSTRIAL-GRADE ARCHITECTURE】 Constructed with superior Silver Alloy contacts to prevent pitting and ensure long-term conductivity under high-amperage loads. The heavy-duty built design is optimized for high-temperature environments and has undergone rigorous testing to exceed standard mechanical life expectations
【MAINTENANCE READINESS】 This convenient multi-pack provides essential spares for immediate repair and future preventative maintenance. Designed for through-hole PCB mounting with standard terminal spacing, it ensures a secure fit and minimal downtime for HVAC technicians and DIY homeowners

Description

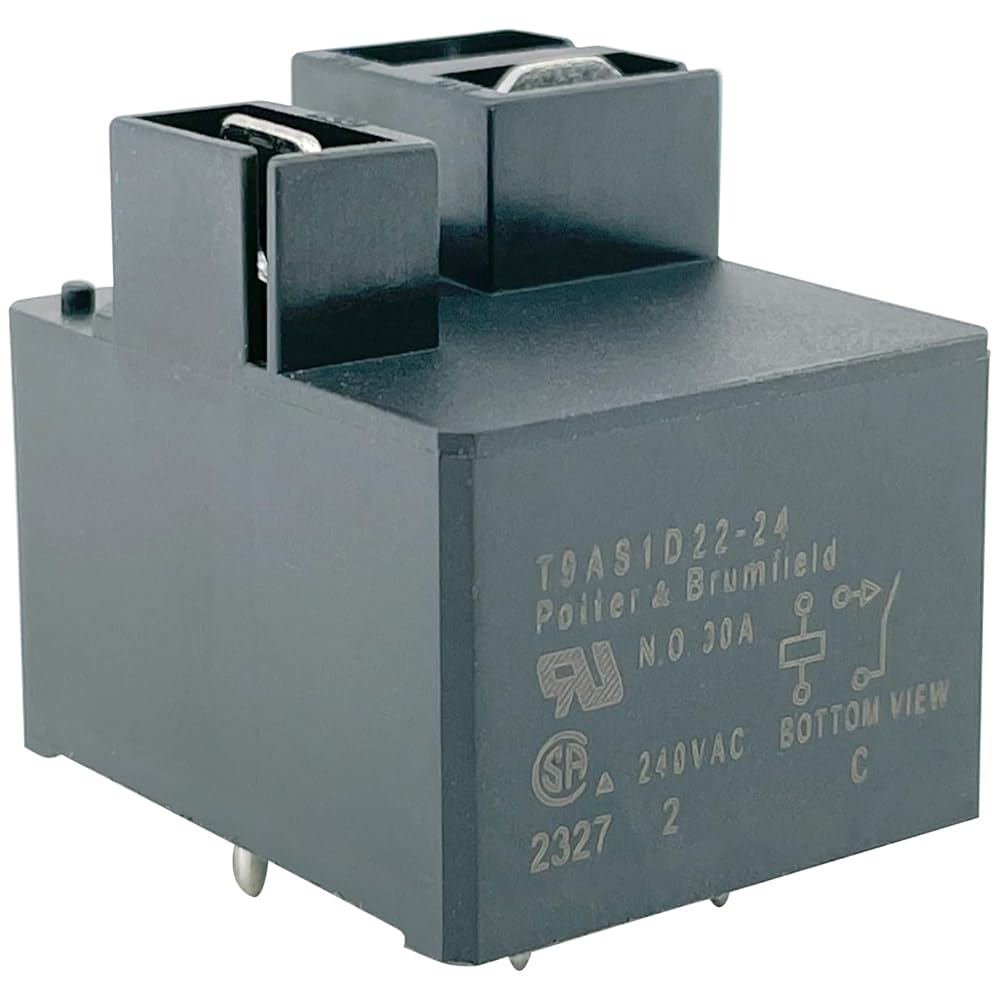

Restore High-Power Heating Performance with T9AS1D22-24 PCB Power Relays

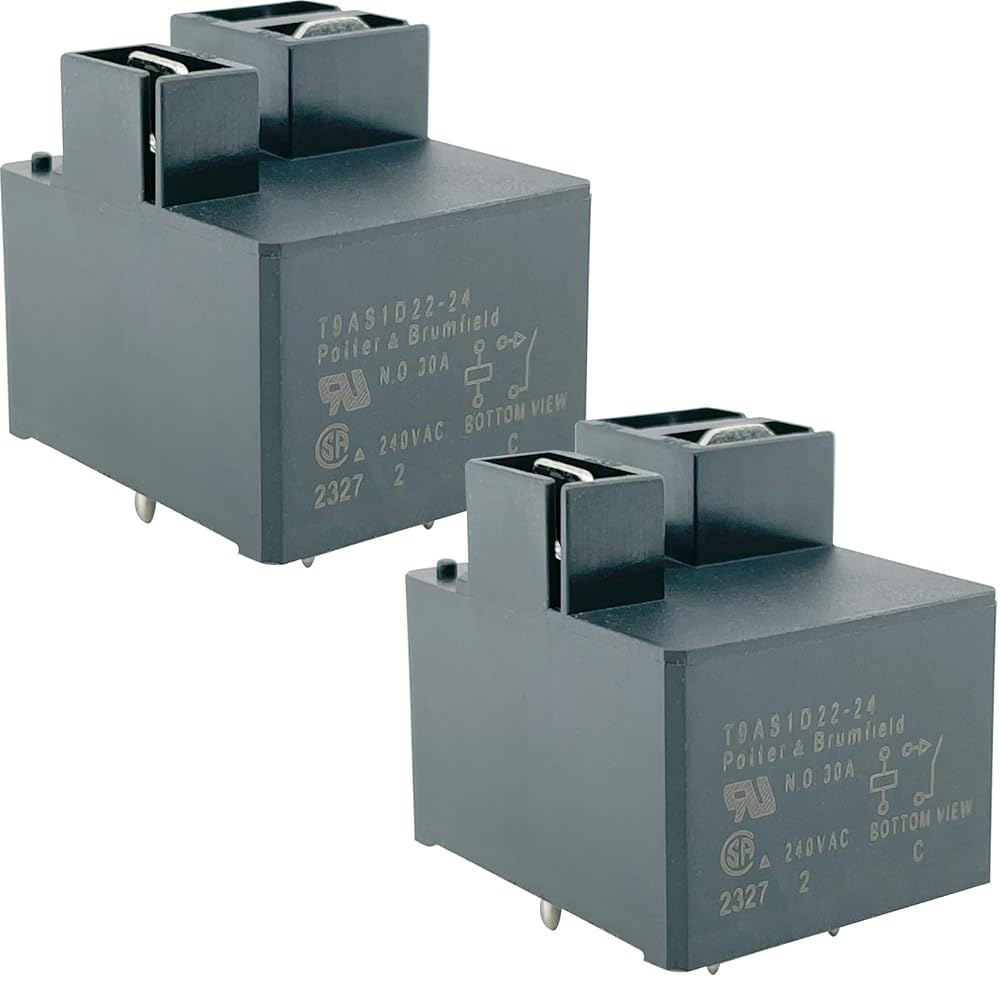

When a kitchen range or double oven fails to heat up, the primary culprit is often a stressed power relay on the main control board. Instead of investing in a costly factory control board replacement, our T9AS1D22-24 compatible 2-pack offers a professional-grade technical solution to restore stable power switching to your heating elements.
Robust Design for High-Amperage Appliance Control Rufus Tip: If your oven's broil element is unresponsive or the heating cycle is intermittent, this 24VDC 30A relay is the correct technical specification for the repair. Each relay is built with high-conductivity silver alloy contacts to handle the heavy-duty current requirements of 240V oven circuits, ensuring consistent performance and safety.
Common Application Scenarios:
Oven & Range Repair: Compatible with Whirlpool, KitchenAid, and Kenmore double ovens.

Appliance Control Boards: Replacement relay for heating and power switching modules.

Industrial Automation: High-current switching in specialized control panels and motor controls.

HVAC Equipment: Power control in commercial heating and cooling units.

Detailed Technical Data:
Coil Voltage: 24V DC

Contact Rating: 30A @ 240V AC / 28V DC

Contact Form: SPST-NO (1 Form A)

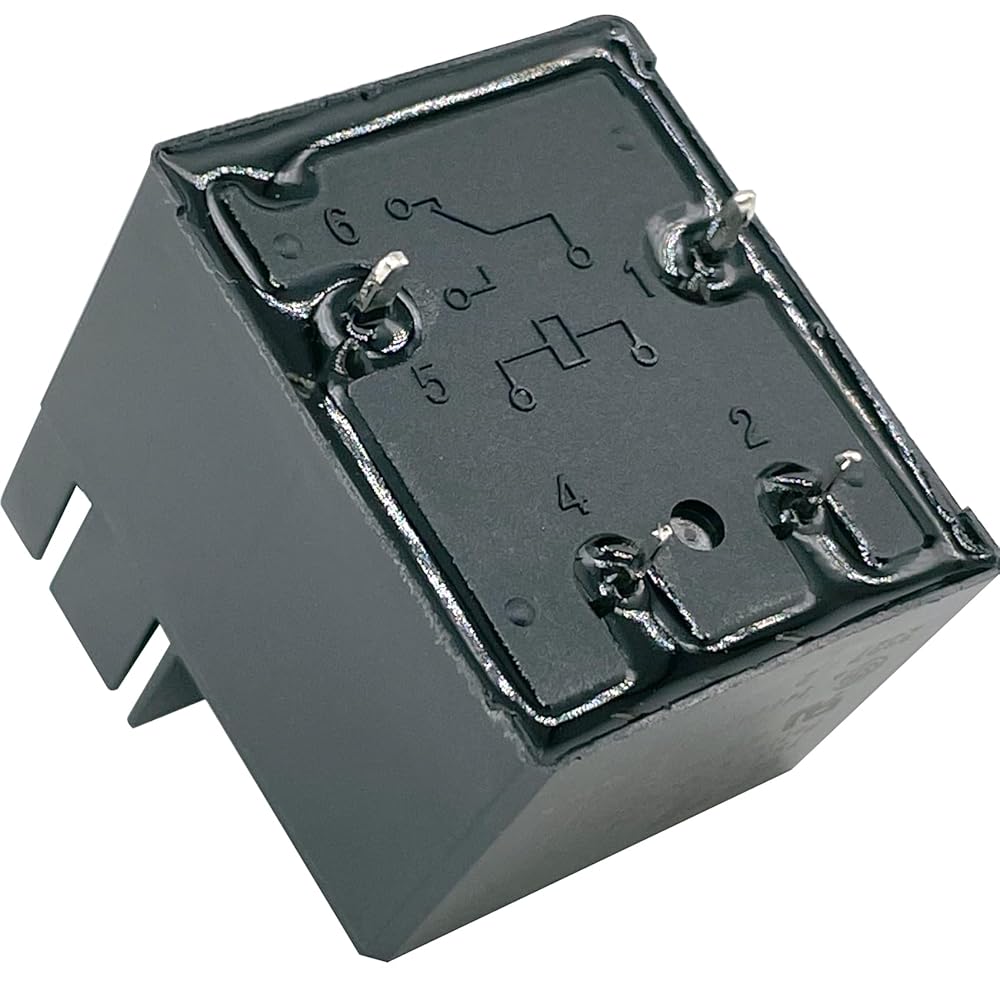

Mounting: PCB Through-Hole (4 Pins)

Build: Heavy-Duty Built with High Breaking Capacity
