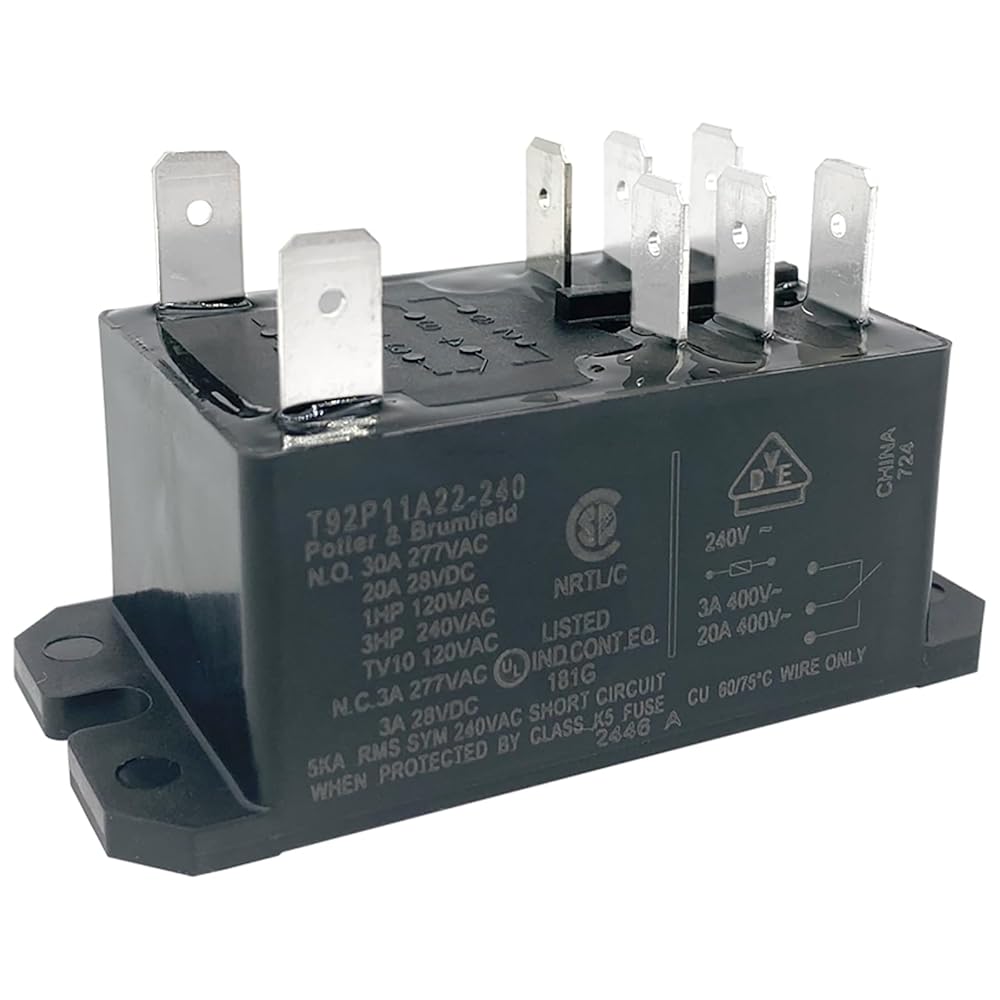

T92P11A22-240 Power Relay (1-Pack), 8-Pin DPDT 2-Pole 30A 240VAC Coil General Purpose Replacement Component, Heavy Duty Contactor for Industrial Motor Control & HVAC/R Systems, Replaces T92 Series in Saudi Arabia T92P11A22-240 Power Relay (1-Pack), 8-Pin DPDT 2-Pole 30A 240VAC Coil General Purpose Replacement Component, Heavy Duty Contactor for Industrial Motor Control & HVAC/R Systems, Replaces T92 Series in Saudi Arabia

T92P11A22-240 Power Relay (1-Pack), 8-Pin DPDT 2-Pole 30A 240VAC Coil General Purpose Replacement Component, Heavy Duty Contactor for Industrial Motor Control & HVAC/R Systems, Replaces T92 Series

SAR 73
Number of Items1
– 1 +

Special Features

  • ENGINEERED SPECIFICATIONS & PIN LAYOUT: Features an 8-Pin DPDT (2 Form C) configuration with a 240VAC coil. Rated for 30A @ 277VAC (General Purpose) and 3HP @ 240VAC. Precision dimensions: 2.0" x 1.3" x 1.2" (50.8 x 33.0 x 30.5 mm) with standard 0.25" quick-connect spade terminals
  • INDUSTRIAL COMPATIBILITY MATRIX: A professional-grade replacement component for T92 series. Ideal for heavy-duty motor starting, commercial process automation, and high-load power switching in residential or industrial control panels
  • RELIABLE SYSTEM RESTORATION: Directly resolves intermittent power loss, excessive buzzing, or motor starting failures. Engineered to handle high inrush currents (Locked Rotor Amps), effectively eliminating contact sticking and thermal fatigue in inductive load applications
  • ADVANCED AgSnO2 ANTI-ARC PROTECTION: Constructed with high-conductivity Silver Tin Oxide (AgSnO2) contacts for superior arc resistance. The heat-resistant composite housing prevents terminal deformation and ensures mechanical endurance over millions of cycles
  • PRECISE COMPONENT REPLACEMENT: Packaged as a single unit (1-Pack) for immediate maintenance. This is a dedicated replacement part designed to restore system functionality and minimize operational downtime in critical equipment

Description

Professional-Grade Power Control for Industrial Inductive LoadsThe T92P11A22-240 replacement relay is a heavy-duty electromechanical component designed for technicians who require uncompromising reliability. Built to manage the intense electrical surges of large motors and heating elements, this 8-pin DPDT relay ensures clean power switching and long-term thermal stability.
Technical Specifications:
Model: T92P11A22-240 (DPDT / 2 Form C)

Coil Voltage: 240VAC

Contact Rating: 30A @ 277VAC / 3HP @ 240VAC

Dimensions: 2.0" x 1.3" x 1.2" (Excluding terminals)

Material: AgSnO2 (Silver Tin Oxide) Contacts

Wiring & Terminal Identification:Includes 8 quick-connect terminals. Please refer to the original wiring diagram on your T92 series unit for DPDT mapping (Coil: Pins 0/1; Load: Pins 2/4, 6/8).
Installation Pro-Tips:
Disconnect all power sources before service.

Ensure female spade connectors are tight; loose connections cause localized overheating.

Use a multimeter to verify 240V at the coil terminals during the call for heat/cooling.
