بيت / ZTTQSYJZ / معايرة
-0.1-2.0Mpa -0.1-2.5Mpa العروة التشغيل مضخة فراغ معايرة قياس ضغط الهواء (-0.1-2.5Mpa) in Saudi Arabia -0.1-2.0Mpa -0.1-2.5Mpa العروة التشغيل مضخة فراغ معايرة قياس ضغط الهواء (-0.1-2.5Mpa) in Saudi Arabia

-0.1-2.0 ميجا باسكال

SAR 6,247
ماركة
ZTTQSYJZ
فئة
معايرة
وزن
1 kg
مقاس-0.1-2.0 ميجا باسكال
– 1 +

مميزات خاصة

  • Accuracy Calibration: Precision for reliable pressure testing and calibration.
  • Fast Response Display：Instant readings with stable output for real-time adjustments.
  • Built-in Pump & Fine Control Integrated hand or hydraulic pump with fine adjustment valve—no extra tools needed.
  • Portable: Compact, rugged design—ideal for fieldwork and lab use.
  • Compatible with Multiple Media：Supports air, water, and oil systems—versatile for various industrial applications.

وصف

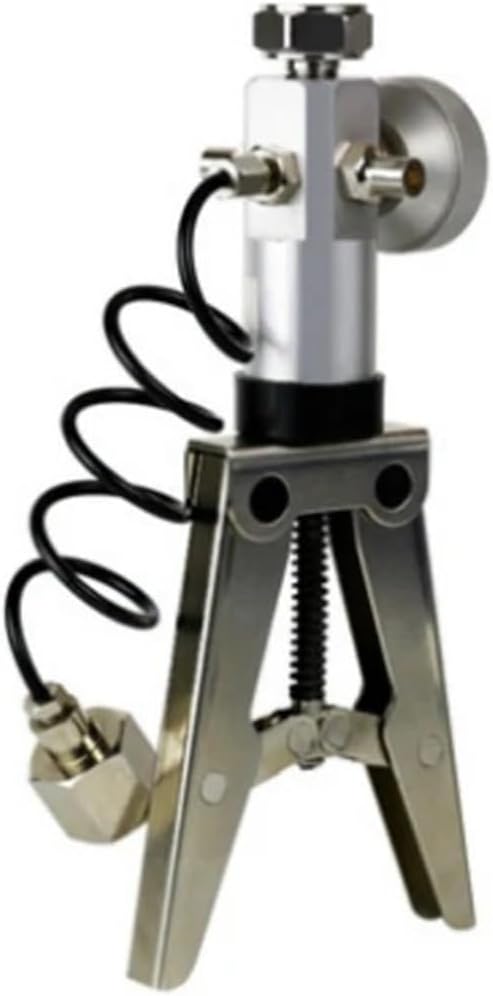

Handheld Operating Air Pressure Calibrator Pump -0.1 ~ 2.0Mpa / -1 ~ 20bar
Product Description
-20 type vacuum pressure hand pump is a quick hand pressure source, by adjusting the pressure vacuum valve can realize the vacuum pumping and positive pressure, suitable to calibrate kinds of differential pressure, vacuum, vacuum pressure and pressure instrument, and also can be used as vacuum pressure source of the above pressure instrument. Characteristic of compact size, light weight, easy to operate, hand held, can can be matched to vacuum pressure instrument.
Detailed Images
Specification
Handheld Operating Pressure Calibrator Pump
ModelNo.
-20
Pressure Range
-0.1 ~ 2.0Mpa / -1 ~ 20bar
Accuracy
0.02%0.05%
Material
Alloy Stainless Steel
Product Name
Handheld Pressure Calibrator Pump
Medium
Air
Connection
1/4Npt 1/2Npt
Weight
0.8KGS
Working Temperature
0 ~ 40
Relative Humidity
100
Fine Adjust
10pa
==========
Measurement Accuracy : 0.02
Product Name : Handhold Operating Vacuum Pump Air Calibrator Pressure Gauge Calibration
Mode No. : -20
Pressure Range : -0.1 ~ 2.0Mpa -1 ~ 20bar
Pressure Stability : 0.05%F.S
Table Joint Thread : exports By 1/4 NPT
High Pressure Hose Joint Thread : exports By 1/2 NPT
Medium : Air Pneumatic
Instrument Weight : 0.8KGS
