Technical Indicators And Specifications
Measuring range:
1.AC:0-200mV-1500V(Customizable within the range).
2.:0-24mV-1500V(Customizable within the range).
Output signal:4-20mA,0-20mA,0-5V,0-10V,RS485.
Power supply:Can be made: DC12V/15V/24V/12V-28V,AC/DC220V.
Technical Features:
High measurement accuracy Stable and structure
Strong anti-interference ability Light weight, easy to install
==========
Dimensions : See size chart
Operating Temperature : -10-65
Supply Voltage : DC12V/24V,AC/DC220V
Accuracy Class : 0.2%F.S.,0.5%F.S.(default)

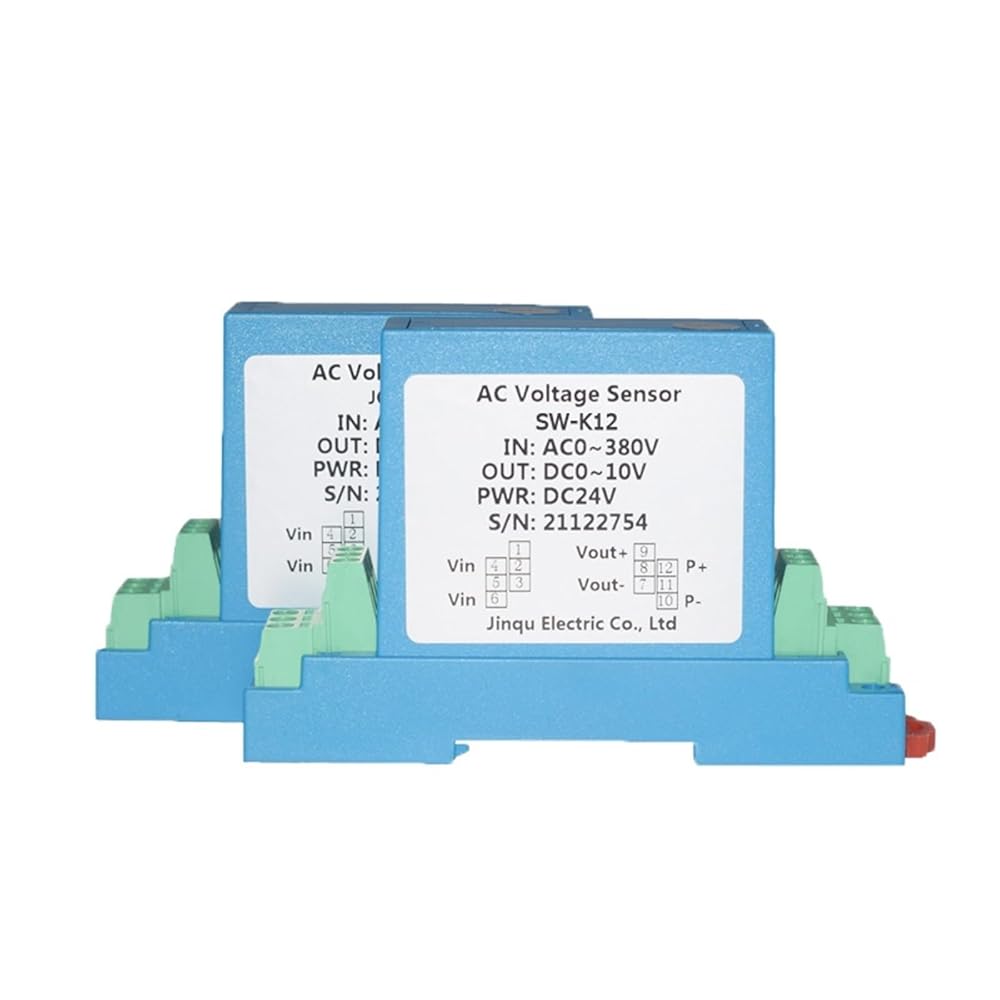

Model Number : SW-K12
DIY Supplies : ELECTRICAL
Certification : ,FCC,
Input : AC0-200mV-1500V
Output : 4-20mA,0-20mA,0-5V,0-10V,RS485
Overload capability : 2x nominal input
Response time : 20-30ms
Long-term stability : 0.2%F.S./year
Temperature drift : 0.05%F.S./1
Installation method : 35mm DIN rail
