مميزات خاصة

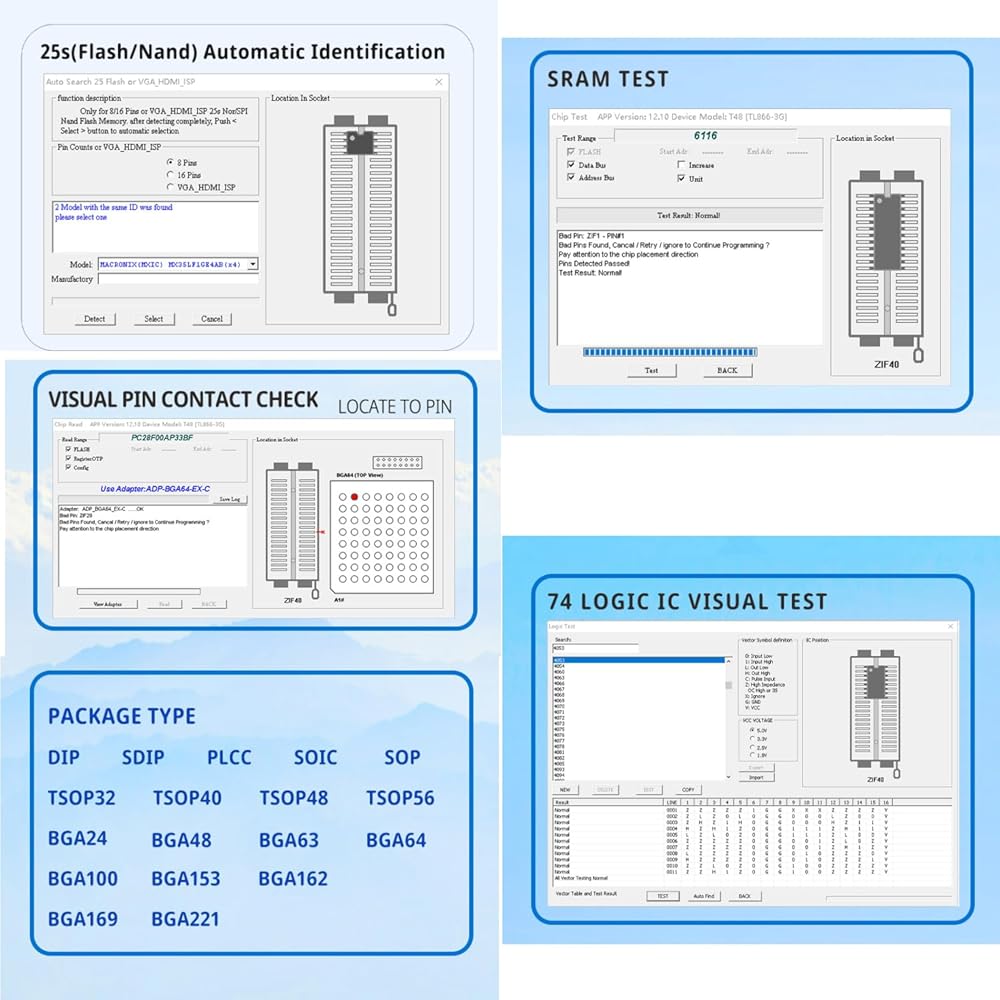

Wide range of support:1.EMMC 2.PARALLEL NAND 3.SPINAND 4.GAL/PAL 5.MCU(51/AVR/PIC). 6.EPROM 27/28/29/39/49/50. 7.SERIALS:24/25/26/35/45/93/95. 8.74 LOGIC IC VISUAL TEST.Support operating Systems: Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11

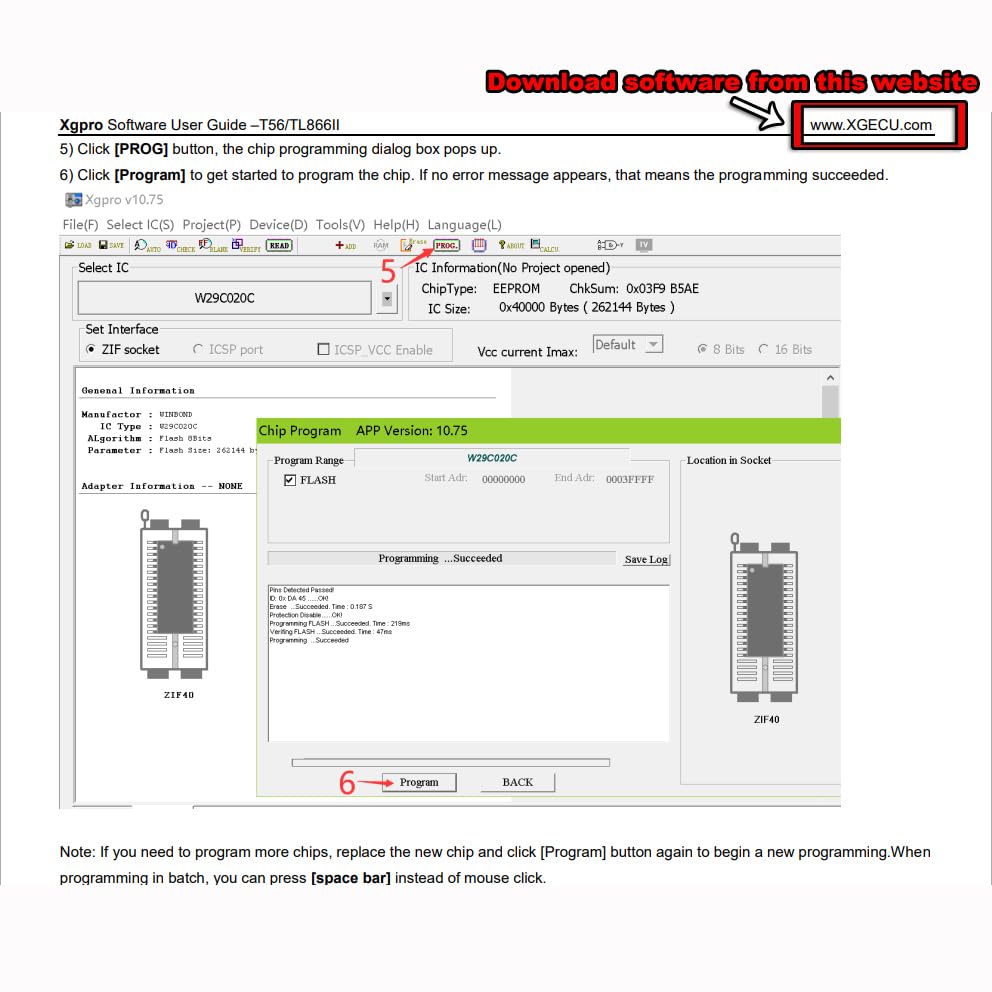

Read and write function:1.Read CID CSD ECSD.2.Clear full-chip temporary write protection before programming.3.Clear temporary write protection groups before programming.4.Erase chip before programming 5.Blank check the chip before programming 6.Programming 32-bit authentication key 7.password verification 8.Partition Config 9.Read and Programming to BOOT1.10.Read and Programming to BOOT2.11.Read and Programming to RPMB.12.Read and Programming to GPP1/GPP2/GPP3/GPP4.13.Read and Programming user data(User Area) 14.Setting temporary write protection groups.15.Setting permanent write protection groups.16.Setting password(or reset password)
EMMC function introduction:Read and write speeds up to 17M Bytes /s,MAX capacity:256GB.Support ISP in-circuit programming.1b MODE speed:4.7MB/s 4b Mode 17MB/s.Analysis EMMC function:show emmc manufacturing and device life time information show memory usage of 8 partitions.Each partition shows whether it is write protected Shows whether the entire chip is temporarily or permanentlywrite protected Show whether the chip is password protected.Show whether the emmc uses a 32-bit security authenticationcode to write to the RPMB.Show other important parameters of ECSD/CSD/CID.Read/write functions (all functionscan be completed with one-key)
Nand function introduction:Speeds up to 3.2M Bytes / s of S_NAND,6MB/s of P_NAND, MAX capacity:256G.Support ISP in-circuit programmingfor SPI NAND.Function:1.Support OTP programming2.Support internal ECC on/off function 3.Support UID (unique signature) reading.4.Support multiple partition and multiple file operations.5.Support NAND parameter custom function, (new chips can beadded by custom parameters).6.The programming clock speed and VCC/VIO voltage is adjustable.7.Support 1.8V and 16bits device.8.Support ISP programming of SPI NAND (MAX 3.2MB/s).9.Package type:DIP8/SOIC8/SOIC16/WSON8/BGA24/BGA63/TSOP48

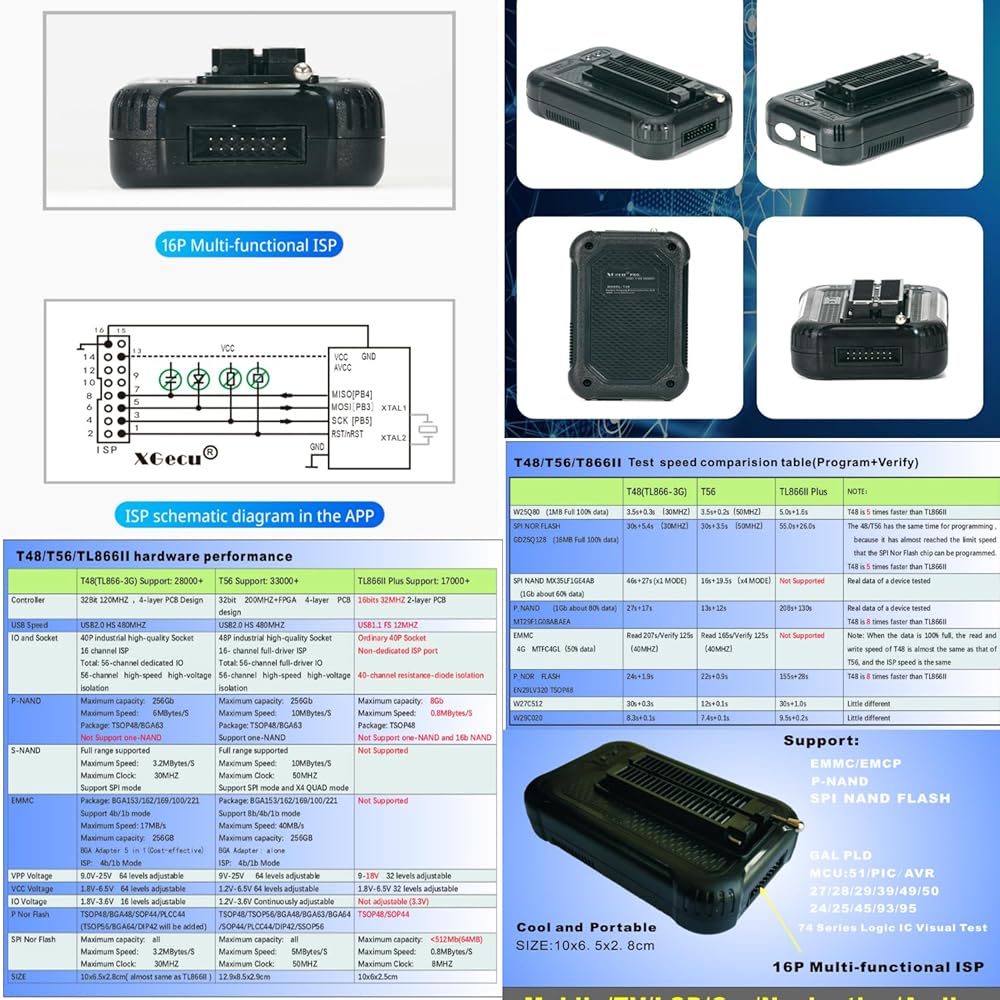

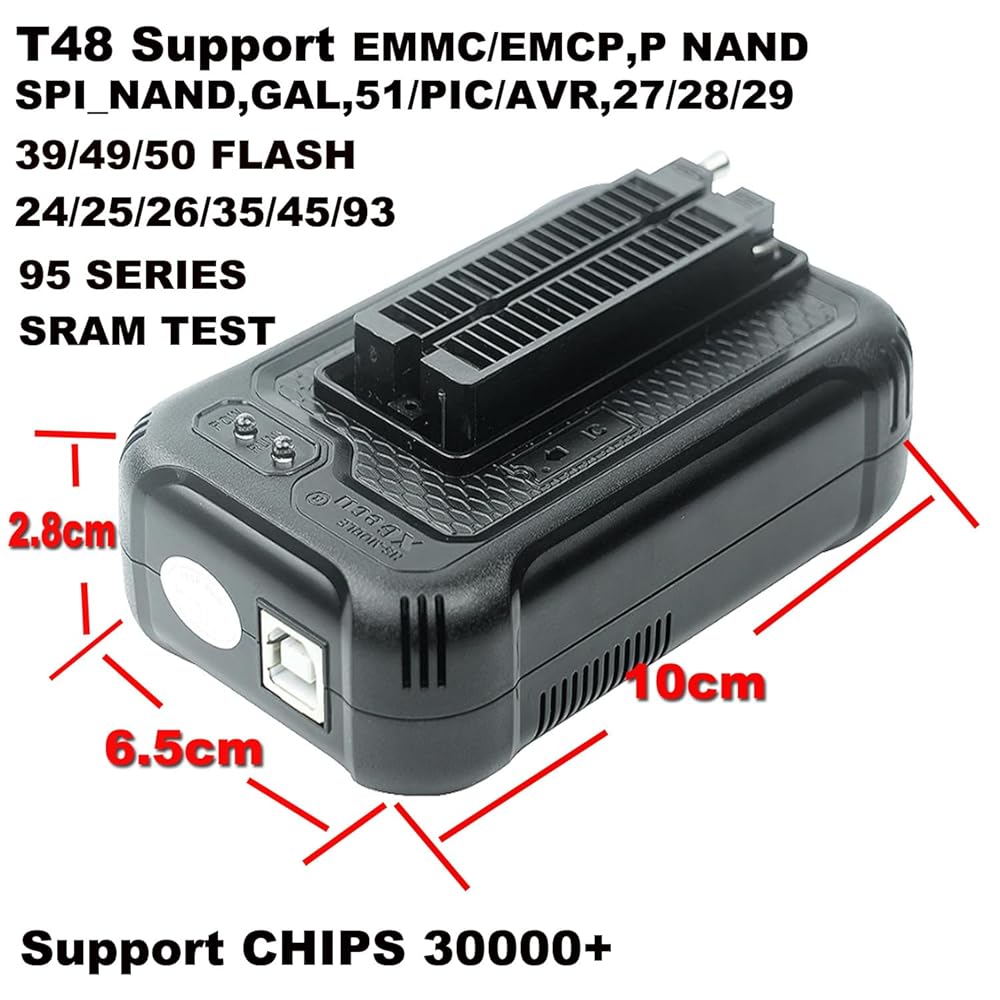

T48 (TL866-3G) hardware Parameters:1. 32-bit MCU with 120MHZ, 4-layer PCB Design, USB2.0 HS 480MHZ.2. Volume: 10X6.5X2.8 cm (almost the same as TL866II).3. 16 channel ISP.Total 56-channel dedicated IO.56-channel high-speed high-voltage isolation.4. VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable. 5. Power consumption: 5V <500MA. Static power consumption: 60mA. Without external power supply interface.6. Self-test function, self-test each pin of VPP/VCC/GND/IO 7.Suitable for developers and maintenance personnel, can do small batch production for high capacity chips, support simultaneously working with 4 Programmers on each computer.

وصف

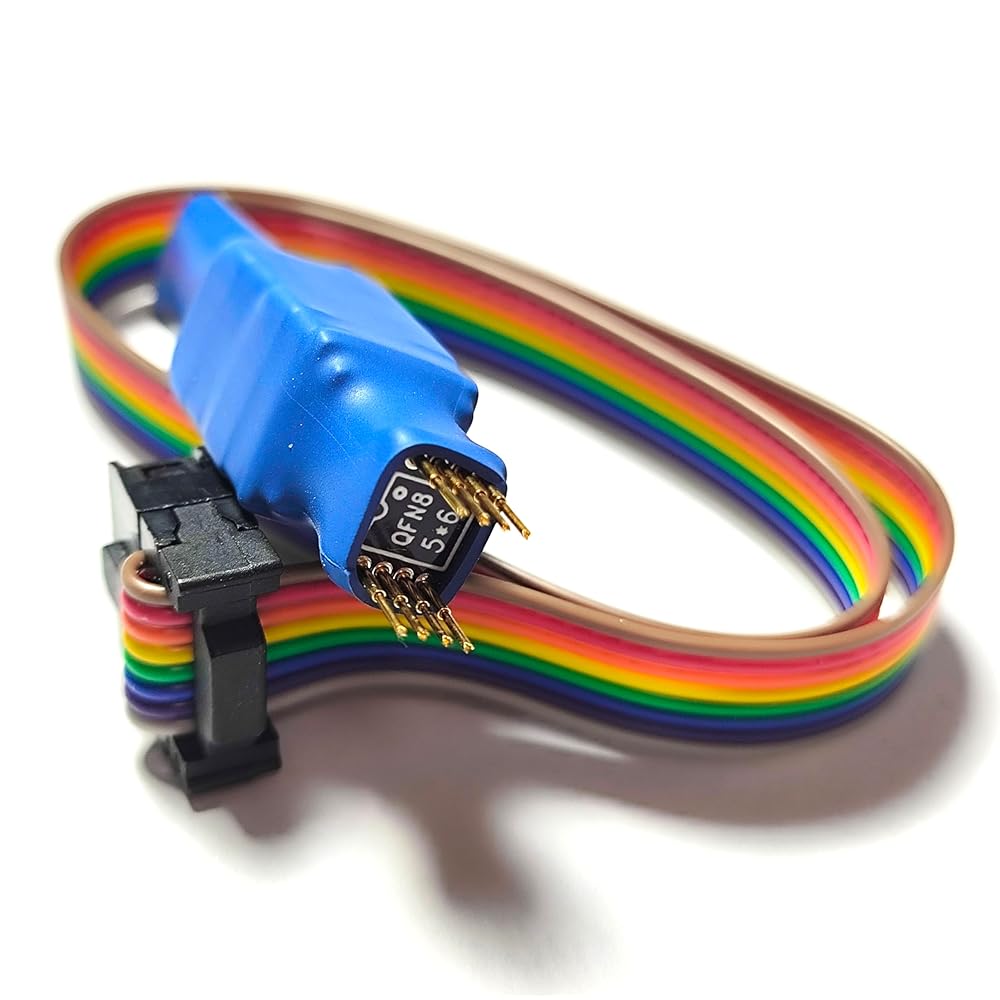

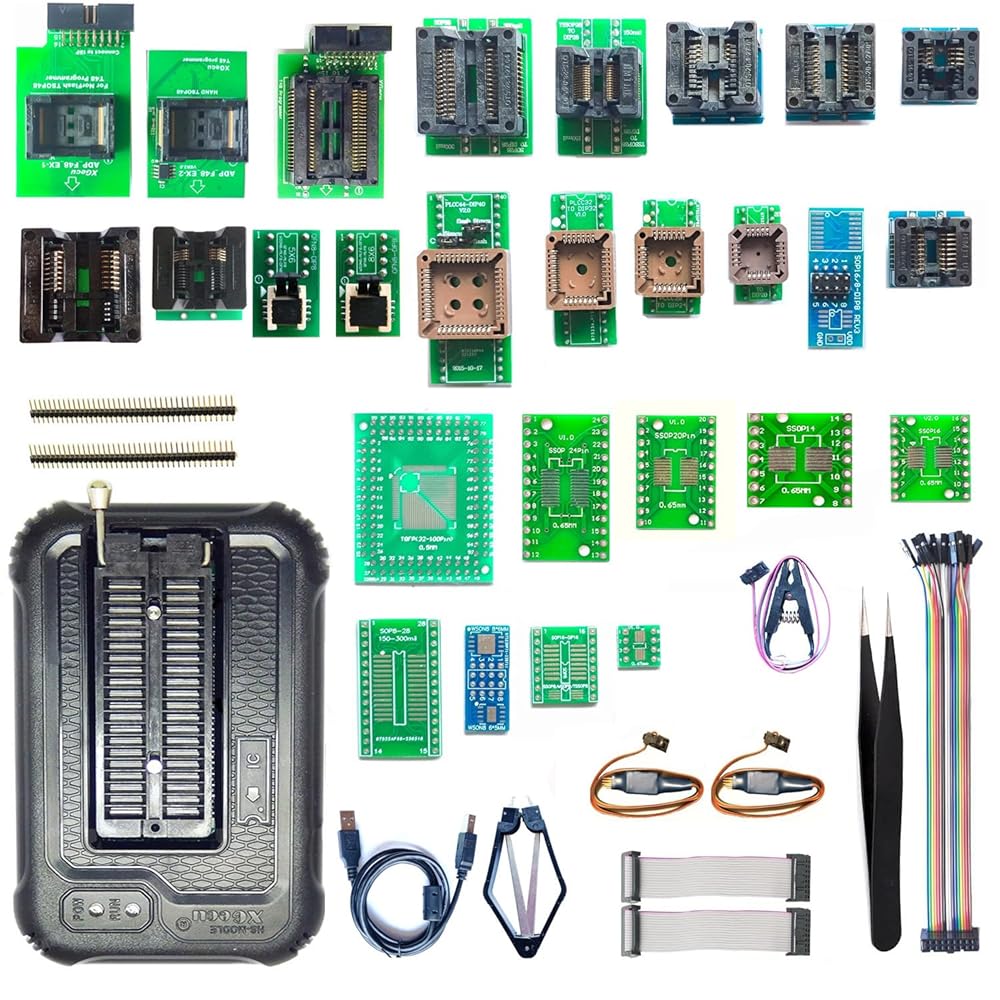

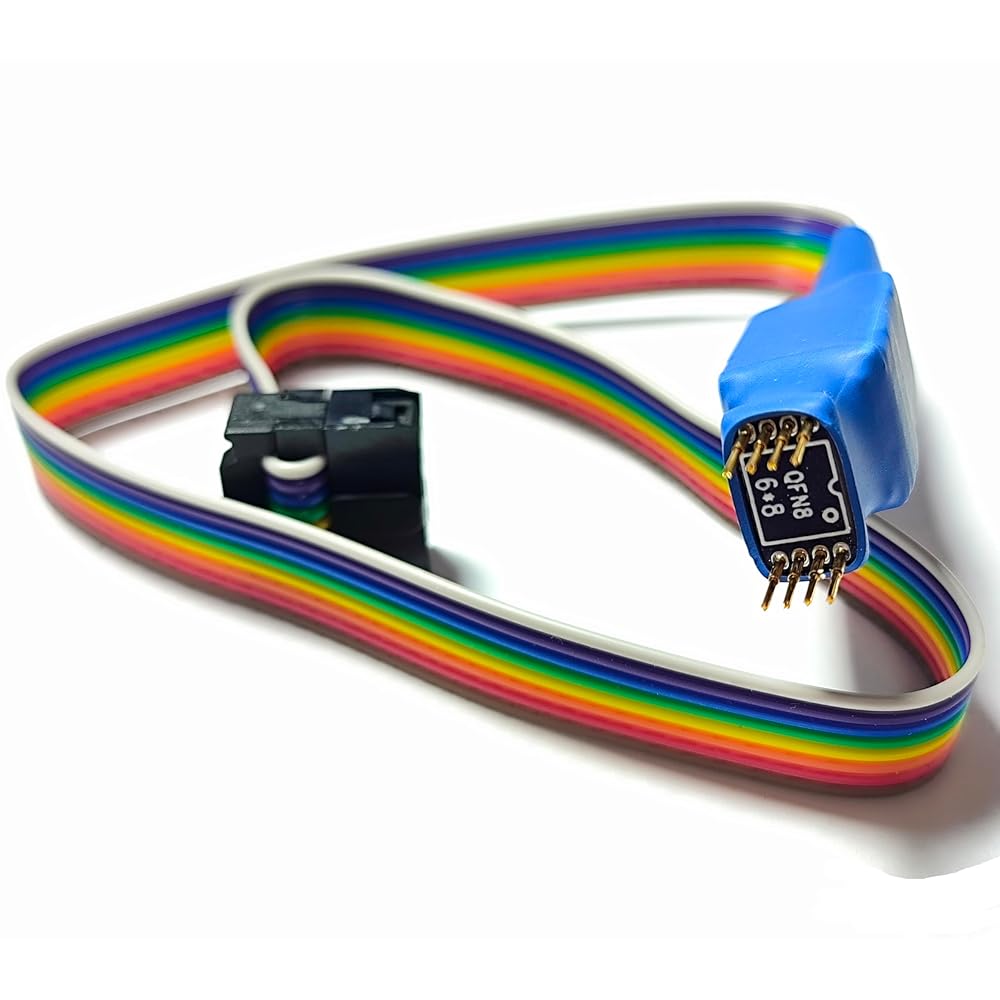

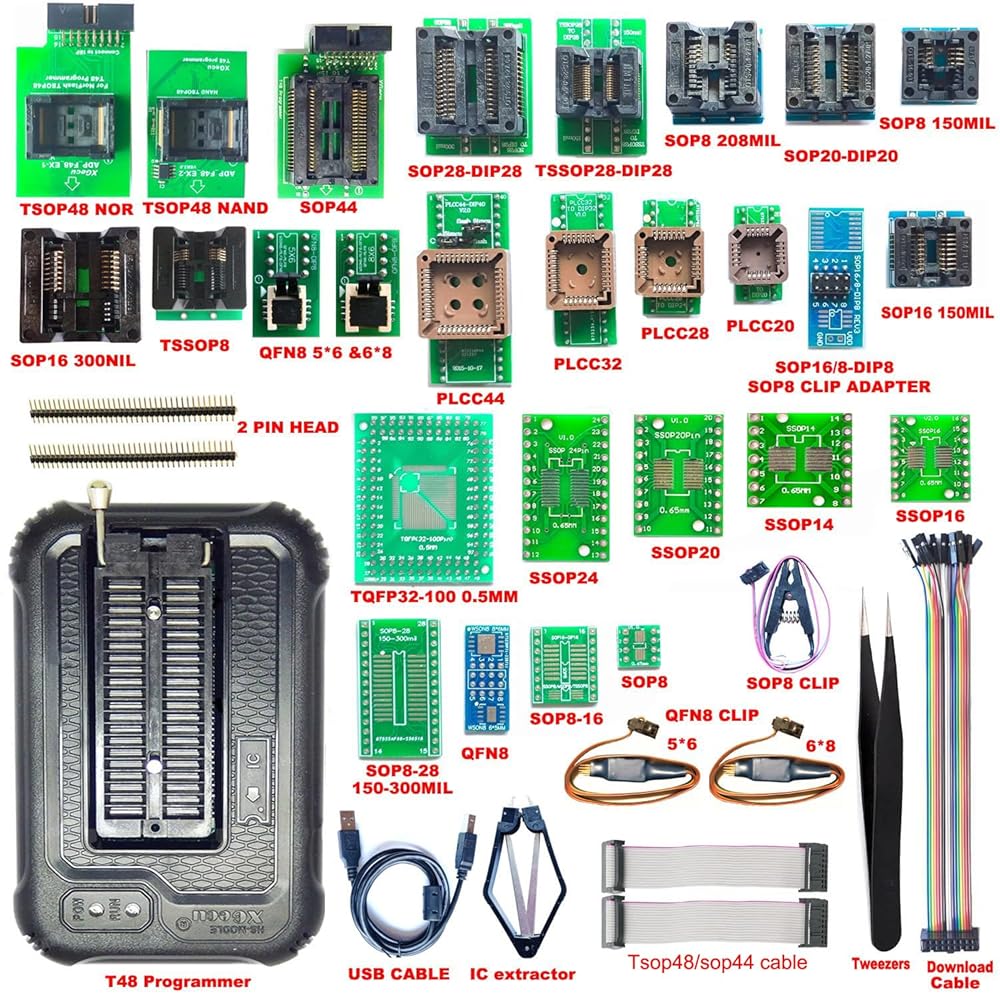

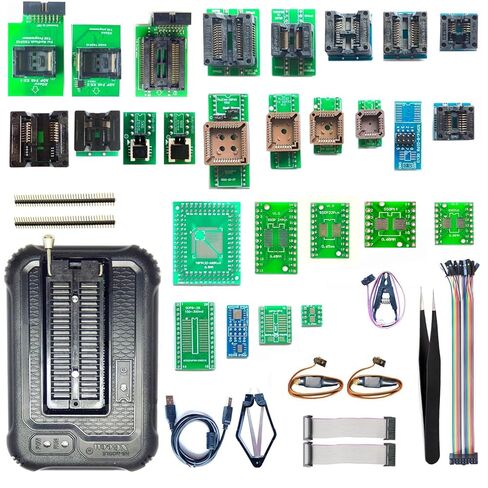

Package include:1x T48 MiniPRO programmer,1xUSB cable,1xSOP8 clip,1xSOP28-DIP28 300mil adapter,1xTSSOP28-DIP28 adapter,1xSOP8-DIP8 150mil adapter,1xSOP8-DIP8 208mil adapter,1xSOP20-DIP20 adapter,1xSOP16-DIP16 150mil adapter,1xPLCC44-DIP44 adapter,1xPLCC32-DIP32 adapter,1xPLCC28-DIP24 adapter,1xPLCC20-DIP20 adapter,1xSOP8/msop8/tssop8/ssop8/SOP16-DIP16 simple adapter,1xqfp32-100 pcb board adapter,1xwson8 6*5/8*6 pcb board adapter,1xsop8 0.65mm PCB board adapter,1x SSOP24 PCB board adapter,1xSSOP20 pcb board adapter,1xSSOP16 pcb board adapter,1xSSOP14 pcb board adapter,1x Sop8-28 150-300 milPCB board adapter,1x sop44 socket,1x tsop48 nand socket,1x tsop48 nor socket,1xssop16 board,QFN8 8*6 socket,QFN8 5*6 socket,1x 2 pin headers,1x PLCC IC extractor,download cable,1xtssop8 adapter,1x sop16 300mil adapter,1x tweezers,1xQFN8 5*6CLIP,1XQFN8 6*8 CLIP
