مميزات خاصة

Multi-Parameter & Multi-Sampling Compatibility: Accurately measures 4 key Surface Roughness parameters (Ra, Rz, Rq, Rt) with 3 sampling lengths (0.25/0.80/2.50mm), suitable for both fine and rough surface evaluations.

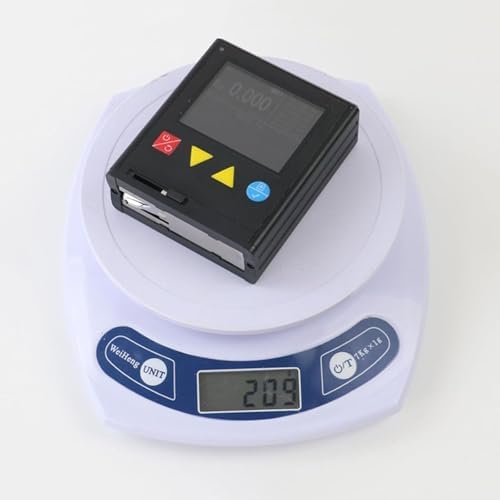

Portable & Long-Lasting Design: Weighing only 220g and compact (732862mm), ideal for pocket storage and on-the-go use. Features a built-in rechargeable lithium-ion battery to minimize the need for replacements.
Ready to Use: Includes a complete standard kit with the roughness meter main unit, allowing for immediate professional surface roughness testing upon receipt.

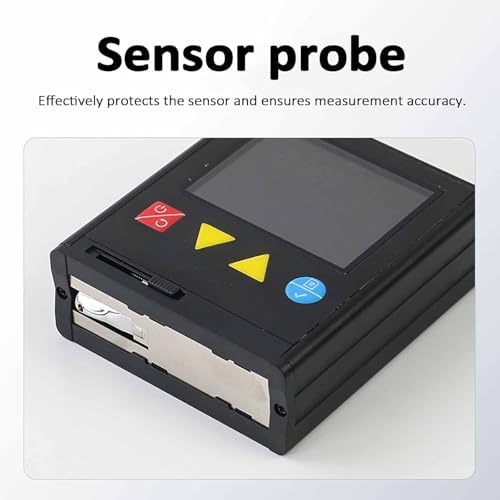

High-Precision Measurement: Designed with a protective sensor probe to resist impact, ensuring stable accuracy. Equipped with a 10μm diamond stylus and light measuring force (<0.016N) for dependable results.

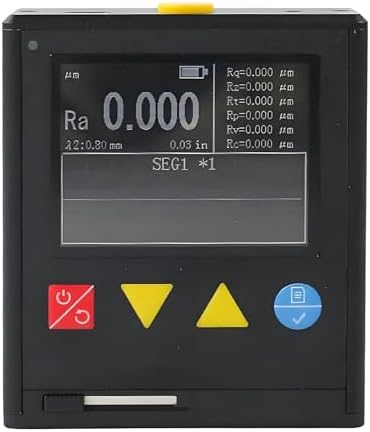

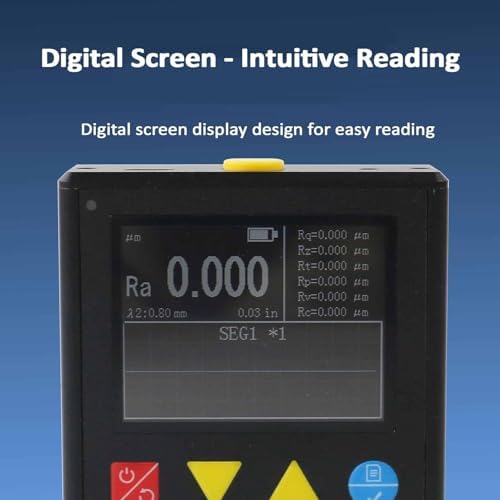

High-Definition Digital Display: The clear digital screen allows for one-click reading of core parameters (Ra, Rz), enhancing detection efficiency and reading precision without the need for analog scale interpretation.

وصف

Specifications:
Name: Surface Roughness Tester
Measurement Parameters (µm): Ra/RZ/Rq/RtRP/RV/RC
Stroke Length (mm): 5.6
Sampling Length (mm): 0.25/0.80/2.50
Evaluation Length (mm): 1.25, 4.0
Measurement Range (µm): Ra, Rq: 0.05-10.0; Rz, Rt, Rp, Rv, Rc: 0.1~50
Indication Error: ±10%
Indication Repeatability: Sensor Stylus Tip Radius and Angle: Tip Radius: 10 µm ± 1 µm; Angle: 90°
Sensor Stylus Static Force and its Rate of Change: Stylus Static Force: Sensor Guide Head Pressure: 0.5N
Battery: Lithium-ion rechargeable battery
Dimensions: 73 mm * 28 mm * 62 mm mm Weight: 220g

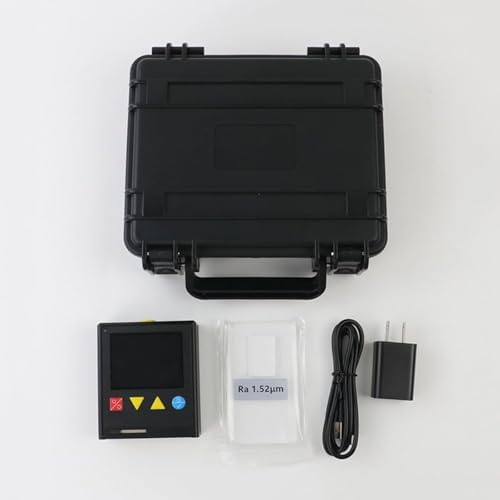

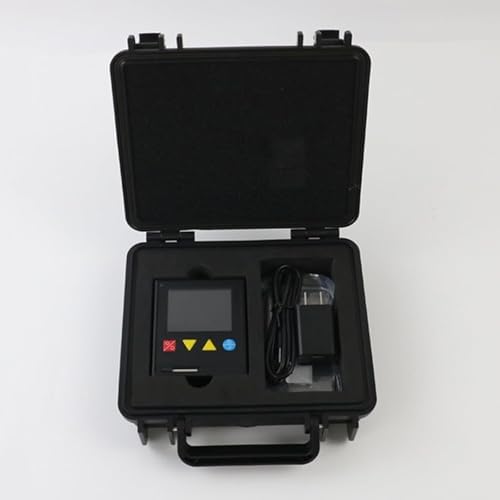

Package includes:
Surface Roughness Tester * 1

مرحبًا،

بحث

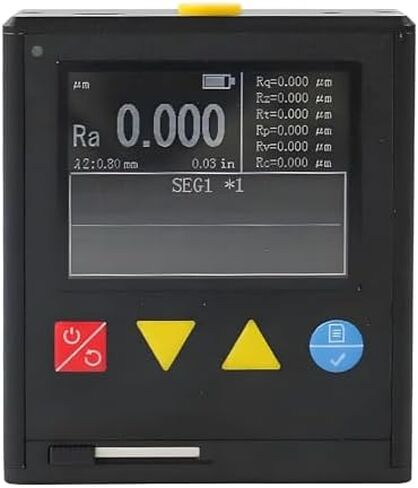

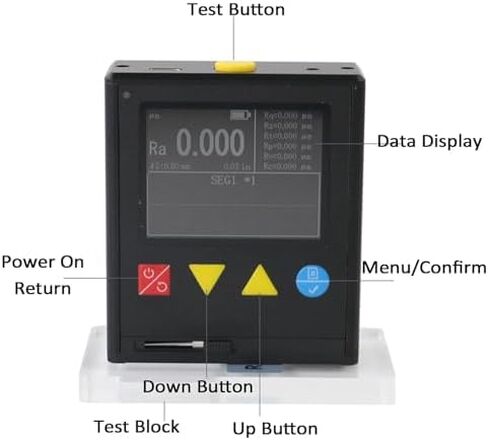

مقياس خشونة السطح، جهاز قياس خشونة السطح المحمول، مقياس السطح الرقمي، معلمات Ra/Rz/Rq/Rt/Rp/Rv/Rc، لقياس السطح
