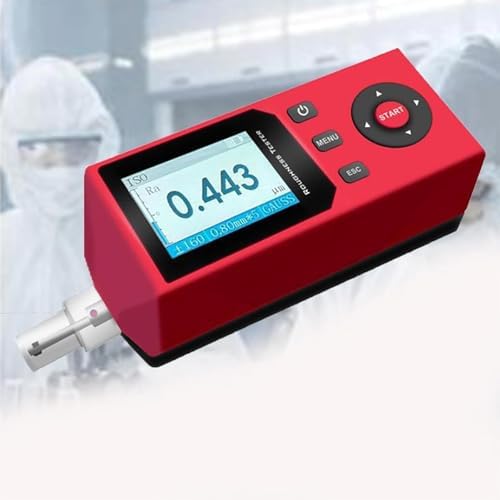

Handheld Surface Roughness Tester,Profilometer w/IPS Display, 14 Roughness Parameters, Measurement Range: 320μm, 500 Data Sets, for Machining

SAR 3,903
– 1 +

Special Features

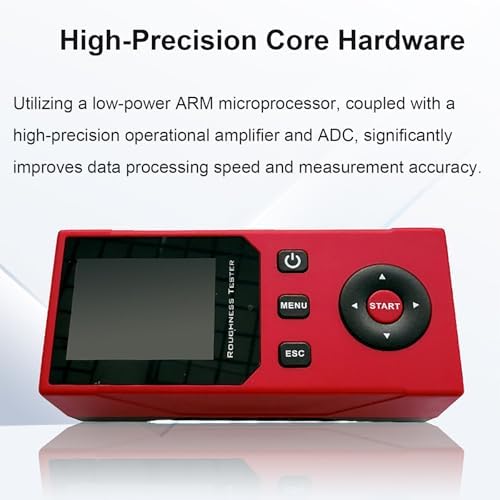

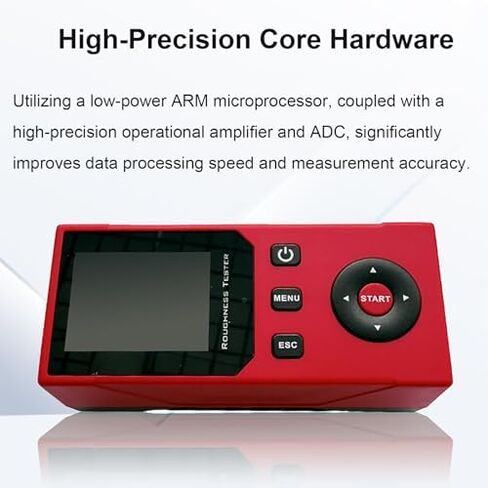

  • High-Precision Core Hardware: Equipped with a low-power ARM microprocessor, high-precision operational amplifier, and ADC, enhancing data processing speed and measurement accuracy for Surface Roughness Testers.
  • Protected Sensor and Stylus: Features a dedicated protection device that safeguards the stylus while ensuring consistent measurement reliability.
  • Wide Applications: Ideal for surface roughness inspection across various sectors, including Automotive Manufacturing, Machining, Metal Processing Equipment, Printing and Packaging, and Casting.

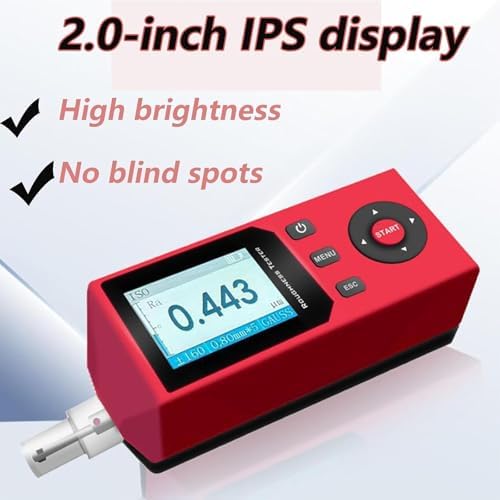

  • Roughness Tester: Utilizes a semi-open guide head to expand measurement range; the 2.0-inch IPS LCD screen provides high brightness and clear viewing angles, suitable for diverse applications.

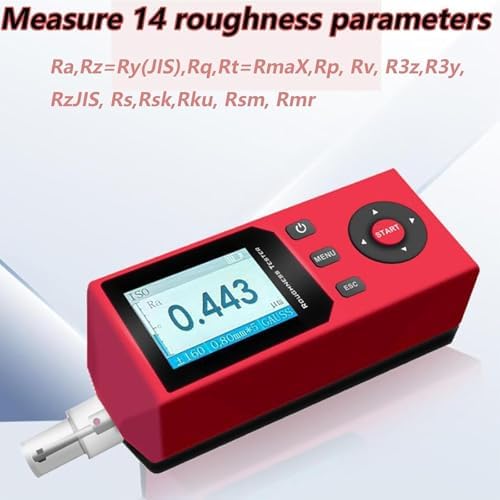

  • 14 Roughness Parameters: Capable of measuring 14 parameters including Ra, Rz=Ry (JIS), Rq, Rt=Rmax, and more, offering versatility for comprehensive surface analysis.

Description

Specifications:
Name: Portable Profilometer
Detection Principle: Inductive
Maximum Drive Stroke: ≤17.5mm
Measuring Range: 320μm
Measuring Range:
Ra, Rq: 0.005μm to 32μm
Rz, Ry, Rt, Rp, Rm: 0.02μm to 320μm
Rsm, Rs: 1mm
Rmr: 0 to 100%
Tip Radius: 5μm
Maximum Accuracy: 0.001μm
Tip Material: Natural Diamond
Measuring Force: ≤4mN
Pin Angle: 90°
Guide Head Longitudinal Radius: 45mm
Sampling Length: 0.25mm, 0.80mm, 2.50mm
Dimensions: 156x 55x 46.5mm
Instrument Weight: 398g

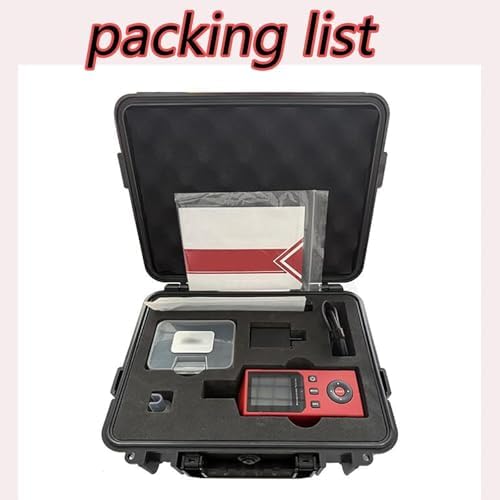

Packaging List: 1 x Surface Roughness Measuring Instrument
