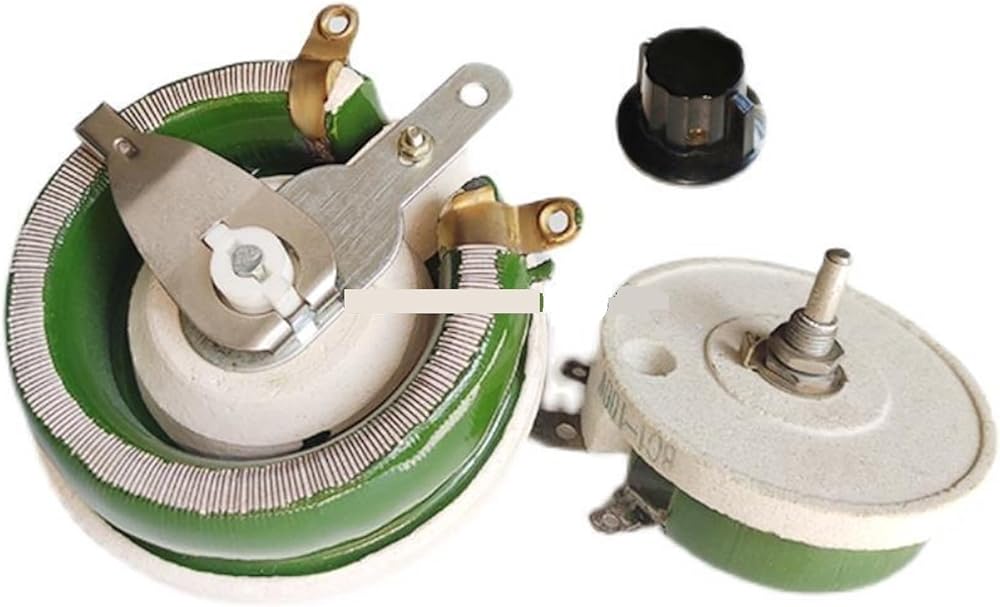

BC1 series rotary arm sliding suitable for porcelain rheostat in voltage does not exceed 500 volts of industrial electrical equipment voltage and current regulation and adjustment of DC voltage generator and DC motor speed adjustment. Sliding rheostat by Kang copper or nickel chromium wire as material resistance around the circular ceramic skeleton, resistance materials except the sliding contact surfaces are coated resistance to high temperature enamel paint and adhesive on the chassis of the ceramics, distribution center to a rotating shaft to drive the brush holder and brush to get change in resistance value. Opening and protection type rheostat to separate two kinds, namely the protection type rheostat with protective metal box shell, and with hand wheel adjustment.
Two, model meaning
* order rheostat resistance porcelain specifications such as breaking to put forward specific requirements
Three, the main technical parameters
BC1-25W, 50W, 100W, 150W technical parameters and appearance and installation dimensions
Product model
Rated power
W
Resistance value
Maximum temperature rise
C
Outline and installation dimensions
minimum
maximum
A
B
F
BC1-25W
25
5
3000
300
BC1-50W
50
5
3000
300
BC1-100W
100
5
3000
350
BC1-150W
150
3.8
3000
350
BC1-50/2, 100/2, 150/2 technical parameters and appearance and installation dimensions
Product model
Rated power
W
Resistance value
Maximum temperature rise
C
Outline and installation dimensions
minimum
maximum
A
B
F
BC1-50/2W
100
5
3000
300
BC1-1
