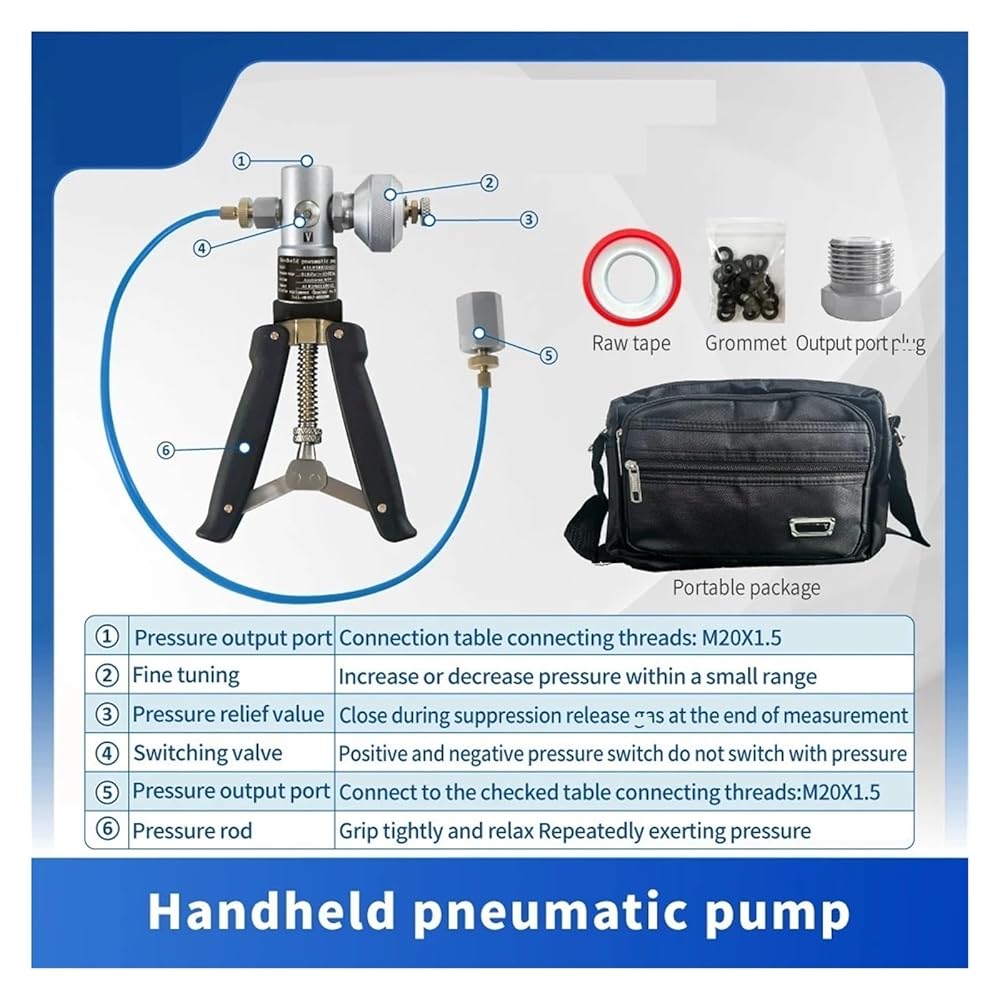

Pressure Outlet
Connecting Table
Connecting threads:
M20X1.5
Slim Fit
Increases or decreases pressure
dentro de um pequeno intervalo
Switch Valve
Positive and negative
pressure switch
Do not switch with
pressão
Pressure Relief Value
The pressure is
Closed at end of
Measurement & Gases
is launched
Snap Rod
Hold firmly and relax repeatedly
exercendo pressão
Pressure Outlet Door
Connect to checkered table
Connecting threads:
M20X1.5

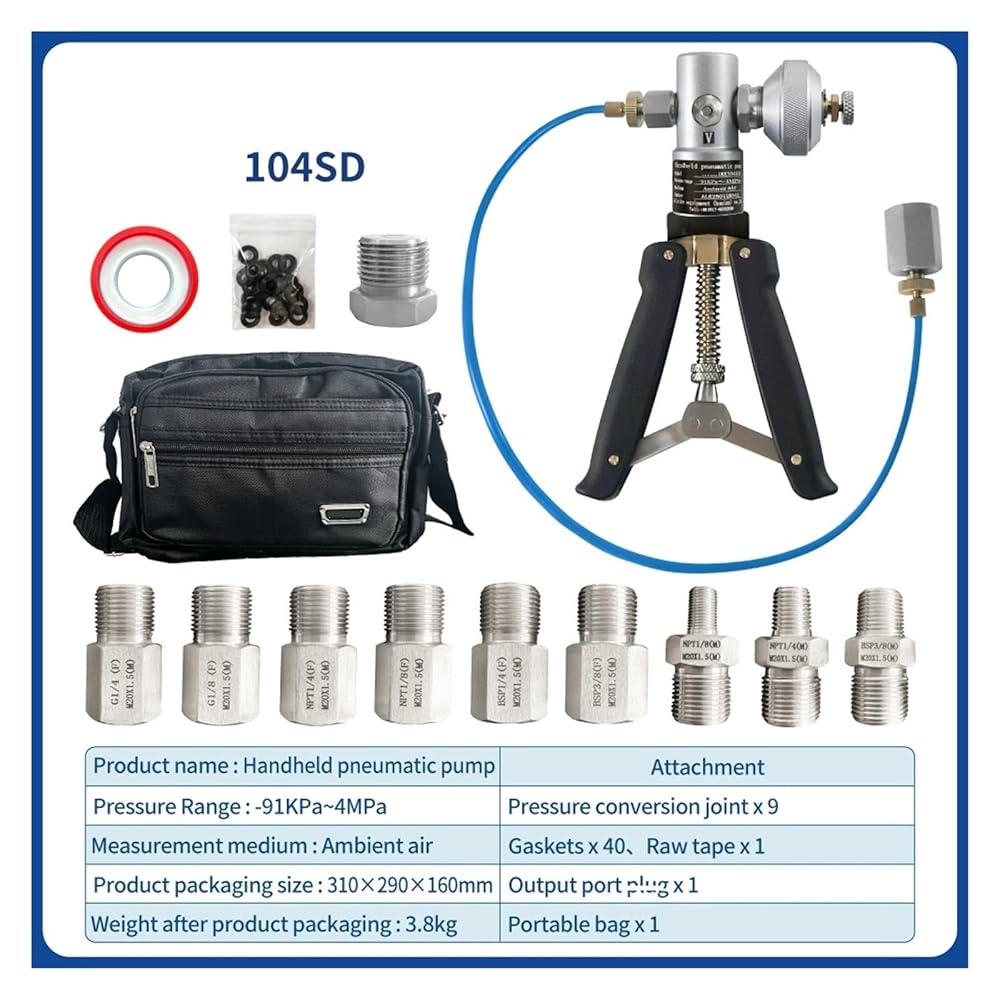

Product Name

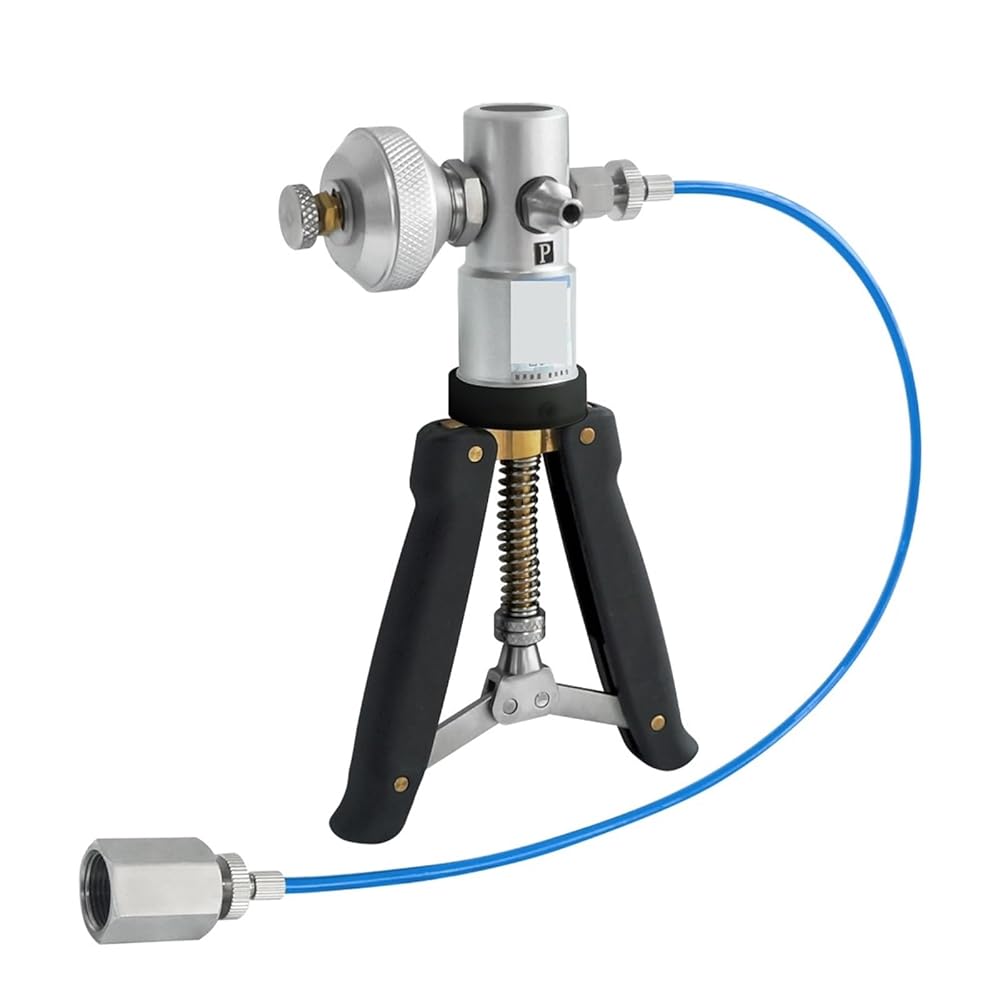

Portable Air Pump
Style
104SD
Measuring Range
-91KPa~4MPa
Environmental conditions
Lab or Field
Pressure Shape
Hand movement
Basic Thread
M20×1.5
Applicable Medium
Ambient Air
Net Weight
Approximately 0.8kg

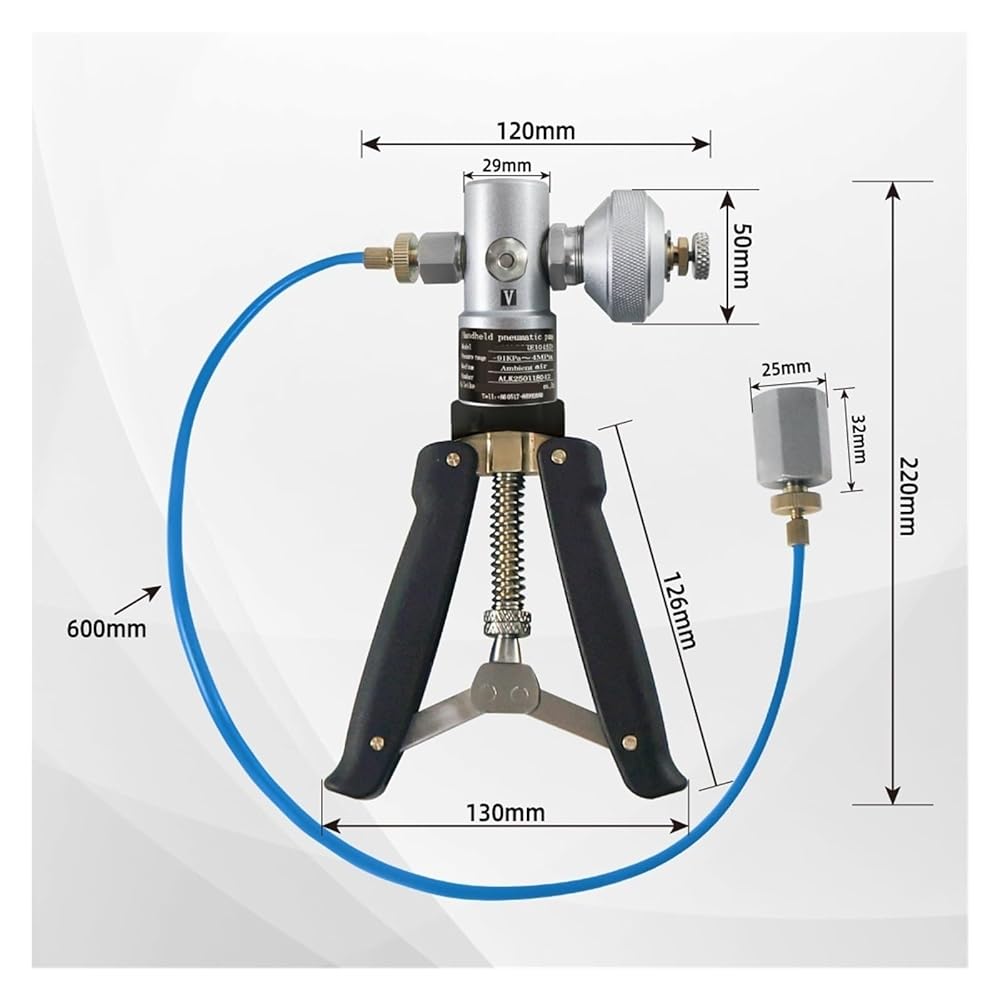

Size:
220×130×50mm
Weight after packing the product
Approximately 8.8kg
Product Packaging Size
310×290×160mm

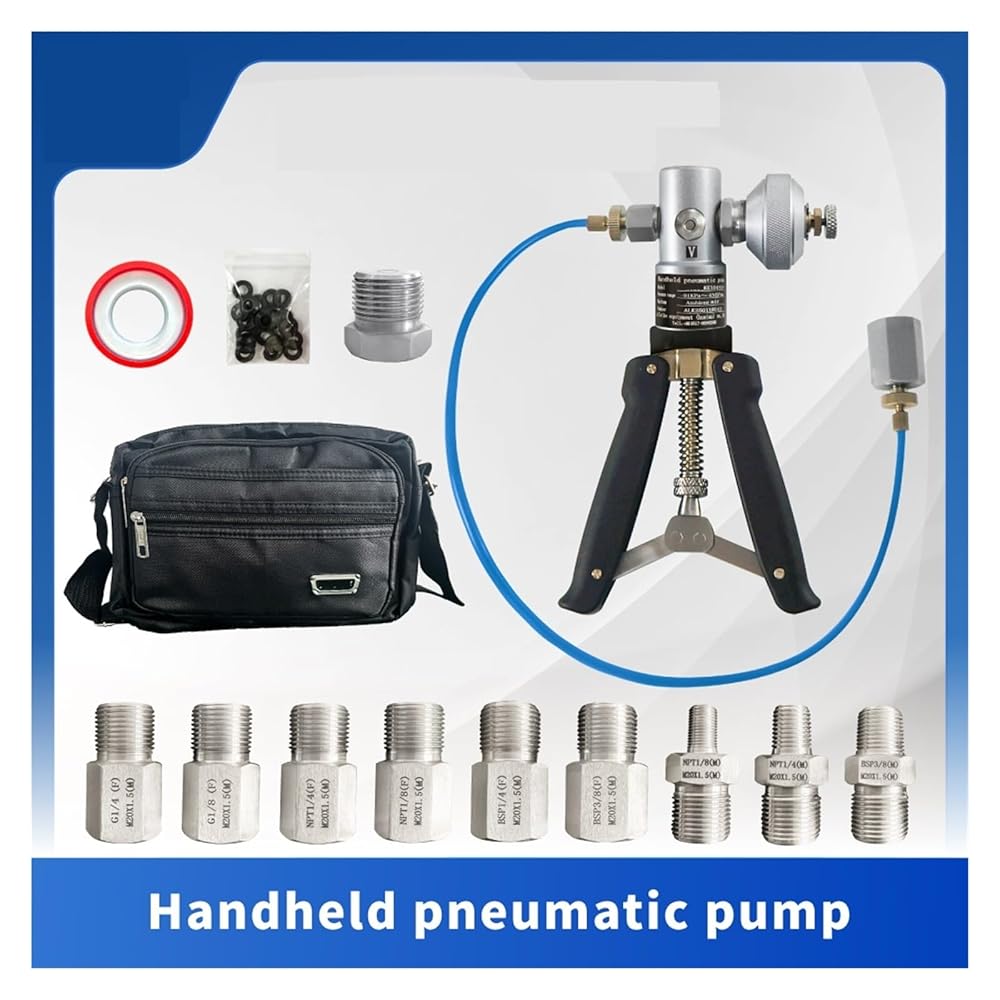

Product Pattern
configuration
Outlet Jack x 1 Piece
Portable Bag x 1 Piece
Gaskets x 40pcs
PTFE sealing tape x 1pcs
Pressure Conversion Joint x 9pcs

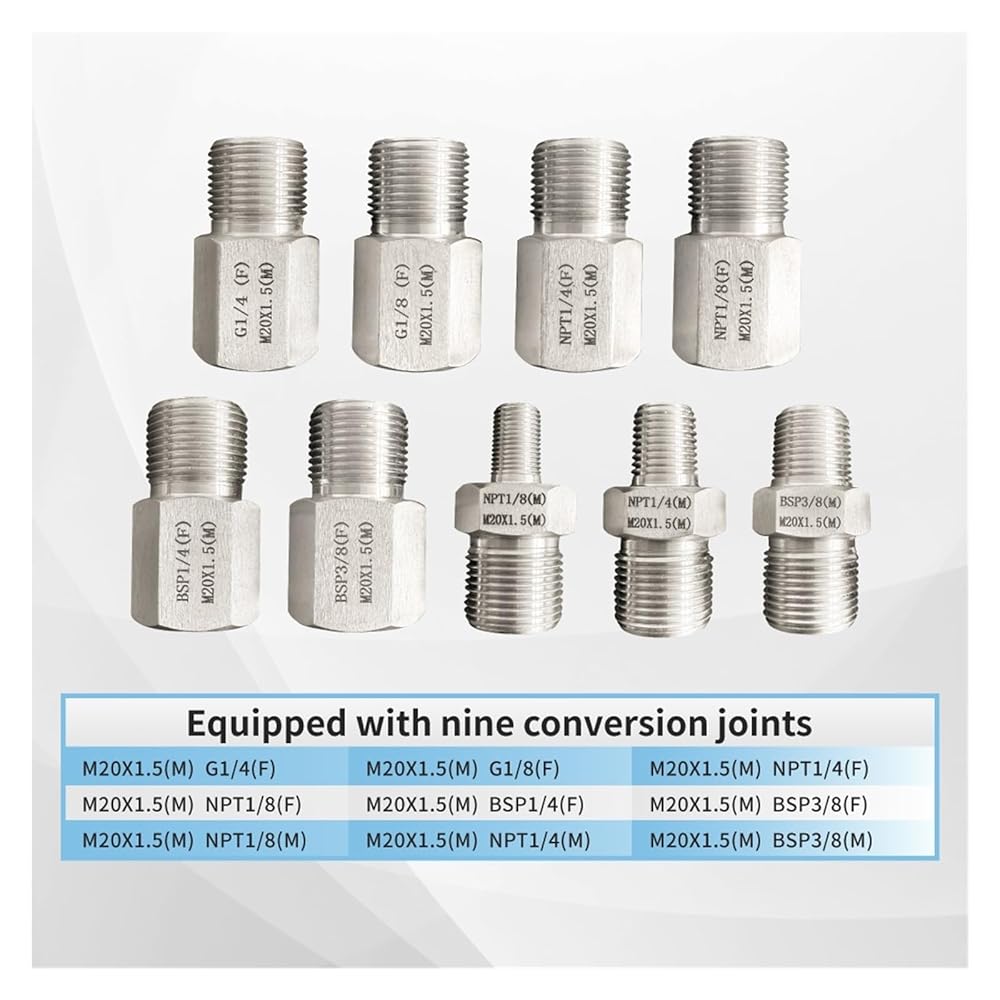

Equipped with nine conversion joints
M20X1.5(M) G1/4(F)
1 Piece
M20X1.5(M) G1/8(F)
1 Piece
M20X1.5(M) NPT1/4(F)
1 Piece
M20X1.5(M) NPT1/8(F)
1 Piece
M20X1.5(M) BSP1/4(F)
1 Piece
M20X1.5(M) BSP3/8(F)
1 Piece
M20X1.5(M) NPT1/8(M)
1 Piece
M20X1.5(M) NPT1/4(M)
1 Piece
M20X1.5(M) BSP3/8(M)
1 Piece
==========
Model Number:104SD
Origin: Mainland China
