ON/OFFOne Click On/Off
Keympa Drive Switch, kpa, mmHgpsi, Bar, kgf/cm2
H1 Peak Value: Display Peak Value L0: Displayvalley Value
Backlight, Backlight, After pressing the button

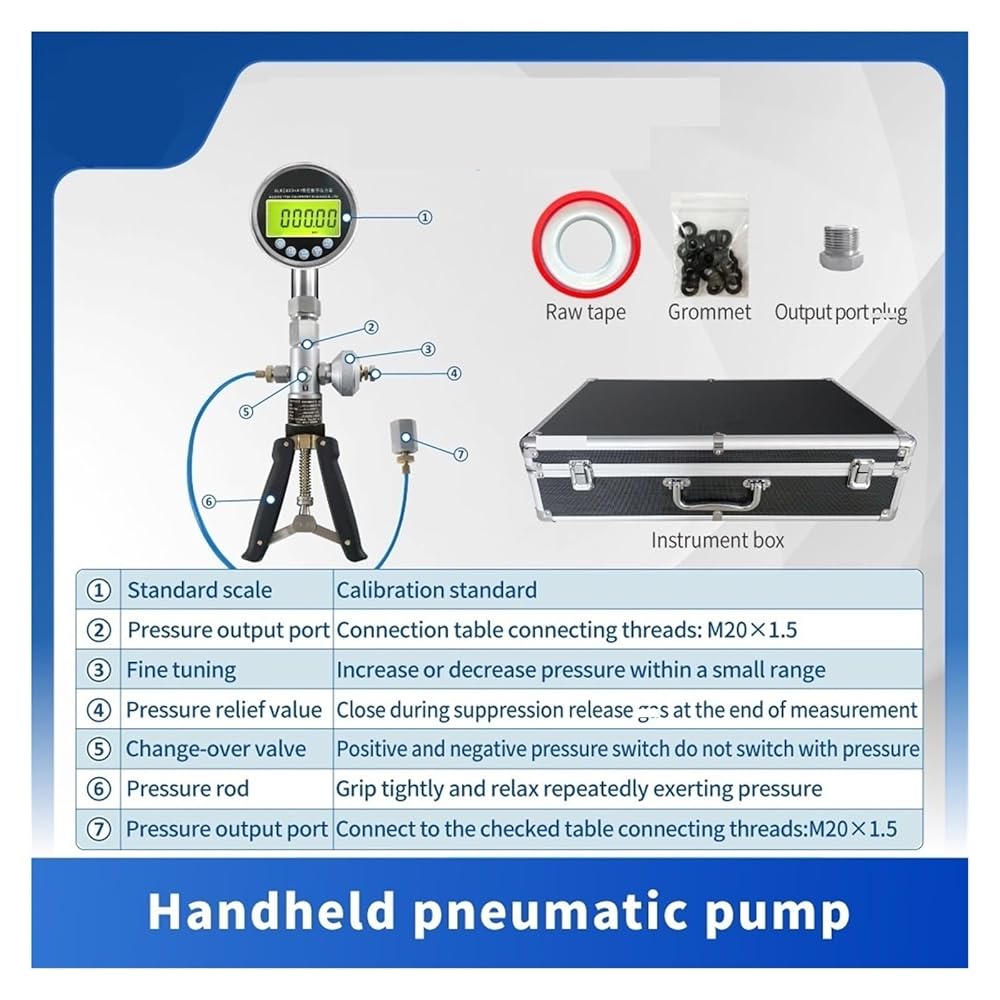

Pressure relief valveClose during suppressionAt end of maintenanceRelease gases
Pressure Outlet Port Standard Connection Table
Slim fit Increase within a small range or reduce pressure
Positive and negative switching valve
voltage switching
Do not alternate under pressure
Pressure rodsHold firmly and relax Carry out repeatedlyGenerating pressure
Pressure outlet port Connect to checked table Connection threads: M20X1.5
Product Name

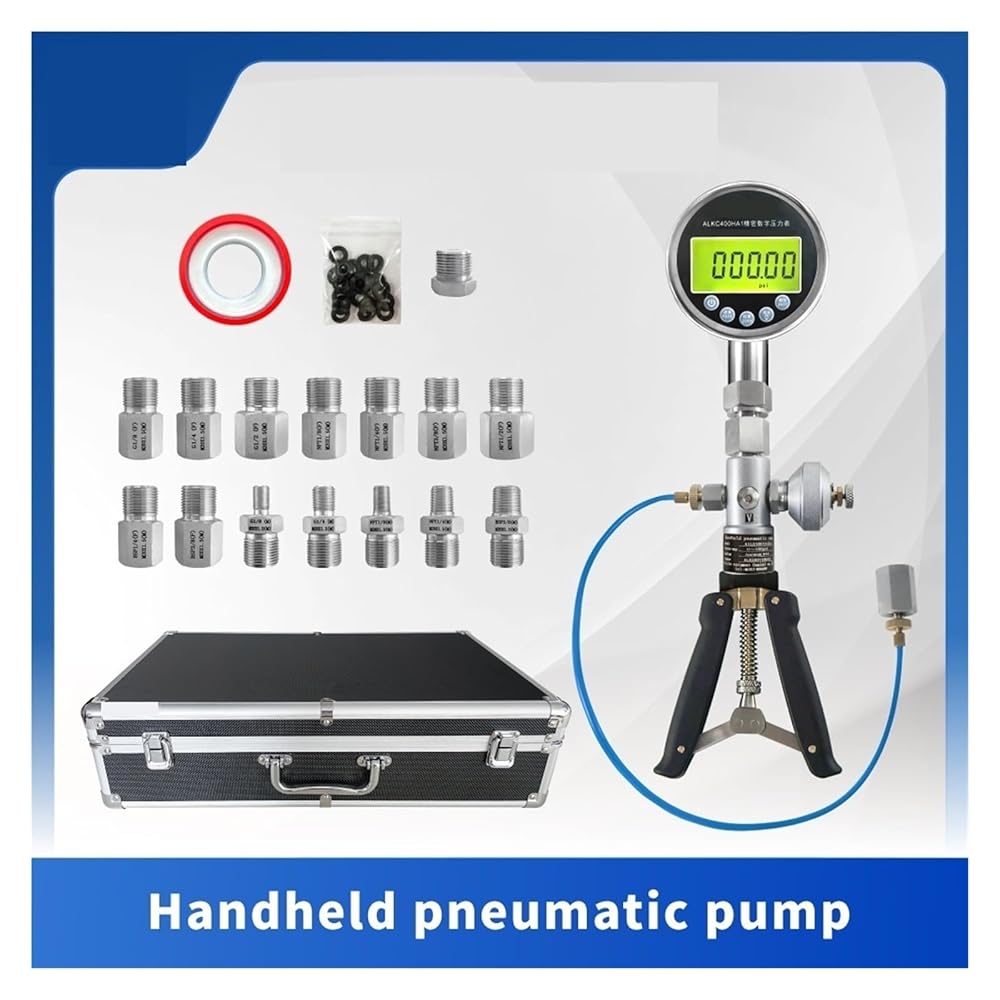

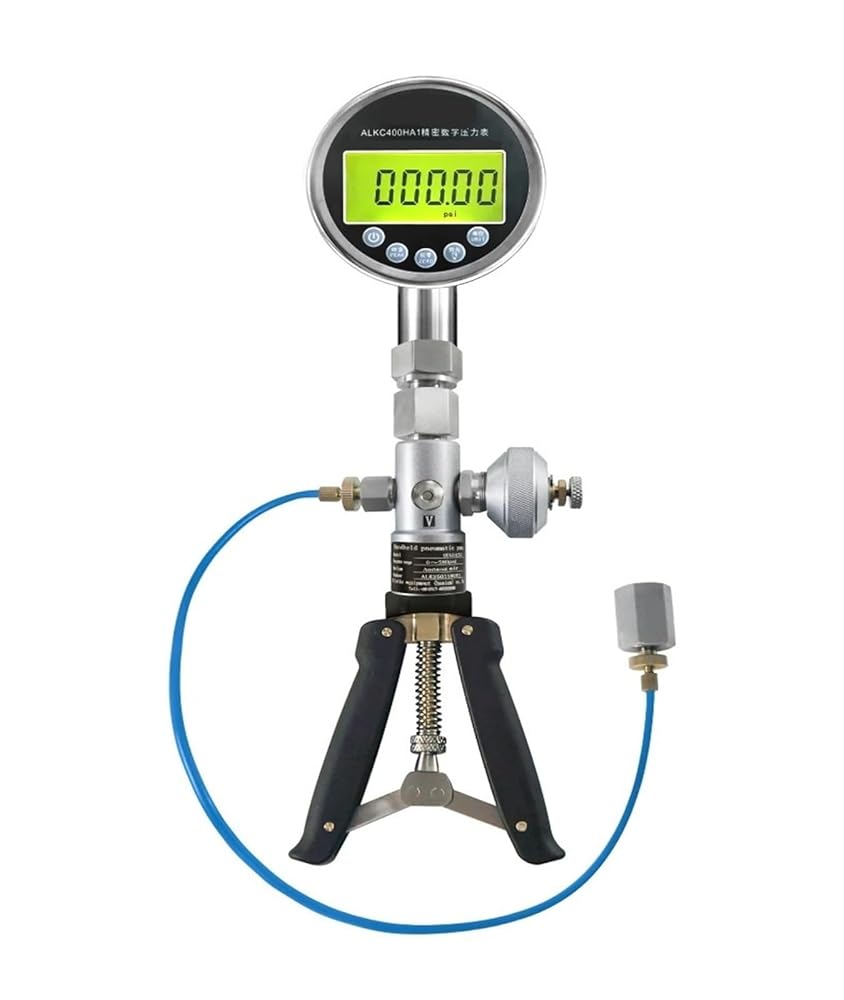

Portable air pressure pump (including pressure gauge and connector)
Style

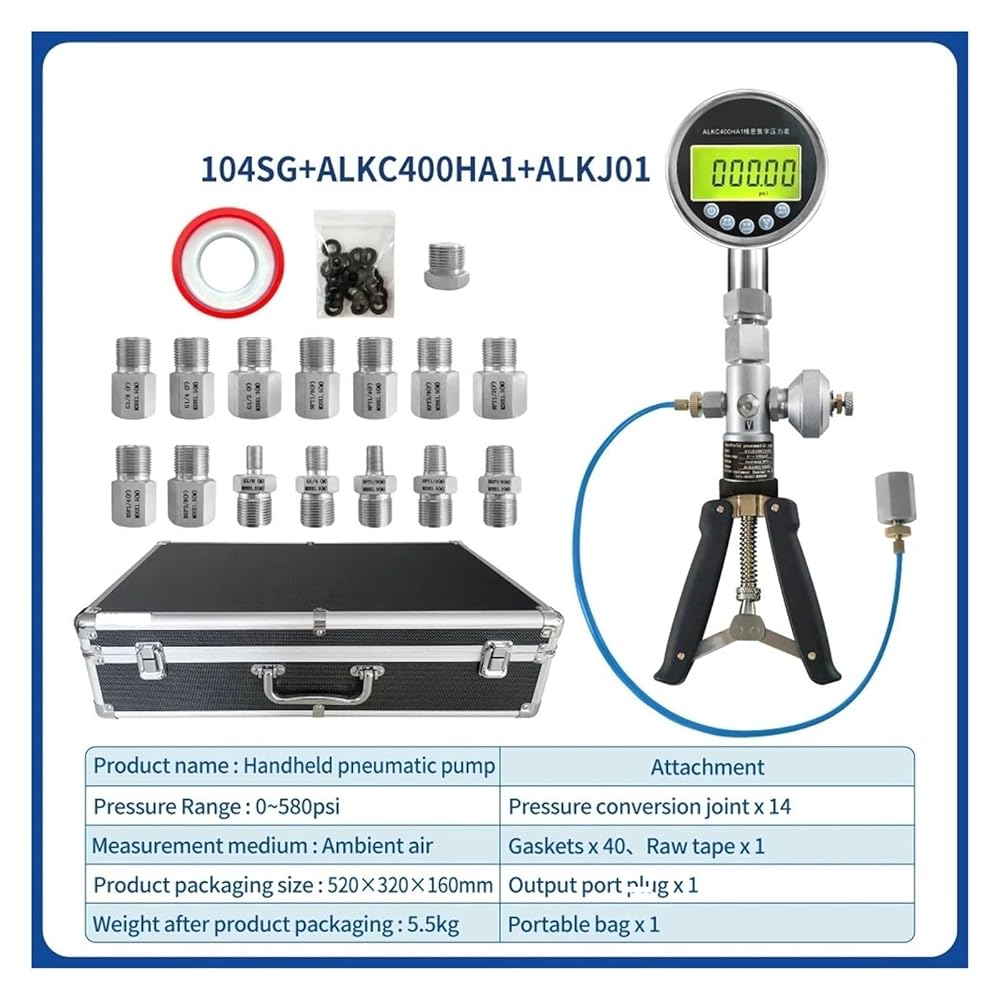

104SGALKC400HA1+ALKJ01
Measuring Range
0-580psi
Environmental conditions
Lab or Field
Pressure Shape
Hand movement
Basic Thread
M20×1.5
Applicable Medium
Ambient Air
Display
5-digit screen
DC Working Time
40 hours
Precision
0.1% FS
Overload Capacity
1.2 times the upper range limit
Power Supply
(ER14505 3.6V)
Net Weight
Approximately 1.5kg

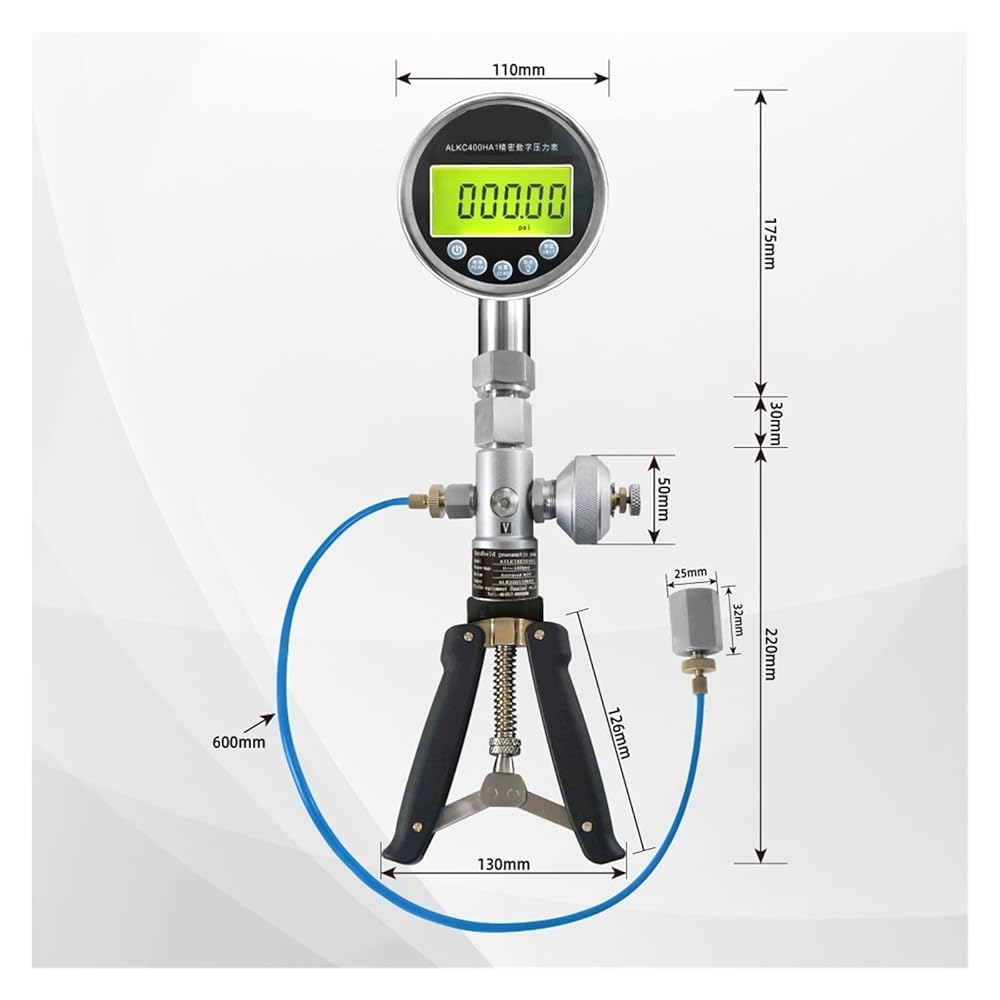

Size:
425×130×50mm
Weight after packing the product
Approximately 12 lbs
Product Packaging Size
520×320×160mm
Product Pattern
configuration
Outlet Jack x 1 Piece
Instrument Box x 1 Piece
Gaskets x 40pcs
PTFE sealing tape x 1pcs
Pressure Conversion Joint x 14pcs

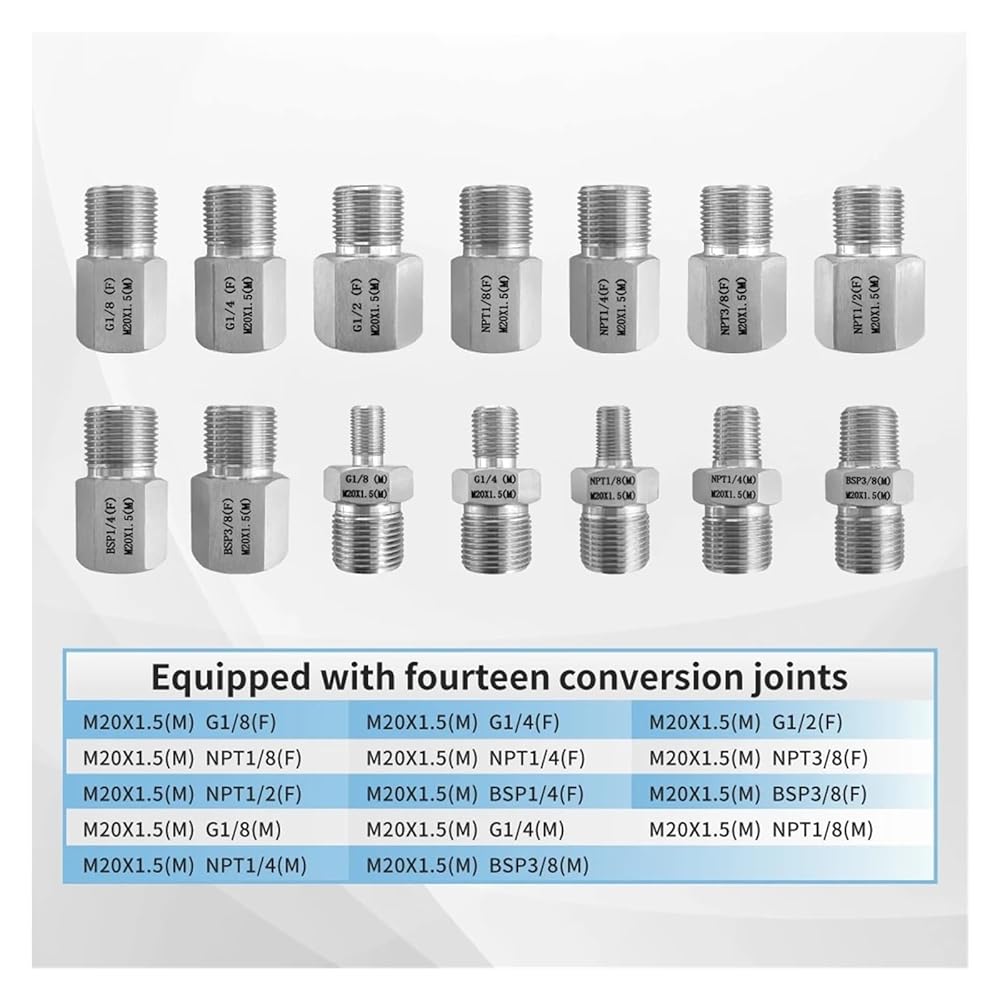

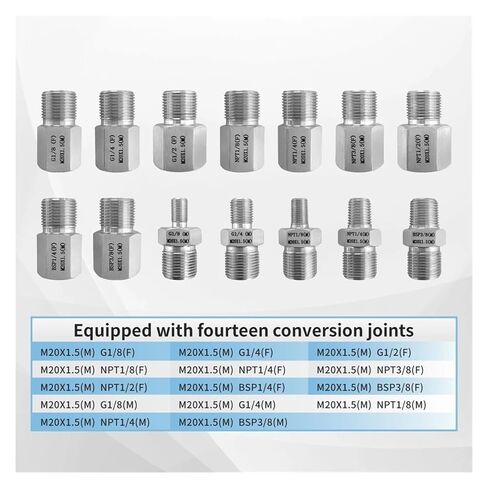

Equipped with fourteen conversion joints
M20X1.5(M) G1/8(F)
1 Piece
M20X1.5(M) G1/4(F)
1 Piece
M20X1.5(M) G1/2(F)
1 Piece
M20X1.5(M) NPT1/8(F)
1 Piece
M20X1.5(M) NPT3/8(F)
1 Piece
M20X1.5(M) NPT1/4(F)
1 Piece
M20X1.5(M) NPT1/2(F)
1 Piece
M20X1.5(M) BSP1/4(F)
1 Piece
M20X1.5(M) BSP3/8(F)
1 Piece
M20X1.5(M) L1/8(M)
1 Piece
M20X1.5(M) L1/4(M)
1 Piece
M20X1.5(M) NPT1/8(M)
