1 2 3 4 5 6 7 8 9 10
11 UK
ON/OFF
On/Off
Drive Change Key
mpa, kPa, mmHg
psi, bar, kgf/cm2
Maximum value
H1:Display
peak value
L0:Screen
valley value
Illuminate from the background
Backlight on
after pressing
the button
Zero Calibration
No pressure
conditions

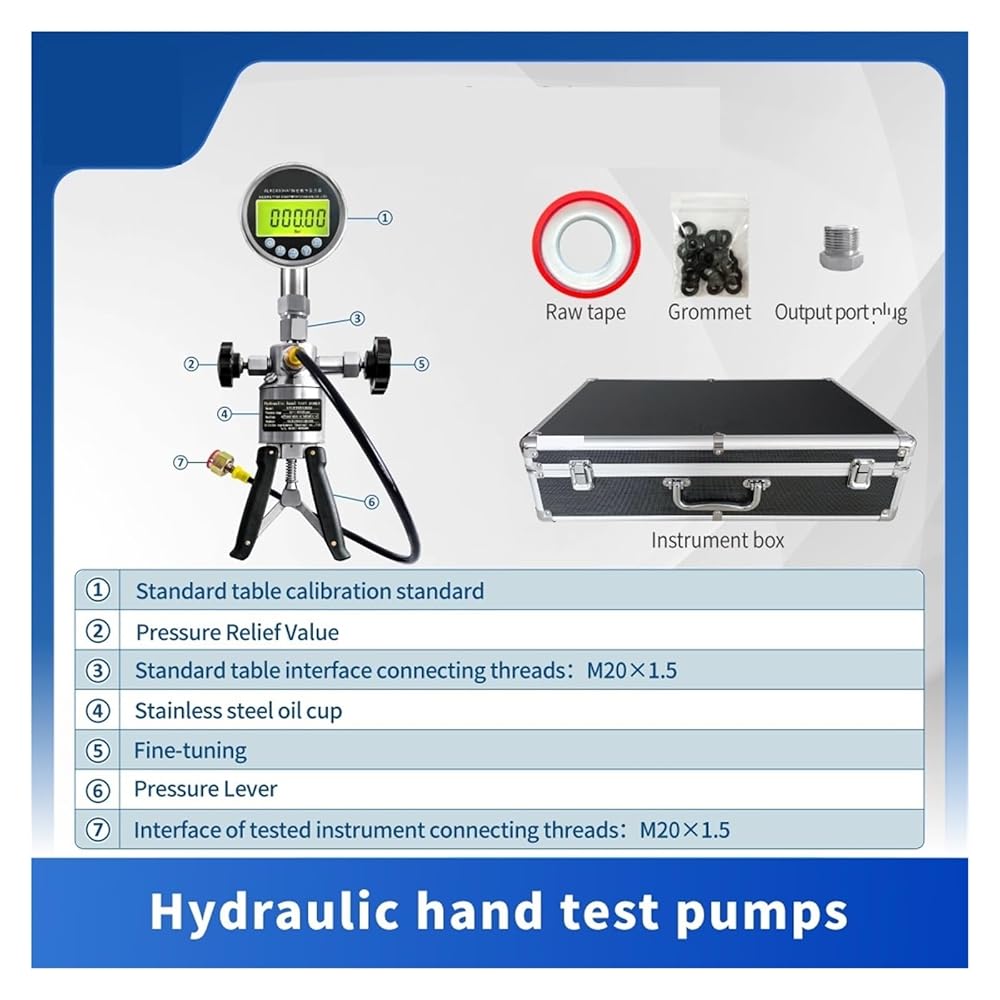

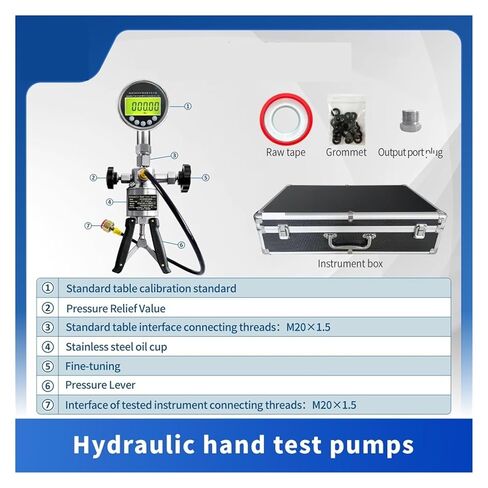

Standard table
interface
Connecting threads:
M20X1.5
pressure
Relief value
Stainless Steel
oil cup
FINE Tuning
Interface
tested instrument
Connecting threads:
M20X1.5
pressure
Lever
Product Name

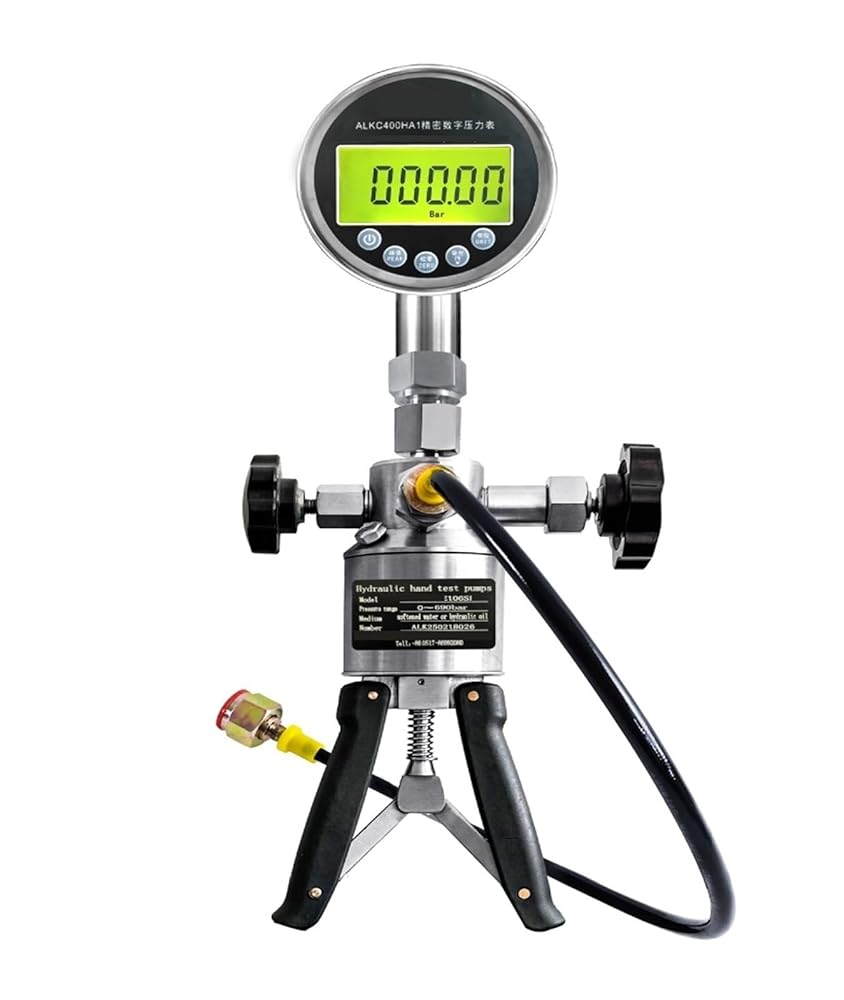

Manual hydraulic test pumps (includes pressure gauge and connector)
Model
106SI+ALKC400HA1+ALKJ01
Measuring Range
0~690 bar
Environmental conditions
Laboratory or field
Pressure Path
Hand movement
thread
M20 × 1.5
Applicable medium
Softened water or hydraulic oil
Show
5-digit display
DC Working Time
40 hours
Accuracy
0.1% FS
Overload Capacity
1.2 times the upper limit of the range
Power Supply
(ER14505 3.6V)
Net weight
Approximately 4.6 kg

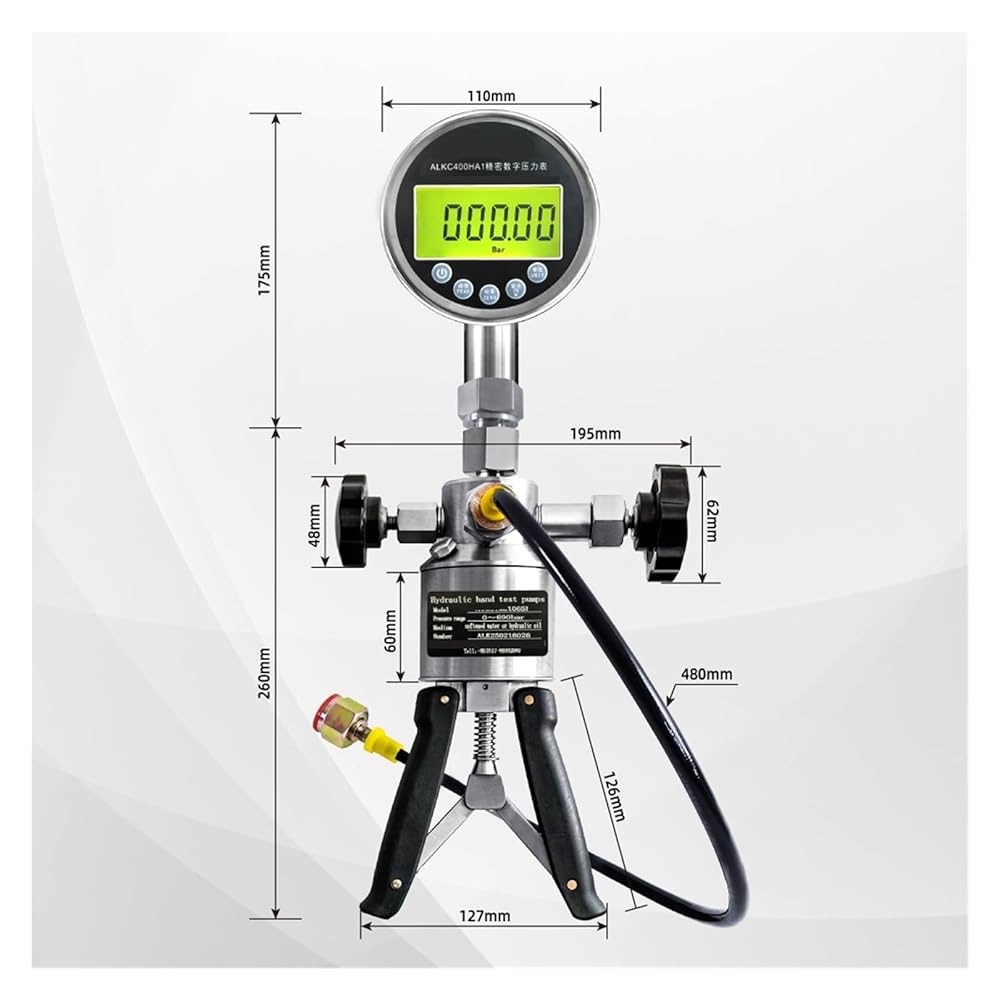

Size:
435×195×85mm
Product Weight
About 7.5kg (the packing material is a carton box)
Weight after product packaging
520×320×160mm

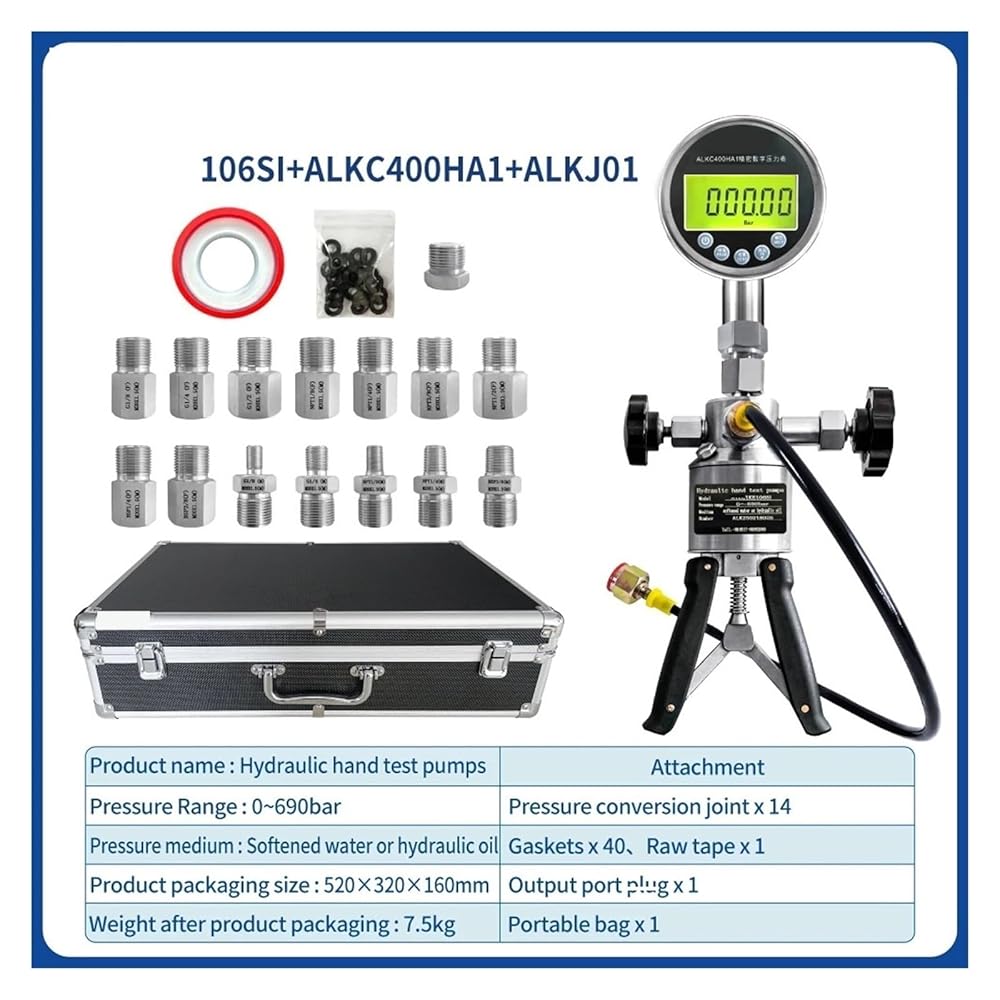

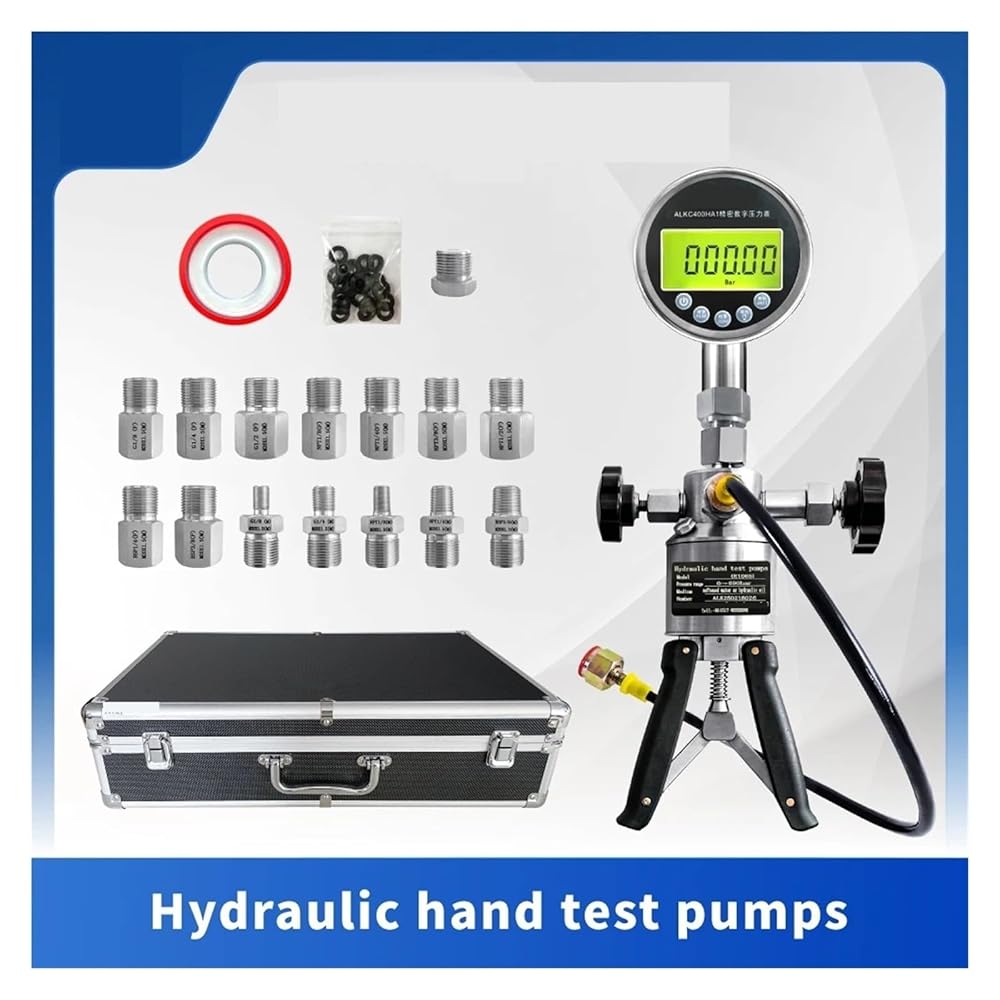

Standard Product Configuration
Output port connector x 1 piece
Instrument box x 1 piece
Gaskets x 40 pieces
PTFE sealing tape x 1 piece
Pressure Conversion Gasket x 14pcs

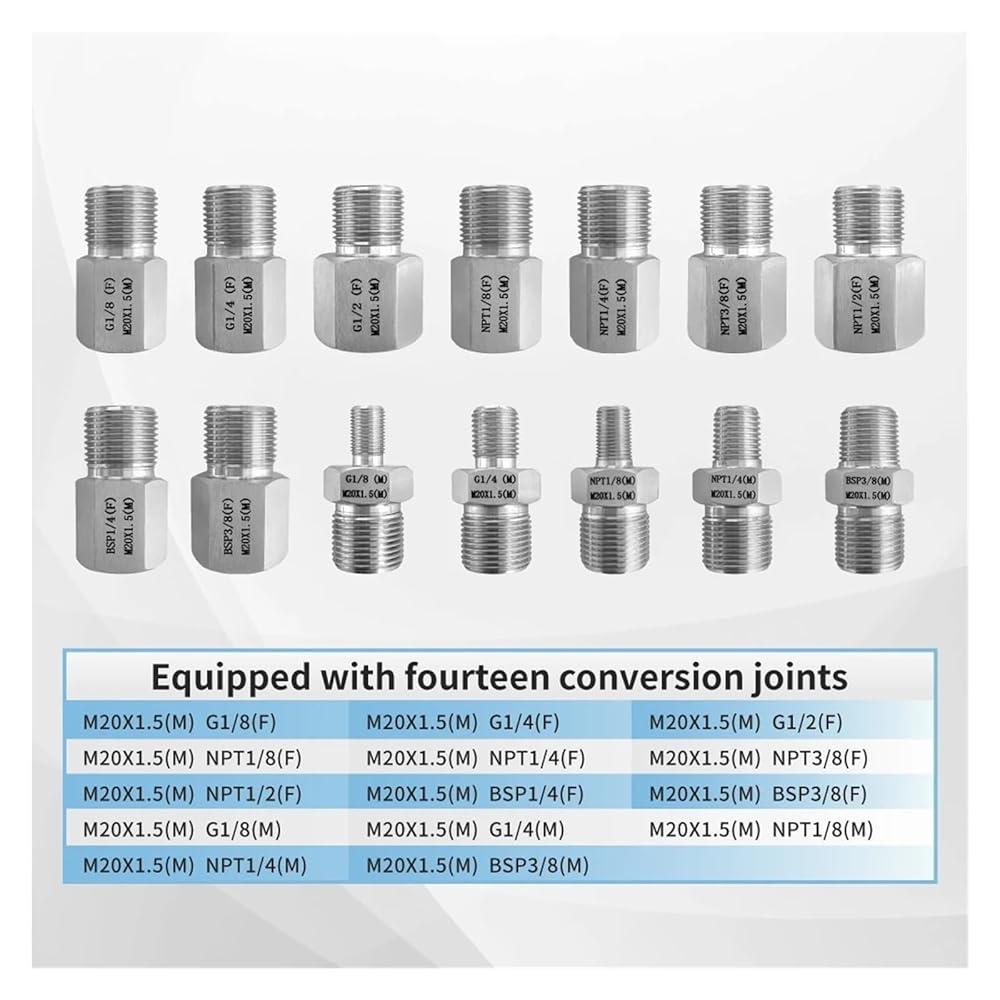

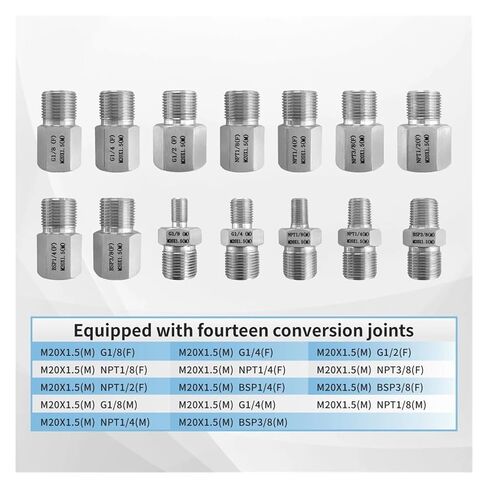

Equipped with fourteen conversion joints.
m20x1.5(m) g1/8(h)
1 piece
m20x1.5(m) g1/4(h)
1 piece
m20x1.5(m) g1/2(h)
1 piece
M20X1.5(M) NPT1/8(H)
1 piece
M20X1.5(M) NPT3/8(H)
1 piece
M20X1.5(M) NPT1/4(H)
1 piece
M20X1.5(M) NPT1/2(H)
1 piece
m20x1.5(m) bsp1/4(h)
1 piece
